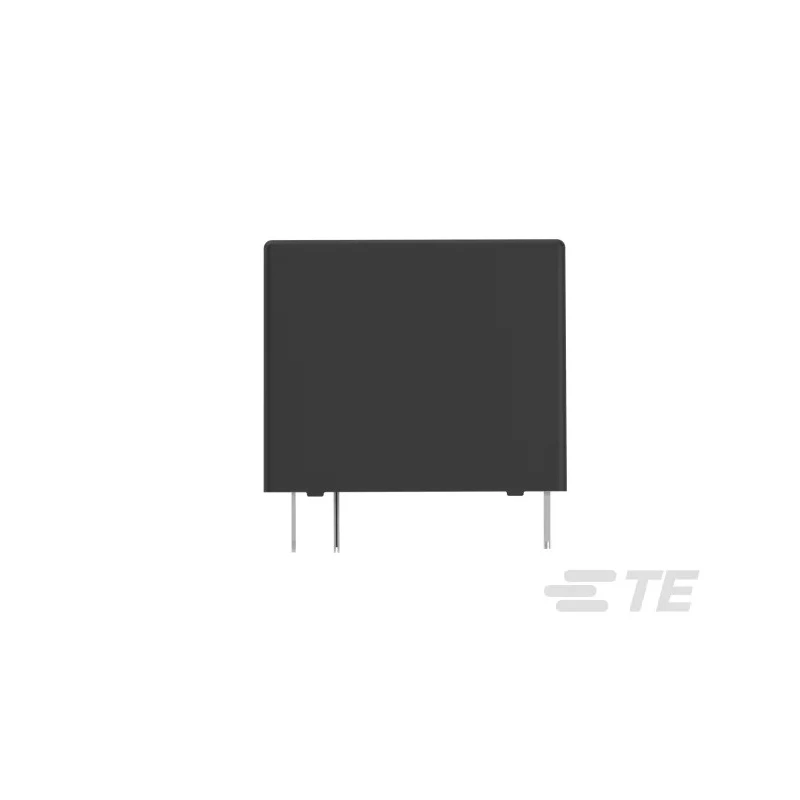

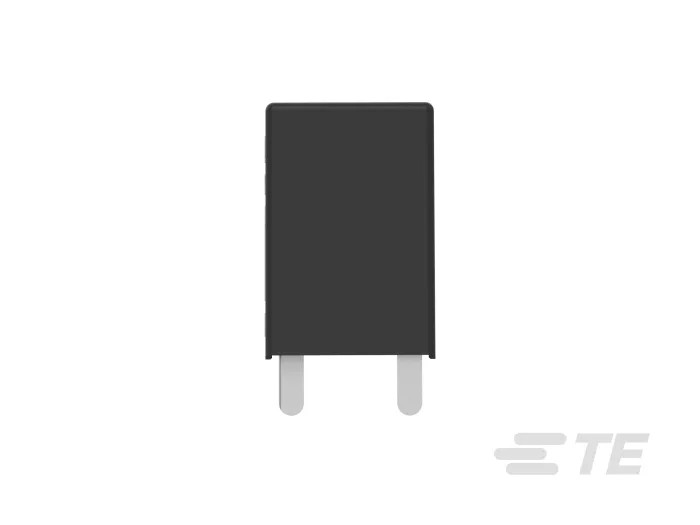

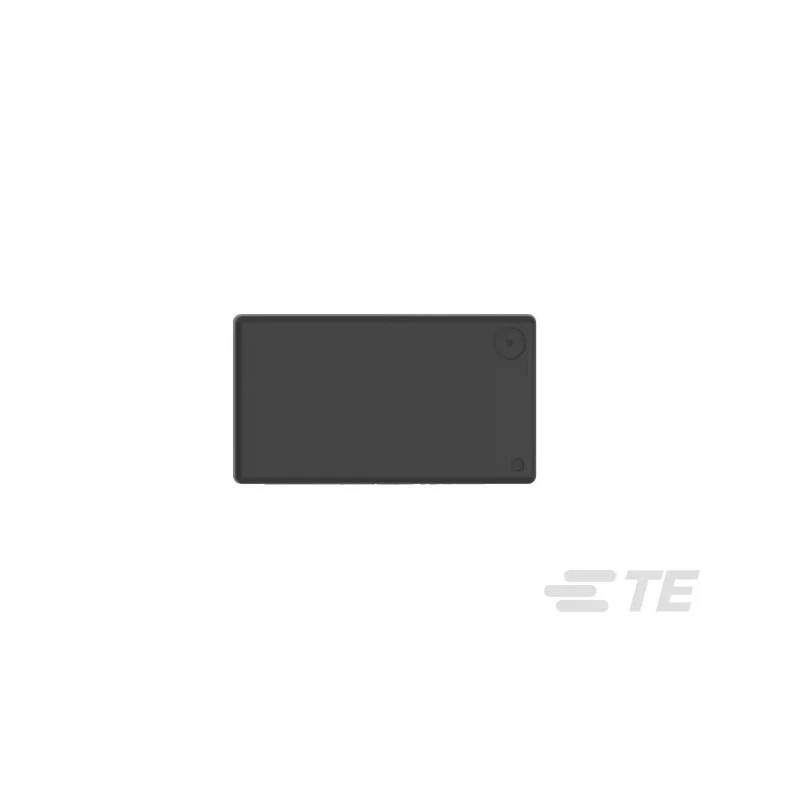

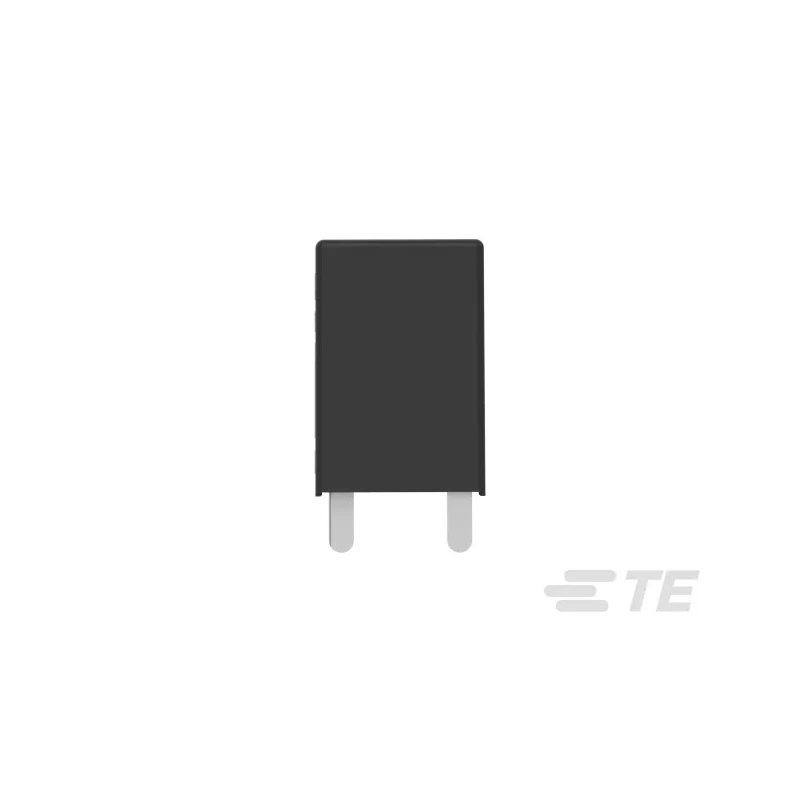

TE Connectivity PCB Relay with 24V dc Coil, 10A Switching Current, SPST Contact Configuration, OJS Series, Silver 2071556-8

TE Connectivity 2071556-8 PCB Relay is a precision electrical relay designed for high performance and reliable switching applications with a coil voltage of 24V dc and switching current of 10A. This single-pole single-throw (SPST) relay in the OJS series is built to meet demanding industrial and commercial needs, featuring a compact form factor of 18.2mm by 10.2mm by 14.8mm making it suitable for PCB mounting and integration into control panels.

The relay utilizes Silver Tin Oxide contacts which provide excellent conductivity and long service life. It offers efficient operation with coil power consumption of only 200mW and coil resistance of 2.9kΩ, making it suitable for energy-sensitive applications. The relay operates reliably within a broad temperature range from -30°C to 85°C and can switch AC voltages up to 250V AC with a switching power rating of 450mW.

This TE Connectivity PCB relay complies with crucial international standards including RoHS, REACH, and IEC 62368-1, ensuring safety and environmental compliance essential for industrial automation and control systems.

Common applications include robotics, production line automation, CNC machinery, building automation including lighting and solar power systems, elevators, HVAC controls, and safety-critical electrical control tasks where precise and dependable relay operation is required.

Low coil power consumption at 200mW enables energy-efficient operation. Compact dimensions of 18.2mm length, 10.2mm width, and 14.8mm height for space-saving designs. Silver Tin Oxide contact material ensures high conductivity and durability.

Wide operating temperature range from -30°C to 85°C for versatile applications. High switching AC voltage rating up to 250V AC and switching power of 450mW. Compliant with RoHS, REACH and IEC 62368-1 standards ensuring environmental and safety compliance.

Coil resistance of 2.9kΩ supports sensitive coil operation suitable for control circuits. Ideal for applications in robotics, CNC machines, lighting, building systems, solar and HVAC.

This relay offers a high dielectric strength of 4000Vrms between coil and contact, enhancing safety and insulation reliability in electrical circuits. Its small size enables easy integration on crowded PCBs within compact electronic and electrical modules.

Choose TE Connectivity 2071556-8 for your power relay needs to ensure dependable switching performance in industrial, laboratory, commercial, and automation applications. Browse EnvMart for similar relays and electrical components to complete your control and power system projects.
