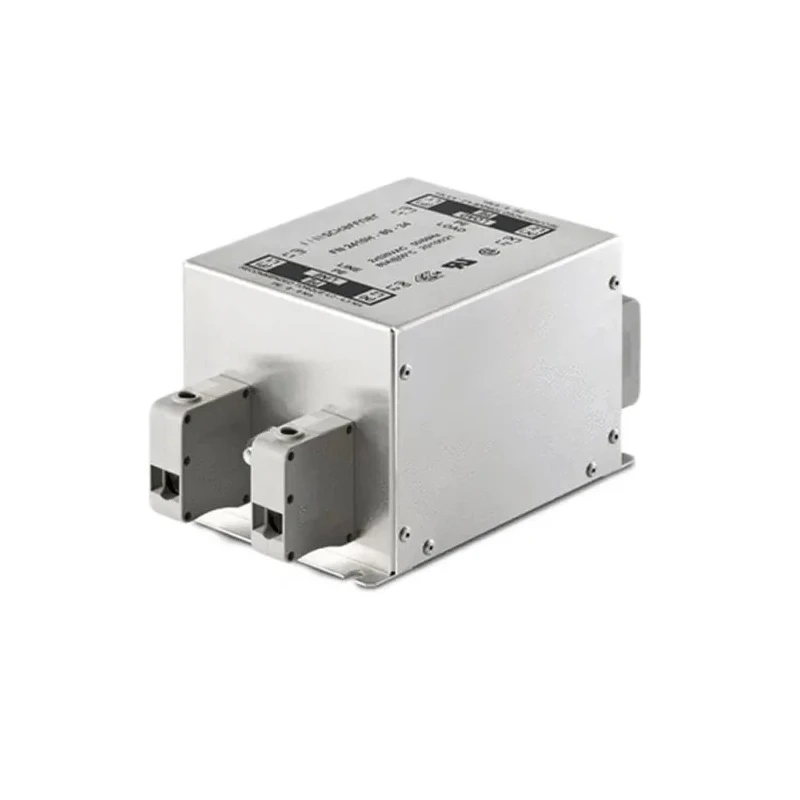

Schaffner FN2412 8A 250V AC 400Hz DIN Rail EMC Filter Terminal Block 1 Phase

Free Delivery in India | Lowest Global Shipping Charges

Schaffner FN2412 8A 250V AC 400Hz DIN Rail EMC Filter Terminal Block 1 Phase

Name: Schaffner FN2412 8A 250V AC 400Hz DIN Rail EMC Filter Terminal Block 1 Phase
Brand: Schaffner
SKU: 338420
Price: 130.1 USD
Availability: InStock



Category Terminal Block Brand Schaffner Condition New

Specifications

Country of Origin	India
Brand	Schaffner
Height	73mm
Length	154mm
Model	FN2412
Depth	93mm
Mount Type	DIN Rail
Operating Frequency	400Hz
Series	FN2412
Maximum Operating Temperature	100°C
Number Of Stages	1
Capacitance	4.7μF
Minimum Operating Temperature	-25°C
Maximum Current	8A
Number of Phases	1
Leakage Current	3.4mA
Maximum Voltage	250V ac
Termination Style	Terminal Block
Power Loss	2.6W

Key Features

Designed for single-phase operation with high saturation resistance chokes.
Supports maximum current of 8A and operating voltage of 250V AC.
Mounts easily on TS 35 DIN rails with industrial grade terminal blocks.
Operates efficiently up to 100°C ambient temperature.
Provides exceptional attenuation performance at 400Hz frequency.
Compact dimensions measuring 154mm length, 73mm height, and 93mm depth.
Leakage current is maintained at low 3.4mA for safety compliance.
Power loss is minimal at 2.6W ensuring energy efficient filtering.

Product Description

Schaffner FN2412-8-44 is a high-performance single-phase DIN Rail EMC filter designed for robust industrial and electronic applications. With a maximum current rating of 8A and maximum voltage of 250V AC operating at 400Hz, this filter effectively mitigates electromagnetic interference in diverse environments.

Constructed with chokes that exhibit excellent saturation resistance and thermal behavior, the FN2412 series ensures filter performance remains stable even in highly noisy conditions and under full load. Its industrial grade terminal blocks and snap-in installation on TS 35 DIN rails facilitate fast and safe mounting.

The filter features a capacitance of 4.7μF, leakage current of 3.4mA, and power loss of only 2.6W. It is rated to operate within a temperature range of -25°C to 100°C. The compact footprint of 154mm length, 73mm height, and 93mm depth fits well in controlled industrial panel environments.

Common use cases include EMI attenuation in single-phase variable speed motor drives, inverters, converters, and industrial machinery. The product complies with EN 133 200 standards, ensuring adherence to international quality and safety benchmarks.

Exceptional attenuation performance for high interference applications. Reliable operation at elevated temperatures up to 100°C. Industrial-grade mounting and electrical safety with Terminal Block connections. Compact and convenient DIN Rail snap-in form factor.

Minimal power loss and leakage current for energy efficiency. Compliance with EN standard 133 200 for assured quality.

Schaffner is a trusted brand in electronic component solutions, and the FN2412-8-44 EMC filter is a reliable choice for demanding industrial and commercial EMI suppression. Explore more precision components and filters on EnvMart to enhance your industrial setups.
