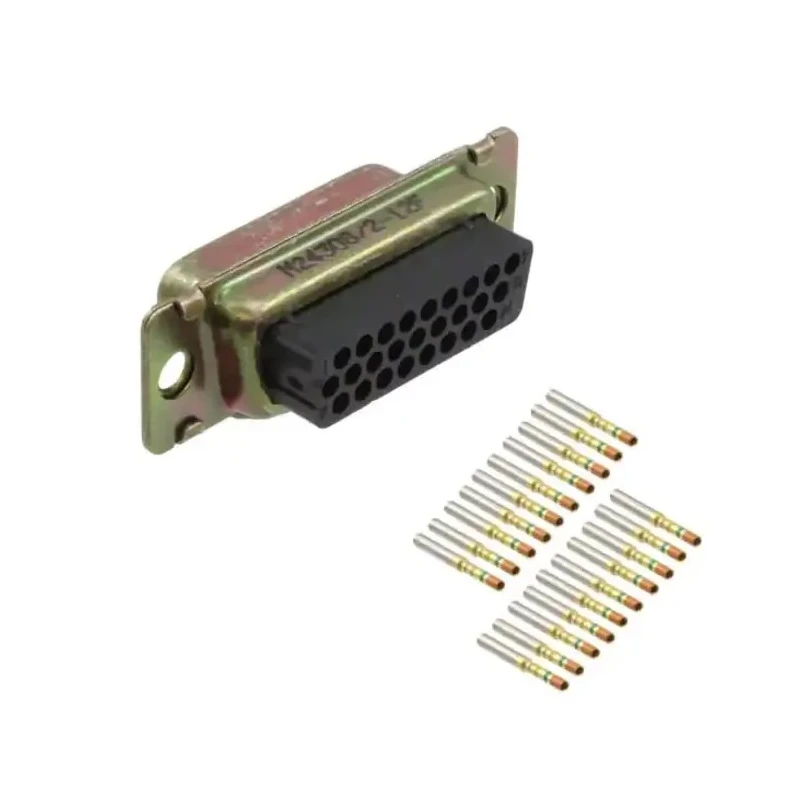

Amphenol India 26 Way Straight 2.29 mm Pitch Panel Mount D-Sub Connector Female with 4 to 40 Screw Lock M24308/2-12F
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1000V |
| Brand | Amphenol India |
| Orientation | Straight |
| Current | 7.5A |
| Model | M24308/2-12F |
| Mount Type | Panel Mount |
| Housing Material | Glass Filled Polyester |
| Contact Material | Copper Alloy |
| Series | M24308 |
| Mounting Hardware | 4 to 40 Screw Lock |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.29mm |
| Contact Plating | Gold |
| Number of Contacts | 26 |
| Contact Gender | Female |
| Connector Gender | Female |
| Connector Type D | D-Sub |
Key Features
- This connector supports up to 7.5 amperes of current capacity.
- Constructed with a glass filled polyester housing for enhanced durability.
- Features a 4 to 40 screw lock mounting hardware ensuring secure panel mounting.
- Connector has gold-plated copper alloy contacts for excellent conductivity and corrosion resistance.
- Operates reliably within a broad temperature range of -55°C to +125°C.
- Designed with crimp termination type for secure cable connections.
- Rated up to 1000 volts, suitable for various electronic applications.
- Compatible with female gender interface and straight orientation for panel mount applications.
Product Description
Amphenol India M24308/2-12F is a high-density 26 way straight panel mount D-Sub Connector featuring a 2.29 mm pitch. This female connector is designed for reliable rack and panel electronic applications requiring secure and stable electrical connections.
Its glass filled polyester housing provides mechanical strength and environmental protection, while the copper alloy contacts plated with gold plating ensure reduced contact resistance and superior corrosion resistance. The connector supports a current rating of 7.5A and an operating voltage up to 1000V, accommodating demanding industrial and electronic environments.
The mounting hardware uses 4 to 40 screw locks providing robust attachment to panels, ensuring the connector remains fixed during vibration or mechanical stress. Crimp termination style enhances secure cable termination and long-term reliability.
Operating temperature ranges from -55°C to 125°C, making it suitable for a wide variety of industrial, manufacturing, HVAC, and electronic equipment applications. The connector’s 26 contacts provide reliable signal transmission in dense wiring scenarios.
This connector supports up to 7.5 amperes of current capacity. Constructed with a glass filled polyester housing for enhanced durability. Features a 4 to 40 screw lock mounting hardware ensuring secure panel mounting. Connector has gold-plated copper alloy contacts for excellent conductivity and corrosion resistance.
Operates reliably within a broad temperature range of -55°C to +125°C. Designed with crimp termination type for secure cable connections. Rated up to 1000 volts, suitable for various electronic applications. Compatible with female gender interface and straight orientation for panel mount applications.
Ideal for applications in industrial equipment, power connectors, electronic assemblies, and testing instruments. The connector series M24308 offers dependable interconnect solutions conforming to demanding operational environments.
Browse our extensive selection of industrial electrical connectors at EnvMart to find matching components and accessories for your setup.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector supports a current capacity of up to 7.5 amperes.
It is rated for a maximum operating voltage of 1000 volts.
The housing is made of glass filled polyester, and the contacts are copper alloy with gold plating for improved conductivity and corrosion resistance.
It operates reliably within a temperature range of -55°C to +125°C.
This model features 26 contacts.
It includes 4 to 40 screw lock mounting hardware to ensure secure panel mounting.
This connector is designed with a crimp termination type for secure cable connections.
It has a straight orientation, suitable for panel mount applications.
The connector has a pitch of 2.29 mm.
It is compatible with a female gender interface.
The country of origin for this connector is India.
