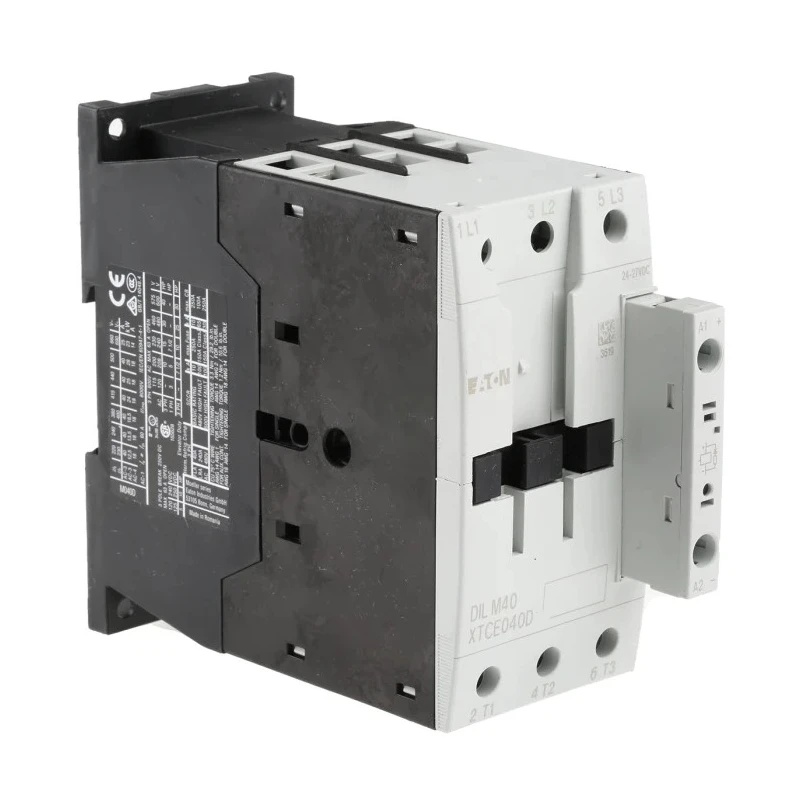

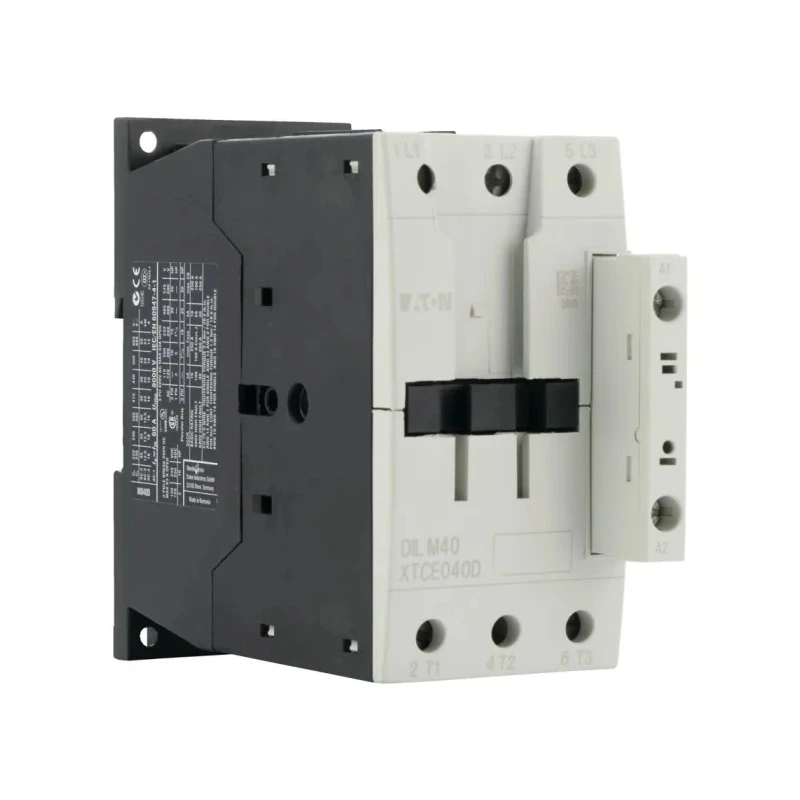

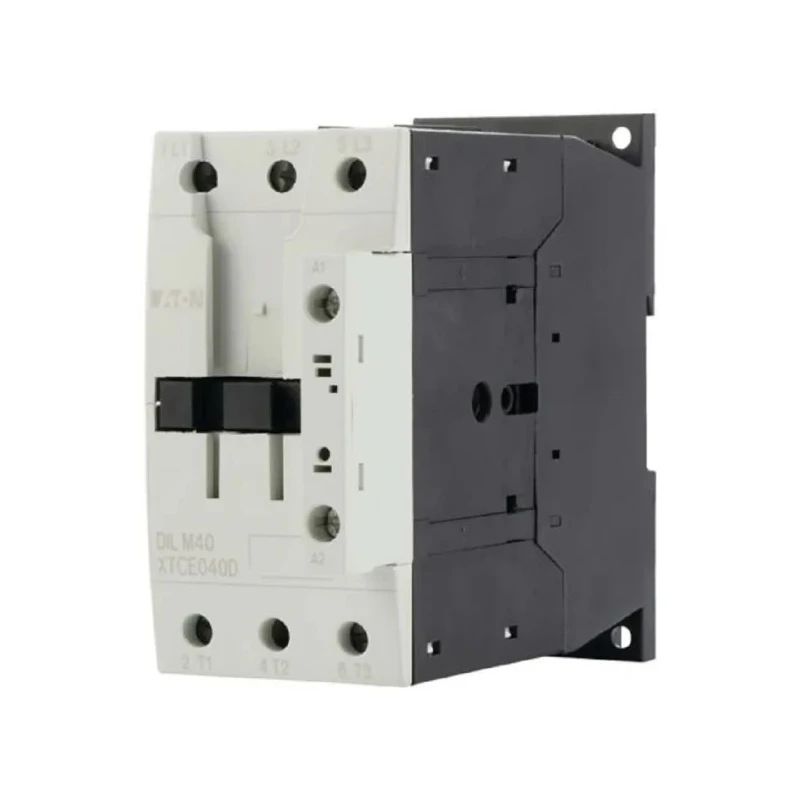

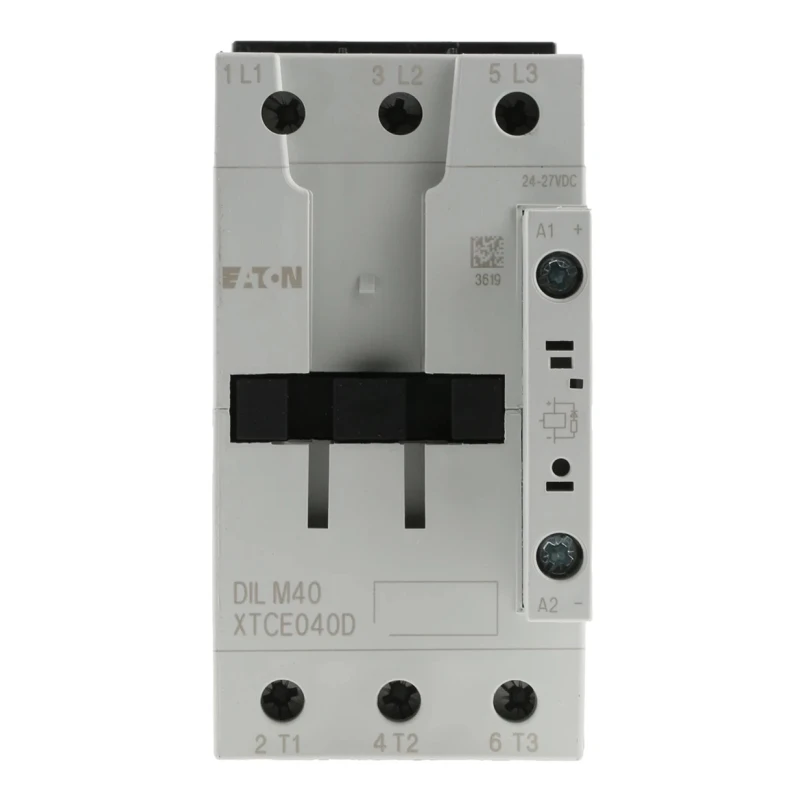

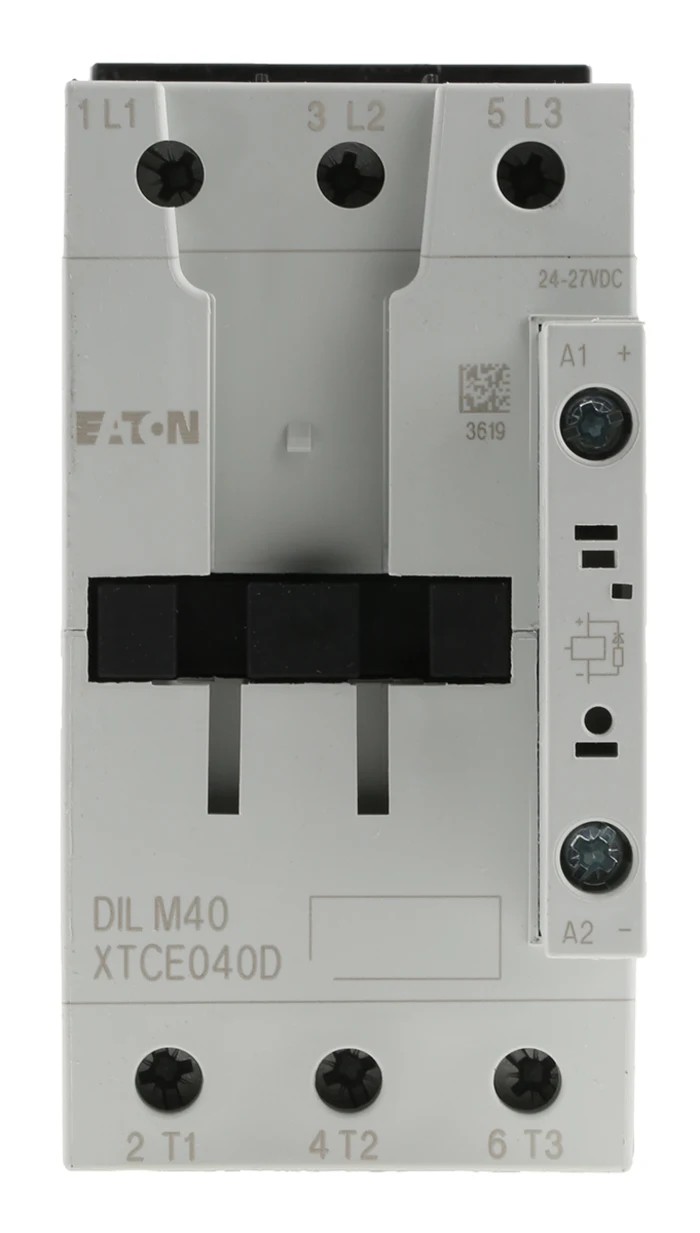

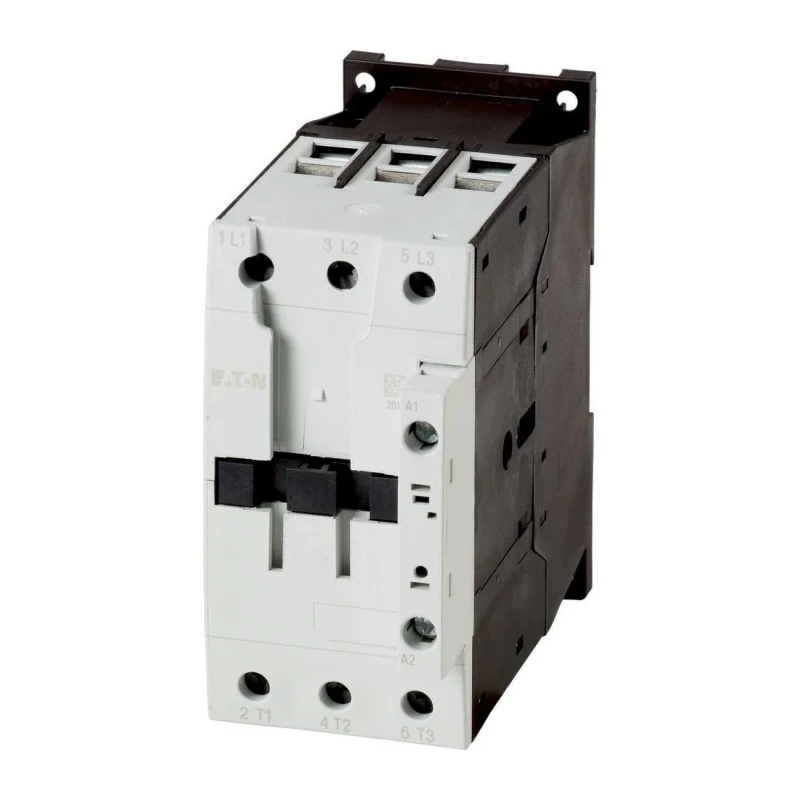

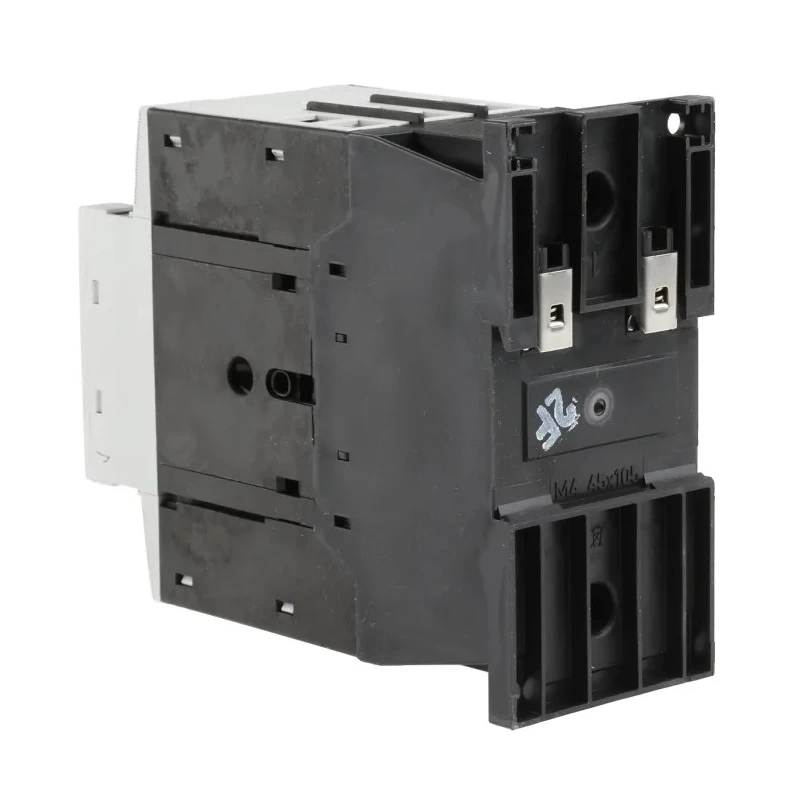

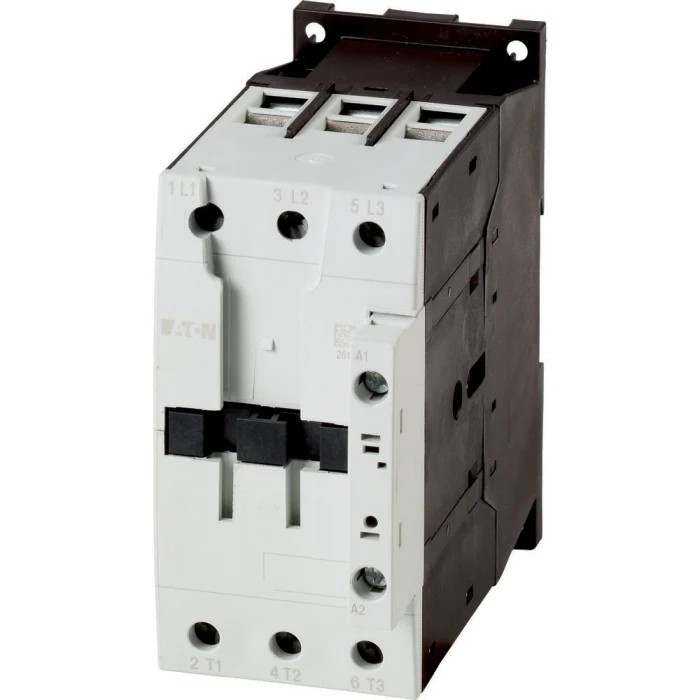

Eaton DILM Contactor, 24V DC Coil, 3-Pole, 40A, 18.5 kW, 3 NO, 400V AC 277780 DILM40(RDC24)
Specifications
| Country of Origin | India |
|---|---|
| Brand | Eaton |
| Function | Motor Control, Resistive Load |
| Length | 115mm |
| Model | 277780 DILM40(RDC24) |
| Depth | 147mm |
| Width | 77mm |
| Mount Type | Surface |
| Series | DILM |
| Power Rating | 18.5kW |
| Maximum Operating Temperature | 45°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | CSA, IEC/EN 60947, UL, VDE 0660 |
| Contact Voltage | 400V ac |
| Coil Voltage | 24V dc |
| Normal State Configuration | 3 NO |
| Contact Current | 40A |
| Auxiliary Contact Configuration | 1 NO |
| Operational Current Ie | 40A |
| Control Circuit Voltage Uc | 24V dc |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3 |
| Eaton DILM Contactor, 24 V Coil, 3-Pole, 23 kWBrand | Eaton |
| DC coil mini contactor,24V 18.5kWBrand | Moeller |
Key Features
- The contactor operates with a control circuit voltage of 24V DC and contact voltage of 400V AC.
- Designed for both motor control and resistive load applications.
- Equipped with 3 normally open (NO) main contacts and 1 normally open auxiliary contact.
- Mounts via surface type and uses screw terminals for connections.
- Compact dimensions of 115mm length, 77mm width, and 147mm depth for easy installation in constrained spaces.
- Operational temperature range from -25°C to 45°C, suitable for industrial environments.
- Mechanical lifetime of 10 million operations for long-term reliability.
- Rated to handle impulse voltages up to 8000V AC, protecting equipment from surges.
Product Description
Eaton 277780 DILM40(RDC24) Contactor is a 3-pole power contactor designed for efficient switching of electrical circuits in demanding industrial environments. It features a 24V DC coil and a 40A contact current rating, supporting a power capacity of 18.5 kW at 400V AC.
This contactor is suitable for motor control and resistive load applications, providing reliable control and protection. It includes three normally open (NO) main contacts and one normally open auxiliary contact for expanded functionality. The surface mount type and screw terminal connections facilitate quick and secure installation.
With compact dimensions of 115mm length, 77mm width, and 147mm depth, it fits well in installations with space constraints. The device operates reliably within a temperature range of -25°C to 45°C, making it well-suited for industrial workplaces.
This unit ensures durability with a mechanical lifespan of 10 million operations and withstands impulse voltages up to 8000V AC, offering robust protection against voltage surges. The contactor's coil voltage is 24V DC for control operations.
Rated for operational currents of 40A with contact voltage of 400V AC. It features 3 main poles and 1 auxiliary pole configured as normally open contacts. Standards compliance includes CSA, IEC/EN 60947, UL, and VDE 0660.
Suitable for use in industrial automation, HVAC systems, electric motor control, and resistive loads. Surface mounting and screw terminal design improve installation ease. Operational temperature between -25°C and 45°C ensures wide usability.
Compact size supports installation in space-limited control panels.
The Eaton DILM series contactors like this model 277780 DILM40(RDC24) are widely used in industrial, manufacturing, and HVAC applications requiring reliable motor and resistive load control. Its high mechanical endurance and advanced protections make it a durable choice. Discover similar Contactors and Eaton products in the Automation & Control Gear category with EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contactor has a contact current rating of 40A.
It operates with a control circuit voltage of 24V DC.
This unit supports a power capacity of 18.5 kW at a contact voltage of 400V AC.
It is equipped with three normally open (NO) main contacts and one normally open auxiliary contact.
The operational temperature range is from -25°C to 45°C.
It features a surface mount type for installation.
The dimensions are 115mm in length, 77mm in width, and 147mm in depth.
It is compliant with CSA, IEC/EN 60947, UL, and VDE 0660 standards.
It is suitable for motor control and resistive load applications.
It uses screw terminals for connections.
The mechanical lifetime is rated at 10 million operations.
It can withstand impulse voltages up to 8000V AC.
