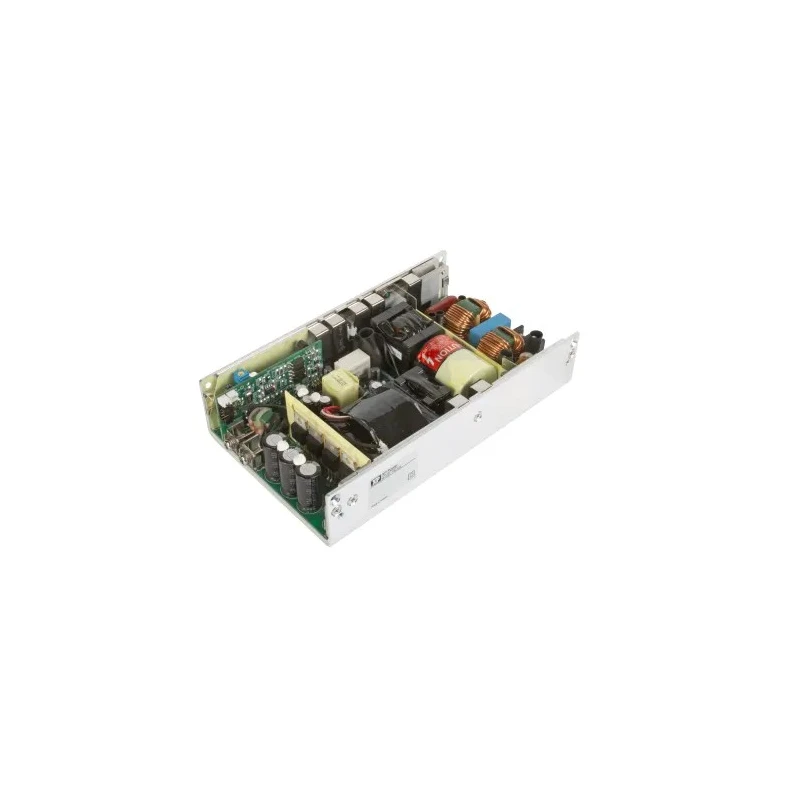

XP Power Switching Power Supply Dual Output 12V DC 500W 264V AC PBL500PS12B

XP Power PBL500PS12B is a high-performance switching power supply delivering dual 12V DC outputs with an overall power capacity of 500 watts. Powered by a 264V AC input, this unit is engineered to provide reliable power conversion in challenging industrial and medical environments. Its compact dimensions of 7.1 inches length and 4 inches width come in a robust U-channel package designed for effective mechanical support and heat dissipation.

The power supply offers continuous operation with forced air cooling at up to 500W and convection cooling at 250W, making it adaptable to diverse cooling conditions. It supports a broad operating temperature range from minus 10 to 70 degrees Celsius, ensuring stable performance in varying ambient conditions. Designed with medical safety standards in mind, this unit meets multiple international certifications including CSA C22.2 No.60601-1, EN55011, EN60601-1, UL ES60601-1, and IEC60601-1, suitable for BF rated insulation applications.

Functional enhancements include a 5V standby output, a dedicated 12V fan supply, and control signals such as AC OK, inhibit, and remote sense, which facilitate integration into complex systems. The device delivers a maximum output current of 37.5A across its two outputs, ensuring ample capacity for demanding loads. Its 90% efficiency rating reduces energy losses, optimizing operational costs.

Manufactured to operate safely at altitudes up to 5000 meters, the PBL500PS12B switching power supply is ideal for demanding applications in industrial, medical, laboratory, and commercial setups where reliable power quality and safety are paramount. The sturdy design and comprehensive certifications ensure compliance with industry standards and long service life.

Delivers continuous power output up to 500W with forced air cooling. Equipped with two 12V DC outputs providing a maximum output current of 37.5A. Operates safely over a temperature range from -10°C to 70°C. Complies with multiple safety and EMC standards suitable for medical applications.

Compact U-channel package measuring 7.1in by 4in with efficient heat sinking. Offers 90% efficiency achieving low power loss. Designed for operation with an input voltage of 264V AC. Includes features such as 5V standby, 12V fan supply, AC OK, inhibit and remote sense.

Suitable for medical and industrial environments with BF rated insulation and altitude operation up to 5000 meters. Backed by a 3-year warranty for reliability assurance. Explore the XP Power range and other high-quality power supply products at EnvMart for your industrial and medical power needs.
