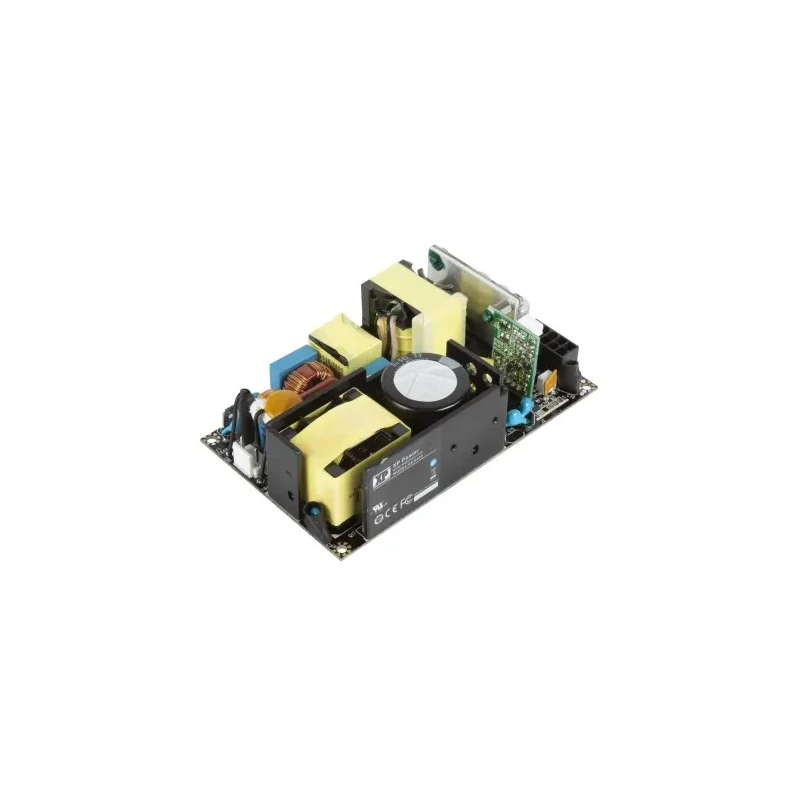

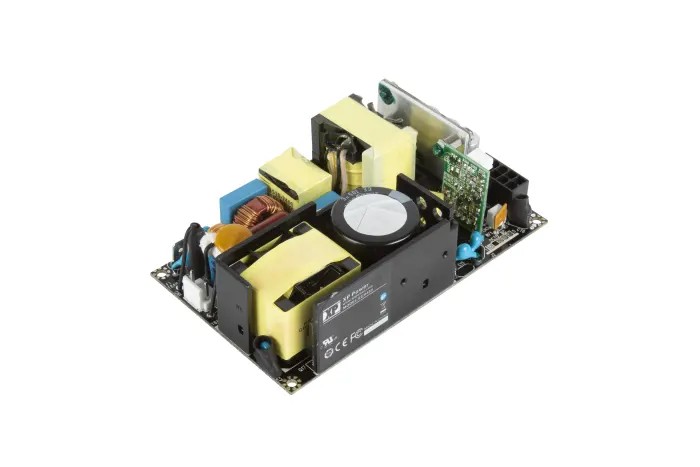

XP Power Switching Power Supply 54V DC 450W 8.33A Screw Mount ECH450PS54

XP Power ECH450PS54 switching power supply is a high-performance AC/DC converter delivering 54V DC output at a power rating of 450W with a single output channel. Designed with a screw mount configuration, it is suitable for industrial, medical, and information technology equipment applications requiring reliable and efficient power conversion between input voltages of 264V AC.

The unit supports forced air cooling with an included 12V, 600mA fan supply and a 5V/1A standby output, enabling integrated system cooling and remote operation. Operating efficiently between temperatures of -20°C and 70°C, it is engineered to provide maximum performance in varied environments.

This power supply achieves a high efficiency of up to 94%, minimizing losses and facilitating equipment compliance with modern environmental standards. Its compact footprint of approximately 5.0 by 3.0 inches allows for use in constrained spaces without compromising power delivery.

The ECH450PS54 includes two embedded fuses and maintains low leakage currents, fulfilling stringent safety requirements particularly needed for medical applications, including BF type applications. Its certifications and RoHS compliance underscore its suitability for medical and ITE device integration.

With a force cooled rating capable of up to 450W output and a convection cooled rating of 250W, this power supply offers flexibility to suit air flow designs. The screw mount installation ensures secure mechanical stability within electronic assemblies.

Provides a maximum output voltage of 54V DC with a single output. 450W power rating with a maximum SMPS output current of 8.33A. Designed for operation between -20°C and 70°C ambient temperatures. Includes a 12V, 600mA fan supply and 5V/1A standby output for enhanced system functionality.

High efficiency of up to 94% reduces energy consumption and heat generation. Compact footprint measuring approximately 5.0 by 3.0 inches for space-saving integration. Meets RoHS compliance and approved for medical and ITE equipment standards.

Mounts securely via screw mount for reliable fixture in electronic assemblies. Force cooled rating of 450W and convection cooled rating of 250W for versatile cooling options. Low leakage currents and dual fuse protection for safe operation in critical environments.

This XP Power switching power supply is well suited for industrial, laboratory, medical, construction, HVAC, manufacturing, and commercial applications requiring reliable DC power conversion from high-voltage AC sources. It combines compact size, safety approvals, and efficiency for integration in modern electronic equipment.
