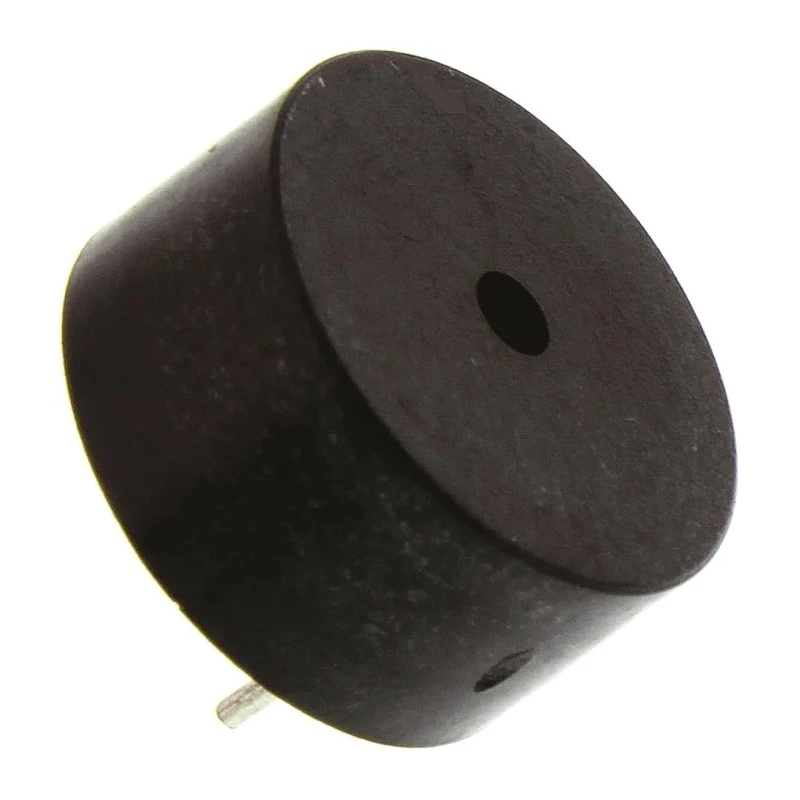

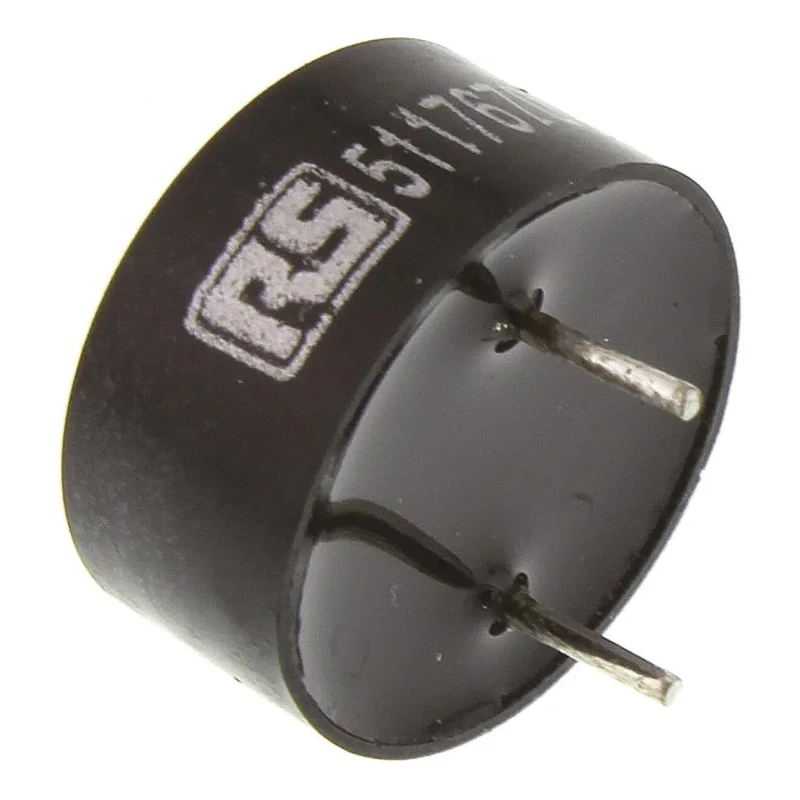

RS Pro 80 dB Through Hole Continuous External Piezo Buzzer Component 1 V AC Min 20 V AC Max 5117670P
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 13.8mm |
| Brand | RS Pro |
| Sound Level | 80dB |
| Height | 6.8mm |
| Model | 5117670P |
| Drive Type | External |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 70°C |
| Capacitance | 13nF |
| Minimum Operating Temperature | -20°C |
| Standards/Approvals | RoHS |
| Maximum Frequency | 4.5kHz |
| Maximum Supply Voltage | 20V ac |
| Minimum Supply Voltage | 1V ac |
| Supply Current | 1mA |
| Tone Type | Continuous |
| Minimum Frequency | 3500Hz |
Key Features
- This piezo buzzer features a continuous external drive generating an 80 dB sound level.
- The device mounts easily using through-hole technology for secure installation.
- It operates over a wide voltage range from 1 V AC minimum to 20 V AC maximum.
- The compact buzzer has a diameter of 13.8 mm and a height of 6.8 mm for versatile integration.
- Supplies operate at a low current of 1 mA, ensuring low power consumption.
- This piezo buzzer works reliably within an operating temperature range of -20°C to +70°C.
- It produces frequencies between 3500 Hz and 4500 Hz with a capacitance of 13 nF.
- The component complies with RoHS directives, ensuring environmental safety and quality.
Product Description
RS Pro 5117670P Piezo Buzzer Component is designed for delivering a continuous 80 dB tone with an external drive mechanism. Featuring a through-hole mounting style, this high-quality piezo buzzer operates over a voltage range of 1 V AC minimum to 20 V AC maximum. Its compact form factor with a diameter of 13.8 mm and height of 6.8 mm makes it suitable for integration into various electronic assemblies.
Operating efficiently at a low supply current of 1 mA, this buzzer ensures minimal power consumption while delivering clear, audible warnings. It is engineered to function reliably within a temperature range of -20°C to +70°C, making it appropriate for industrial, commercial, and educational applications where robust and consistent sound signaling is required.
The component's frequency range spans from 3500 Hz up to 4500 Hz, supported by a capacitance of 13 nF, which contributes to its performance stability. Compliant with RoHS standards, this piezo buzzer meets contemporary environmental and safety requirements.
Ideal for use in warning devices in noisy industrial environments, schools, or other locations with high ambient noise, the RS Pro 5117670P device offers reliable, continuous audible alerts. Its robust design and compliance with electrostatic discharge standards make it a dependable choice in electronics design and manufacturing.
This piezo buzzer features a continuous external drive generating an 80 dB sound level. The device mounts easily using through-hole technology for secure installation. It operates over a wide voltage range from 1 V AC minimum to 20 V AC maximum.
The compact buzzer has a diameter of 13.8 mm and a height of 6.8 mm for versatile integration. Supplies operate at a low current of 1 mA, ensuring low power consumption. This piezo buzzer works reliably within an operating temperature range of -20°C to +70°C.
It produces frequencies between 3500 Hz and 4500 Hz with a capacitance of 13 nF. The component complies with RoHS directives, ensuring environmental safety and quality. Browse the Piezo Buzzer Component category on EnvMart for this RS Pro model and other high-quality electronic components designed for performance and reliability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It produces a sound level of 80 dB, making it suitable for audible alerts in various environments.
The operating voltage range is from 1 V AC minimum to 20 V AC maximum.
It operates within a frequency range of 3500 Hz to 4500 Hz.
The buzzer has a diameter of 13.8 mm and a height of 6.8 mm.
It features a through-hole mounting style for secure installation.
It operates at a low supply current of 1 mA, ensuring minimal power consumption.
This model functions reliably within an operating temperature range of -20°C to +70°C.
The capacitance is 13 nF, which contributes to its performance stability.
Yes, it complies with RoHS directives, ensuring environmental safety and quality.
It utilizes an external drive mechanism for generating sound.
It is appropriate for use in warning devices in noisy industrial environments, schools, and other locations with high ambient noise.
The country of origin for this piezo buzzer is China.
