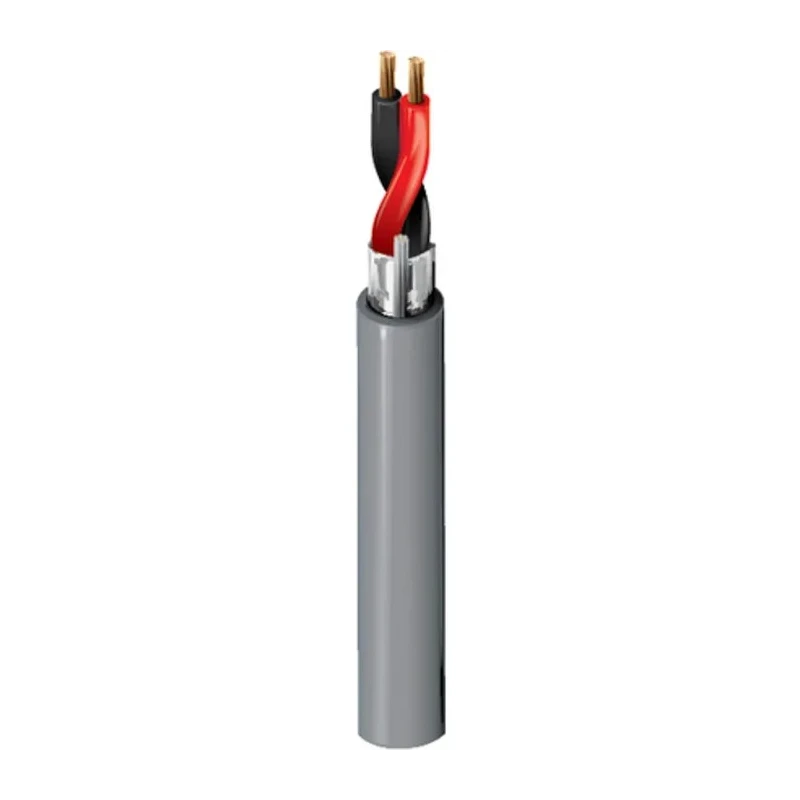

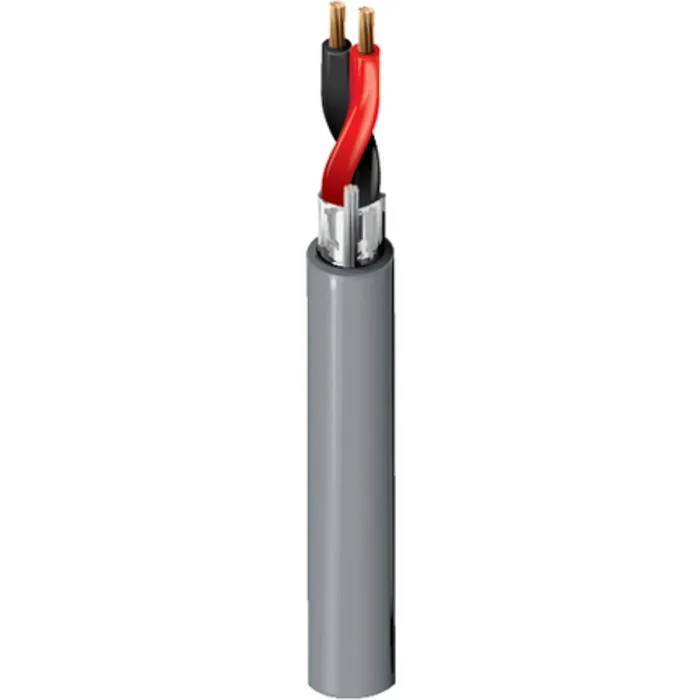

Belden 2-Core Screened Control Cable 0.82mm² 18 AWG, Grey Polypropylene Sheath, 152m Length, 300V 5300FE.00152
Specifications
| Country of Origin | Mexico |
|---|---|
| Voltage | 300V |
| Brand | Belden |
| Model | 5300FE.00152 |
| Cable Length | 152m |
| Series | 5300FE |
| Outside diameter | 4.11mm |
| Maximum Operating Temperature | 75°C |
| Number Of Cores | 2 |
| Conductor Material | Copper |
| Minimum Operating Temperature | -20°C |
| Jacket Material | Polypropylene |
| Standards/Approvals | Euroclass Eca |
| Jacket Colour | Grey |
| Fire Behaviour | UL 1666 Vertical Shaft |
| American Wire Gauge | 18AWG |
| Screened/Unscreened | Screened |
| Conductor Type | Stranded |
| Number of Strands | 7 |
| Core Strands | 7 x 26AWG |
| Size of Strands | 26AWG |
| Cable CSA | 0.82mm² |
Key Features
- Equipped with a grey polypropylene sheath for mechanical protection and chemical resistance.
- Constructed with stranded bare copper conductors to ensure corrosion resistance and flexible installations.
- Operates safely up to 300 volts with a temperature range from -20°C to 75°C for versatile environments.
- Features a 152 meters length on a reel, suitable for multiple cut and fix applications.
- Shielded with Belden's patented aluminium/polyester Bedfoil tape for complete EMI and static noise protection.
- Certified to Euroclass Eca and UL 1666 vertical shaft fire behavior standard, ensuring safety and compliance.
- Designed for demanding industrial uses such as audio devices, robotics, and security systems.
Product Description
Belden 5300FE.00152 is a 2-core screened control cable with a cross-sectional conductor area of 0.82mm² and 18 AWG size, housed in a durable grey polypropylene sheath. This control cable is designed for high-performance transmission of operating signals in industrial, automation, and communication equipment.
The stranded copper conductors provide excellent flexibility while resisting corrosion, ideal for installations requiring frequent movement or bending. The polypropylene insulation offers heat and solvent resistance, contributing to the cable's extended service life.
The cable's outer jacket is made of grey polypropylene, enhancing its abrasion resistance and protecting it against harsh environmental conditions. Shielding is provided by Belden's patented Bedfoil tape, comprised of aluminium/polyester with 100% coverage to effectively block electromagnetic interference (EMI) and static noise, ensuring signal integrity.
Operating specifications include a voltage rating of 300V with continuous use temperatures ranging from -20°C to 75°C, making it suitable for a variety of demanding industrial environments. The cable complies with Euroclass Eca fire safety standards and UL 1666 vertical shaft fire behavior requirements, assuring compliance and safety.
This control cable is supplied on a 152-meter reel, facilitating multiple installations and custom cuts as needed, suitable for use in audio devices, robotics control systems, security installations, and other industrial automation applications.
Equipped with grey polypropylene sheath for mechanical and chemical protection. Stranded bare copper conductors provide flexibility and corrosion resistance. Screened with patented aluminium/polyester tape shielding for EMI noise rejection.
Voltage rating of 300V with operating temperature from -20°C to 75°C. Certified to Euroclass Eca and UL 1666 vertical shaft fire safety standards. Supplied in 152m reel length for multiple cut and fix applications. Industrial applications include audio devices, robotics, and security systems.
Belden control cables are known for their high quality and reliability, suitable for industrial, laboratory, manufacturing, and automation uses. Explore more products in the Control Cable category at EnvMart to find cables matching your specific installation and performance requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cable has a voltage rating of 300V, making it suitable for various industrial applications.
The maximum operating temperature for this control cable is 75°C, allowing it to function in demanding environments.
This control cable is supplied on a 152-meter reel, which facilitates multiple installations and custom cuts.
The cable features stranded bare copper conductors and a grey polypropylene sheath, providing mechanical protection and chemical resistance.
This model has 2 cores, allowing for effective signal transmission in various applications.
The outside diameter of the cable is 4.11mm, which is important for installation considerations.
It is certified to Euroclass Eca and UL 1666 vertical shaft fire behavior standards, ensuring safety and compliance in installations.
The cable is shielded with Belden's patented aluminium/polyester Bedfoil tape, providing complete EMI and static noise protection.
This model uses stranded conductors, which enhances flexibility and corrosion resistance for various installations.
It is designed for demanding industrial uses, including audio devices, robotics, and security systems.
The minimum operating temperature for this control cable is -20°C, making it suitable for a range of environments.
The conductors consist of 7 strands of 26 AWG, which contributes to their flexibility and performance.
