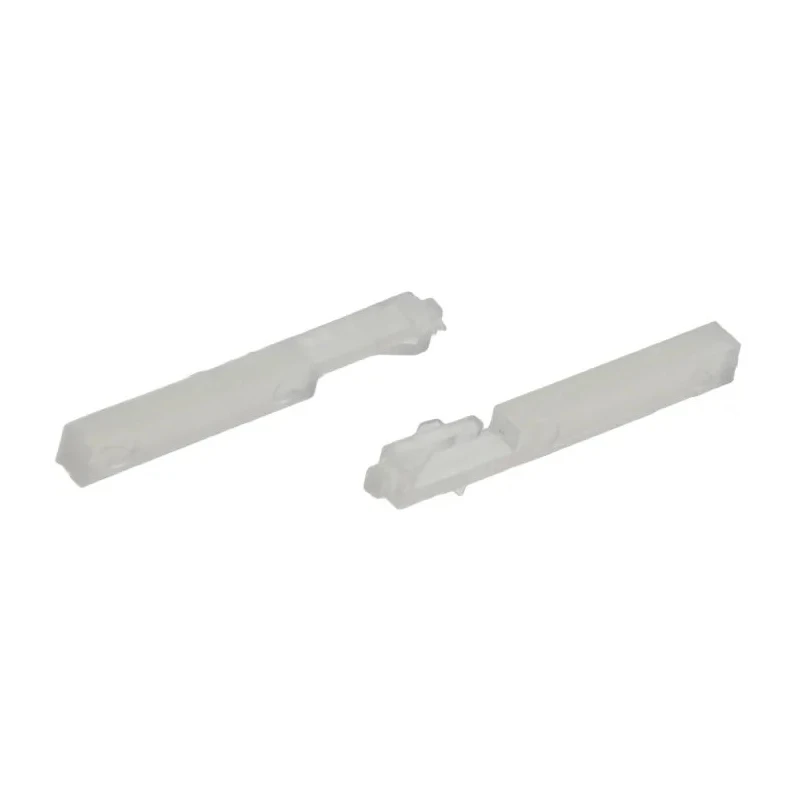

TE Connectivity MOD IV Series Male Keying Plug, 30 AWG Min, 28 AWG Max 87077-2

TE Connectivity 87077-2 MOD IV Series Male Keying Plug is designed as a precision component for use in electronic assemblies requiring secure and reliable connections. This male keying plug fits Mod IV Receptacle Assemblies, providing a robust electrical interface where wire sizes from 30 AWG minimum to 28 AWG maximum are employed.

The contact is made from phosphor bronze, a material known for its spring properties and resistance to fatigue, while the gold plating ensures excellent corrosion resistance and reliable signal transmission by minimizing electrical contact resistance to a maximum of 12 milliohms. The plug operates effectively across a wide temperature range from -65°C to 105°C, making it suitable for diverse industrial environments including electronics manufacturing, automated control systems, and communication equipment assemblies.

Measuring 15.24 mm in length, the component is designed for applications where compactness and precision are necessary. Its natural color finish allows easy inspection and matching with related components. The plug supports a maximum current rating of 3A, which caters well to standard electronic signal and power transmission requirements.

The TE Connectivity MOD IV series male keying plug assures proper polarization and mating through its male gender design, helping to prevent misconnection in complex connector assemblies. It is an essential accessory for PCB connectors and wire housings, playing a critical role in wire-to-board connection reliability and stability.

Incorporating this keying plug enhances the mechanical retention and electrical conductance in electronic connector systems, widely utilized in industrial controls, automotive electronics, communications equipment, and other high-reliability applications requiring precise wire harness solutions.

Constructed with phosphor bronze contact material for durability. Gold plating on contacts ensures reliable electrical conductivity. Rated maximum current of 3A suitable for electronic applications. Operates in temperature range from -65°C to 105°C.

Compact length of 15.24 mm for efficient space utilization. Natural color finish for easy identification and compatibility. Maximum contact resistance of 12 milliohms for minimal signal loss. Compatible with Mod IV series connectors to ensure secure connections.

Male gender keying plug preventing incorrect mating. Applicable for PCB connectors and wire housing systems in electronic assemblies.
