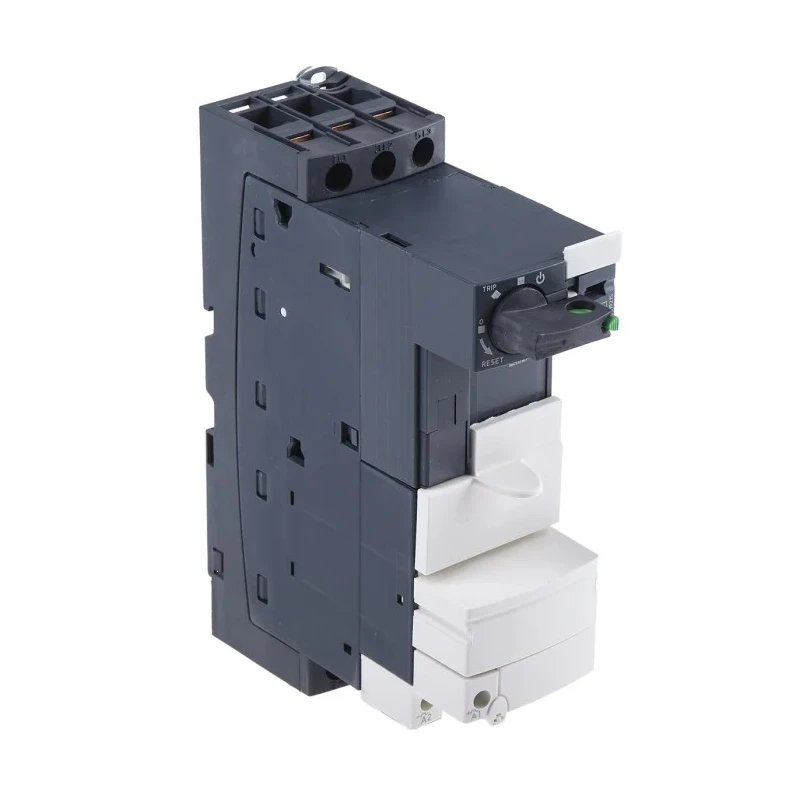

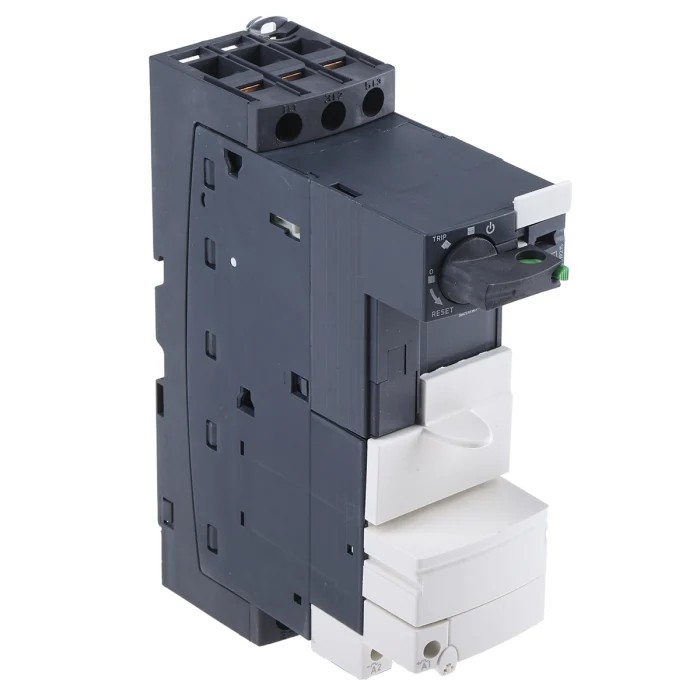

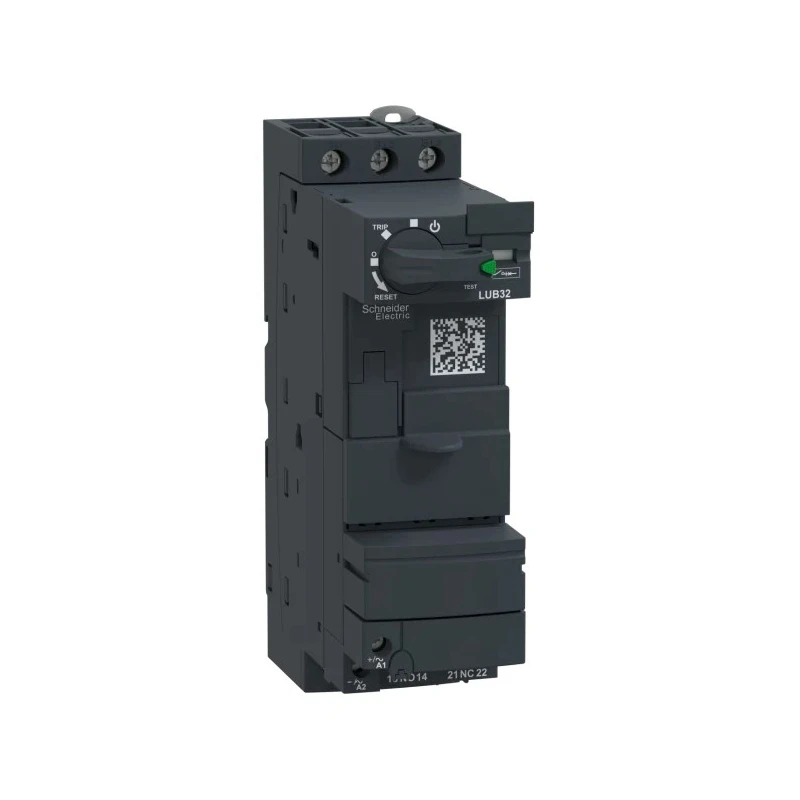

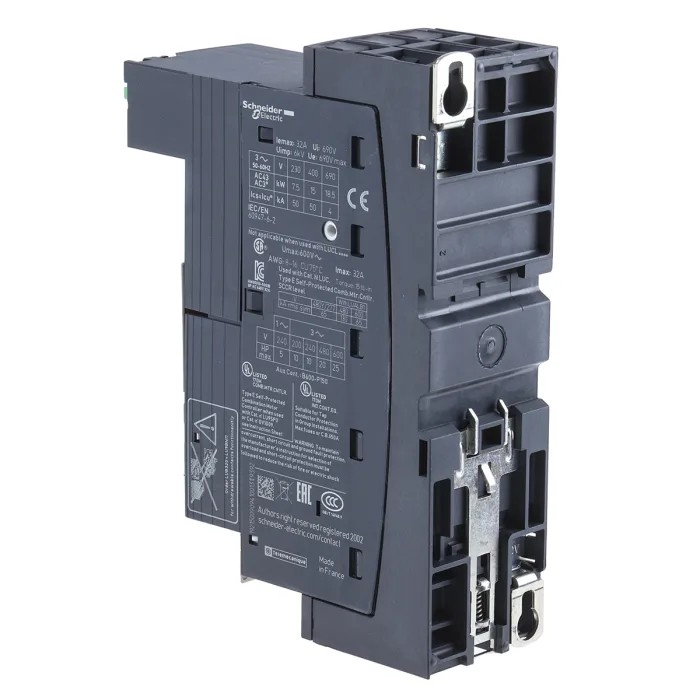

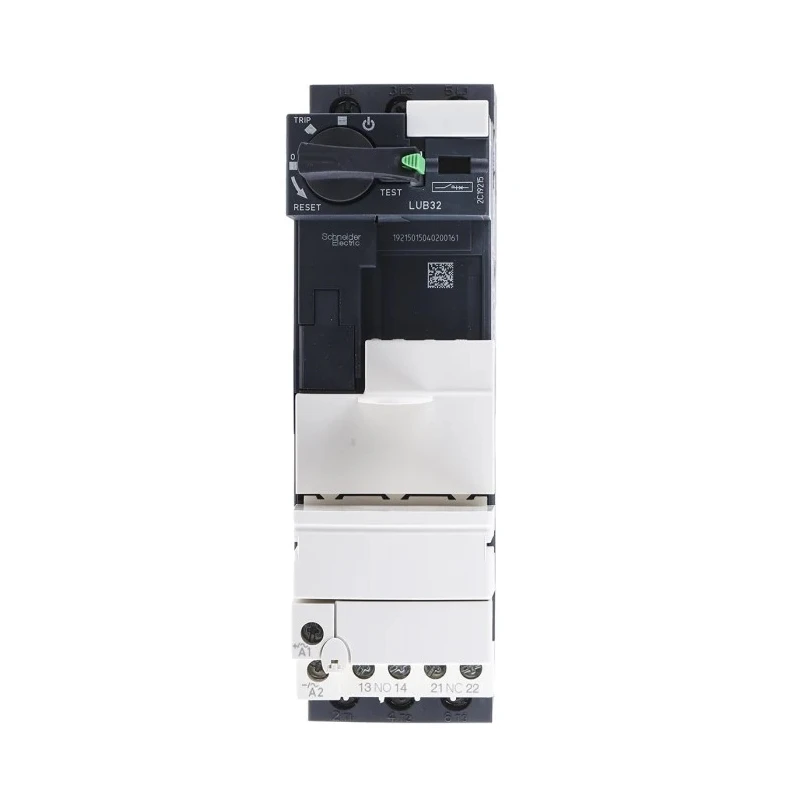

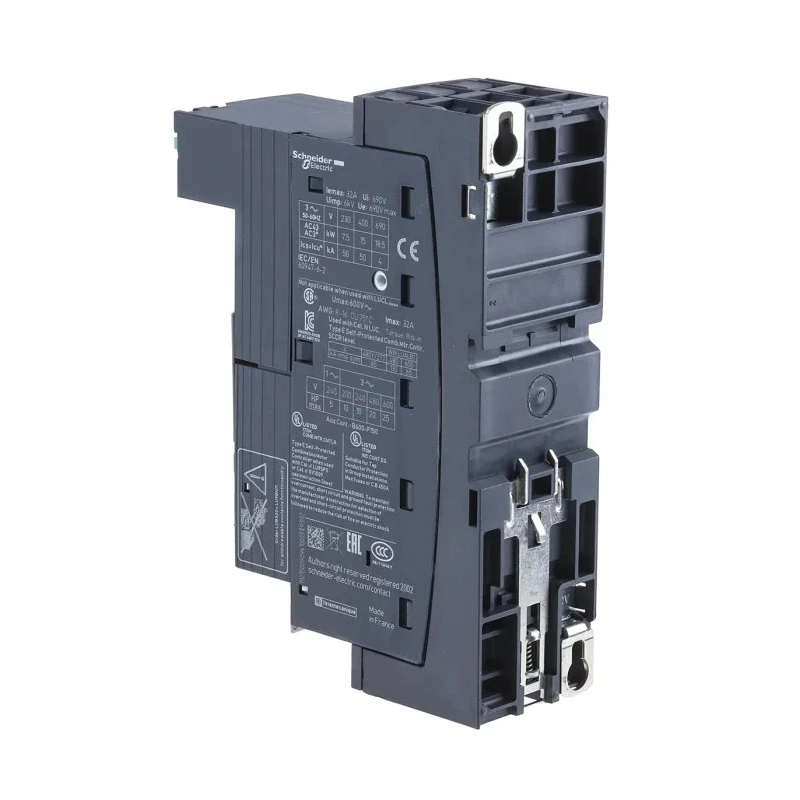

Schneider Electric U-Line Starter 690V 15 kW 3 Phase IP20 IP40 LUB32
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Model | LUB32 |
| IP Rating | IP20, IP40 |
| Mount Type | DIN Rail |
| Overall Length | 145mm |
| Current Rating | 32A |
| Series | U-Line |
| Overall Width | 45mm |
| Power Rating | 15kW |
| Number of Phases | 3 |
| Maximum Voltage | 690V |
| Hazardous Area Certification | ATEX |
| Number of Poles | 3 |
| Standards/Approvals | CSA, IEC, UL |
| Overall Depth | 126mm |
| Schneider Electric TeSys Advanced Motor Starter, 15 kW, 8 → 32 ABrand | Schneider Electric |
Key Features
- High 32A current rating supports heavy-duty applications.
- Compatible with DIN rail mounting for flexible installation.
- Compact dimensions save panel space with 145mm x 45mm x 126mm size.
- Mechanical durability of 15 million operating cycles ensures long-term use.
- Rated impulse withstand voltage of 6 kV for power surge resistance.
- Incorporates braking function with 50A breaking capacity for controlled motor stop.
- Padlockable disconnection and isolation enhances operational safety.
- Includes two auxiliary contacts indicating power contact position.
Product Description
Schneider Electric LUB32 U-Line Starter is a robust 3-phase motor starter designed for industrial motor control with a power rating of 15 kW and maximum voltage of 690 V. It delivers reliable and safe starting of electric motors in various applications including automotive, conveyor systems, and oil and gas plants.
The starter is built with a modular design to integrate smoothly with DIN rail systems or mounting plates, allowing flexible installation options. Its compact structure with dimensions of 145mm (L) x 45mm (W) x 126mm (D) provides space-efficient assembly in control panels.
Featuring a 32A current rating and a mechanical durability of 15 million operating cycles, the unit ensures long service life and dependable operation. The rated impulse withstand voltage of 6 kV enables the starter to resist high power surges without damage, enhancing motor protection.
The power base incorporates a braking function with a breaking capacity of 50A at 400 V for controlled motor operation, including padlockable disconnection/isolation to maintain safety during maintenance. It includes two auxiliary contacts (1NO+1NC) to indicate the open or closed position of the power contacts, facilitating monitoring and control.
Certified under CSA, IEC, and UL standards and compliant with the ATEX hazardous area certification, this starter meets rigorous industry requirements. It forms part of Schneider Electric’s TeSys U modular system, designed for quick assembly and customization to suit diverse motor control needs.
High 32A current rating supports heavy-duty applications. Compact DIN rail and mounting plate compatible design. Mechanical durability ensures 15 million operating cycles. 6 kV rated impulse withstand voltage for surge protection.
Braking function with 50A breaking capacity at 400 V. Padlockable disconnection and isolation for safety. Auxiliary contacts (1NO+1NC) for status indication. Complies with CSA, IEC, UL standards and ATEX hazardous area certification.
Manufactured in France for premium quality.
This Schneider Electric U-Line Starter LUB32 is ideal for industrial, manufacturing, automotive, HVAC, and water treatment installations requiring efficient and reliable motor control solutions. Explore more Motor Starters and related automation products available at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a power rating of 15 kW, making it suitable for various industrial motor control applications.
The U-Line Starter is rated for a maximum voltage of 690 V, allowing it to operate effectively in high-voltage environments.
It features a current rating of 32A, which supports heavy-duty applications in industrial settings.
The overall dimensions of this unit are 145mm in length, 45mm in width, and 126mm in depth, allowing for compact installation.
Yes, it is designed for DIN rail mounting, providing flexibility in installation options.
It has a mechanical durability of 15 million operating cycles, ensuring long-term use in demanding applications.
This model incorporates padlockable disconnection and isolation features, enhancing operational safety during maintenance.
The braking function has a breaking capacity of 50A at 400 V, allowing for controlled motor operation.
It is certified under CSA, IEC, and UL standards and complies with ATEX hazardous area certification, meeting rigorous industry requirements.
This starter is suitable for applications in industrial, manufacturing, automotive, HVAC, and water treatment sectors.
It features 3 poles, which is typical for three-phase motor starters.
The U-Line Starter has an IP rating of IP20 and IP40, providing protection against dust and water ingress.
