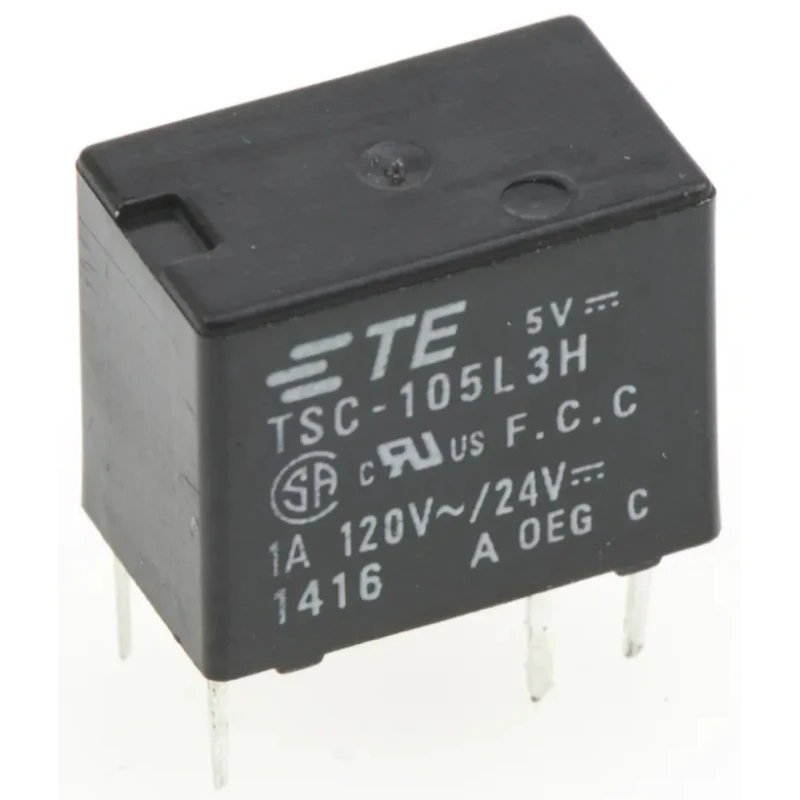

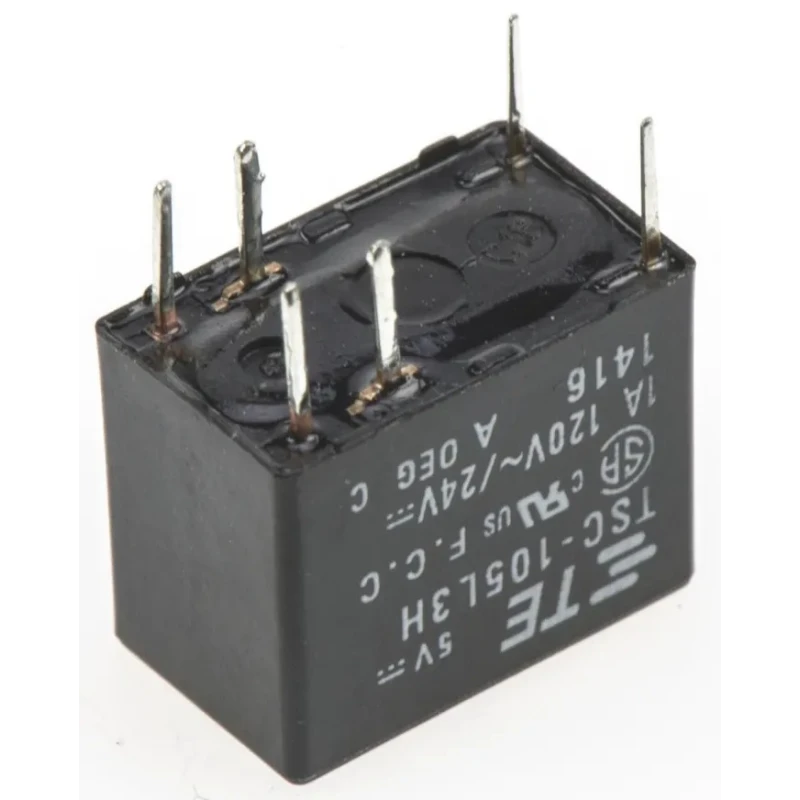

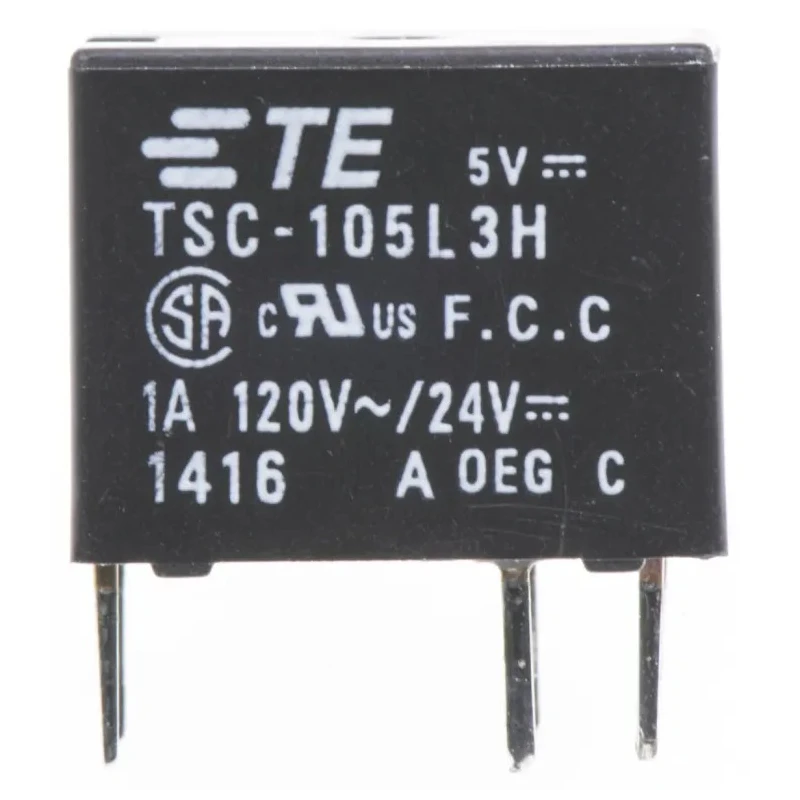

TE Connectivity PCB Signal Relay 5V DC Coil 1A Switching Current DPDT 300mW Coil Power TSC-105L3H000
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Height | 9.2mm |
| Length | 12.3mm |
| Model | TSC-105L3H000 |
| Width | 7.3mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | G6S |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -30°C |
| Switching Current | 1A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 83Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 120V ac |
| Coil Power | 300mW |
| TSC Series of miniature PCB relays. Typical applications include | Telecommunications, office machines and security systems |
| TE Connectivity PCB Signal Relay, 5V dc Coil, 1A, DPDTBrand | TE Connectivity |
| Panasonic PCB Signal Relay, 5V dc Coil, 3A, SPSTBrand | Panasonic |
| TE Connectivity Latching Relay, 1A Switching CurrentBrand | TE Connectivity |
Key Features
- Operates with a 5V DC coil voltage requiring low power of 300mW suitable for IC compatibility.
- Dual pole double throw (DPDT) contact configuration with gold-plated contacts ensures reliable signal switching.
- Supports switching currents up to 1A, switching AC voltages up to 120V, and DC voltages up to 30V.
- Compact size with dimensions 12.3mm length, 7.3mm width, and 9.2mm height for easy PCB mounting.
- Temperature operating range from -30°C to +80°C for versatile industrial applications.
- Equipped with solder terminals and sealed plastic case for durability and environmental protection.
- Compliant with RoHS standards ensuring environmental safety.
- Coil resistance is 83Ω enabling efficient electrical operation.
Product Description
TE Connectivity TSC-105L3H000 PCB Signal Relay is part of the G6S series of miniature PCB relays designed for use in telecommunications, office machinery, and security system applications. This relay features a 5V DC coil requiring only 300mW of power, making it highly compatible with integrated circuits.
The relay offers a dual pole double throw (DPDT) contact configuration with high-quality gold-plated contacts to ensure reliable signal transmission and switching with a current capacity of 1A. It supports switching voltages of up to 120V AC and 30V DC, making it suitable for various signal-level applications.
The compact sealed plastic case design provides durability while the solder terminal type facilitates simple PCB mounting. The relay operates efficiently within a temperature range from -30°C to 80°C, suitable for industrial environments.
The coil resistance is 83Ω, which helps maintain low coil power consumption at 300mW. The product is compliant with RoHS standards, ensuring it meets environmental and safety regulations.
Applications include telecommunications equipment, office machines, and security systems requiring compact, low power, and reliable PCB signal relay solutions. Operates at low coil power for IC compatibility. Gold-plated contacts for enhanced durability and conductivity.
Compact and sealed plastic case for environmental resistance. Wide operating temperature range for versatile use. Complies with RoHS environmental standards. Suitable for telecommunications, office, and security systems.
TE Connectivity products like the TSC series PCB Signal Relay are widely used in various industrial automation and electrical applications. For more options, browse the Signal Relay category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a 5V DC coil voltage and requires a low power of 300mW.
It supports a switching current of up to 1A.
The relay has dimensions of 12.3mm in length, 7.3mm in width, and 9.2mm in height.
It features a dual pole double throw (DPDT) contact configuration.
It can switch AC voltages up to 120V and DC voltages up to 30V.
The operating temperature range is from -30°C to +80°C.
It is equipped with solder terminals for easy PCB mounting.
The contacts are made of gold-plated material, ensuring reliable signal transmission.
Yes, it is compliant with RoHS standards, ensuring it meets environmental safety regulations.
Typical applications include telecommunications equipment, office machines, and security systems.
The coil resistance is 83Ω, which helps maintain low power consumption.
This relay is part of the G6S series of miniature PCB relays.
