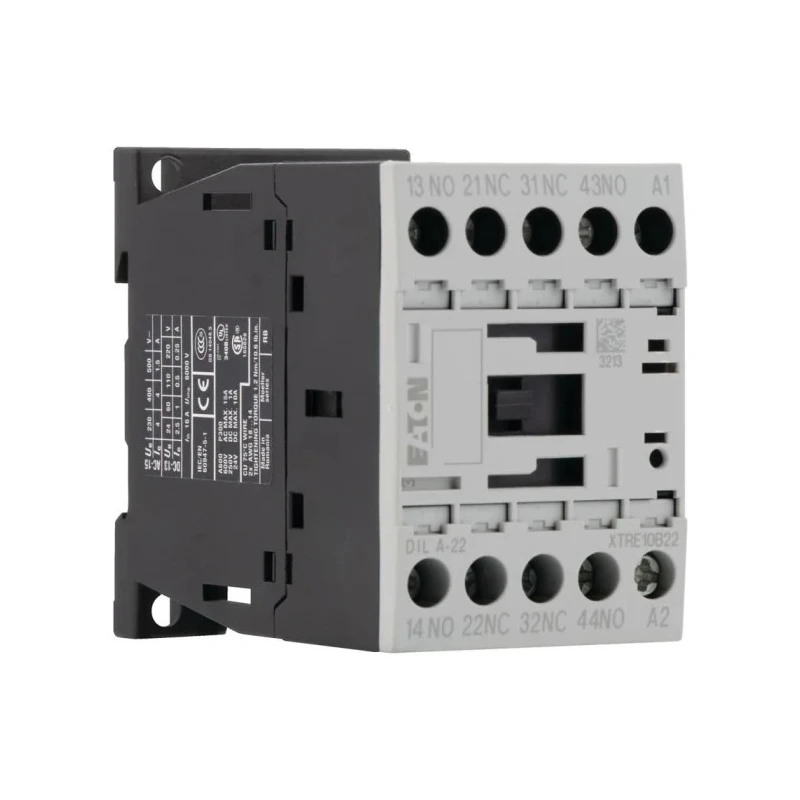

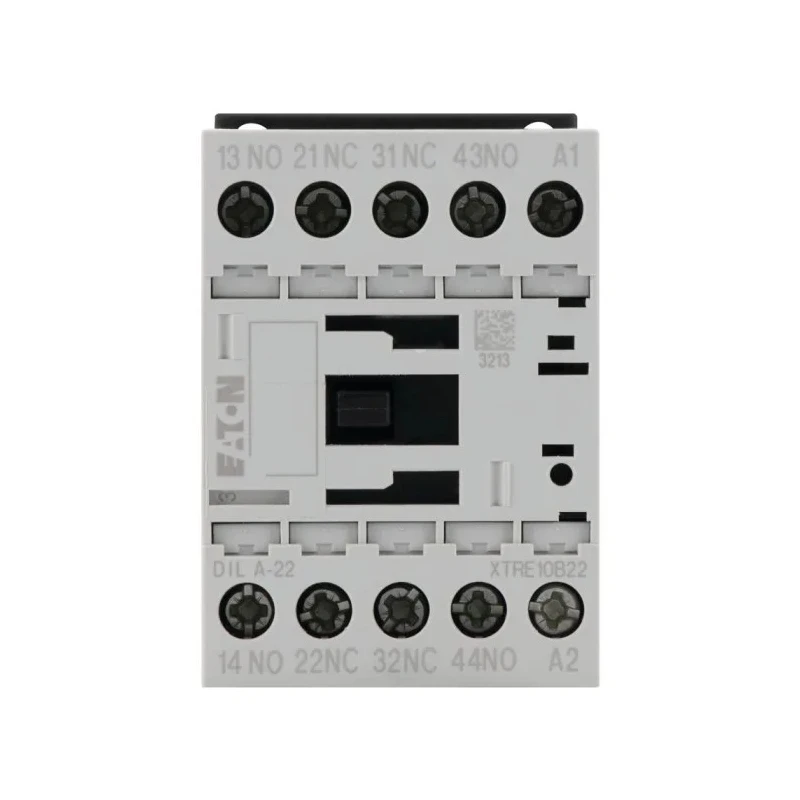

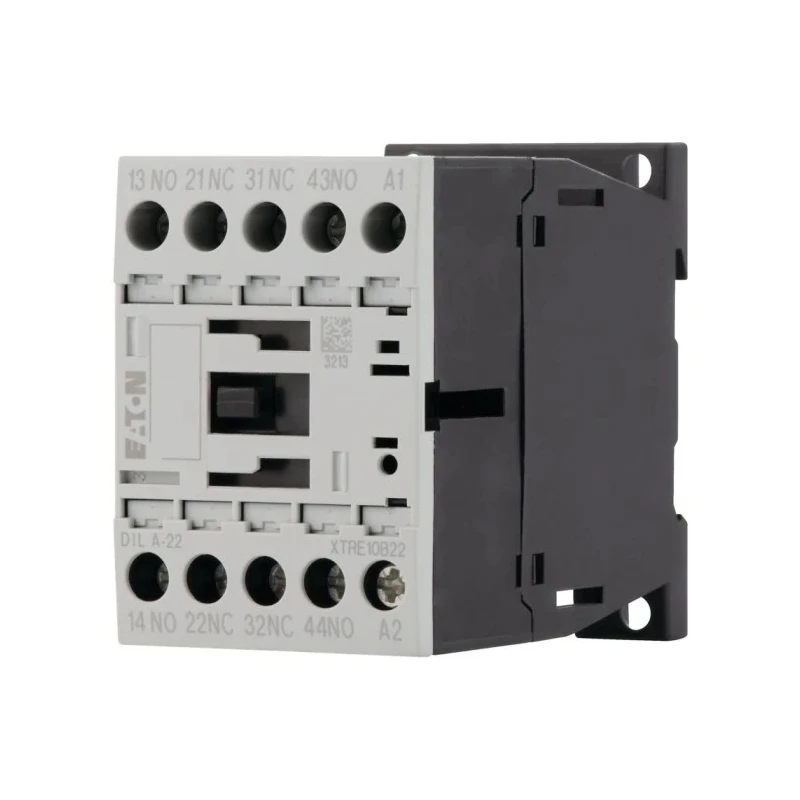

Eaton DILA Contactor Relay, 110V AC Coil, 4-Pole, 4A, 120V AC Control Voltage, 2 NO/2 NC 276396 DILA-22(110V50HZ,120V60HZ)
Specifications
| Country of Origin | Romania |
|---|---|
| Brand | Eaton |
| Function | Straight |
| Length | 75mm |
| Model | 276396 DILA-22(110V50HZ,120V60HZ) |
| Depth | 75mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | DILA |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number of Poles | 4 |
| Contact Voltage | 415V ac |
| Coil Voltage | 110V ac |
| Normal State Configuration | 2 NO/2 NC |
| Contact Current | 4A |
| Auxiliary Contact Configuration | 2 NO/2 NC |
| Operational Current Ie | 4A |
| Control Circuit Voltage Uc | 120V ac |
| Contactor Application | Contactor Relay |
| Pole and Throw Configuration | 4 |
| Eaton DILA Relays Contactor Relay, 4 A, 2NC + 2NOBrand | Eaton |
Key Features
- Equipped with a 110V AC coil voltage suitable for various industrial systems.
- Features 4 poles with a contact current rating of 4A for managing multiple circuits.
- Includes 2 normally open (NO) and 2 normally closed (NC) contacts for versatile switching.
- Supports a control circuit voltage of 120V AC for effective relay operation.
- Rated for contact voltage up to 415V AC ensuring high voltage compatibility.
- Durable screw terminal connections enable secure and easy installation.
- Designed for DIN rail mounting to simplify integration in control panels.
- Operates reliably within a temperature range of -25°C to +60°C, suitable for harsh environments.
Product Description
Eaton 276396 DILA-22(110V50HZ,120V60HZ) Contactor Relay is engineered for dependable control of electrical systems in industrial environments. Featuring a 110V AC coil and 4 poles, this relay supports a contact current of 4A and a contact voltage rating of 415V AC. The relay has 2 normally open and 2 normally closed contacts, offering flexible switching configurations for diverse automation needs.
This unit utilizes screw terminals combined with DIN rail mounting for efficient and secure installation. It is designed to operate in temperatures ranging from -25°C to +60°C, making it resilient in challenging industrial conditions. Eaton’s DILA series relays adhere to major standards such as CSA, UL, IEC/EN 60947, and VDE 0660, ensuring quality and safety.
Commonly used in automation systems, this contactor relay provides reliable motor control, effective HVAC system switching, and can be integrated into manufacturing equipment or lighting control setups. Its capacity to handle both inductive and resistive loads makes it versatile for a variety of industrial control applications.
110V AC coil voltage for motor and automation system compatibility. Four poles enable simultaneous control of multiple circuits. Contact voltage up to 415V AC supports heavy-duty switching. 2 NO and 2 NC contacts provide flexible circuit configurations.
Screw terminal design facilitates reliable electrical connections. DIN rail mount enables easy installation and maintenance. Wide operating temperature range from -25°C to +60°C. Compliance with CSA, UL, IEC/EN, and VDE standards guarantees performance and safety.
Ideal for use in industrial motor control, HVAC, manufacturing, and lighting systems.
Set contains 1 Eaton DILA Contactor Relay model 276396 DILA-22(110V50HZ,120V60HZ). Romania origin ensures manufacturing quality. Explore more products in the Contactor Relay category at EnvMart for comprehensive industrial control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this model is 110V AC, suitable for various industrial systems.
It has a contact current rating of 4A, allowing it to manage multiple circuits effectively.
This relay features 4 poles, enabling simultaneous control of multiple circuits.
The relay supports a maximum contact voltage of 415V AC, ensuring compatibility with heavy-duty switching applications.
It includes 2 normally open (NO) and 2 normally closed (NC) contacts, providing flexible switching options.
The control circuit voltage is 120V AC, which is effective for relay operation.
The dimensions are 75mm in length, 75mm in depth, and 45mm in width.
It operates reliably within a temperature range of -25°C to +60°C, making it suitable for harsh environments.
It is designed for DIN rail mounting, which simplifies integration into control panels.
This model utilizes screw terminals for secure and reliable electrical connections.
It adheres to major standards such as CSA, UL, IEC/EN 60947, and VDE 0660, ensuring quality and safety.
It is commonly used in industrial motor control, HVAC systems, manufacturing equipment, and lighting control setups.
