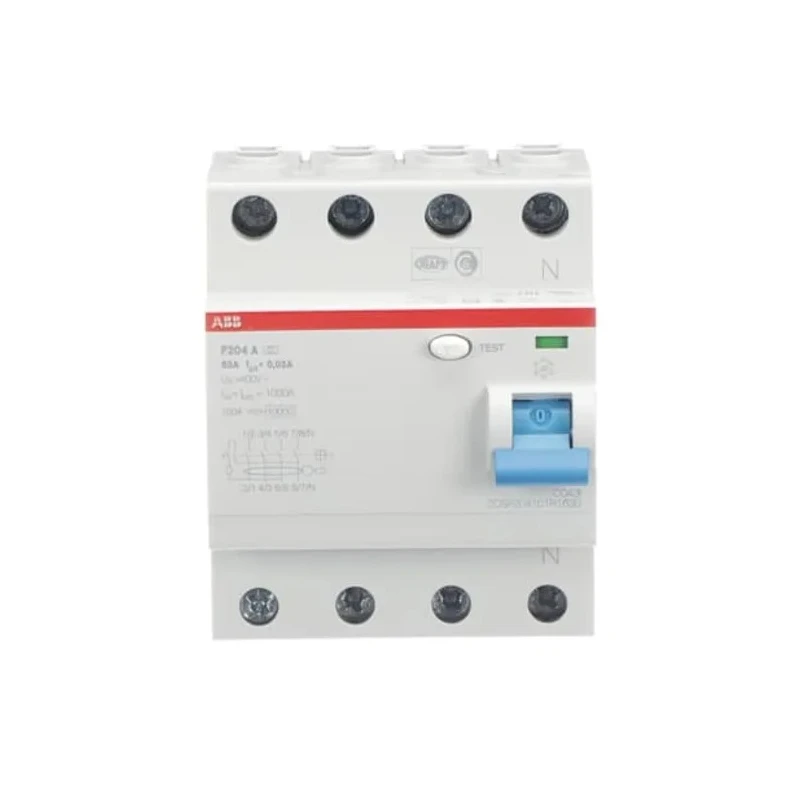

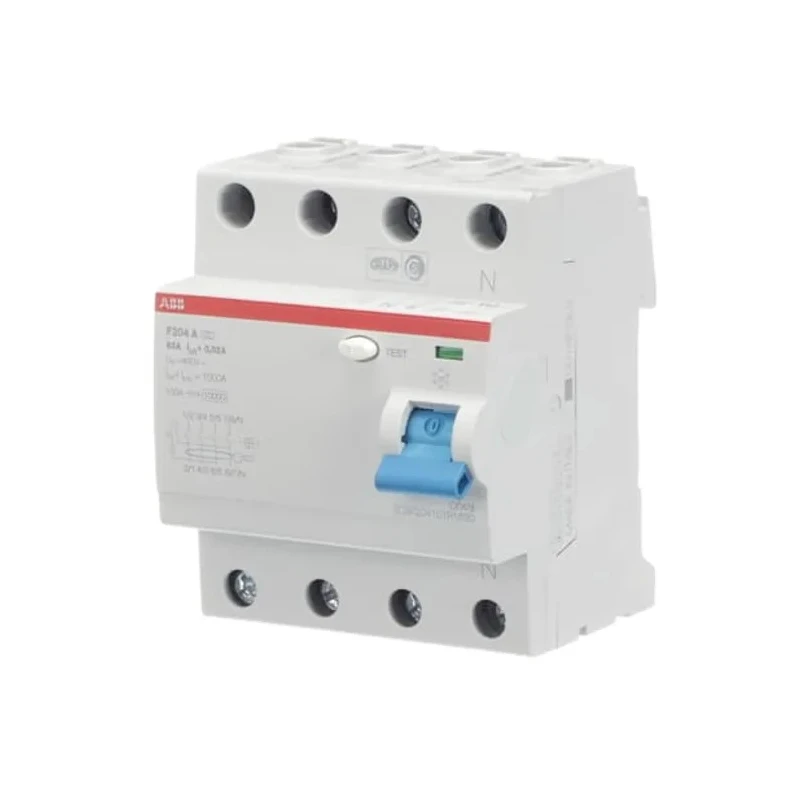

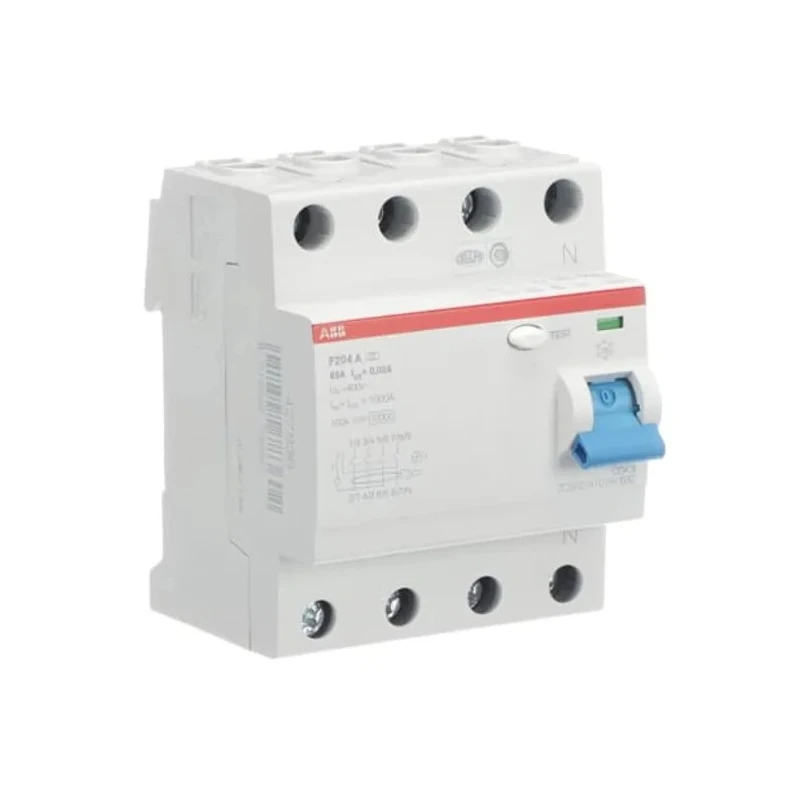

ABB F200 Series Residual Current Circuit Breaker 63A 4-Pole 30 mA Type A 1 kA 400V AC 2CSF204101R1630 - F204A-63/0.03

ABB 2CSF204101R1630 - F204A-63/0.03 Residual Current Circuit Breaker is a high-quality electrical safety device designed for sensitive earth leakage detection and protection in industrial, commercial, and automation applications. It features a current rating of 63A across 4 poles, suitable for three-phase circuits.

Equipped with Type A tripping characteristics, this device responds to both AC and pulsating DC earth leakage currents with a trip sensitivity of 30 mA to ensure rapid disconnection on detecting faults, enhancing personnel and equipment safety.

The breaker is designed for straightforward DIN rail mounting with screw terminals, allowing for secure and reliable wiring in distribution panels. Its compact form factor with dimensions of 85mm height, 70mm width, and 69mm depth provides space-saving installation advantages.

The RCCB supports a breaking capacity of 1 kA and an instantaneous breaking time, facilitating rapid interruption of fault currents to prevent damage and hazards. Rated for 400V AC operation, it withstands an impulse voltage up to 4 kV, making it resilient in volatile electrical environments.

Lightweight at approximately 360 grams, the circuit breaker reduces load on mounting rails and simplifies handling. It complies with RoHS and UL standards, ensuring both environmental responsibility and recognized safety certifications.

The product features a lever-type reset actuator and is protected with IP2X finger-safe rating, preventing accidental contact with live parts from objects larger than 12 mm. These safety features make it ideal for HVAC systems, robotics and automation controls, and various process and packaging industry electrical protection applications.

Installers and engineers will appreciate the robust fault detection capability and ease of installation that this ABB F200 series RCCB provides, safeguarding electrical networks against ground faults effectively.

Type A trip characteristics for AC and pulsating DC fault detection. DIN rail mounting with screw terminals for secure installation. Compact dimensions for space-efficient panel design. Instantaneous break time with 1 kA breaking capacity.

Rated for 400V AC systems in industrial applications. RoHS compliant and UL recognized for quality assurance. Lightweight construction easing handling and mounting. IP2X finger-safe design enhances user safety. Lever reset actuator for easy fault resetting.

Ideal for HVAC, robotics, automation, process control industries. Explore the range of ABB electrical protection solutions and circuit breakers available on EnvMart for reliable industrial safety.
