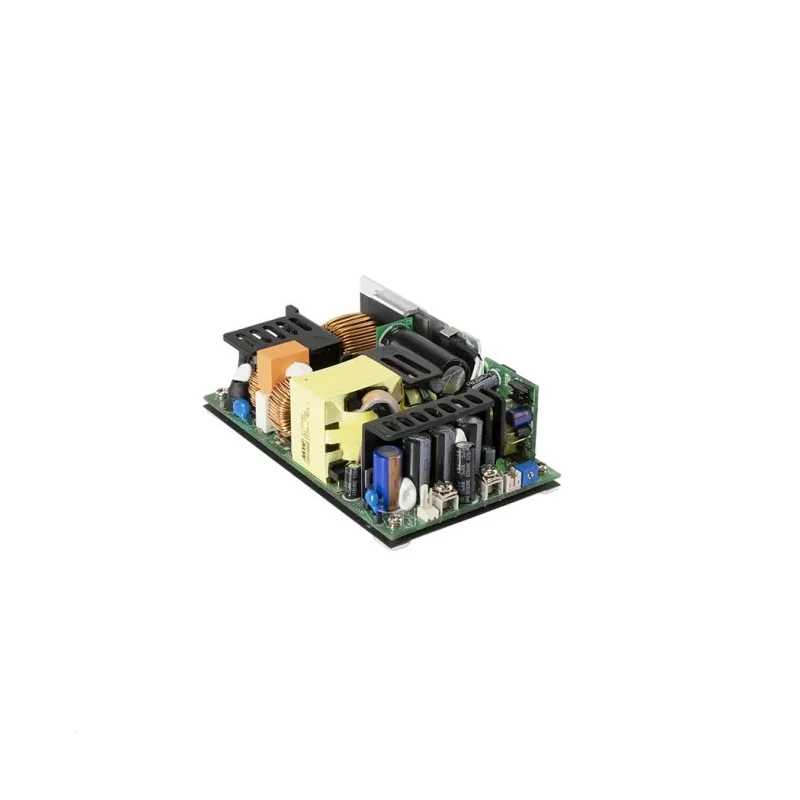

MEAN WELL 499.2W 24V DC Switching Power Supply PCB Mount RPS-500-24

Free Delivery in India | Lowest Global Shipping Charges

MEAN WELL 499.2W 24V DC Switching Power Supply PCB Mount RPS-500-24

Name: MEAN WELL 499.2W 24V DC Switching Power Supply PCB Mount RPS-500-24
Brand: MEAN WELL
SKU: 335097
Price: 20.22 USD
Availability: InStock



Category Switching Power Supplies Brand MEAN WELL Condition New

Specifications

Country of Origin	India
Brand	MEAN WELL
Power	499.2W
Efficiency	93%
Length	127mm
Model	RPS-500-24
Depth	43mm
Gross Weight	460g
Width	43mm
Mount Type	PCB
Series	RPS-500
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-30°C
Number of outputs	1
Maximum Input Voltage	370, 264V dc
Protections	Short circuit / Overload / Over voltage / Over temperature
Maximum Output Voltage	24V dc
SMPS Output Current	20.8A
Minimum Input Voltage	80V ac

Key Features

High power density with a compact 5" by 3" footprint.
Operating voltage range of 80 to 264 VAC input for versatile use.
Efficiency up to 93% ensuring energy-saving operation.
Supports single output with 20.8A current capacity.
Wide operating temperature from -30°C to 70°C for harsh environments.
Multiple protections including short circuit, overload, over voltage, and over temperature protection.
Compliance with international safety standards such as UL, EAC, AS/NZS, BSMI, IS, CCC, TUV, and CSA.
Lightweight at 460 grams suitable for PCB mounting.

Product Description

MEAN WELL RPS-500-24 is a robust switching power supply with a 499.2W power capacity and a 24V DC output, designed for reliable performance in industrial and medical electronic equipment.

The power supply operates over a wide input voltage range of 80 to 264 VAC, making it suitable for global applications. It features a compact PCB mount type with dimensions of 127mm length, 43mm width, and 43mm depth, facilitating integration into tight assembly spaces.

The RPS-500-24 achieves high efficiency up to 93%, reducing heat generation and improving energy consumption metrics. Its operating temperature range from -30°C to 70°C ensures stable functionality in diverse environmental conditions.

Built for safety and durability, the unit includes comprehensive protections against short circuits, overload, over-voltage, and over-temperature conditions. Its leakage current is extremely low, at less than 220 microamperes, aligning with stringent medical equipment requirements.

This product holds multiple certifications including UL 62368-1, EAC TP TC 00, AS/NZS62368.1, BSMI CNS143361, IS 13252(Part1)/IEC 60950-1, CCC GB4943.1, TUV BS EN/EN 62368-1, and CSA C22.2 No. 62368-1, ensuring compliance with global safety standards.

High power density with 5" by 3" footprint. Wide input voltage acceptance from 80 to 264 VAC. High working efficiency reaching 93%. Comprehensive protection features included. Compact PCB mount form factor for integration flexibility.

Low leakage current suitable for medical applications. Wide temperature operating range of -30°C to 70°C. Multiple international safety certifications. Lightweight for board mount at 460 grams.

This MEAN WELL switching power supply series provides reliable and efficient DC power conversion for industrial, medical, laboratory, and manufacturing environments. Its design emphasis on safety, efficiency, and compactness makes it ideal for powering sensitive electronic systems.
