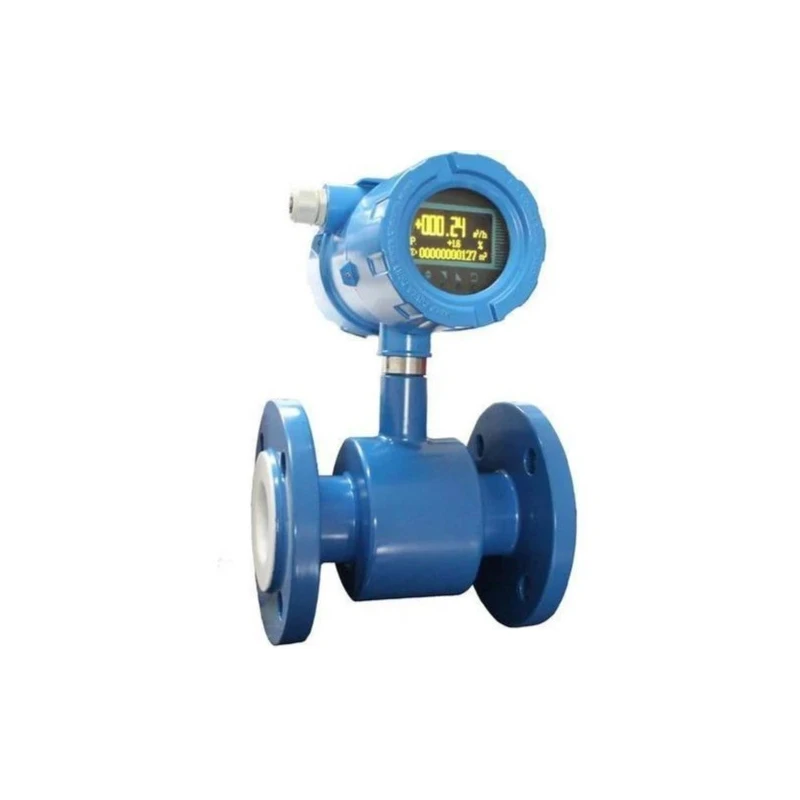

Electro Magnetic Flow Meter With Size 32 mm
Specifications
| Repeatability | 0.2% of Span |
|---|---|
| Size | 32 |
| Power Supply | 24 - 48 V DC or 80 - 300 V AC Solar powered |
| Operating Temperature | 150 degree C max |
| Operating Pressure | 10 Kg/cm2 max |
| End Connection | Flange/Wafer/Tri-clamp/SMS |
| Application Media | Liquids |
| LPM | 9.65 to 578.96 |
| Protection Class for Transmitter | IP 65/IP66/IP67 |
| Display version | Integral/Remote |
| Protecton class for transmitter | IP 65/IP66/IP67 |
Key Features
- High efficiency
- Flow Meter transmitter specially used for various industrial applications.
Product Description
Electro Magnetic Flow Meter With Size 32 mm are based on Faraday's Law of Electromagnetic Induction.In an Electromagnetic Flowmeter, the magnetic Field is generated by a set of coils. As the conductive liquid passes through the electromagnetic Field, an electric voltage is induced in the liquid which is directly proportional to its velocity. This induced voltage is perpendicular to both, the liquid ?ow direction and the electromagnetic Field direction
- It measures the flow rate of conductive liquids & slurries in closed pipes.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a size of 32 mm, making it suitable for specific flow measurement applications.
The maximum operating temperature for this flow meter is 150 degrees Celsius.
It can operate at a maximum pressure of 10 Kg/cm².
The end connection options include Flange, Wafer, Tri-clamp, and SMS.
It requires a power supply of 24 - 48 V DC or 80 - 300 V AC, and it can also be solar powered.
The flow measurement range is from 9.65 to 578.96 LPM.
The repeatability of this unit is 0.2% of span.
It is designed to measure the flow rate of conductive liquids and slurries in closed pipes.
The transmitter has a protection class rating of IP 65/IP66/IP67.
It operates based on Faraday's Law of Electromagnetic Induction, where an electric voltage is induced in the liquid proportional to its velocity as it passes through a magnetic field.
Installation requirements are not explicitly detailed, but it is designed for use in closed pipes with compatible connections.
