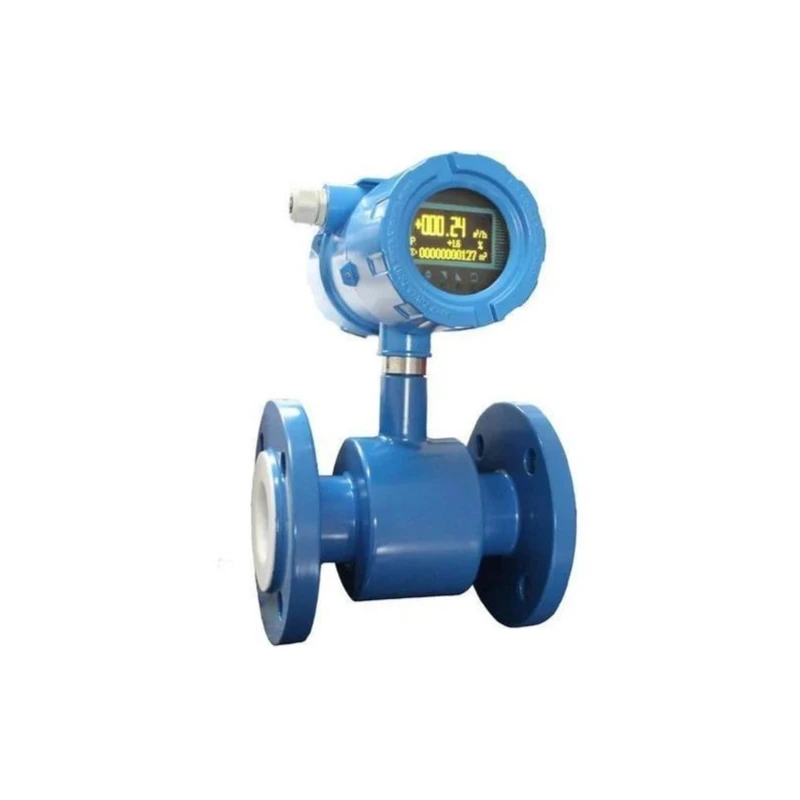

Electro Magnetic Flow Meter With Size 15 mm
Specifications
| Repeatability | 0.2% of Span |
|---|---|
| Power Supply | 24 - 48 V DC or 80 - 300 V AC Solar powered |
| Operating Temperature | 150 degree C max |
| Working Temperature | 1800 C FOR PTFE LINING & 850 C FOR RUBBER LINING |
| Operating Pressure | 10 Kg/cm2 max |
| End Connection | Flange/Wafer/Tri-clamp/SMS |
| Application Media | Liquids |
| Line Size | 15 NB to 2000 NB |
| Protection Class for Transmitter | IP 65/IP66/IP67 |
| Display version | Integral/Remote |
| Nominal dia (mm) | 15 to 3000 |
Key Features
- High efficiency
- Flow Meter transmitter specially used for various industrial applications.
Product Description
Electro Magnetic Flow Meter With Size 15 mm are based on Faraday's Law of Electromagnetic Induction.In an Electromagnetic Flowmeter, the magnetic Field is generated by a set of coils. As the conductive liquid passes through the electromagnetic Field, an electric voltage is induced in the liquid which is directly proportional to its velocity. This induced voltage is perpendicular to both, the liquid ?ow direction and the electromagnetic Field direction
- It measures the flow rate of conductive liquids & slurries in closed pipes.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for the Electro Magnetic Flow Meter is 150 degrees Celsius. For PTFE lining, it can handle up to 180 degrees Celsius, and for rubber lining, it can manage up to 85 degrees Celsius.
It requires a power supply of either 24 - 48 V DC or 80 - 300 V AC, and it can also be solar powered.
The maximum operating pressure for this model is 10 Kg/cm².
The repeatability of this model is 0.2% of Span.
It is designed to measure the flow rate of conductive liquids and slurries in closed pipes.
The nominal diameter for this model ranges from 15 mm to 3000 mm.
The protection class for the transmitter is rated at IP 65, IP 66, or IP 67.
It is compatible with line sizes ranging from 15 NB to 2000 NB.
It operates effectively under a maximum temperature of 150 degrees Celsius and a maximum pressure of 10 Kg/cm².
While specific installation requirements are not detailed, it is important to ensure compatibility with the chosen end connection type such as Flange, Wafer, Tri-clamp, or SMS during installation.
