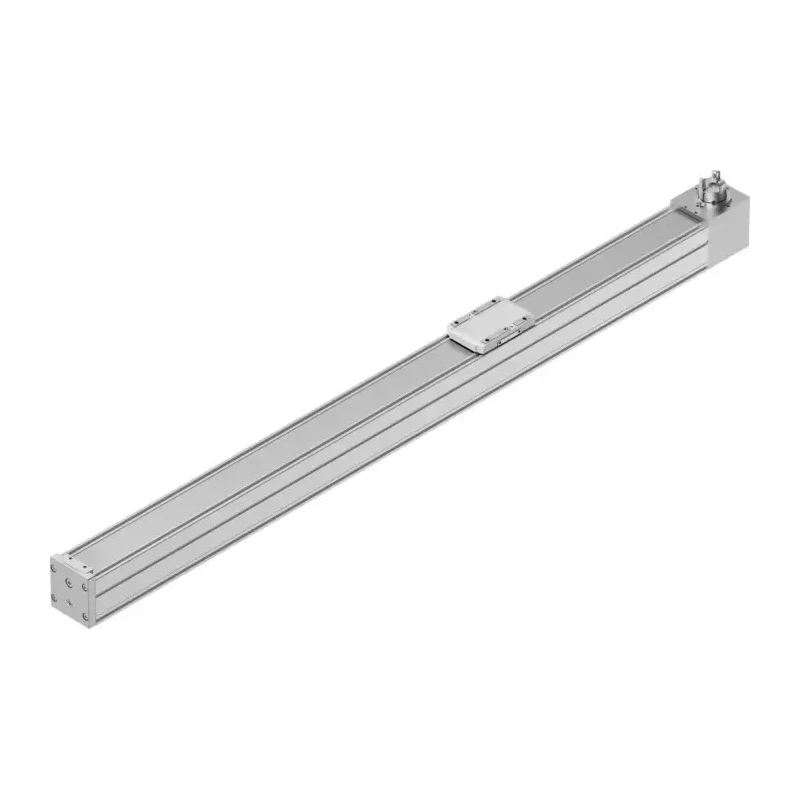

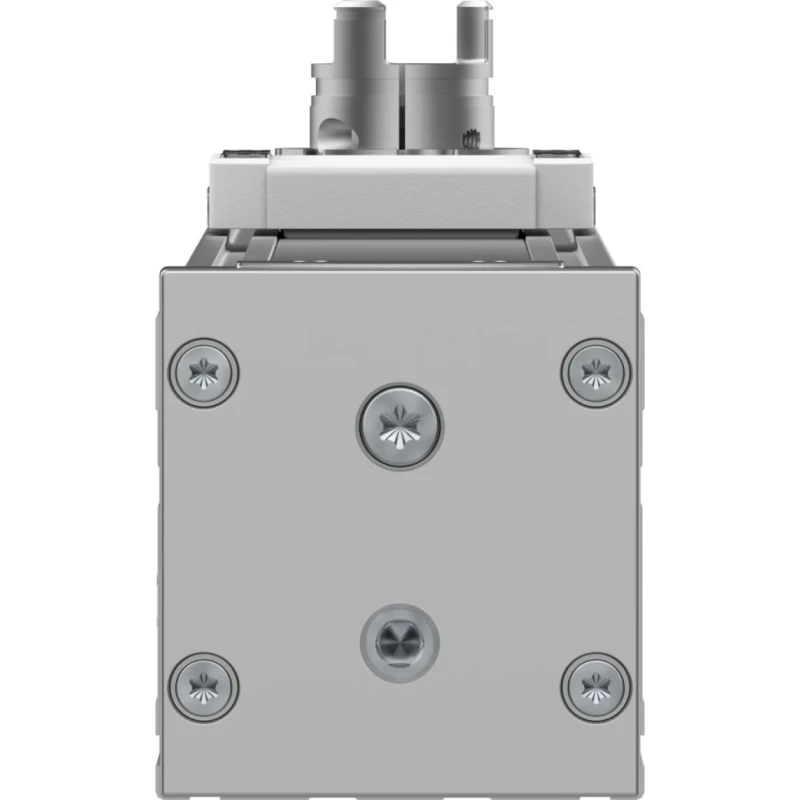

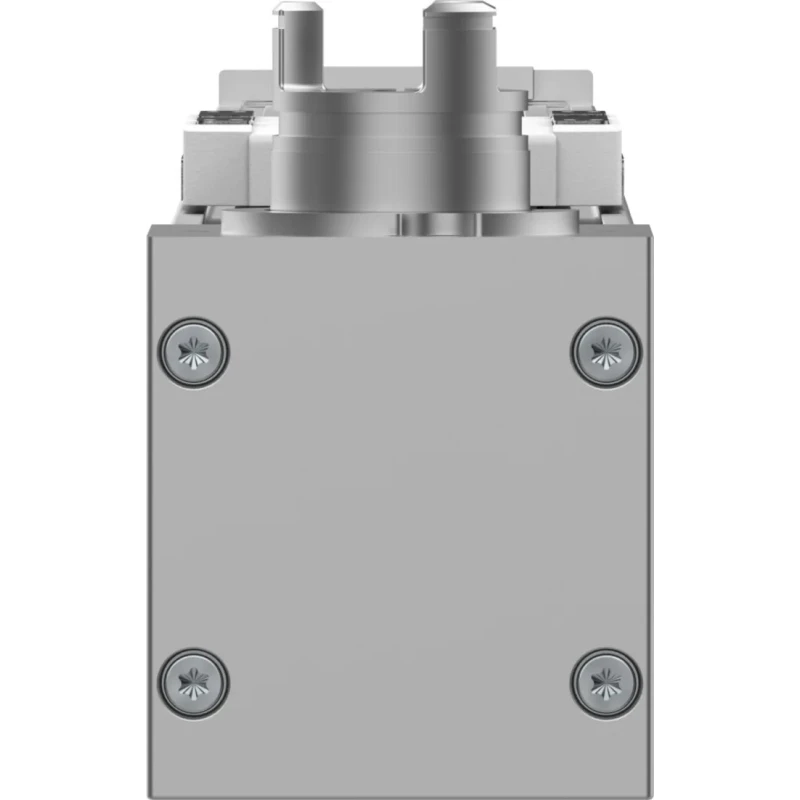

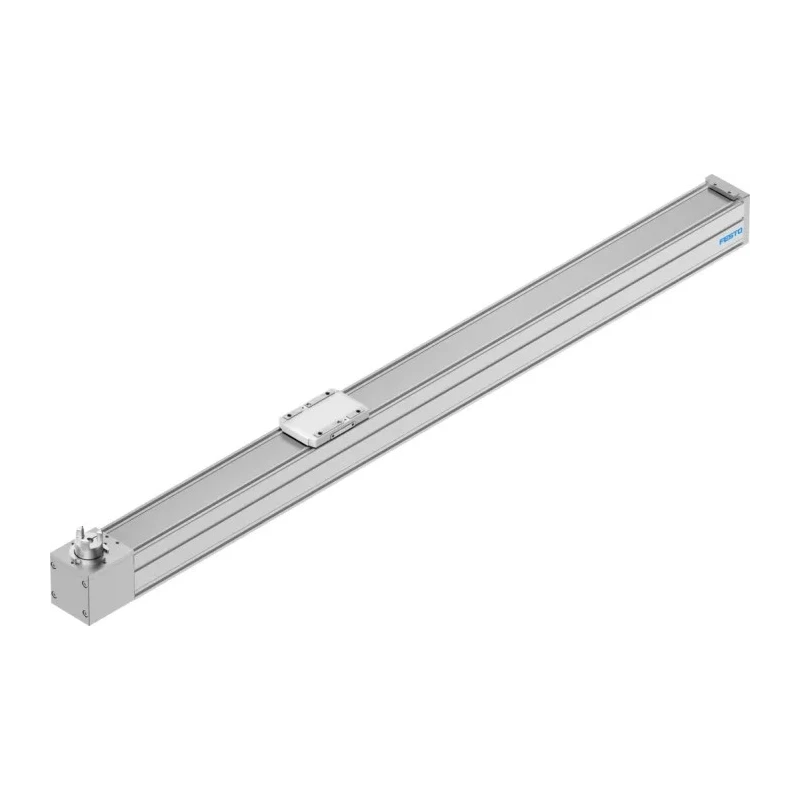

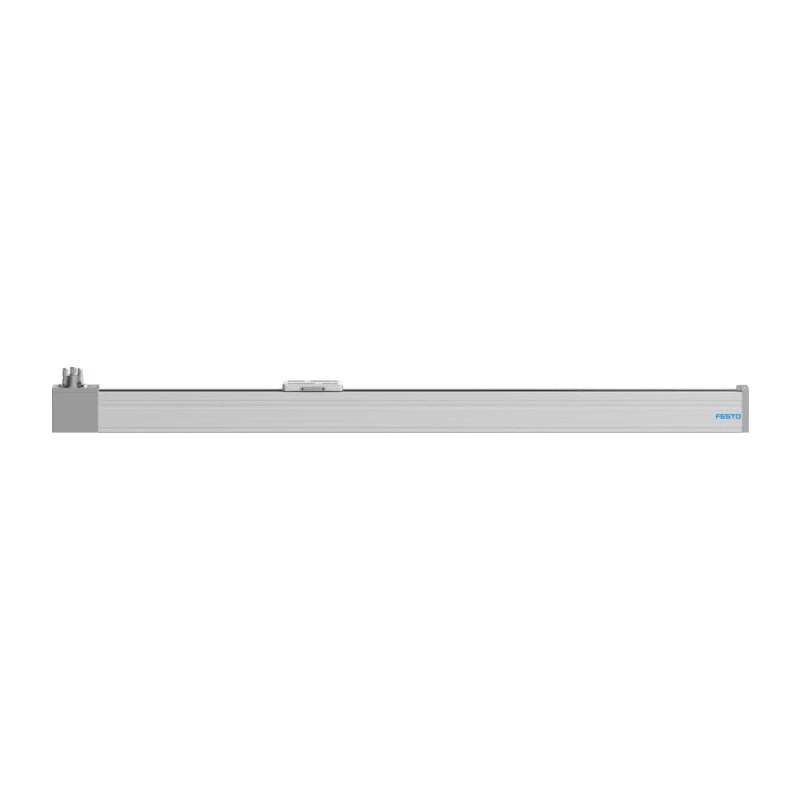

Festo Electrical Linear Actuator 800 mm Stroke Length 3641N Maximum Force Stepper and Servo Motor ELGC-TB-KF-60-800

Festo ELGC-TB-KF-60-800 Electrical Linear Actuator offers precise linear motion with an 800 mm maximum stroke and 3641N force capacity, utilizing stepper and servo motor technology for high accuracy and responsiveness. Designed for industrial automation, this actuator achieves speeds up to 1500 mm/s and supports a 100% duty cycle, making it ideal for continuous operation in demanding environments.

The actuator features a toothed belt spindle and includes recirculating ball bearing guides to enable smooth, consistent movement and durability. With an IP40 rating, it protects against solid debris and is suitable for indoor or controlled environments. It operates reliably within a temperature range of 0 to 50°C, supporting applications that require consistent performance under varying conditions.

This compact actuator has an overall closed length of just 60 mm, allowing installation in confined spaces without compromising performance. Weighing 5.18 kg, it balances robustness and manageable weight, facilitating handling and integration.

Typical industrial uses include robotic arms that require precise positioning, automated assembly lines demanding fast and accurate linear motion, pick-and-place systems for product handling, manufacturing processes where automation enhances throughput, and medical device applications requiring controlled linear adjustments.

Installation requires careful alignment and secure mounting at all points for optimal performance. Compatible controllers include standard stepper motor and servo motor drives specialized for electric actuators. Regular maintenance involves inspecting for loose components and lubricating moving parts to extend service life.

Festo's ELGC-TB-KF-60-800 actuator is a highly reliable component suitable for diverse industries, providing durable and efficient linear motion solutions. Explore more electric linear actuators in the Industrial Tools & Equipment category on EnvMart.

Operates at a maximum speed of 1500 mm/s for rapid linear motion. Utilizes stepper and servo motor technology ensuring precise and controlled movement. Features a toothed belt spindle type for efficient force transmission.

IP40 rated for protection in standard industrial environments. Capable of 100% duty cycle for continuous operation without degradation. Wide operating temperature range from 0 to 50°C suitable for diverse applications. Compact overall closed length of 60 mm facilitates integration in limited spaces.

Constructed with recirculating ball bearing guides for smooth and reliable motion. Weighs 5.18 kg, providing a sturdy build quality. RoHS compliant ensuring environmentally safe materials and manufacturing processes. Browse EnvMart's extensive selection of electric linear actuators and precision automation components for your industrial needs.
