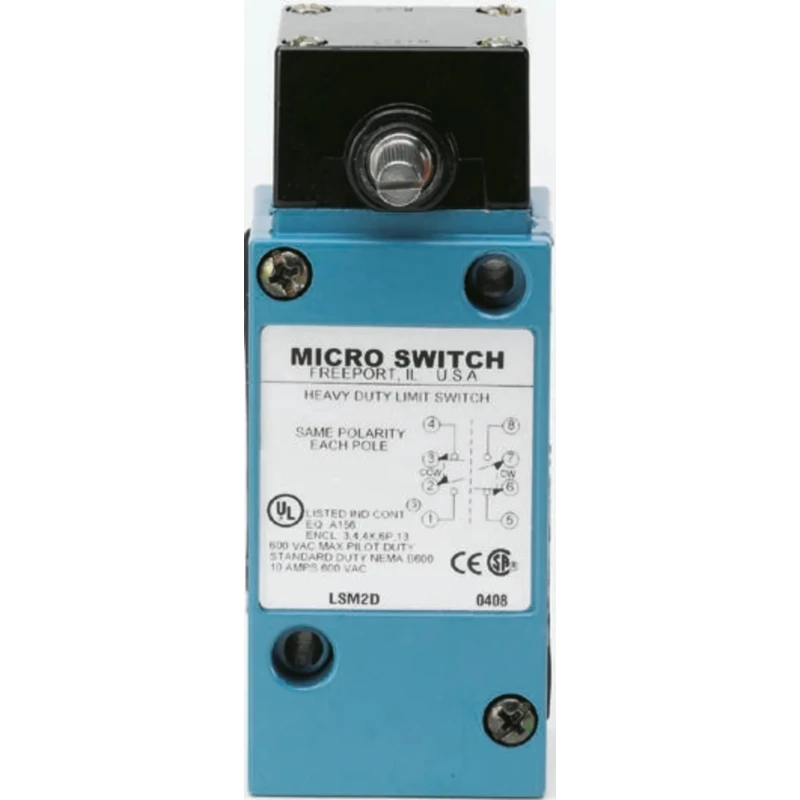

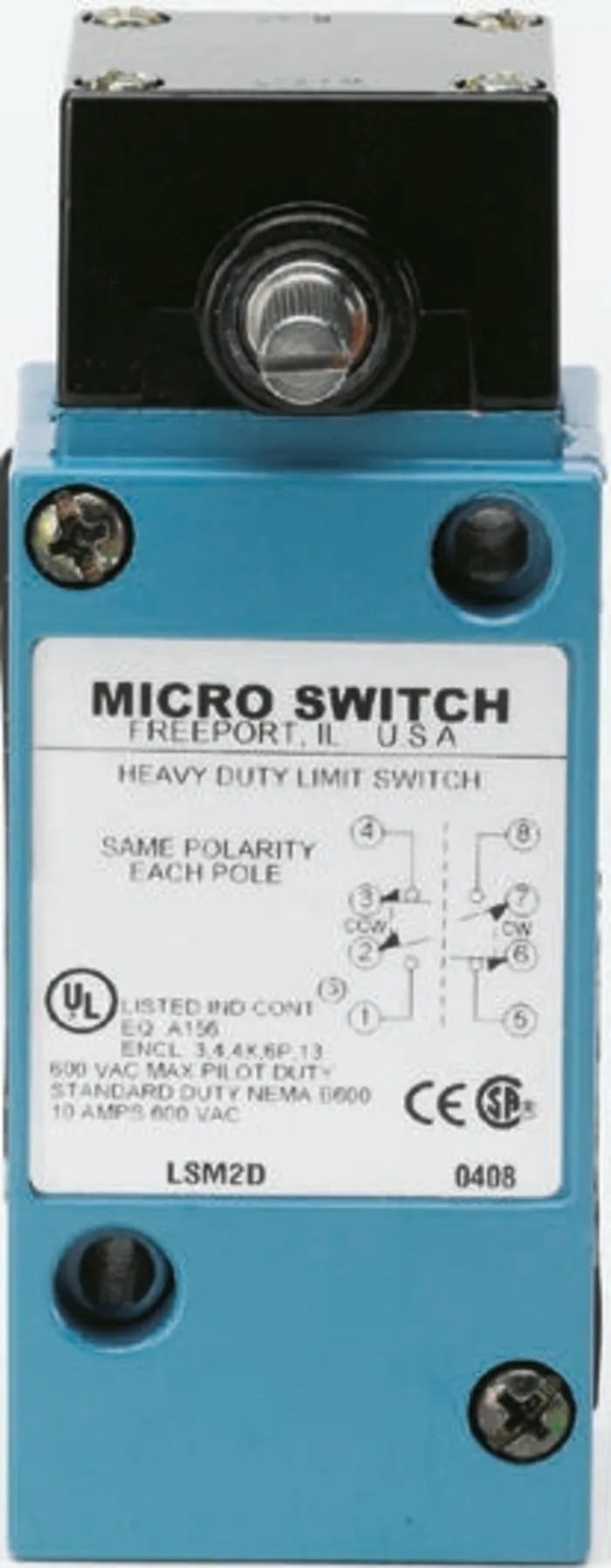

Honeywell Technologies HDLS Series Rotary Head Limit Switch DPDT, IP67, Die Cast Zinc Housing, 240V AC, 10A LS4M2D
Specifications
| Country of Origin | India |
|---|---|
| Brand | Honeywell |
| Length | 119mm |
| Model | LS4M2D |
| Depth | 62mm |
| IP Rating | IP67 |
| Width | 47.8mm |
| Housing Material | Die Cast Zinc |
| Series | HDLS |
| Maximum Operating Temperature | 121°C |
| Contact Configuration | DPDT |
| Actuator Type | Rotary Head |
| Contact Type | Snap Action |
| Minimum Operating Temperature | -1°C |
| Switching Current | 10A |
| Terminal type | Screw |
| Standards/Approvals | CE, CSA, UL |
| Operating Force | 17.8N |
| Mechanical Life | 50000000Operations |
| Switching DC Voltage | 24V dc |
| Switching AC Voltage | 240V ac |
| Conduit Entry | 20 mm |
Key Features
- Durable die cast zinc housing offers robust protection.
- Dual Pole Double Throw (DPDT) contact configuration provides versatile switching.
- IP67 rating ensures excellent dust and water resistance.
- Suitable for industrial applications with mechanical life of 50 million operations.
- Operates reliably in temperatures from -1°C up to 121°C.
- Snap action contact type allows fast switching response.
- Terminals designed with screw type for secure wiring.
- Conduit entry diameter of 20 mm for standard installation.
Product Description
Honeywell LS4M2D HDLS Series Rotary Head Limit Switch is a highly reliable device designed for precise industrial control and automation applications. This limit switch features a rotary head actuator type with snap action contacts providing dependable switching performance. Equipped with dual pole double throw (DPDT) contact configuration, it supports versatile circuit designs.
The device is housed in a durable die cast zinc enclosure, offering excellent mechanical protection and corrosion resistance, making it suitable for rugged industrial environments. The IP67 ingress protection rating guarantees full protection against dust ingress and water immersion, enhancing its suitability for harsh conditions.
The limit switch operates on 240V AC with a rated switching current of 10A and supports 24V DC switching voltage, ensuring compatibility with a wide range of electrical systems. Mechanical durability is remarkable, with a lifespan reaching up to 50 million operations, minimizing maintenance needs and downtime.
Temperature operation range spans from -1°C minimum to 121°C maximum, allowing it to be used in various industrial climates. The device requires a roller action lever for activation (sold separately). Terminals utilize screw types for secure and reliable electrical connections, and conduit entries are standardized at 20 mm diameter.
Compact dimensions (119 mm length, 47.8 mm width, and 62 mm depth) enable flexible installation in limited spaces. The operating force of 17.8 N ensures precise rotational actuation suitable for machine control applications.
Durable die cast zinc housing for long-lasting performance. IP67 rating for protection against dust and water ingress. DPDT contact configuration provides flexibility in circuit control. Snap action contacts for swift response and reliability.
Mechanical life of up to 50 million operations reduces maintenance. Wide operating temperature range from -1°C to 121°C for diverse environments. Screw terminal type for strong electrical connections. 20 mm conduit entry size for easy integration.
Compact size facilitates mounting in tight spaces. Operating force optimized at 17.8 N for consistent actuation.
This limit switch is ideal for industrial automation, electrical control systems, HVAC controls, manufacturing machinery, and various other applications requiring precise limit detection and reliable switching action.
Explore the wide range of Honeywell Limit Switches and accessories for enhanced control solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this model is 10A.
This limit switch has an IP67 rating, providing excellent dust and water resistance.
The dimensions of this unit are 119 mm in length, 47.8 mm in width, and 62 mm in depth.
It operates reliably in temperatures ranging from -1°C to 121°C.
This model uses a rotary head actuator type for its operation.
The mechanical life of this device is rated at up to 50 million operations.
It features screw type terminals for secure and reliable electrical connections.
The conduit entry diameter for this unit is 20 mm, which is standard for easy installation.
This model has a dual pole double throw (DPDT) contact configuration, allowing for versatile circuit designs.
It utilizes snap action contacts, which provide a fast switching response.
This device complies with CE, CSA, and UL standards.
It is suitable for industrial automation, electrical control systems, HVAC controls, and manufacturing machinery.
