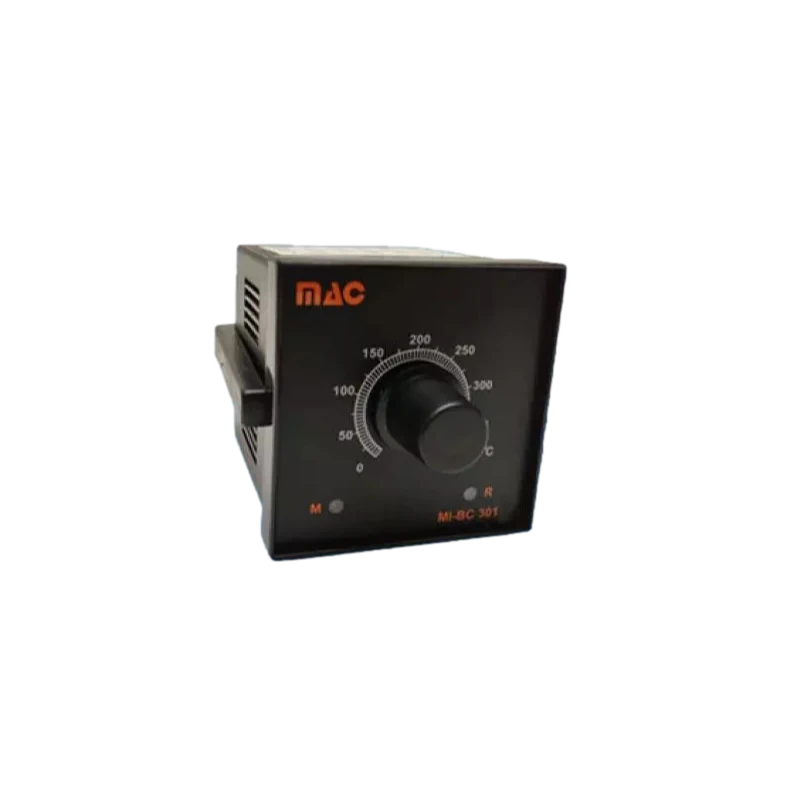

Blind Temperature Controller With Size 72x72mm MI- BC301
Specifications
| Resolution | 1 Degree C for J & K / 0.1 C for RTD |
|---|---|
| Accuracy | 0.1% 1C. |
| Frequency | 50/60 Hz |
| Size | 72 x 72 mm |
| Brand | MAC |
| Power Supply | 180 - 240V AC |
| Model | MI-BC301 |
| Mode | Autotuning Mode |
| Mounting Type | Panel |
| Input Supply | 220 VAC |
| Sensor Range | -99 to 600 C FOR J -99 to 1300 C FOR K -99.9 to 399.9 C for PT 100 |
| Control Output Type | Relay/SSR |
| Output Relay | 7amp |
| Cold Junction Compensation | Automatic from 0 to 70C. |
| Control Action | Time Proportionating ON/OFF Control |
Key Features
- It is an electronic device used to maintain the temperature of an item at a constant level.
- It is a precise temperature controller in medical, industrial and home applications
Product Description
Blind Temperature Controller With Size 72 x 72 mm (MI--BC301) is a single Thermocouple or RTD input and 1 relay output with user-specified control action and relay logic. It is a cost-effective solution for temperature control wherever a display is not required. is an device that is used to control temperature. It does this by first measuring the temperature (process variable), it then compars it to the desired value (set value).
- It is an Universal controllers to manage temperature, humidity and pressure
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The sensor range for this model includes -99 to 600 °C for J thermocouples, -99 to 1300 °C for K thermocouples, and -99.9 to 399.9 °C for PT 100 sensors.
This model has an accuracy of 0.1% at 1 °C.
It provides a relay output type, which can be configured for either relay or SSR (Solid State Relay) control.
The resolution is 1 °C for J and K thermocouples, and 0.1 °C for RTD sensors.
The power supply requirement for this model is 180 to 240V AC with an input supply of 220 VAC.
The dimensions of this model are 72 x 72 mm.
The autotuning mode automatically adjusts the control parameters for optimal temperature regulation based on the process variable and set value.
This model is designed for panel mounting.
The control action is time proportionating ON/OFF control, allowing for precise temperature management.
The frequency specification for this model is 50/60 Hz.
The output relay is rated at 7 amps.
Yes, it features automatic cold junction compensation from 0 to 70 °C.
