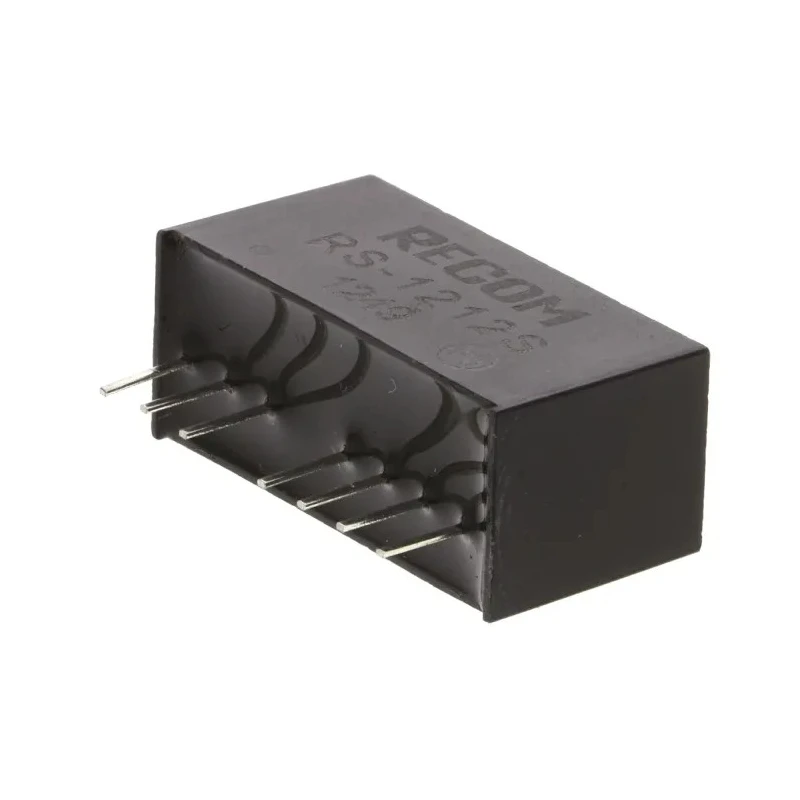

Recom 12V DC Input Voltage, 166mA Output Current 2W Through Hole DC/DC Converter RS-1212S

Recom RS-1212S DC/DC Converter delivers a stable 12V DC output at 166mA current with a maximum output power of 2W. It accepts input voltages between 9V and 18V DC, making it suitable for a variety of electronic devices and industrial applications.

The converter utilizes through hole solder pin mounting for a robust connection to printed circuit boards (PCBs), ensuring durability and reliability in use. Its compact SIP package measures 21.8mm in length, 9.2mm in width, and 11.1mm in depth, enabling integration into space-constrained designs.

Designed to operate efficiently in extreme temperatures ranging from -40°C to +85°C, it is suitable for demanding industrial, medical equipment, laptop charger, and consumer electronics applications. The unit features a 2:1 input ratio and 500V isolation voltage for safe operation where voltage isolation is mandatory.

Additional technical strengths include continuous short-circuit protection and a high MTBF of 1,398,000 hours at 25°C, signaling excellent reliability. Its non-conductive housing offers flame-retardant properties, reducing fire risks without being fully fireproof.

This DC/DC Converter supports efficient energy use with an efficiency rating of 80%, making it ideal for low-power applications requiring stable voltage conversion. It is manufactured in Taiwan, Province Of China, reflecting quality standards in electronic component production.

Operates with input voltage ranging from 9V to 18V DC for flexible compatibility. Through hole mounting with solder pins ensures secure and permanent PCB connection. Compact SIP package with dimensions 21.8mm length, 9.2mm width, and 11.1mm depth.

Wide operating temperature range from -40°C to +85°C for harsh environments. Provides 500V AC isolation voltage for protection and reliability. Has continuous short-circuit protection to ensure electrical safety. High mean time between failures (MTBF) value of 1,398,000 hours at 25°C for durability.

Efficiency rating of approximately 80% supporting energy saving in low power applications. One single output channel designed for stable power supply needs on PCBs. Insulated non-conductive housing reduces electric shock risk during operation.

Suitable for use in industrial, consumer electronics, medical, and laptop charger applications where stable, low-power DC voltage is required. Browse the EnvMart catalog for additional power supply solutions and electronic components.
