Phoenix Contact Double Level Terminal Block Grey 0.2mm² to 4 mm² Screw Termination 32A 500V 2771146

Free Delivery in India | Lowest Global Shipping Charges

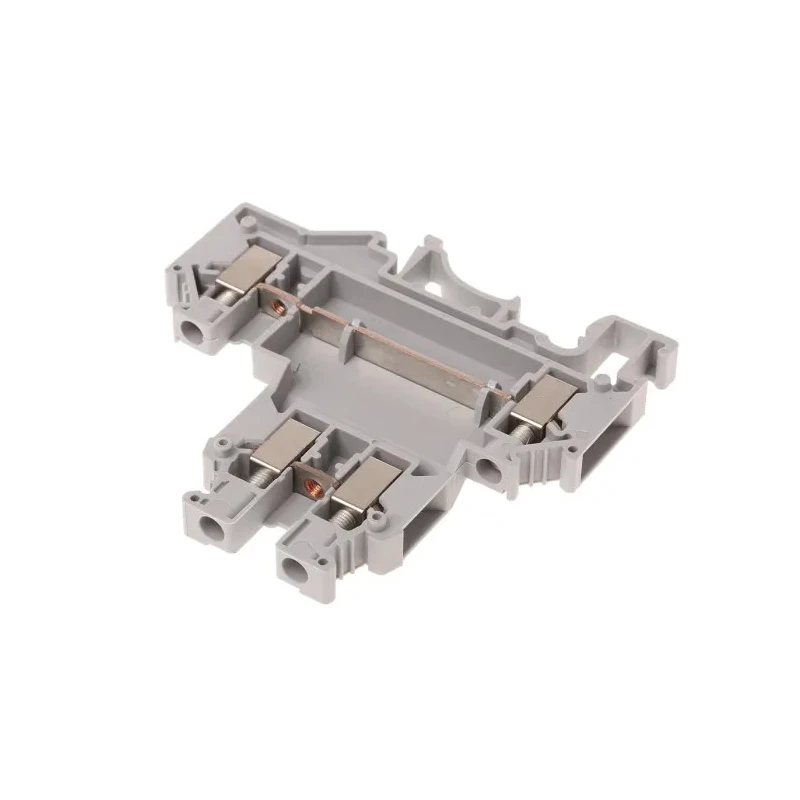

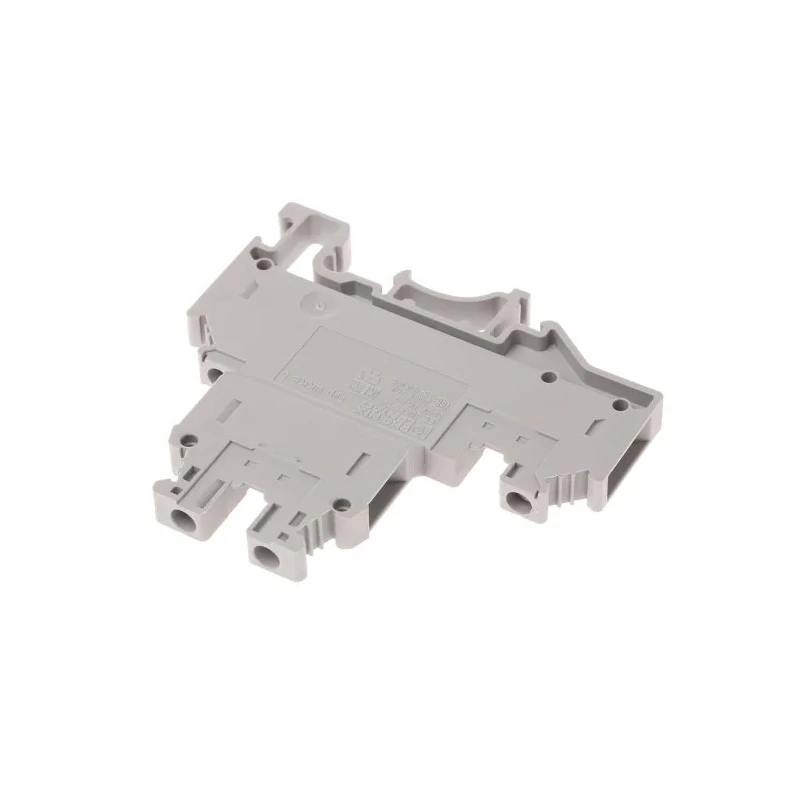

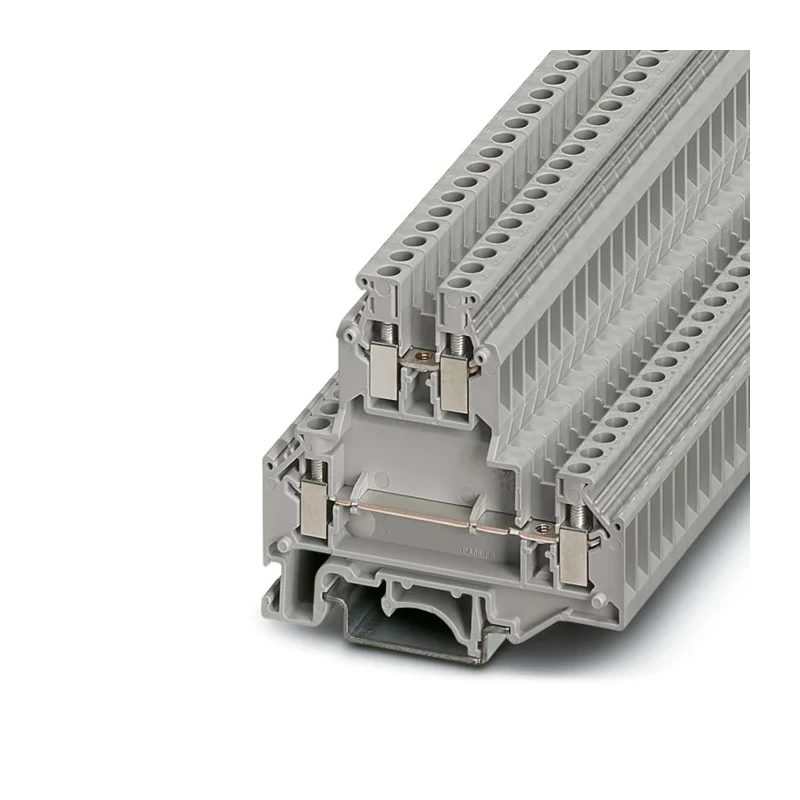

Phoenix Contact Double Level Terminal Block Grey 0.2mm² to 4 mm² Screw Termination 32A 500V 2771146

Name: Phoenix Contact Double Level Terminal Block Grey 0.2mm² to 4 mm² Screw Termination 32A 500V 2771146
Brand: PHOENIX CONTACT
SKU: 332899
Price: 20.22 USD
Availability: InStock



Category Terminal Blocks Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	India
Voltage	500V
Brand	Phoenix Contact
Colour	Grey
Model	2771146
Series	UKKB5
Termination Type	Screw
Maximum Operating Temperature	110°C
Number of Levels	2
Minimum Operating Temperature	-60°C
Standards/Approvals	EAC
Minimum Wire Size AWG	24AWG
Maximum Wire Size AWG	12AWG
Cable CSA	0.2, 4mm²
Terminal Block Current	32A

Key Features

This screw terminal block supports wire sizes from 0.2mm² to 4 mm² (24 AWG to 12 AWG).
It is rated for a current of 32A and an operating voltage of 500V for robust performance.
The terminal block features two levels for compact wiring in control and power distribution panels.
Designed with grey coloration to allow easy visual identification and circuit organization.
The operating temperature range spans from -60°C to 110°C, suitable for varied industrial environments.
The screw termination ensures secure wire connections minimizing failure risk.
Complies with EAC standards for regional approvals and industrial safety.
Ideal for automation, electrical, mechanical industries, and use in PLC control panels.

Product Description

Phoenix Contact 2771146 is a double level terminal block characterized by a screw termination method, supporting wire cross-sectional areas between 0.2 mm² and 4 mm². It is rated for a continuous current of 32A and an operating voltage up to 500V, ensuring safe and reliable electrical connections in demanding industrial applications.

The terminal block's two-level design allows efficient use of space in electric control panels and power distribution systems. Its durable grey body provides ease of circuit identification and is engineered to operate reliably within a temperature range of -60°C to 110°C, suitable for harsh industrial environments.

This product is not fused and meets EAC approval standards, making it suitable for use in automation, electrical engineering, mechanical systems, and manufacturing operations requiring dependable terminal blocks.

The screw type termination ensures secure and maintenance-friendly wire connection suitable for 12 AWG maximum cable size, enhancing performance for high-current devices such as motors, sensors, and actuators.

This terminal block supports wide wire gauge compatibility from 24 AWG to 12 AWG. The unit's current rating of 32A provides assurance for high load carrying capacity. Operating temperature suitability includes extreme cold and heat, from -60°C to 110°C.

Screw termination delivers solid electrical contact and ease of wiring. EAC certification confirms compliance with regional industrial standards. Its 2-level configuration allows streamlined wiring and space-saving design.

Grey color coded housing aids quick circuit identification and panel organization. Ideal for applications in control panels, power distribution, and automation control systems. Set your industrial electrical installations with Phoenix Contact's 2771146 terminal block for durable and high-quality connections that meet rigorous operational requirements.

Explore the full range of Phoenix Contact Terminal Blocks and other high-grade electrical components in EnvMart for your automation and control needs.
