Eaton RMQ Titan M22 Series Blue Momentary Push Button Head 22 mm Cutout Diameter IP69K 78639210 M22-DL-B+M22-A+M22-LED-B

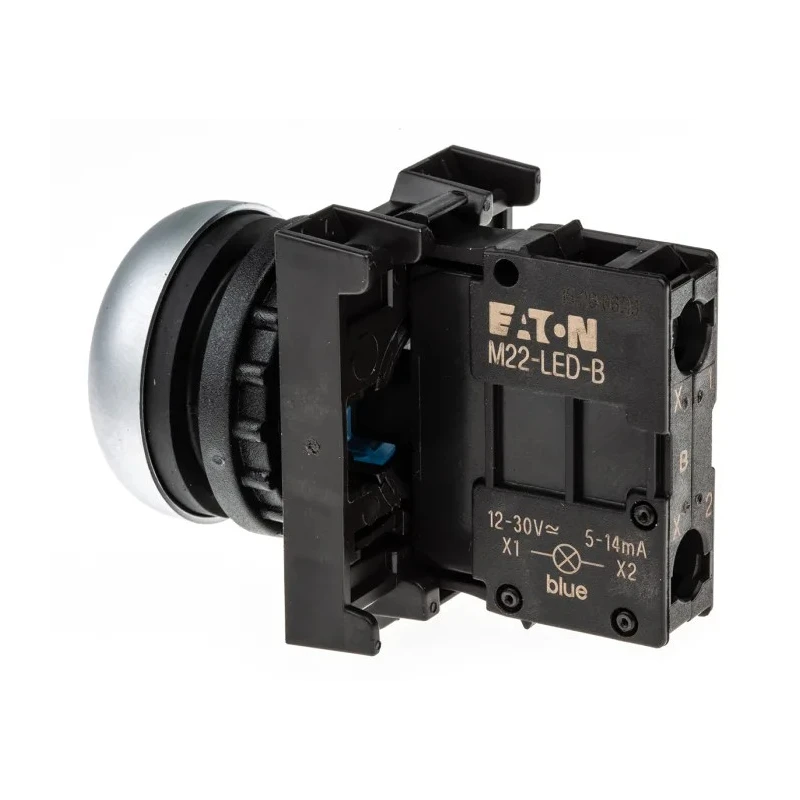

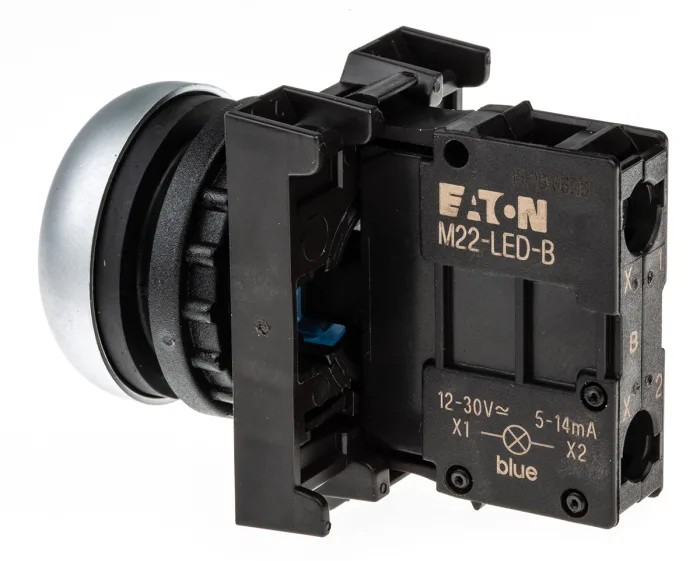

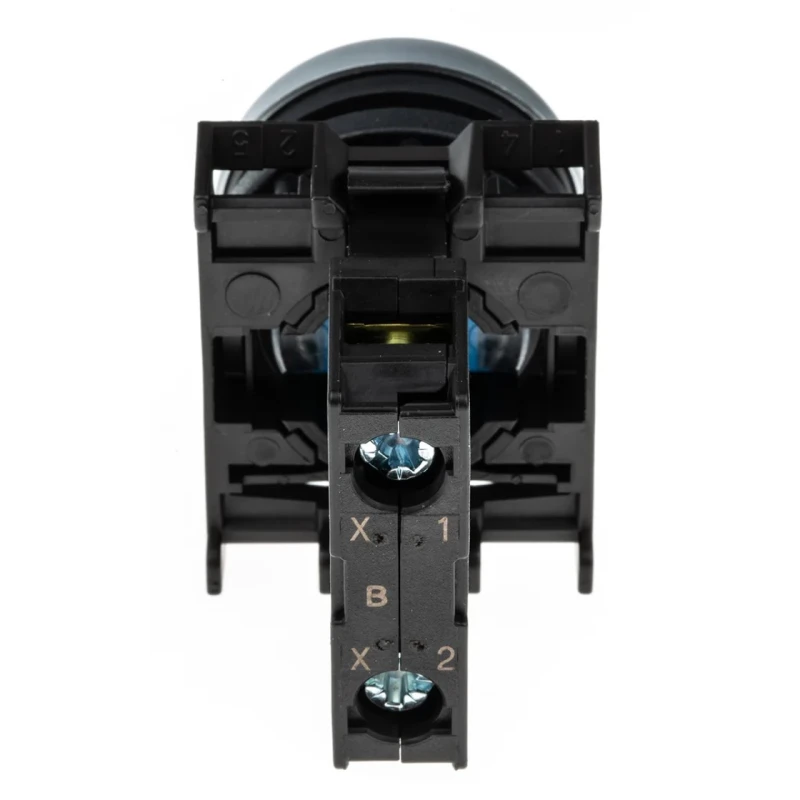

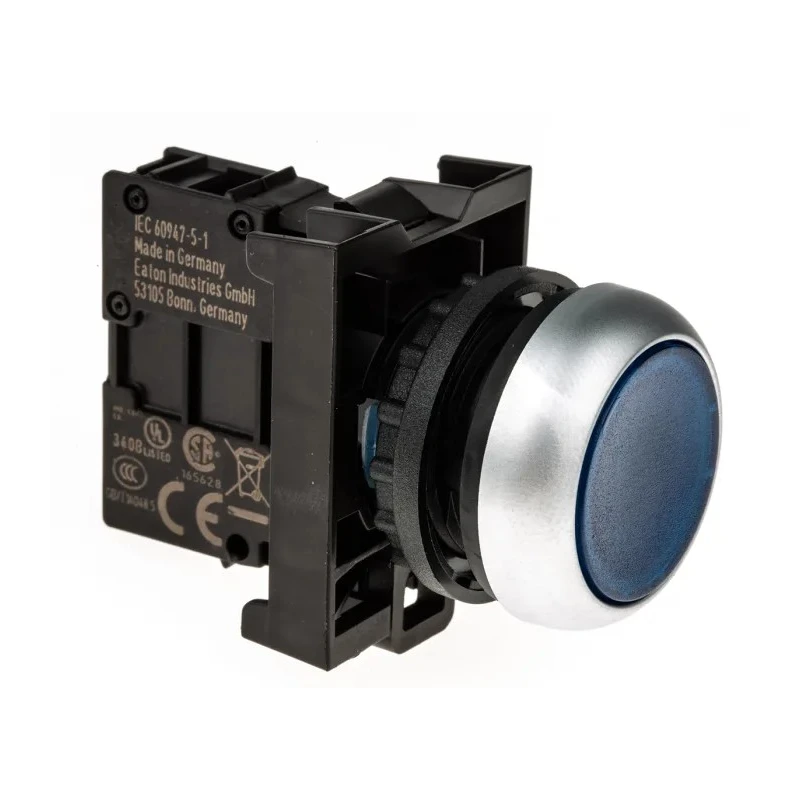

Eaton 78639210 M22-DL-B+M22-A+M22-LED-B RMQ Titan M22 Series Blue Momentary Push Button Head is engineered for industrial automation, offering high reliability and robust performance. The device fits a 22 mm panel cutout and features a blue, round plastic push button with a diameter of 29.7 mm, optimized for easy and intuitive control panel operation.

Its titanium front ring provides excellent corrosion and impact resistance, ensuring long-lasting use even in harsh or demanding industrial environments. The push button includes a body and fixing collar for straightforward, flush mounting that minimizes protrusion, reducing accidental activation risks.

Rated IP69K, this push button head is dust-tight and protected against high-pressure, high-temperature water jets, making it ideal for hygienic, washdown-required applications such as food processing lines or pharmaceutical manufacturing.

Designed with a wide operating temperature range from -25°C to +70°C, the momentary actuation style supports temporary switching as needed in control systems. The modular design allows for easy customization and integration within control panels or industrial vehicles.

This Eaton push button head complies with multiple international standards, including UL 508, IP65, IEC/EN 60947-5, IEC/EN 60529, CSA C22.2 No. 14-05, and CE marking, assuring safety and reliability. Its mechanical lifespan exceeds five million operations, guaranteeing dependable performance in continuous industrial use.

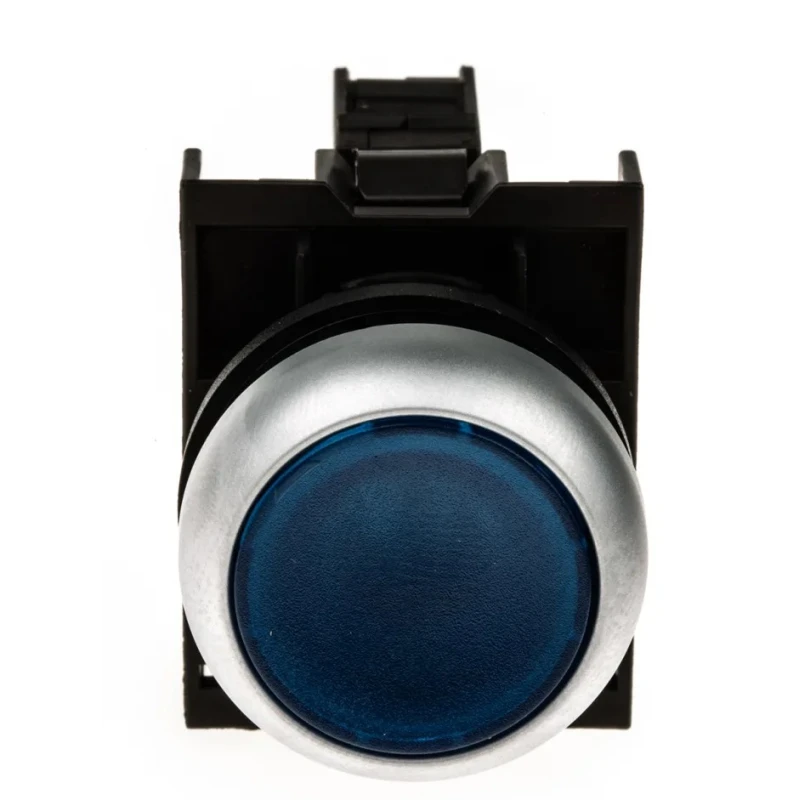

The push button has a blue round shape with a 29.7 mm diameter for clear visual recognition. The momentary actuation style ensures temporary switching during operation. Constructed with durable plastic material and corrosion-resistant titanium front ring for robustness.

IP69K rating provides dust-tight protection and resistance to high-pressure hot water making it suitable for hygienic environments. The unit includes a body and fixing collar for easy mounting and integration. Wide operating temperature range from -25°C to +70°C supports varied industrial conditions.

Modular design enables easy installation and customization within control systems. Meets multiple industry standards including UL 508, IEC/EN 60947-5, and CSA-C22.2 No. 14-05. Long mechanical lifespan exceeding five million operations ensures durability in demanding usage.

This push button head is ideal for industrial automation, manufacturing plants, production lines, and control panel customization in commercial and industrial settings. Eaton products are recognized for quality and reliability in electrical automation components.

Explore the full range of Eaton Push Button Heads and switches on EnvMart for versatile, high-performance industrial control solutions.
