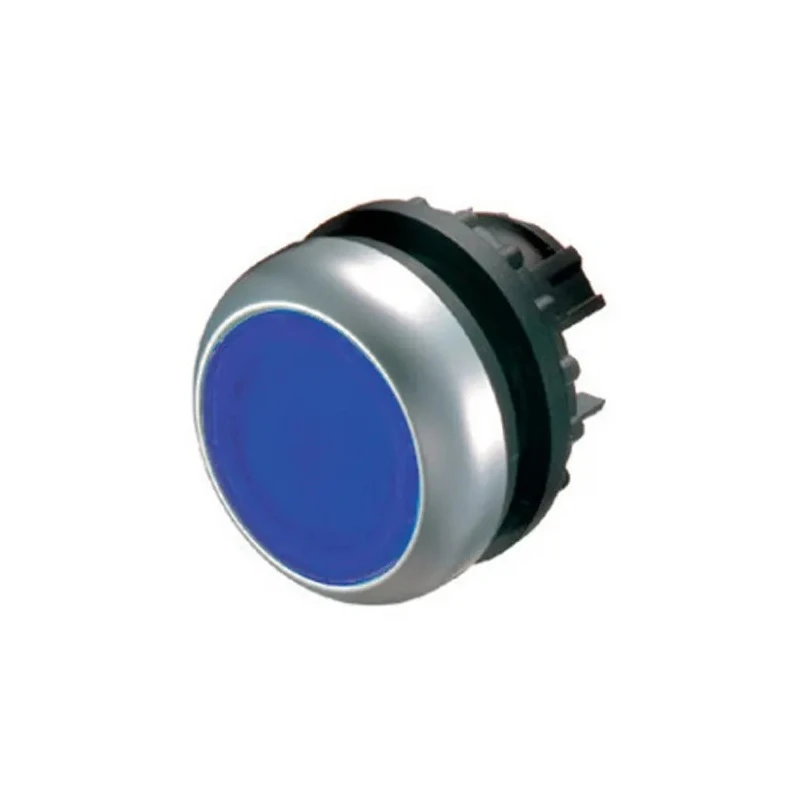

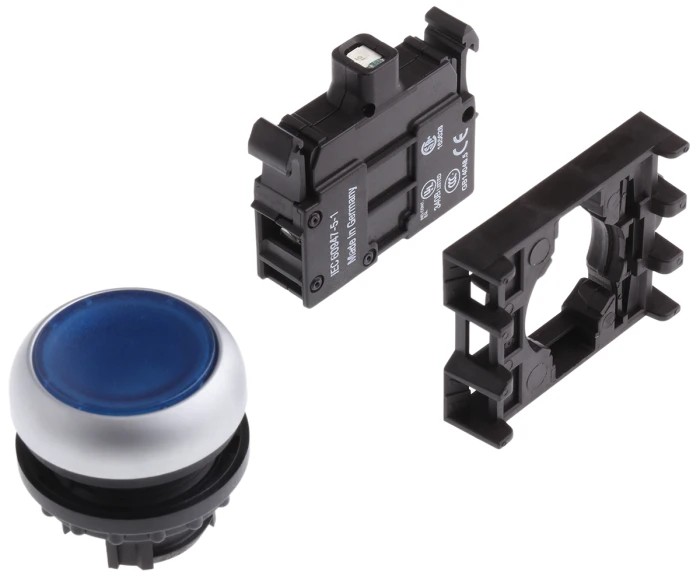

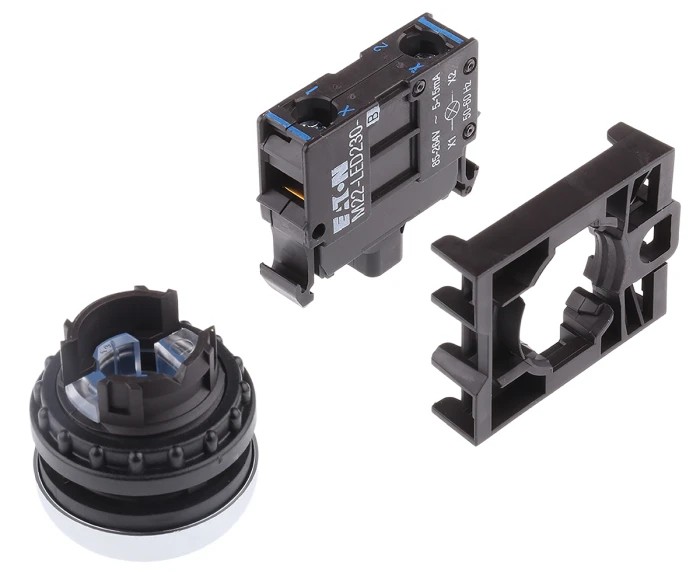

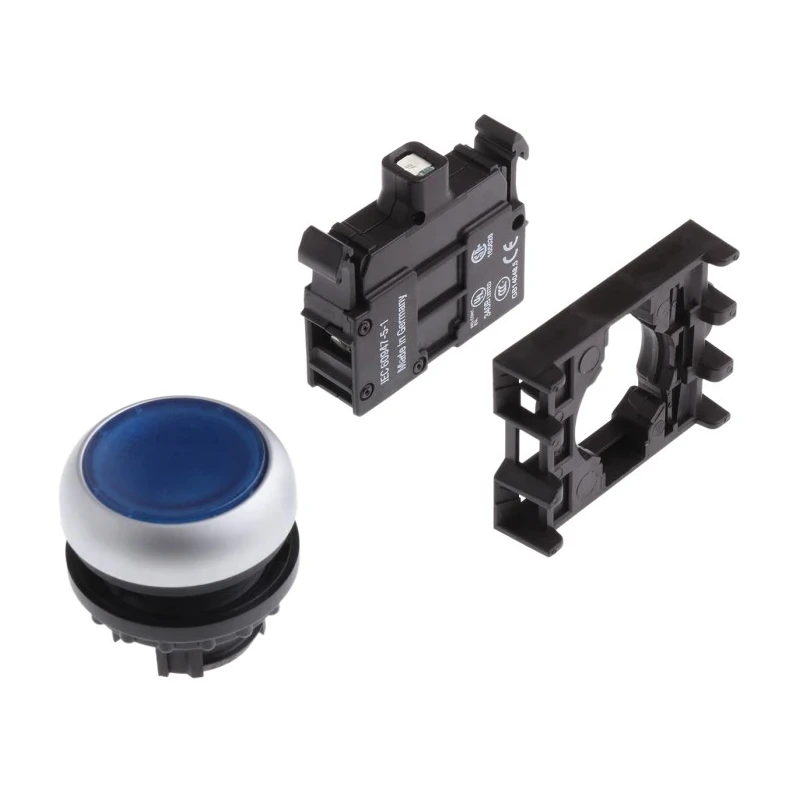

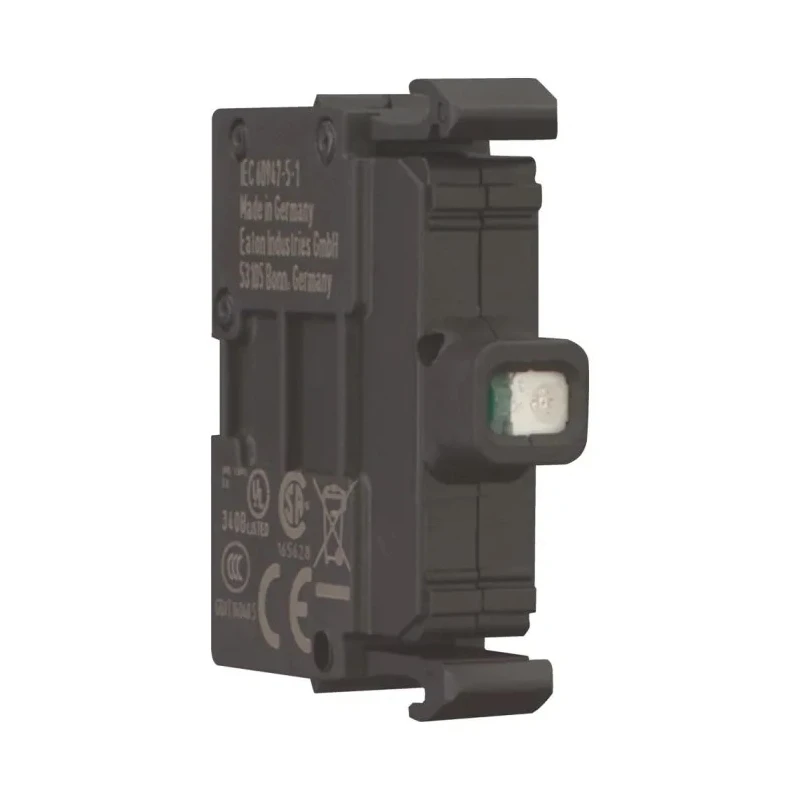

Eaton RMQ Titan M22 Series Blue Momentary Push Button Head 22mm Cutout Diameter IP69K 78639215 M22-DL-B+M22-A+M22-LED230-B

Name: Eaton RMQ Titan M22 Series Blue Momentary Push Button Head 22mm Cutout Diameter IP69K 78639215 M22-DL-B+M22-A+M22-LED230-B
Brand: Eaton
SKU: 332155
Price: 4511.15 INR
Availability: InStock



Category Push Button Heads Brand Eaton Condition New

Specifications

Country of Origin	Germany
Brand	Eaton
Model	78639215 M22-DL-B+M22-A+M22-LED230-B
IP Rating	IP69K
Series	RMQ Titan M22
Cutout Diameter	22mm
Push Button Actuation	Momentary
Push Button Material	Plastic
Push Button Colour	Blue
Push Button Shape	Round
Push Button Marking	Unmarked
Push Button Diameter	29.7mm

Key Features

Features a blue, round, momentary push button with 29.7 mm diameter for precise actuation.
Constructed with durable plastic for longevity in harsh environments.
Rated IP69K for protection against dust and high-pressure water jets.

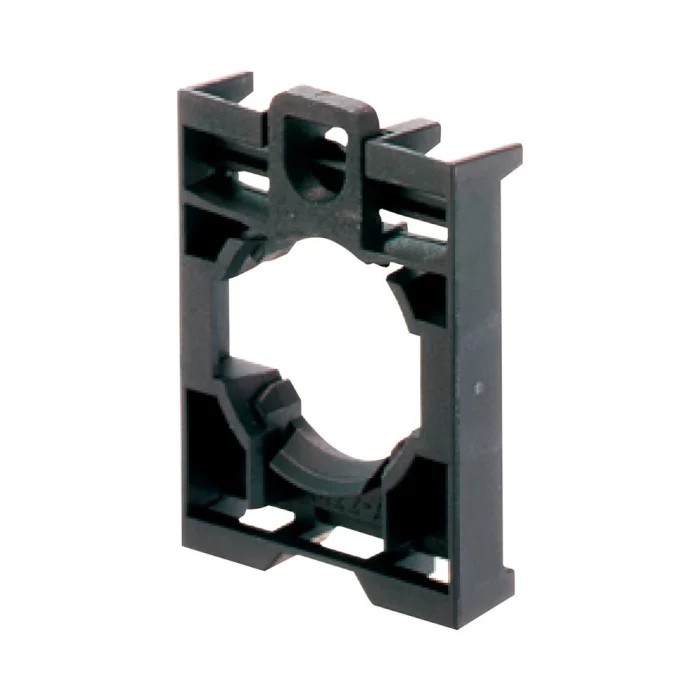

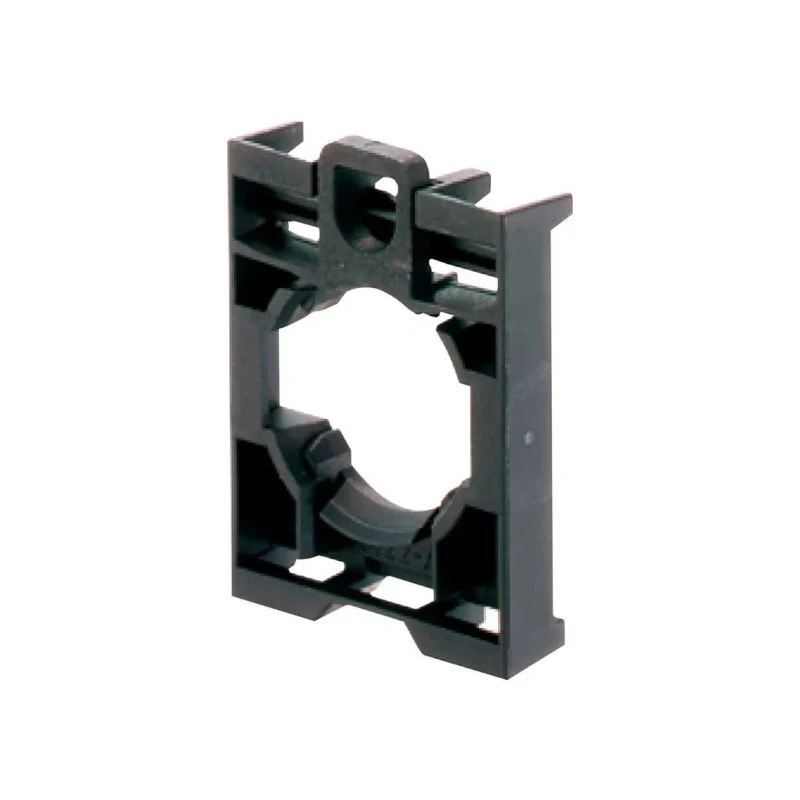

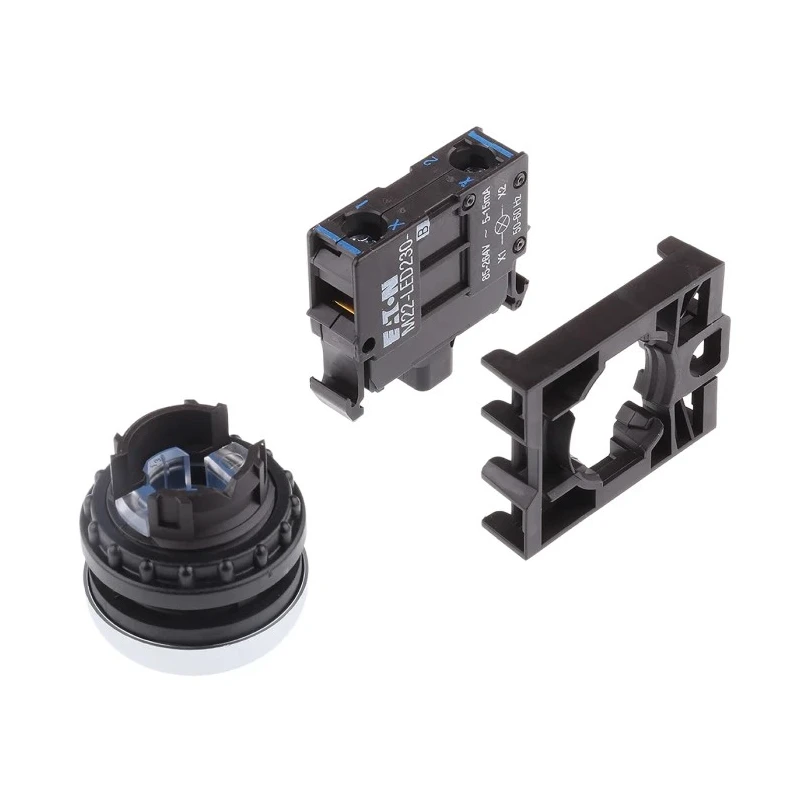

Includes body/fixing collar for secure installation.

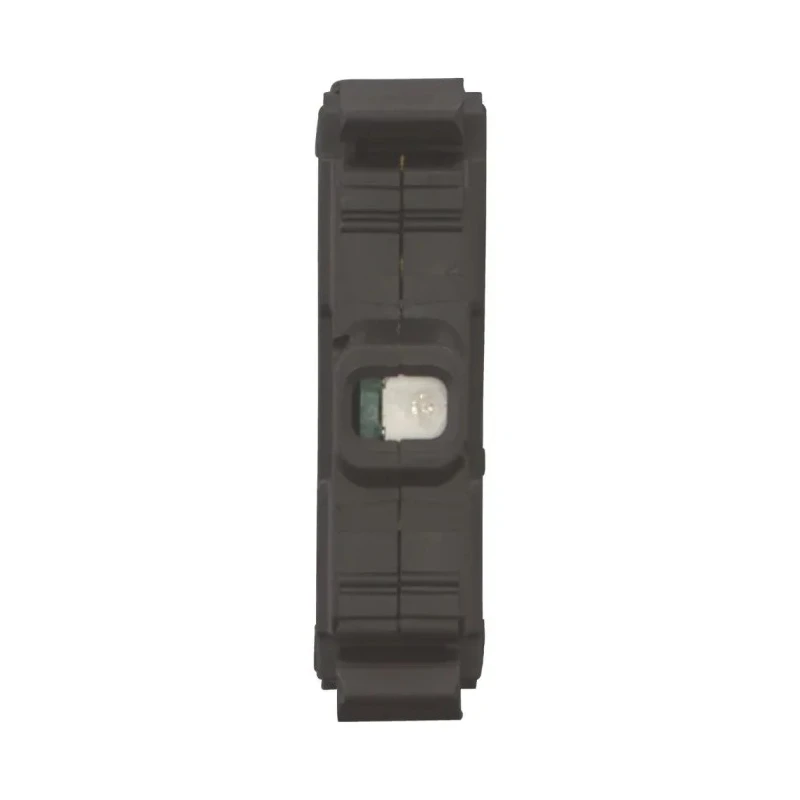

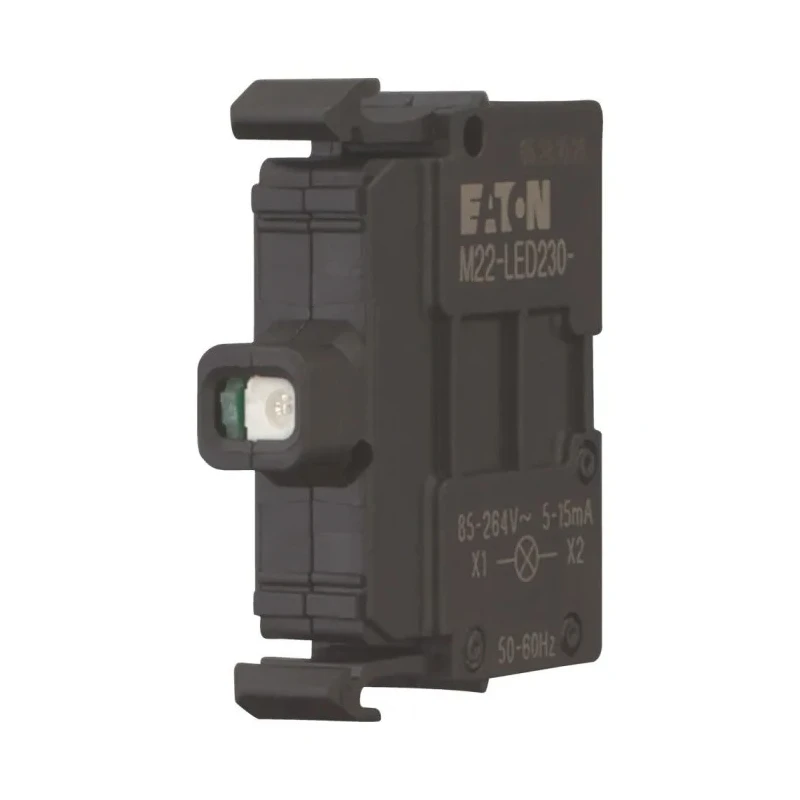

Operates at 85 to 264 V AC consuming only 0.33 W for energy efficiency.
Suitable for control panels in automation, machinery, and industrial applications requiring visual indicators.
Conforms to multiple standards including IP65, UL 508, IEC/EN 60947-5 ensuring safety compliance.
Withstands temperatures from -25°C to +70°C and rated impulse withstand voltage of 6000 V AC.

Product Description

The Eaton 78639215 M22-DL-B+M22-A+M22-LED230-B is a robust push button head from the RMQ Titan M22 Series designed for demanding industrial environments. Featuring a 22 mm cutout diameter and a blue round momentary push button with a diameter of 29.7 mm, this unit provides precise control actuation. The push button head is made of durable plastic materials and rated IP69K, ensuring superior resistance against dust, moisture, and even high-pressure water jets.

Operating within a voltage range of 85 to 264 V AC and drawing merely 0.33 W at the maximum voltage of 230 V, this push button is highly energy efficient. It includes a body/fixing collar for secure mounting and uses screw terminal connections facilitating easy installation. The device is suitable for control circuits in automation systems and machinery requiring reliable and visible status indicators, especially in harsh or moist environments.

Compliance with international standards such as IP65, UL 508, IEC/EN 60947-5, CE, CSA-C22.2 No. 14-05, and IEC 60068 series ensures safety and durability. It operates reliably across a broad temperature range from -25°C to +70°C and features a rated impulse withstand voltage of 6000 V AC, providing protection against electrical surges.

Blue round momentary push button with 29.7 mm diameter for effective actuation. Durable plastic construction for long-lasting performance in industrial environments. IP69K rating ensures protection against dust and high-pressure water jets.

Includes body/fixing collar for stable installation. Operates from 85 to 264 V AC consuming 0.33 W at 230 V for energy efficiency. Certified to multiple global standards for safety and performance. Suitable for control panels, automation systems, and machinery with harsh environmental conditions.

Wide operating temperature range from -25°C to +70°C. Rated impulse withstand voltage of 6000 V AC offers electrical surge protection.

This Eaton RMQ Titan M22 series push button head is ideal for industrial, manufacturing, automation, and process control applications where reliability and clear visual indication are critical. It ensures dependable operation in harsh conditions, making it a valuable component in modern control panels and automation frameworks.
