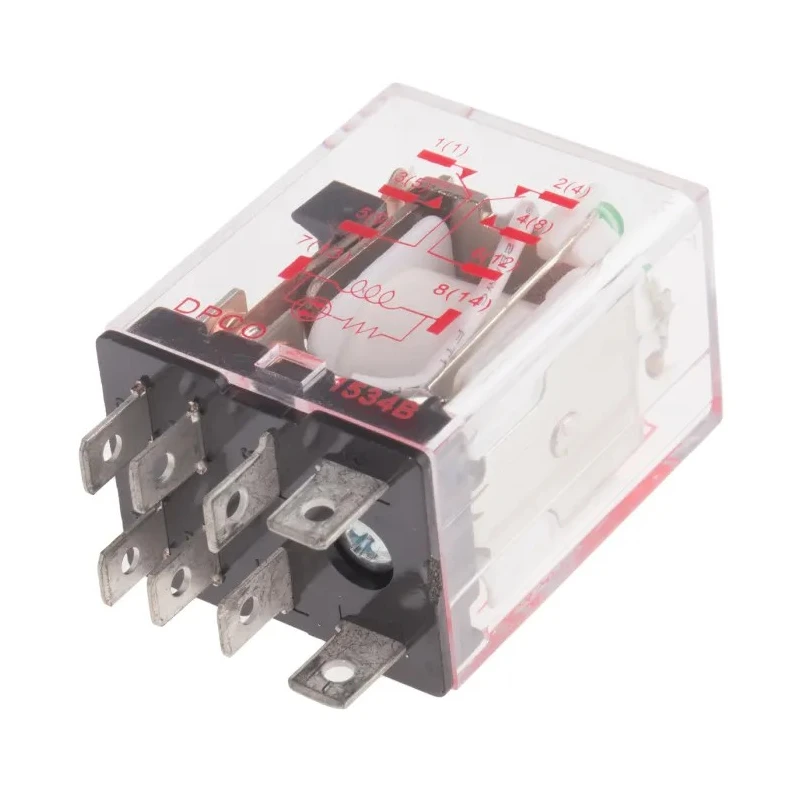

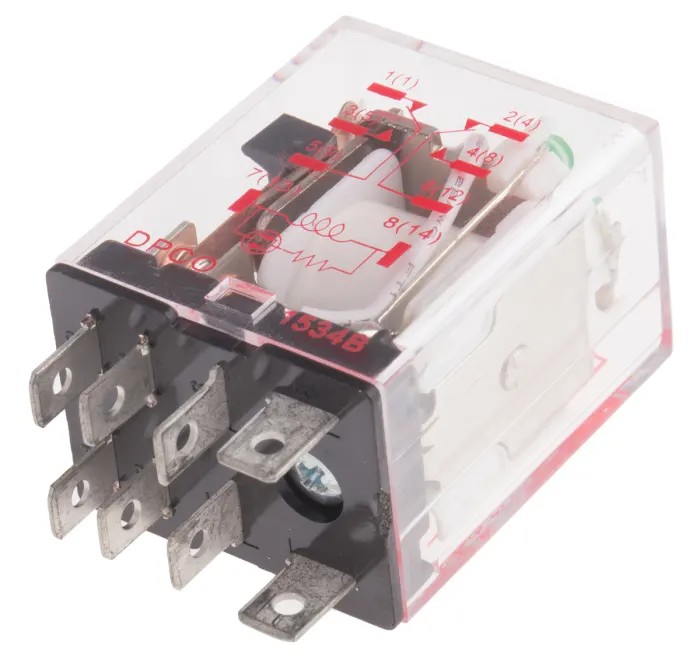

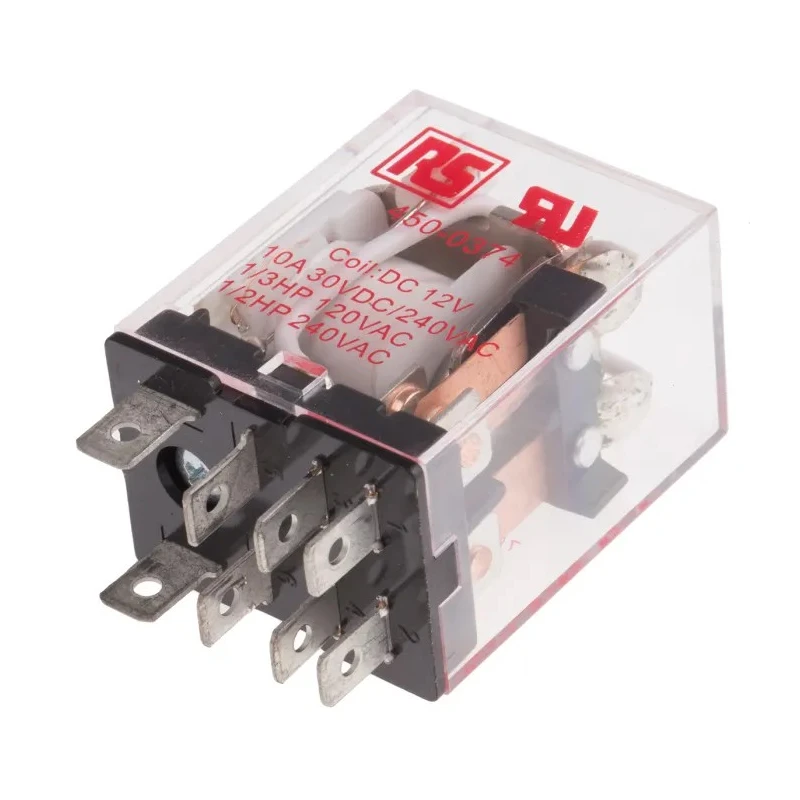

RS PRO Plug-in Power Relay 12V dc Coil 10A Switching Current DPDT 900mW Coil Power 28x36x21.5 mm 450-0374

RS PRO 450-0374 plug-in power relay is designed to provide dependable switching with its 12V dc coil and a switching current rating of 10A. The double pole double throw (DPDT) contact configuration allows control of two separate circuits, making it suitable for industrial and automation duties.

This relay features a coil power of 900 mW and coil resistance of 160 Ω, ensuring consistent performance with efficient power consumption. Its silver alloy contacts offer excellent electrical conductivity and resistance to corrosion, enabling durable operation over time.

Mounting type is plug-in with PCB pin terminal configuration for easy integration into printed circuit boards. The compact dimensions of 28 mm length, 36 mm height, and 21.5 mm width suit installations with limited space.

The relay operates reliably over a wide temperature range from -45°C to 70°C and is rated for maximum switching power of 2.4 kVA AC and 300 W DC. It has an electrical lifespan of one million cycles and a mechanical lifespan of ten million cycles, ensuring long service life.

The isolation between coil and contacts is rated at 1.5 kV AC for enhanced safety standards. LED indicator provides visual confirmation of relay status. This relay complies with standards such as UL, CE, and EN for quality assurance.

This relay features a double pole double throw (DPDT) contact configuration. The coil power consumption is 900 mW ensuring efficient operation. It has silver alloy contacts for enhanced conductivity and corrosion resistance.

The mounting type is plug-in with PCB pin terminals for easy installation. Operating temperature range is from -45°C to 70°C suitable for varied environments. The relay supports switching voltages of up to 240V AC and 30V DC.

Compact dimensions of 28 mm length, 36 mm height, and 21.5 mm width make it space efficient. Electrical life expectancy is one million cycles and mechanical life is ten million cycles. Isolation between coil and contact withstands up to 1.5 kV AC enhancing safety.

General purpose relay classification with LED indicator for visual status feedback.

This RS PRO 450-0374 relay is ideal for industrial control systems, automation, electrical equipment, and push-button applications within laboratories, manufacturing plants, and commercial setups. Its plug-in design simplifies installation and replacement processes.
