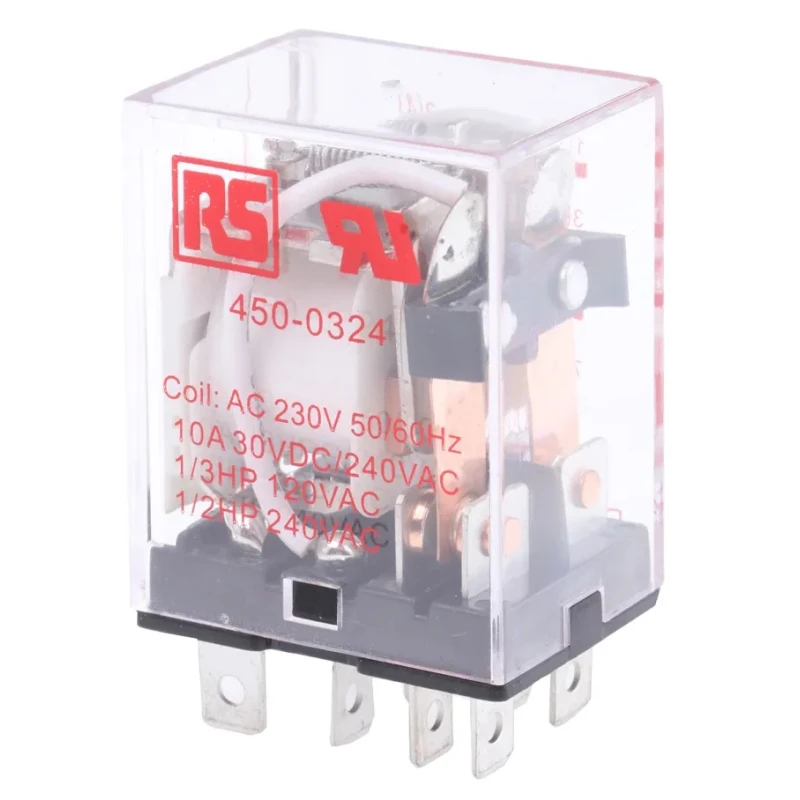

RS PRO Plug-in Power Relay 230V AC Coil 10A Switching Current DPDT 1.2W Coil Power 450-0324

RS PRO 450-0324 plug-in power relay offers reliable electrical switching with a 230V AC coil and a switching current of 10A in a double pole double throw (DPDT) configuration. This non-latching relay returns to its default position when power is removed, making it ideal for push-button and control applications requiring swift switching.

The coil power consumption is 1.2W with a coil resistance of 12.5 kΩ, providing stable and efficient coil operation. The relay's plug-in mount and PCB pin terminal type ensure easy and secure installation on printed circuit boards.

Constructed with silver alloy contacts, the relay ensures resistance against rust and corrosion, enhancing longevity. The transparent epoxy-sealed housing allows effortless inspection and maintenance.

The device operates reliably within a temperature range of -45°C to 55°C, supporting an electrical lifespan of one million cycles and a mechanical lifespan of ten million cycles, which guarantees durability in industrial environments.

Electrical specifications include a maximum switching AC power of 2.4 kVA at 240V AC and a maximum DC switching voltage of 30V with a load of 300W. The isolation between coil and contacts is rated at 1.5 kV AC for enhanced safety.

Certified to comply with CE, EN, and Underwriters Laboratories (UL) standards, the relay is suitable for various industrial, automation, and electrical control applications requiring robust and precise power relay performance.

This relay has a coil power rating of 1.2W ensuring efficient operation. The plug-in mounting type allows for easy installation on PCB pin terminals. Operating temperature ranges from -45°C to 55°C, suitable for industrial environments.

Constructed with durable silver alloy contacts providing excellent corrosion resistance. The relay supports switching AC power up to 2.4 kVA and DC voltage up to 30V. It features a transparent epoxy-sealed housing for quick inspection and long mechanical and electrical lifespans.

The coil resistance is 12.5 kΩ, enabling stable coil operation. Dimensions are 28mm length, 36mm height and 21.5mm width, compact for PCB mounting. Designed to meet CE, EN, and UL standards for electrical components. Suitable for push-button applications and general-purpose relay switching.
