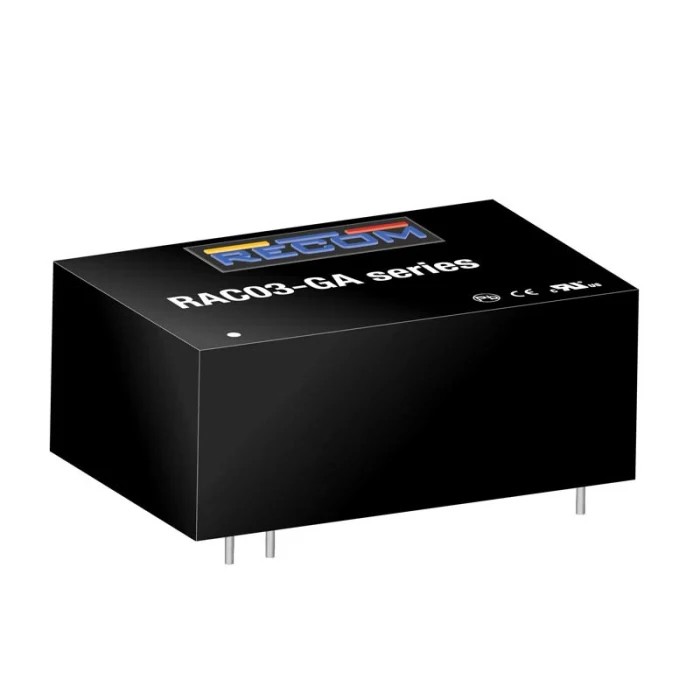

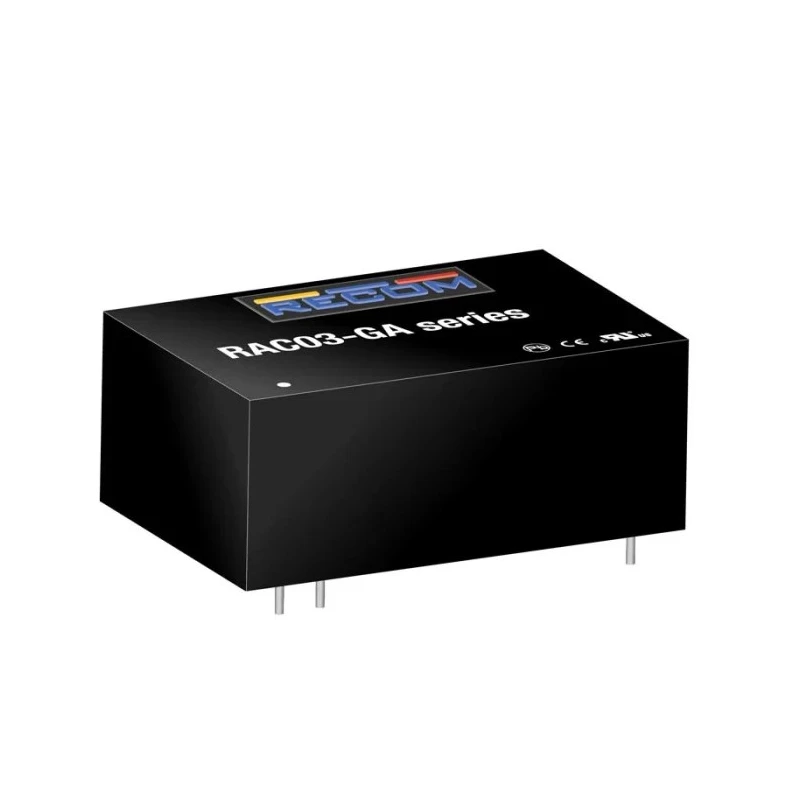

Recom RAC03-05SGA Switching Power Supply 5V DC, 3W, 305V AC Input, PCB Mount RAC03-05SGA

Free Delivery in India | Lowest Global Shipping Charges

Recom RAC03-05SGA Switching Power Supply 5V DC, 3W, 305V AC Input, PCB Mount RAC03-05SGA

Name: Recom RAC03-05SGA Switching Power Supply 5V DC, 3W, 305V AC Input, PCB Mount RAC03-05SGA
Brand: Recom
SKU: 331702
Price: 20.22 USD
Availability: InStock



Category Switching Power Supplies Brand Recom Condition New

Specifications

Country of Origin	China
Brand	Recom
Power	3W
Efficiency	72%
Length	37mm
Model	RAC03-05SGA
Depth	15mm
Gross Weight	20g
Width	24mm
Mount Type	PCB
Series	RAC03-GA
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-40°C
Number of outputs	1
Maximum Input Voltage	305V ac
Standards/Approvals	RoHS, CAN/CSA C22.2 No. 60950-1-07, EN 55022 Class A, EN 55024, EN 60950-1, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, IEC 60950-1, UL 60950-1
Maximum Output Voltage	5V dc
SMPS Output Current	600mA

Key Features

Encapsulated design protects the assembly in challenging environments.
Compact size of 37mm length, 24mm width, and 15mm depth suits tight PCB spaces.
Lightweight 20g unit reduces load and strain on circuits.
Operates efficiently with a 72% efficiency rating.
Wide operating temperature range from -40°C to +70°C supports industrial applications.
Single output with 600mA current capacity for stable power delivery.
Compliance with multiple international standards including RoHS and UL 60950-1 enhances reliability.
Fire-retardant plastic housing increases workplace safety by limiting burn duration.

Product Description

Recom RAC03-05SGA Switching Power Supply is a high-performance, encapsulated unit designed to convert 305V AC or 430V DC input to a steady 5V DC output with a power rating of 3W. This power supply features a PCB mount type, making it an excellent fit for embedded power solutions in various electronic devices and industrial control systems.

Weighing only 20 grams and housed in a fire-retardant plastic case, the unit is built to enhance safety and reliability in demanding environments. Its compact dimensions of 37mm length, 24mm width, and 15mm depth enable integration even in space-constrained applications.

With an operating temperature range from -40°C to +70°C and a mean time between failures of 100,000 hours, the RAC03-05SGA is specially suited for harsh industrial conditions. The supply achieves a high efficiency of 72%, minimizing energy loss as heat and improving overall system efficiency.

This switching power supply meets rigorous international certifications including RoHS compliance, CAN/CSA, and UL 60950-1 standards, assuring quality and safety. The encapsulated design further protects internal components from environmental stresses such as humidity and vibration.

Encapsulated package shields electronics in challenging environments. Compact PCB mount design for flexible installation. Lightweight at 20 grams to minimize mechanical stress. 72% efficiency reduces thermal management needs.

Wide temperature range for industrial and laboratory use. Stable single 600mA output current at 5V DC. Fire-retardant housing improves operational safety. Compliance with multiple global safety and electromagnetic standards.

Ideal for factory automation, research and development labs, and industrial power supply systems.

This product is essential for electronic system integrators requiring reliable, compact, and efficient power supplies. Browse more Switching Power Supplies and power management devices at EnvMart for suitable industrial-grade solutions.
