Kubler CODIX 130 Digital Counter 8 Digit LCD Display 8mm Height 4-30V DC Supply 6.130.012.852

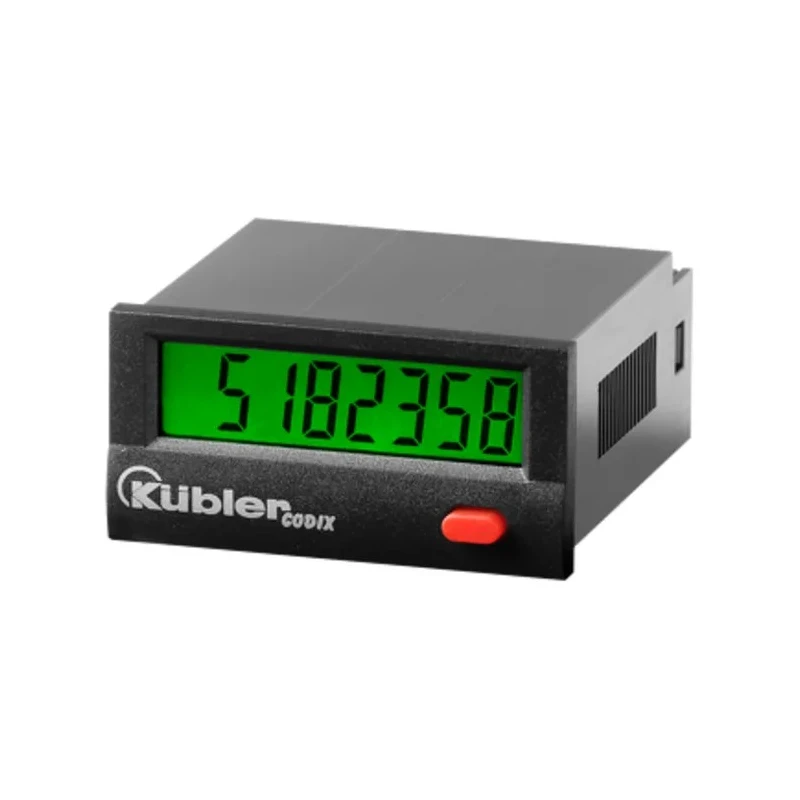

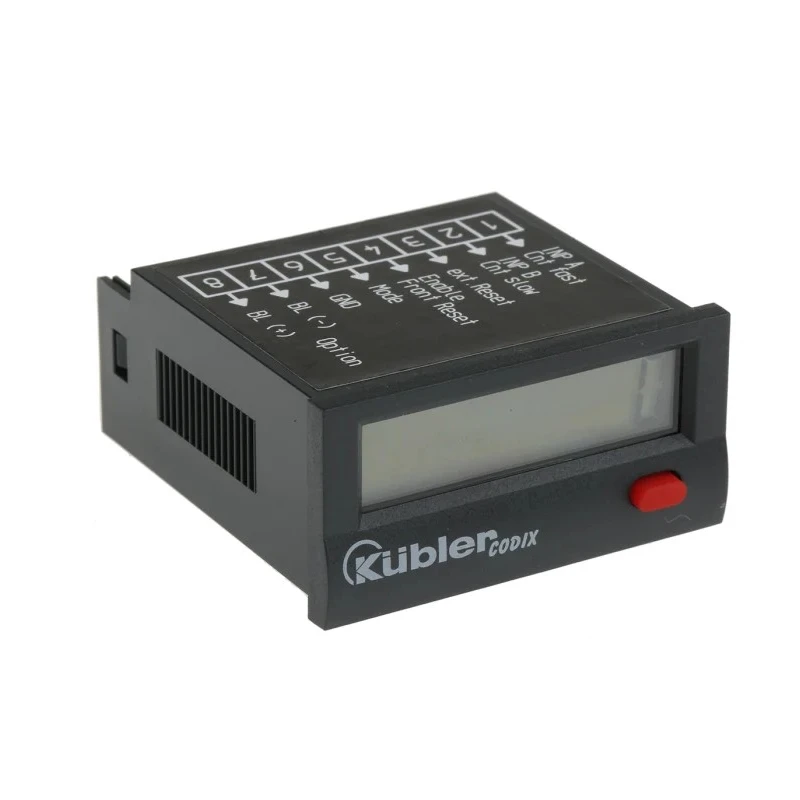

The Kubler 6.130.012.852 CODIX 130 digital counter is a high-precision industrial counting device featuring an 8-digit LCD display with 8mm digit height. Designed for panel mounting, it supports multiple counting functions including fast and slow pulse counting modes such as up/down counting, differential counting, and phase clock counting. It operates with a supply voltage ranging from 4V to 30V DC and offers optional backlighting suitable for NPN, PNP, and high voltage applications.

This counter supports pulse doubling for incremental encoder connections and includes a bounce-free filter function for reliable mechanical contact counting. It has a long battery life estimated at approximately 8 years and a display range from -9999999 to 99999999, including an overflow display function for extensive counting requirements. The reset key is lockable via a reset enable input to prevent unintended resets.

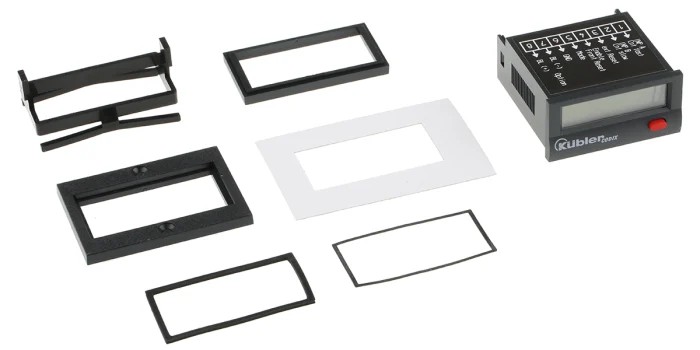

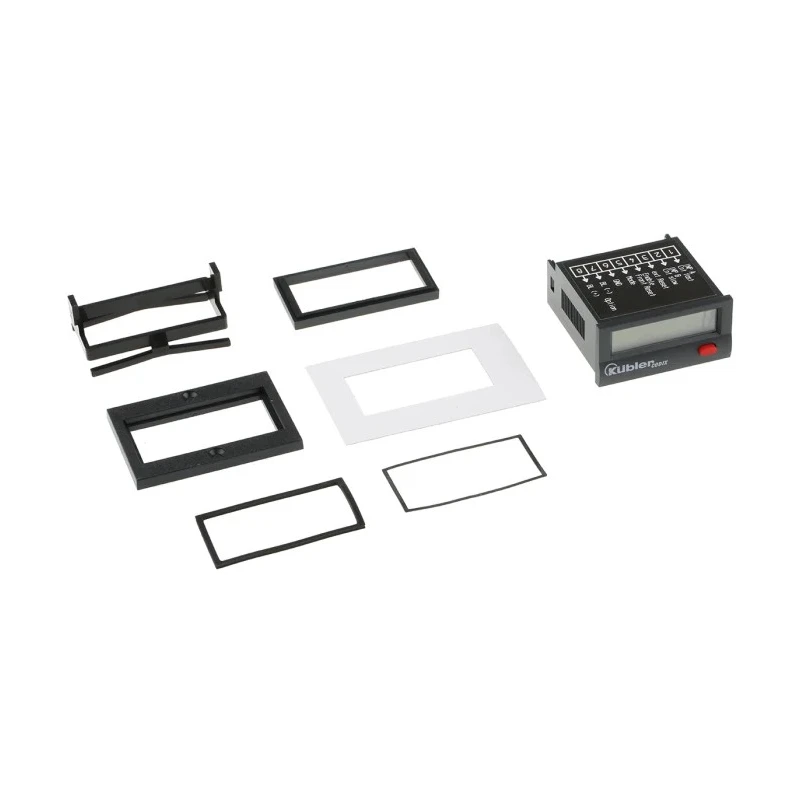

The panel cut-out dimension is 22.2mm by 45mm, and the device operates efficiently within a temperature range of -10°C to 60°C. The counter is constructed to meet IP65 rating for protection against dust and water. It complies with EN 55011 class B, EN 61000-6-2 standards and is ULus approved, making it suitable for demanding industrial environments.

Applications include industrial counting tasks, manufacturing assembly lines, control and monitoring systems, and other automation processes requiring accurate and reliable pulse counting. Its robust design and extensive voltage range make it ideal for various automation and process control applications.

The Kubler CODIX 130 counter is a trusted solution for industrial automation requiring precision, reliability, and flexibility. It is manufactured in Germany, ensuring high quality and durability for professional use.

Features an 8-digit LCD display with clear 8mm digit height. Operates within a wide supply voltage range of 4V to 30V DC. Supports multiple counting modes including up/down and differential counting. Offers a long battery life of approximately 8 years for reliable operation.

Equipped with lockable reset and bounce-free counting for enhanced durability. Suitable for industrial counting, manufacturing assembly lines, and control systems. Panel cut-out dimension is 22.2mm x 45mm for secure mounting.

Operating temperature range from -10°C to 60°C ensures versatility. Explore the Kubler series and other Digital Counters on EnvMart for industrial-grade automation and control solutions.
