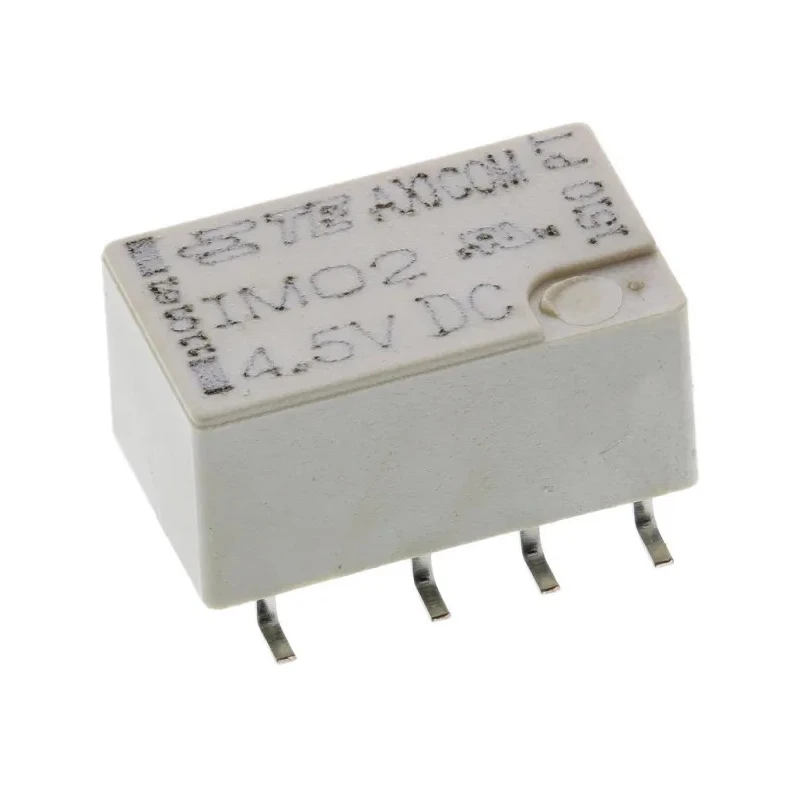

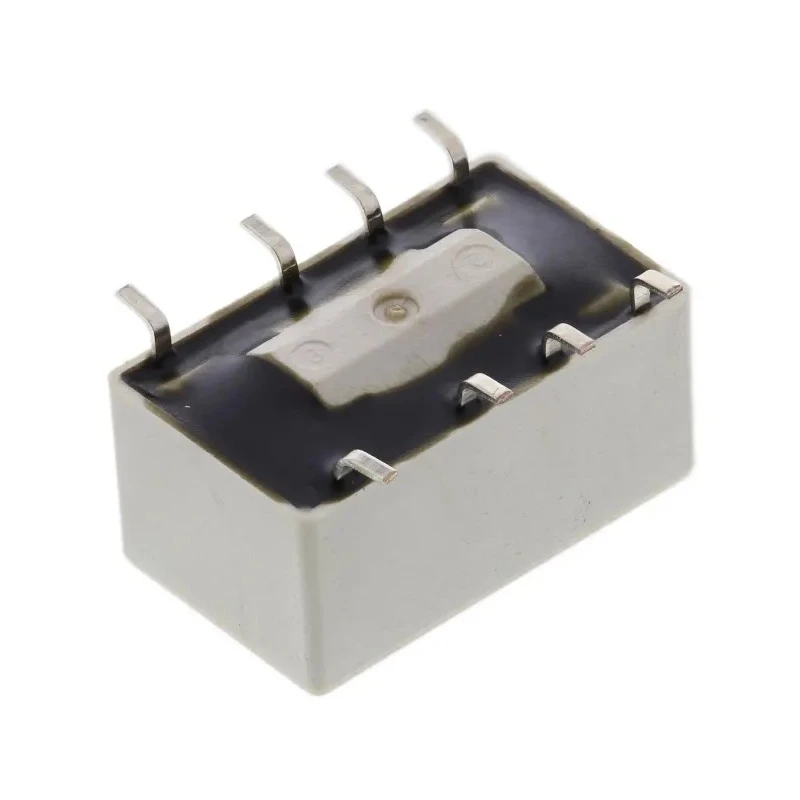

TE Connectivity Surface Signal Relay 4.5V dc Coil 2A DPDT Surface Mount IM02GR

TE Connectivity IM02GR is a high-quality Surface Signal Relay designed for precision signal switching in industrial and telecommunication applications. Featuring a 4.5V dc coil and supporting a switching current of 2A, this DPDT (Double Pole Double Throw) relay provides robust performance with low coil power consumption of 140mW, making it highly energy efficient.

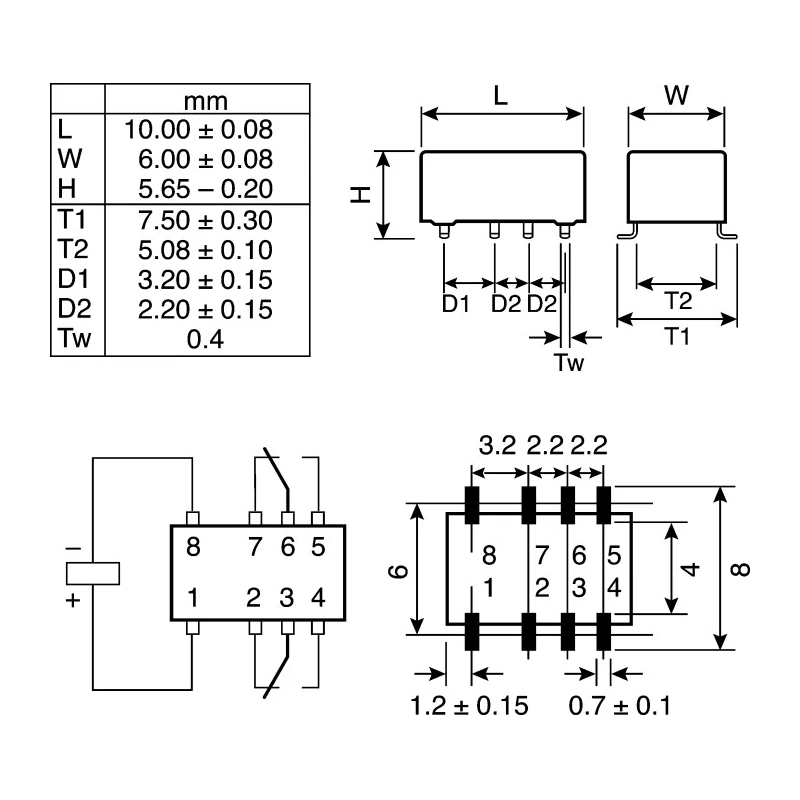

The relay is constructed with a slimline, low-profile form factor measuring 10mm by 6mm by 5.65mm, enabling compact integration in electronic circuits. Its gold-plated bifurcated contacts ensure excellent conductivity and long service life, while the hermetically sealed design with IP67 rating protects against dust and moisture ingress, ensuring durability and reliability in demanding environments.

Engineered to withstand high mechanical shocks up to 300G functional and 500G survival, this relay is suitable for rugged industrial settings. It operates reliably across a broad temperature range from -40°C up to 85°C, accommodating diverse environmental conditions. The high insulation resistance at 500V dc (greater than 10^9 Ω) further guarantees electrical isolation and safety.

This relay meets RoHS compliance, aligning with global environmental standards. The solder terminal type facilitates easy PCB mounting, and its surface mount design supports automated assembly processes for improved production efficiency.

Common applications include telecommunications equipment, signal conditioning devices, and industrial control systems requiring compact, high-performance relays. The IM series by TE Connectivity represents a trusted choice for engineers seeking reliable signal relays for advanced electronic designs.

This relay features a surface mount construction suitable for PCB assembly. Coil power consumption is low at 140mW for efficient operation. Gold-plated bifurcated contacts ensure high conductivity and durability. Hermetically sealed with IP67 rating for dust and moisture resistance.

High mechanical shock resistance up to 300G functional, suitable for harsh environments. Operating temperature ranges from -40°C to 85°C ensuring versatility in application. Compact dimensions of 10mm length, 6mm width, and 5.65mm height enable space-saving design.

Insulation resistance greater than 10^9 Ω at 500V dc enhances reliability. Conforms to RoHS standards supporting environmental compliance. Explore more Signal Relays and electrical components in the Electronics & Electricals category at EnvMart for your industrial, automation, or telecommunication projects.
