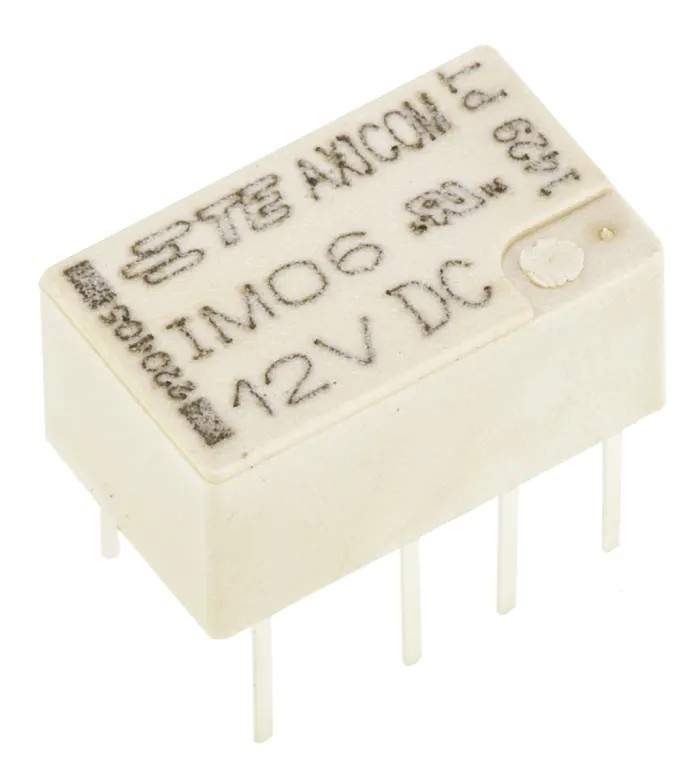

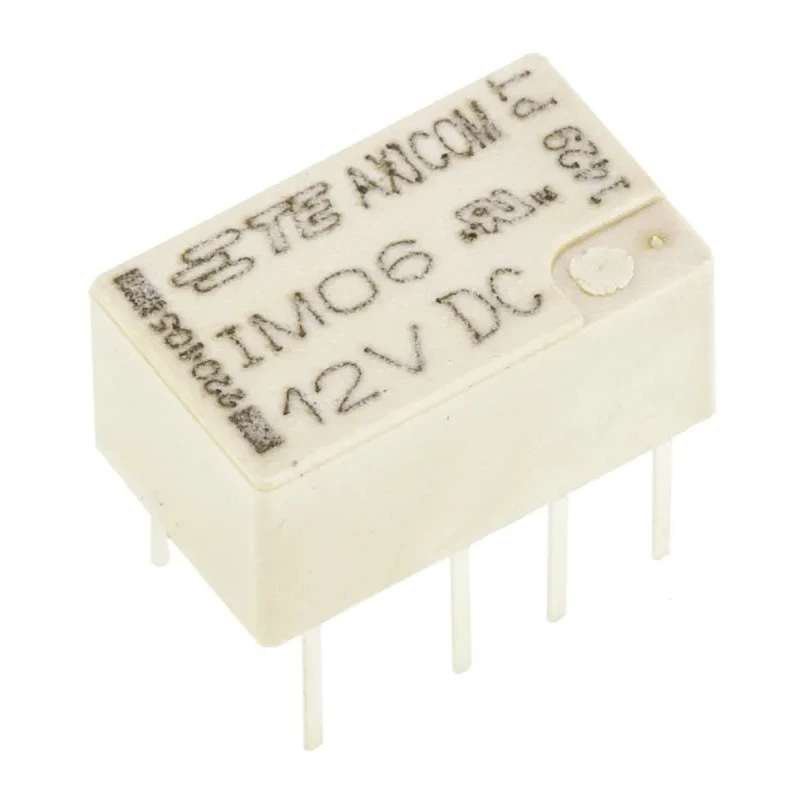

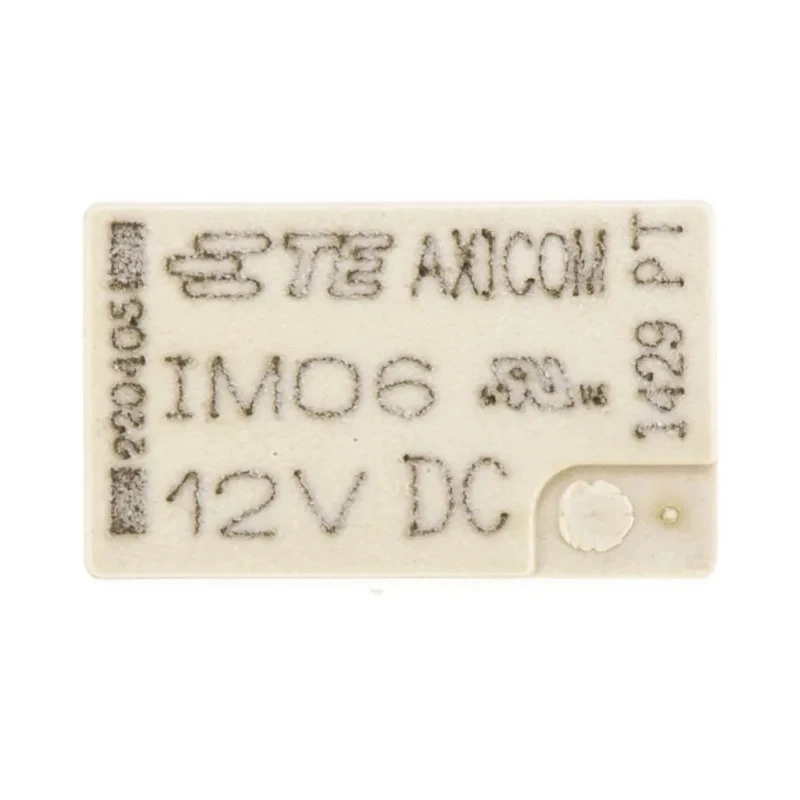

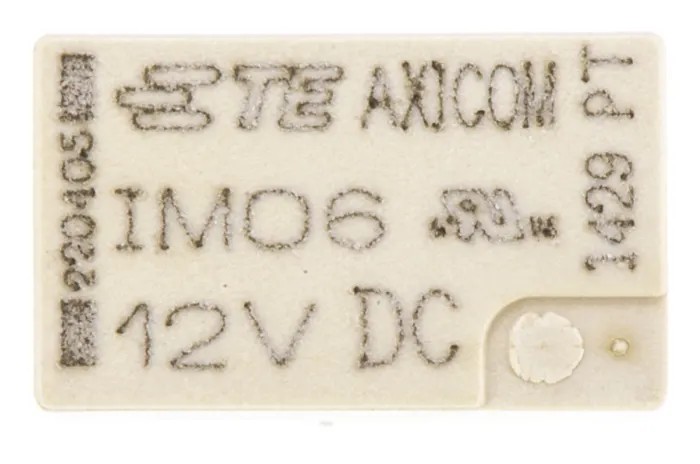

TE Connectivity PCB Signal Relay 12V dc Coil 2A DPDT IM06TS
Specifications
| Country of Origin | Portugal |
|---|---|
| Brand | TE Connectivity |
| Height | 5.65mm |
| Length | 10mm |
| Model | IM06TS |
| Width | 6mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | IM |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 1440Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 140mW |
| TE Connectivity PCB Signal Relay, 12V dc Coil, 2A, DPDTBrand | TE Connectivity |
Key Features

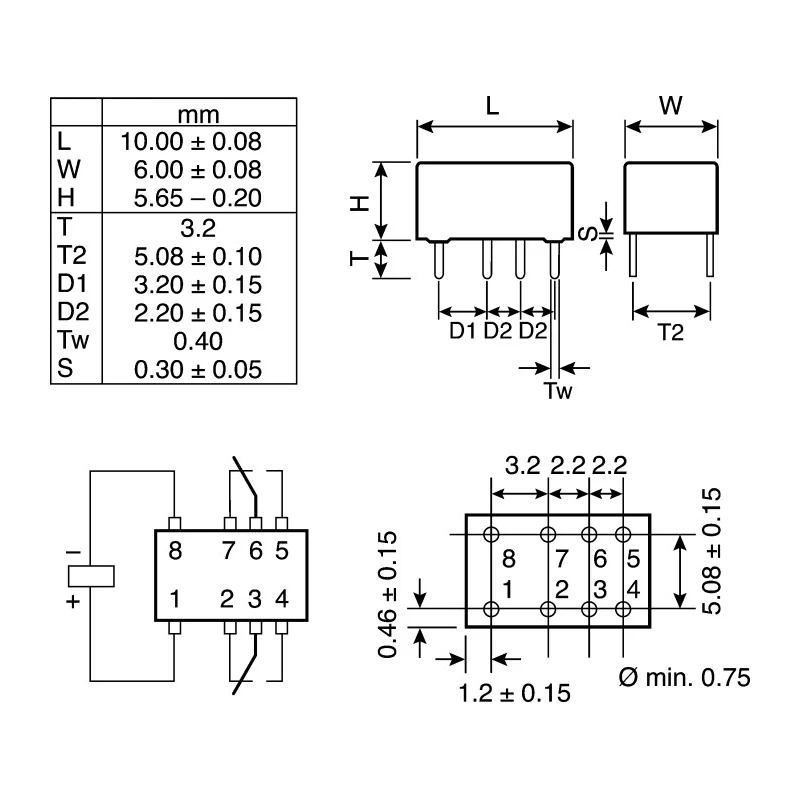

- This relay has a compact slimline design with dimensions 10x6x5.65 mm.
- Coil power consumption is low at 140mW for standard operation.
- Gold plated bifurcated contacts ensure reliable electrical switching.
- It is hermetically sealed with IP67 rating for protection against environmental factors.
- The relay withstands mechanical shock up to 300G functional and 500G survival.
- Wide operating temperature range from -40°C to 85°C supports challenging environments.
- Suitable for telecommunication, optical network, office, medical, and automotive applications.

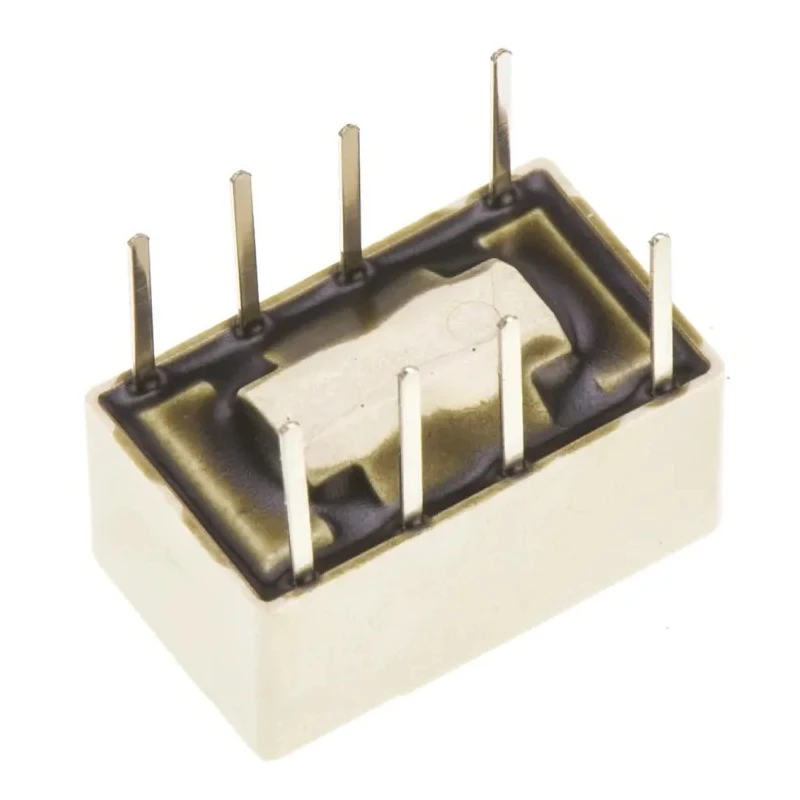

- Mounts directly on PCB with solder terminals for easy integration.
Product Description
TE Connectivity IM06TS is a high-performance PCB mount signal relay designed for precise and reliable switching applications. Featuring a 12V dc coil and 2A switching current with DPDT contact configuration, it offers a slimline low-profile design measuring 10x6x5.65 mm which occupies minimal board space of 60 mm².
This relay is engineered with gold plated bifurcated contacts to ensure excellent conductivity and durability. The coil power consumption is optimized at 140mW, enabling energy-efficient operation without compromising performance. The product is hermetically sealed providing IP67 protection, making it resistant to dust and moisture ingress.
It can withstand mechanical shocks of up to 300G functional and 500G survival, ensuring robustness in demanding industrial and automotive environments. The operating temperature range from -40°C to 85°C enables the relay to function reliably over a wide range of conditions. Its high dielectric surge capability complies with Telcordia GR 1089, FCC Part 68, and ITU-T K20, 21, 45 standards, guaranteeing safe and stable operation under voltage surges.
Typical applications include telecommunication equipment, optical network terminals, office automation, test and measurement instruments, medical devices, and automotive systems. The relay’s PCB mount with solder terminals facilitates secure and efficient circuit board assembly.
This relay has a compact slimline design with dimensions 10x6x5.65 mm. Coil power consumption is low at 140mW for standard operation. Gold plated bifurcated contacts ensure reliable electrical switching. It is hermetically sealed with IP67 rating for protection against environmental factors.
The relay withstands mechanical shock up to 300G functional and 500G survival. Wide operating temperature range from -40°C to 85°C supports challenging environments. Suitable for telecommunication, optical network, office, medical, and automotive applications.
Mounts directly on PCB with solder terminals for easy integration. High dielectric surge capability meets various industry standards for reliability. Please explore the Electronics & Electricals category at EnvMart for more Signal Relay products and advanced PCB mount components from trusted brands like TE Connectivity.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a compact slimline design with dimensions of 10 mm in length, 6 mm in width, and 5.65 mm in height.
The relay operates with a coil voltage of 12V DC.
It has a switching current capacity of 2A.
The relay features a DPDT (Double Pole Double Throw) contact configuration.
The coil power consumption is low at 140mW for standard operation.
It is hermetically sealed with an IP67 rating, providing protection against dust and moisture ingress.
The relay operates within a wide temperature range from -40°C to 85°C.
It mounts directly on the PCB using solder terminals for easy integration.
The contacts are made of gold plated material, ensuring reliable electrical switching.
It complies with RoHS standards and has a high dielectric surge capability meeting Telcordia GR 1089, FCC Part 68, and ITU-T K20, 21, 45 standards.
This relay is suitable for various applications including telecommunications, optical networks, office automation, medical devices, and automotive systems.
The relay can withstand mechanical shocks of up to 300G functional and 500G survival.
