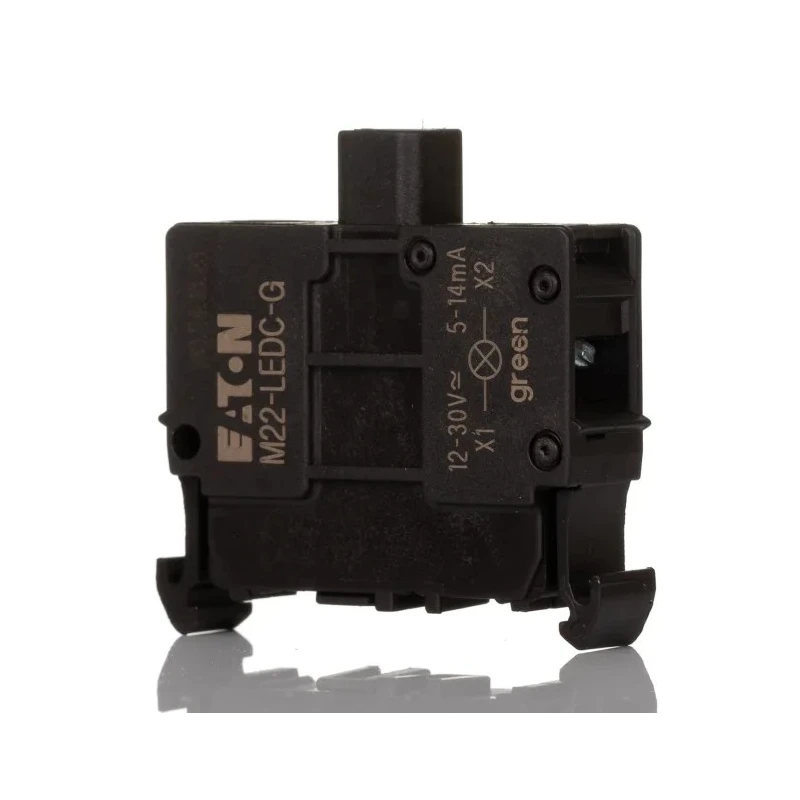

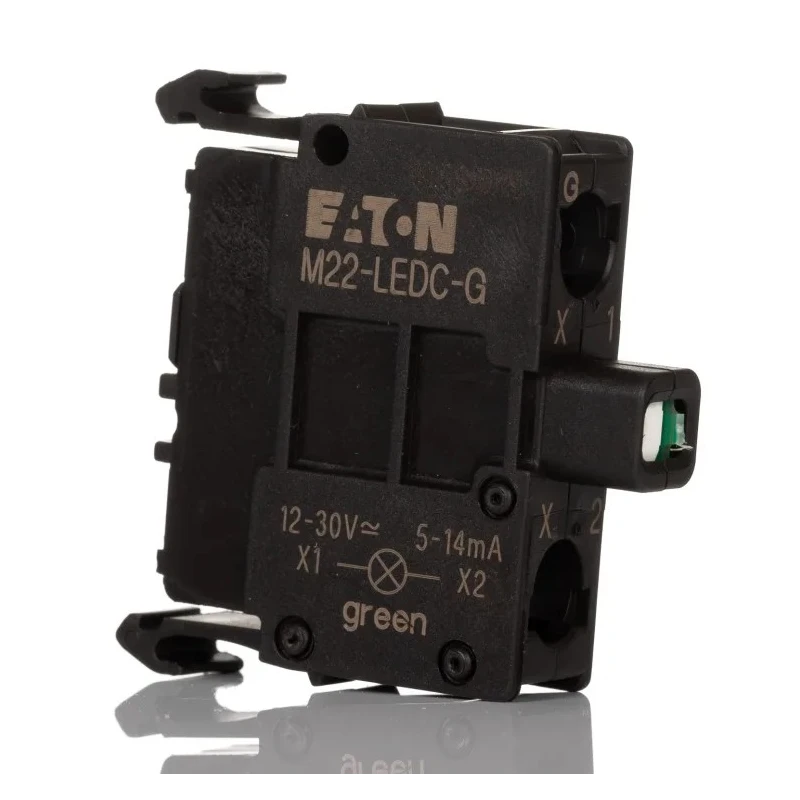

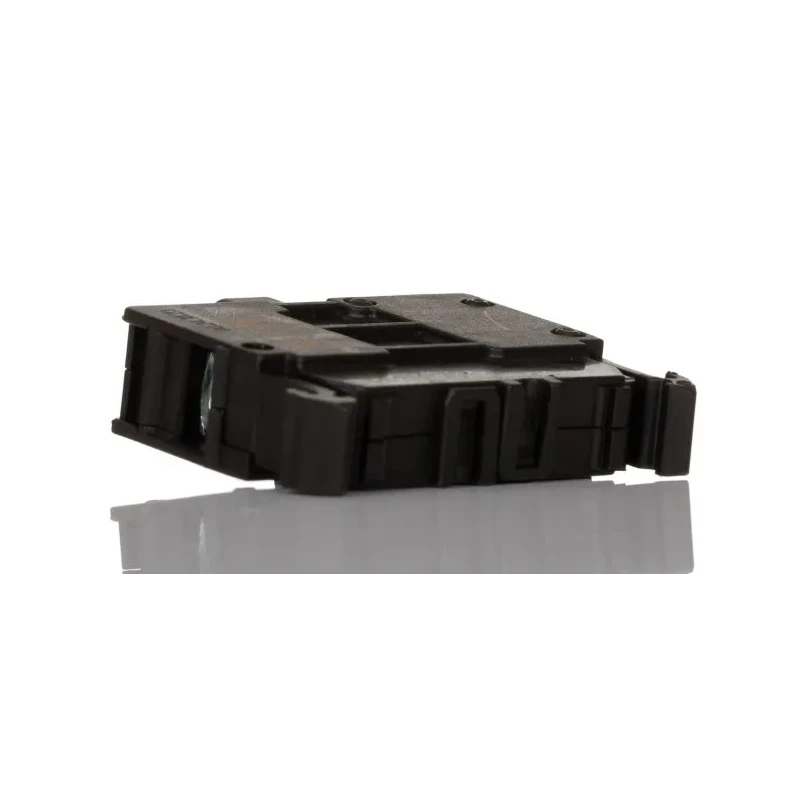

Eaton RMQ Titan M22 Series Light Block LED Green Illumination 30 V AC/DC 15mA 216562 M22-LEDC-G

Eaton 216562 M22-LEDC-G RMQ Titan M22 Series Light Block is engineered for reliable performance in industrial and commercial electrical control panel applications. This green LED light block works with a supply voltage of 30 V AC/DC and is designed to provide clear and efficient illumination to indicate switch status.

The device features a screw terminal type for straightforward and secure installation. It can handle a current rating of 15mA and is IP20 rated, making it resistant to accidental finger contact and ingress of objects greater than 12mm. Its compact dimensions of 38mm length, 37mm width, and 10mm height allow it to fit easily into compact panel configurations.

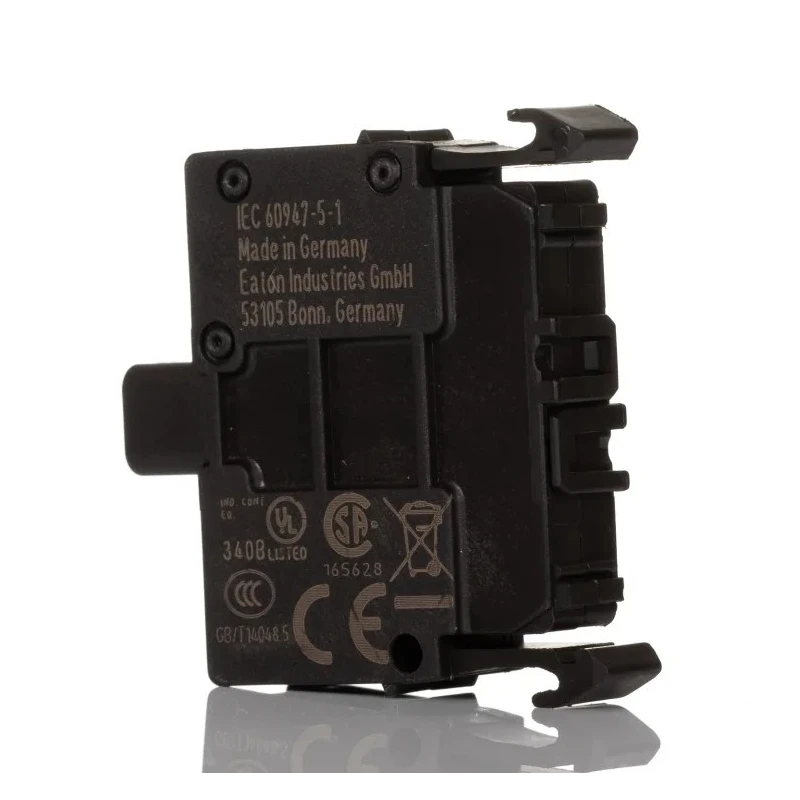

The light block is built to withstand harsh industrial environments with an operating temperature range of -25°C to +70°C. It complies with standards including UL 508, IEC/EN 60947-5, CSA-C22.2 No. 14-05, CE, IEC 60947-5-1, and CSA-C22.2 No. 94-91, assuring safety and quality.

Its LED illumination offers low heat emission and extended lifespan of approximately 100,000 hours, reducing the need for frequent replacement. The compact and lightweight design (0.011 kg) ensures it does not add significant load to panel assemblies. The light block does not come with a body fixing collar.

This component is suitable for diverse applications including industrial automation, manufacturing controls, electrical switch panels, and building management systems. It helps operators quickly identify operational states for enhanced safety and efficiency.

Operates on 12 to 30 V AC/DC supply voltage suitable for low power applications. Features a green LED illumination for clear visual indication. Supports a current rating of 15mA enabling low power consumption. Robust screw terminal design allows easy installation and wiring.

IP20 rated for protection against touch and objects larger than 12mm. Operates reliably over a wide temperature range from -25°C to +70°C. Compact dimensions with 38mm length, 37mm width, and 10mm height fit most control panels.

Offers a long electrical lifespan of 100,000 hours for maintenance-free operation. Explore more products in the Push Button Contact Blocks & Light Blocks category on EnvMart for comprehensive control panel solutions.
