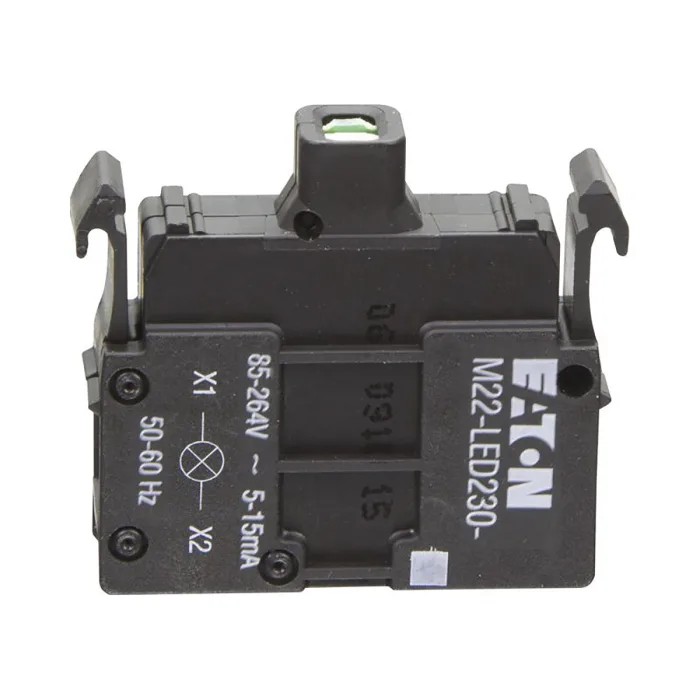

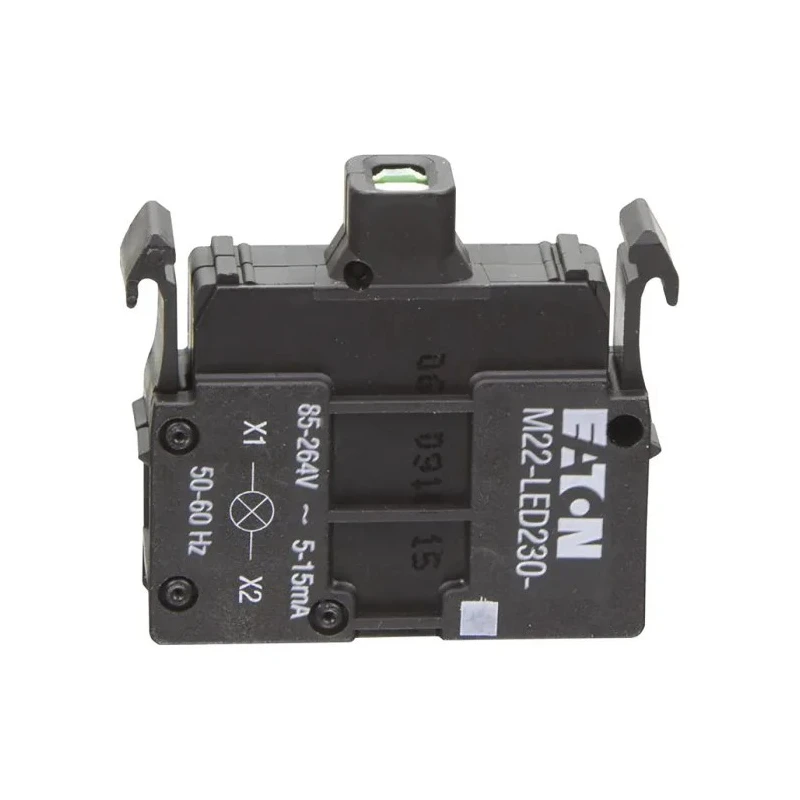

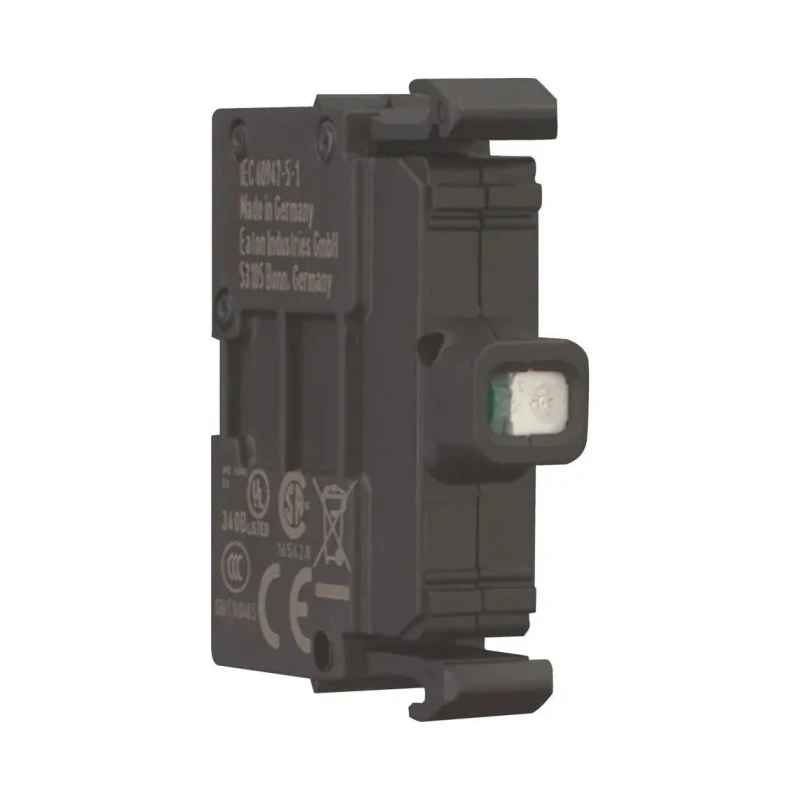

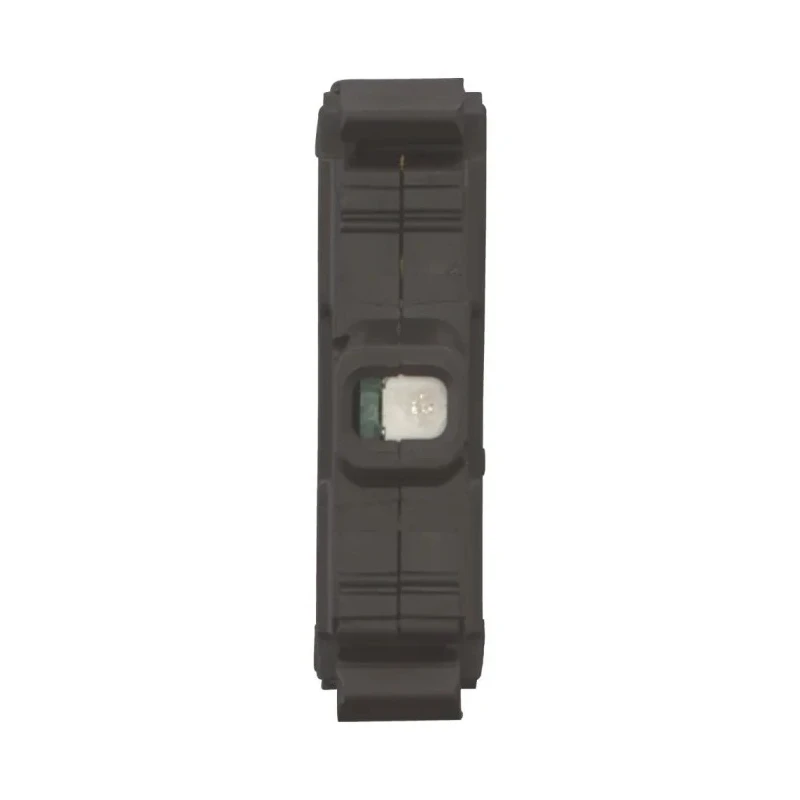

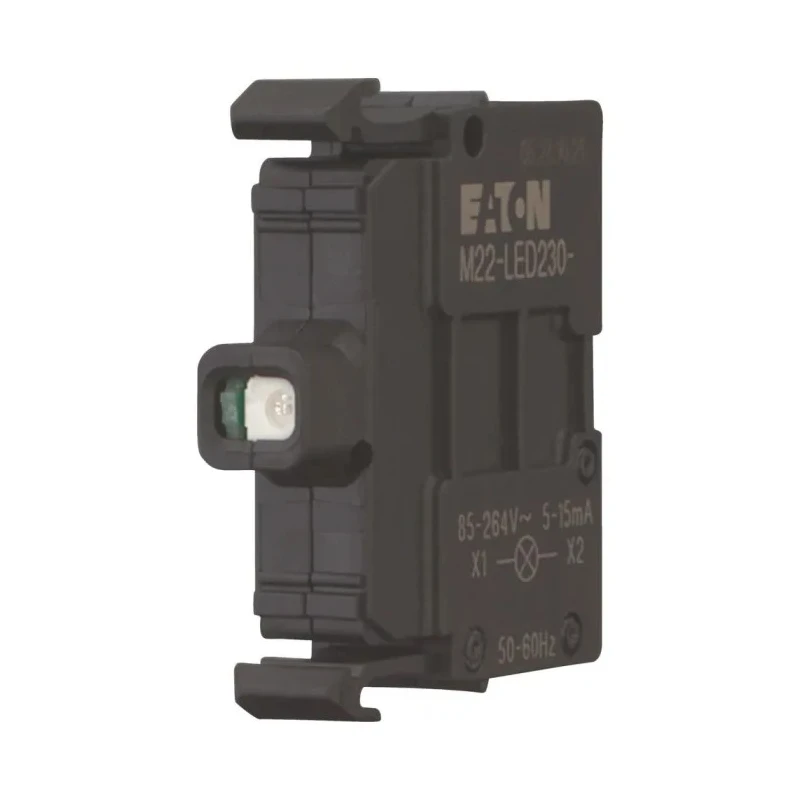

Eaton RMQ Titan M22 Series Light Block 264V AC Blue LED Illumination 15mA Screw Terminal 218059 M22-LED230-B

Eaton 218059 M22-LED230-B RMQ Titan M22 Series Light Block is a high-quality LED light block designed for industrial and automation applications. Operating at 264V AC, it emits blue illumination that is energy-efficient and highly visible.

This light block integrates screw terminal connections, facilitating straightforward installation in diverse control panel configurations. Its compact form factor - measuring 71mm in length, 37.2mm in height, and 30mm in width - allows for space-saving implementations.

Engineered to function reliably over a temperature range from -25°C to 70°C, this device offers robust performance even in challenging industrial environments. Its shock resistance up to 30g conforms to IEC standards, ensuring durability under mechanical stresses.

Suitable for electrical devices, these light blocks are ideal for indicating status in machinery and automation systems. With an LED illumination type and a current rating of 15mA, it promotes low power consumption and long service life.

Features low power consumption LED illumination suitable for control panels. Equipped with screw terminal connection ensuring easy installation. Compact dimensions of 71mm length, 37.2mm height, and 30mm width. Operates safely between -25°C and 70°C temperature range.

Shock resistant with compliance to IEC standards supporting durability. Designed for use in automation control systems and machinery status indication. LED included with a current rating of 15mA for energy efficiency.

Commonly used in industrial automation, manufacturing, and electrical control panels, the Eaton RMQ Titan M22 Series Light Block provides dependable operation and easy integration.
