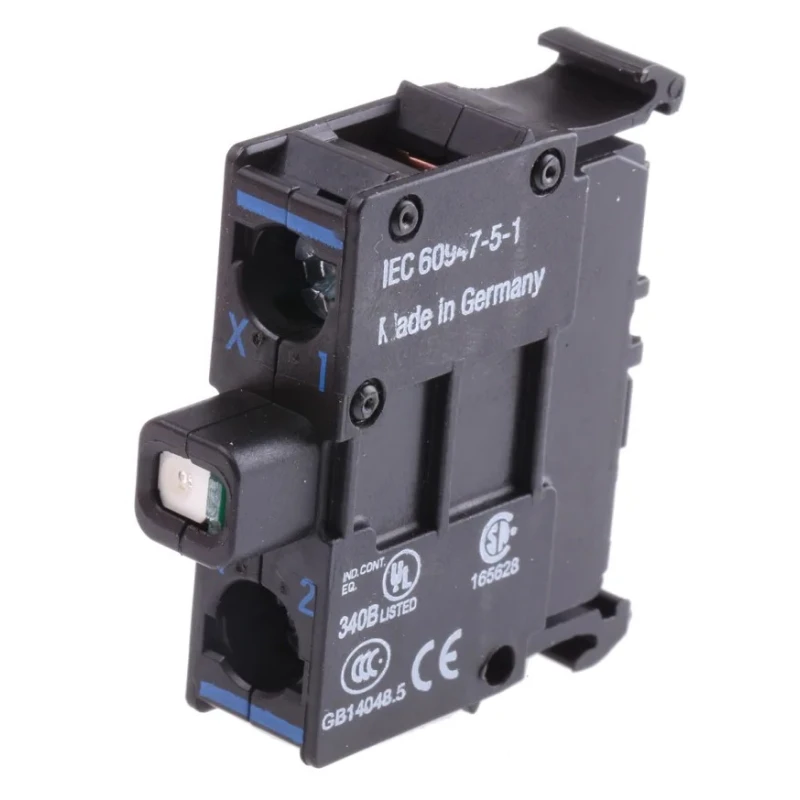

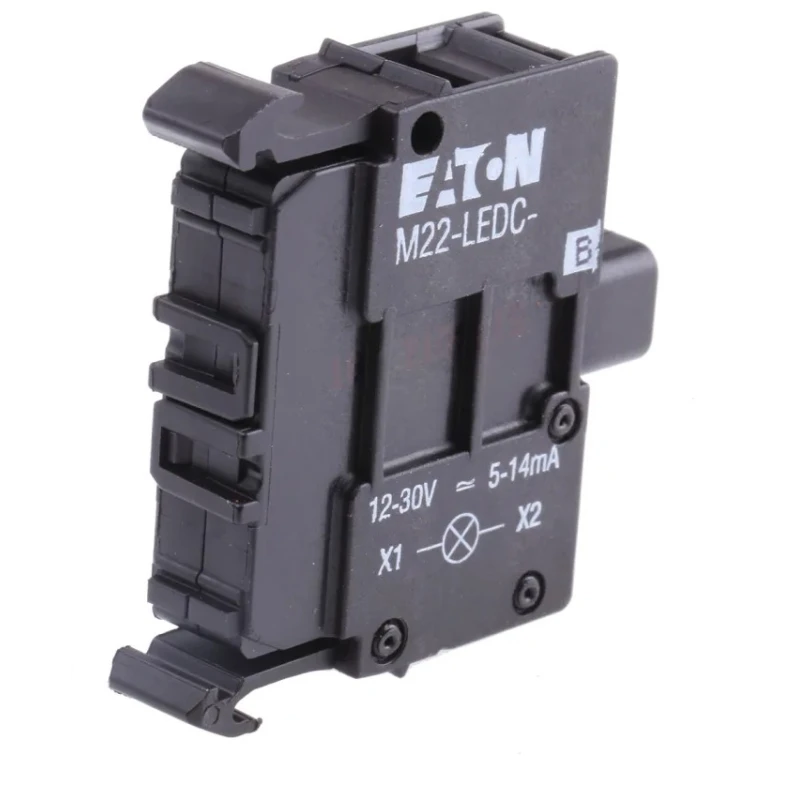

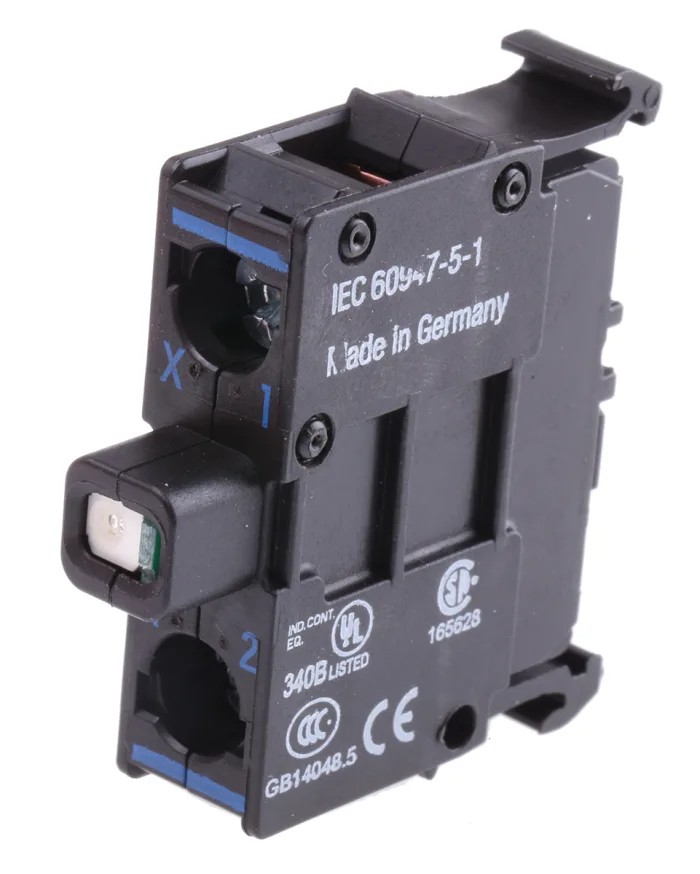

Eaton RMQ Titan M22 Series LED Light Block, Blue Illumination, 12 V AC/DC, 30 V AC/DC, Screw Terminal, IP20 218058 M22-LEDC-B

The Eaton RMQ Titan M22 Series LED Light Block model 218058 M22-LEDC-B offers reliable blue LED illumination for indicating operational statuses in industrial and commercial control panels. Designed for use with RMQ Titan M22 push button systems, this LED block operates over a voltage range from 12 V AC/DC up to 30 V AC/DC, supporting various control environments with stable performance.

This LED light block incorporates a screw terminal for robust connections and is engineered to endure demanding electrical applications with a low current rating of 15 milliamps and maximum power consumption of only 0.26 watts. The IP20 rating classifies this device for indoor use, protecting it against solid objects but not water ingress.

With a compact form factor measuring 71 mm in length and 30 mm in width, this device integrates seamlessly into existing panel designs without occupying excessive space. The operating temperature range from -25 °C to 70 °C enables its use in a variety of ambient conditions, ensuring dependable performance indoors.

The LED block’s lifespan extends up to 100,000 hours at 25 °C, assuring longevity and reducing maintenance intervals. This makes it ideal for applications requiring continuous and reliable visual status indication such as control system panels, machinery monitoring, and signal notifications in electrical equipment.

The 218058 M22-LEDC-B complies with key electrical standards including UL 508, IEC/EN 60947-5 series, CSA-C22.2 No. 94-91, and CE marking, ensuring adherence to international safety and quality requirements.

Blue LED illumination for clear visibility in low light environments. Voltage compatibility of 12 to 30 V AC/DC for flexible application use. Screw terminal connection for secure and easy installation. IP20 rating suitable for indoor electrical panel use.

Compact size supports space-efficient panel layouts. Long operational lifespan reducing replacement frequency. Low power consumption for energy-efficient operation. Wide operating temperature range from -25°C to 70°C. Compliant with UL, IEC, CSA, and CE standards for safety and performance.

This Eaton RMQ Titan M22 Series LED Light Block is ideal for industrial automation, manufacturing systems, electrical control panels, and machinery status indication. It enables clear and reliable visual signaling, essential for operational awareness and safety in various electrical and industrial environments.
