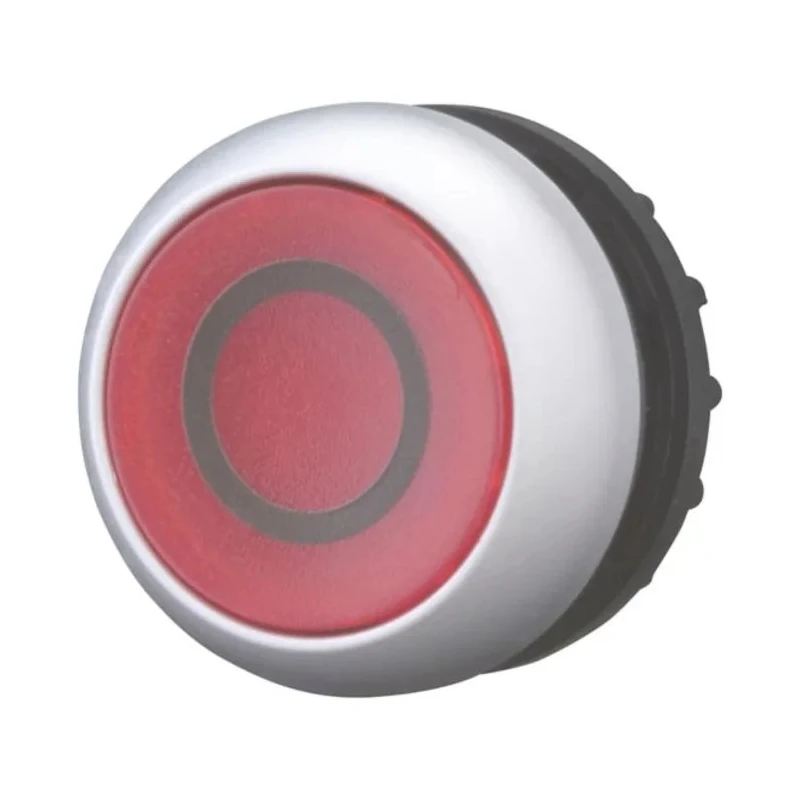

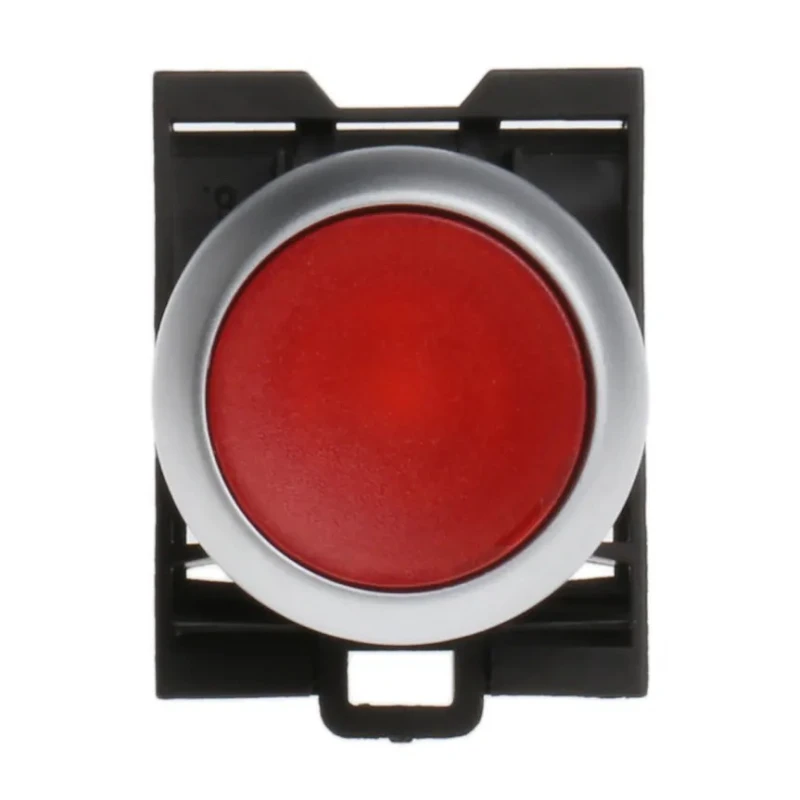

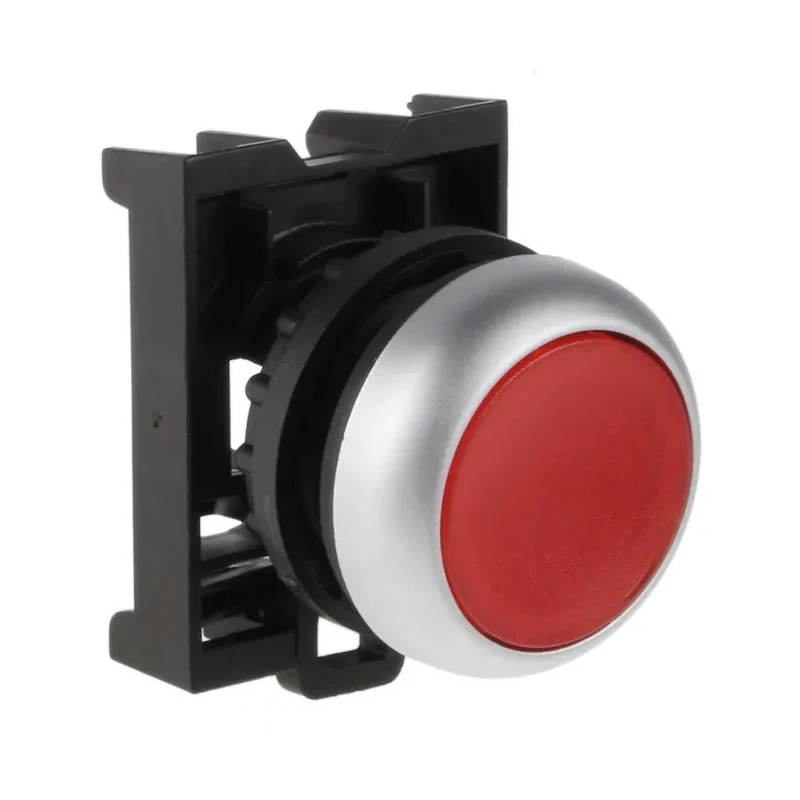

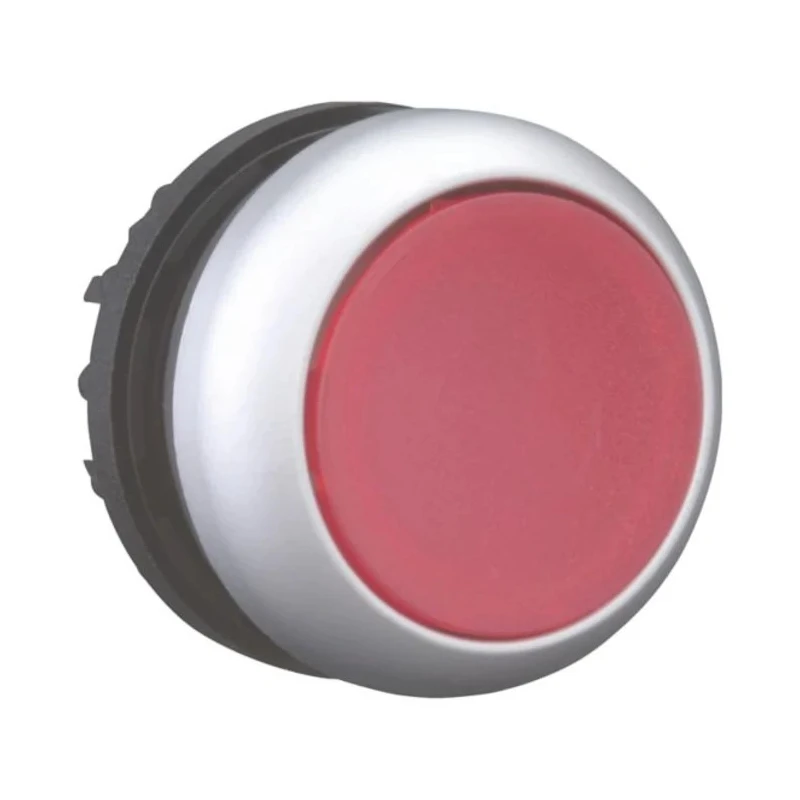

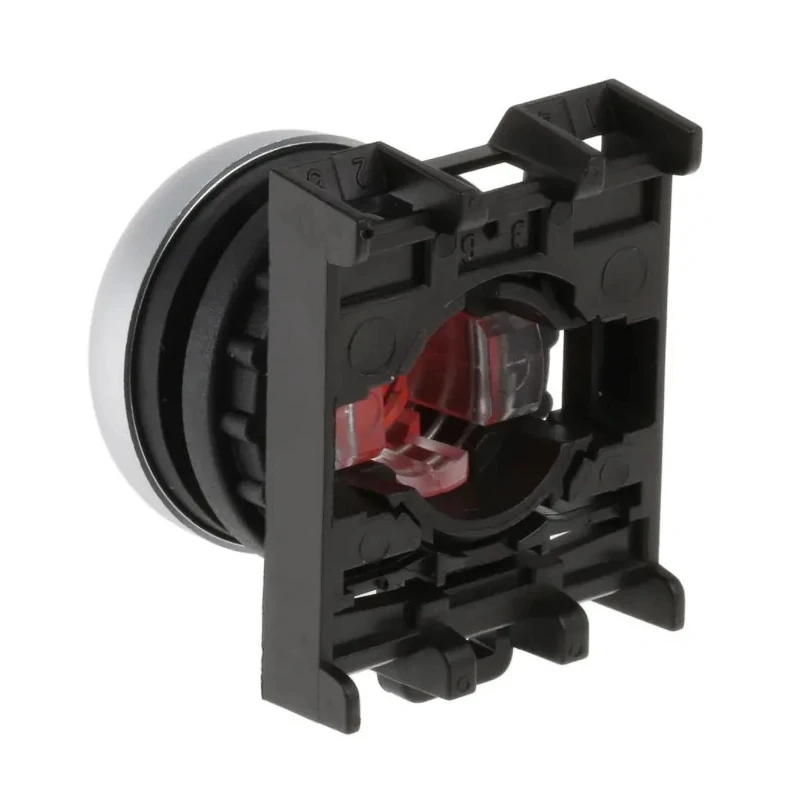

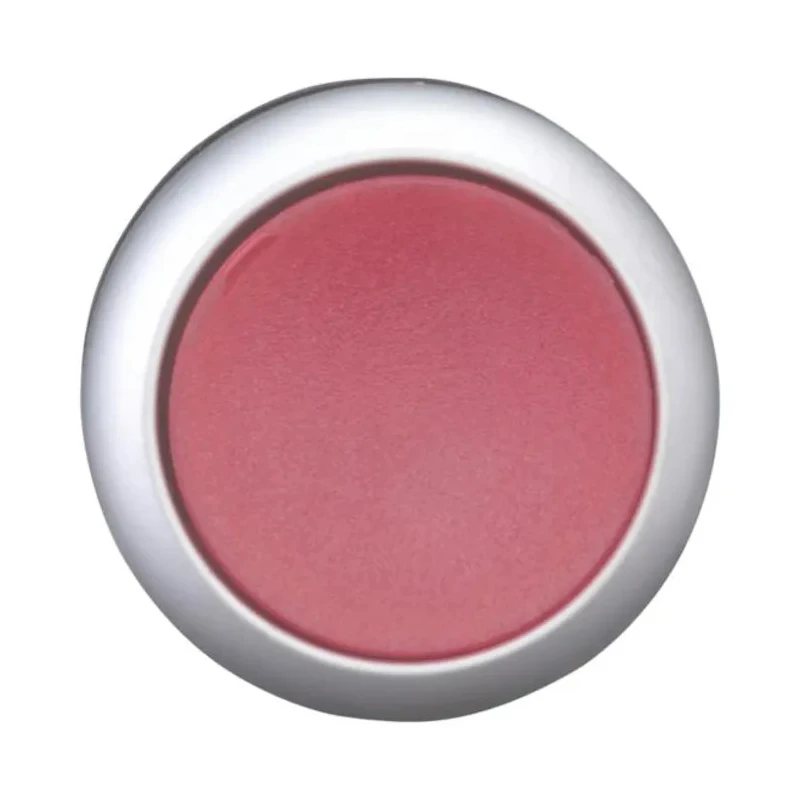

Eaton RMQ Titan M22 Series Red Momentary Push Button Head 22 mm Cutout IP69K 78635802 M22-DL-R+M22-A

Category Push Button Heads Brand Eaton Condition New

Specifications

Country of Origin Germany
Brand Eaton
Model 78635802 M22-DL-R+M22-A
IP Rating IP69K
Series RMQ Titan M22
Cutout Diameter 22mm
Push Button Actuation Momentary
Push Button Material Plastic
Push Button Colour Red
Push Button Shape Round
Push Button Marking Unmarked
Push Button Diameter 29.7mm
Eaton Push Button SwitchBrand Moeller

Key Features

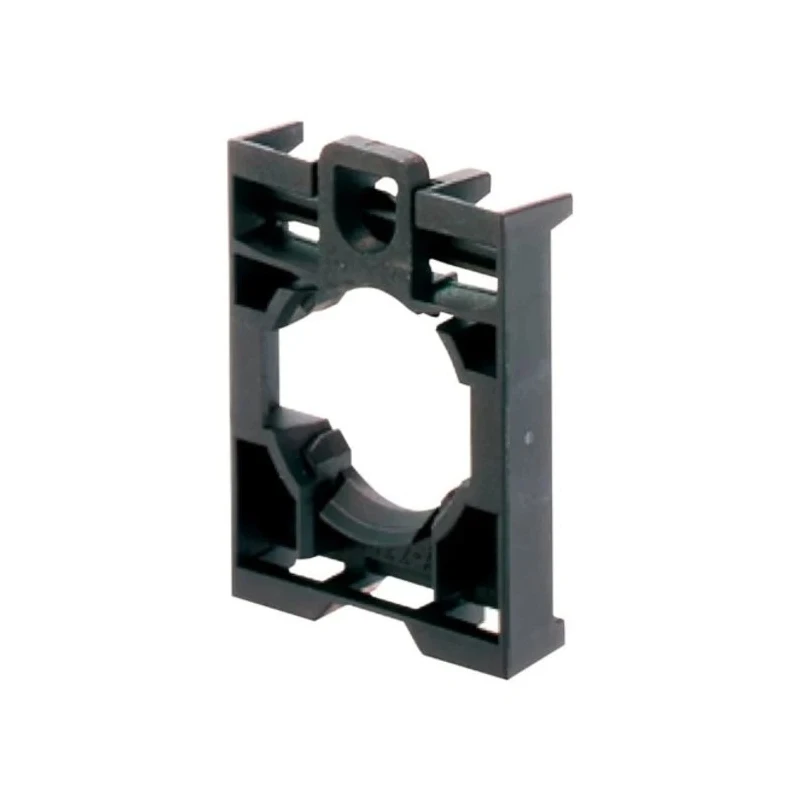

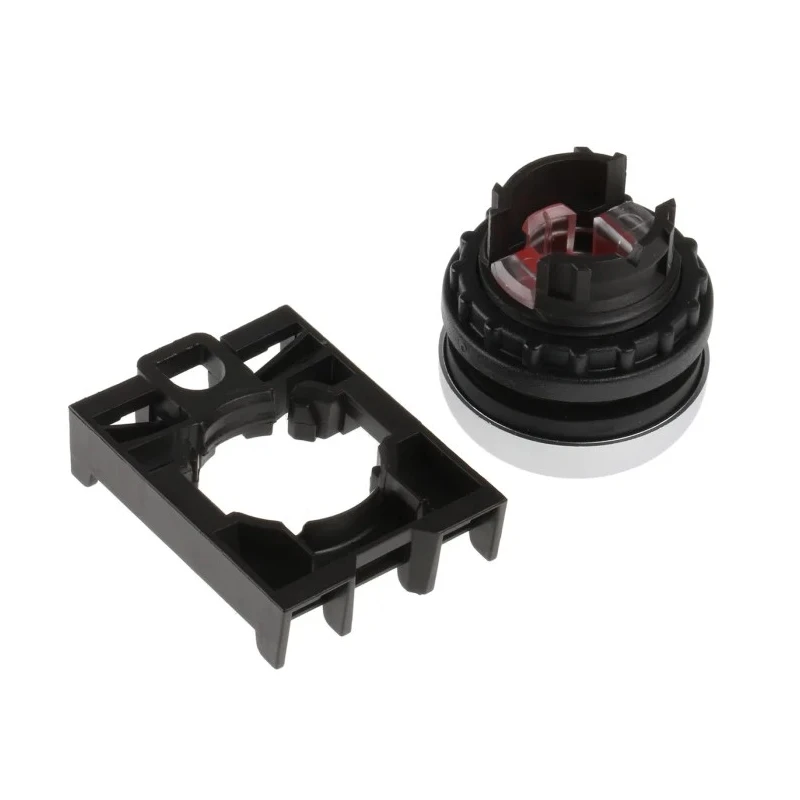

  • The push button head has a 29.7 mm diameter and a mounting collar is included for easy installation.
  • Constructed with durable plastic, the button offers momentary actuation with spring return.
  • Its red round design provides clear visibility for stop or alert functions.
  • Rated IP69K, it is dust tight and resistant to high-pressure water jets, suitable for harsh environments.
  • Mechanical lifespan of 5,000,000 operations ensures long service life in industrial applications.
  • Compatible with M22-series contact and light blocks for seamless circuit integration and illumination options.
  • Wide operating temperature range from -25°C to +70°C supports use in extreme conditions.
  • Compliance with multiple standards including CE, IEC/EN 60529, UL 508, and CSA enhances safety and reliability.

Product Description

Eaton 78635802 M22-DL-R+M22-A RMQ Titan M22 Series red momentary push button head is engineered for precise manual control in industrial automation and electrical panel applications. With a 22 mm cutout slot and an overall diameter of 29.7 mm, this push button head includes a mounting collar for secure and rapid assembly.

The robust plastic construction and IP69K ingress protection rating guarantee dust-tight performance and resistance to high-pressure water jets, ideal for industrial processing, manufacturing, and environments frequently cleaned with water jets. Designed with a round red actuator, it is easily identifiable for emergency stop or alert functions on control panels.

Featuring momentary actuation with spring return, it supports fast and reliable on/off commands. The device is compatible with M22-series contact blocks for electrical integration and light blocks for illumination enhancement, enabling versatile customization in control setups.

Built to endure demanding operations, the Eaton push button head offers a mechanical lifespan of 5 million operations and can handle up to 3600 operations per hour, accommodating fast-paced industrial processes. It operates reliably within a wide temperature spectrum from -25°C to +70°C, ensuring resilience in harsh environmental conditions.

The product complies with international safety and quality standards, including CE marking, IEC/EN 60529 for ingress protection, IEC/EN 60947-5 for low-voltage switchgear and controlgear, UL 508, and CSA certifications which affirm its suitability in diverse industrial markets.

The push button head includes a mounting collar for installation convenience. Compatible with M22-series contact and light blocks for modular system integration. Designed for industrial, manufacturing, and automation applications requiring durability and water resistance.

Provides clear manual control with a highly visible red actuator for safety use cases. Meets stringent international standards ensuring reliable and safe operation.

Use Eaton RMQ Titan M22 Series push button heads to build customized, durable control panels with high operational reliability for industrial automation, electrical installations, and equipment control. Explore more Push Button Heads and electrical components in the Electronics & Electrical category at EnvMart.

Eaton RMQ Titan M22 Series Red Momentary Push Button Head 22 mm Cutout IP69K 78635802 M22-DL-R+M22-A
Looking to purchase in bulk?
  • Purchase item in bulk quantity
  • Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The cutout diameter for this model is 22 mm, allowing for easy installation in compatible panels.

This push button head has an IP69K rating, making it dust-tight and resistant to high-pressure water jets, suitable for harsh environments.

It has a mechanical lifespan of 5,000,000 operations, ensuring long service life in industrial applications.

This unit operates reliably within a temperature range of -25°C to +70°C, accommodating extreme conditions.

The push button is constructed from durable plastic, ensuring it can withstand demanding operational environments.

Yes, it is compatible with M22-series contact blocks for electrical integration and light blocks for illumination options.

It features momentary actuation with spring return, allowing for fast and reliable on/off commands.

The overall diameter of this push button head is 29.7 mm, which includes the mounting collar for secure installation.

It complies with multiple standards including CE, IEC/EN 60529, UL 508, and CSA, enhancing its safety and reliability.

The push button has a round shape and is colored red, providing clear visibility for stop or alert functions.

This model can handle up to 3600 operations per hour, making it suitable for fast-paced industrial processes.

The country of origin for this push button head is Germany.
