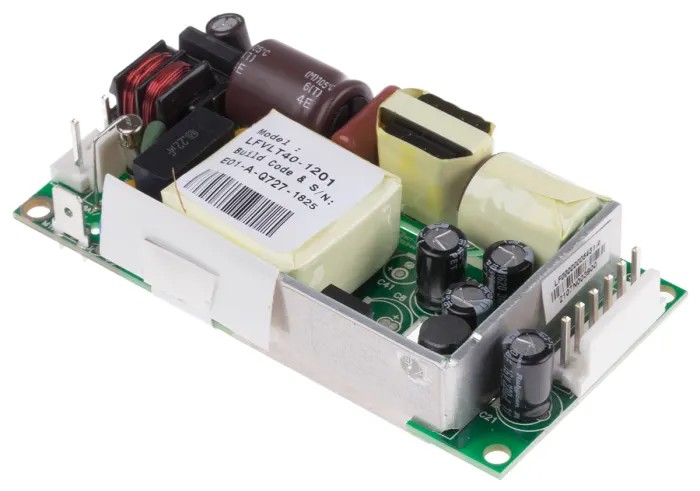

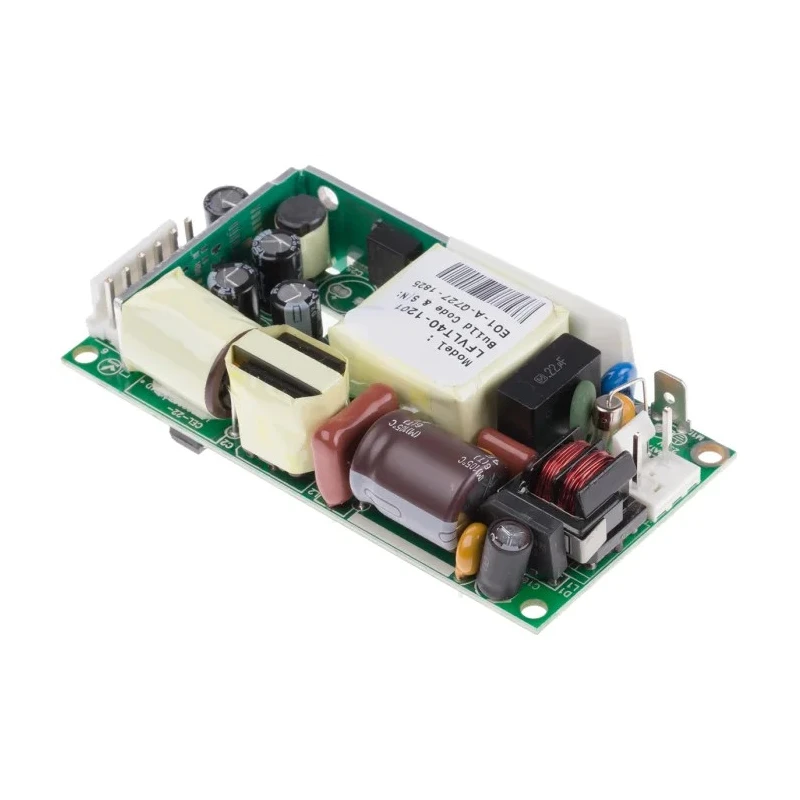

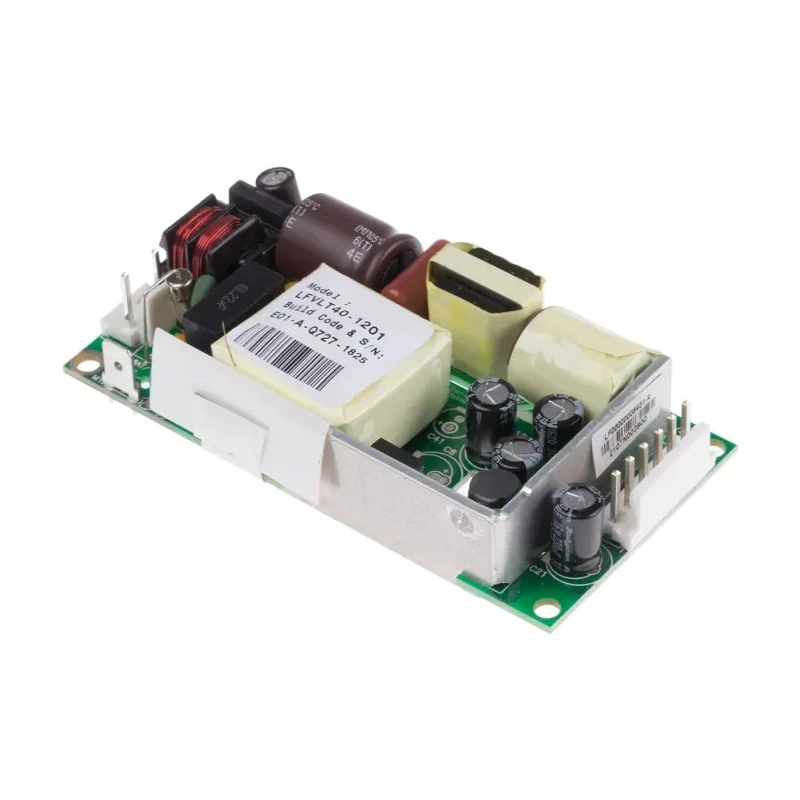

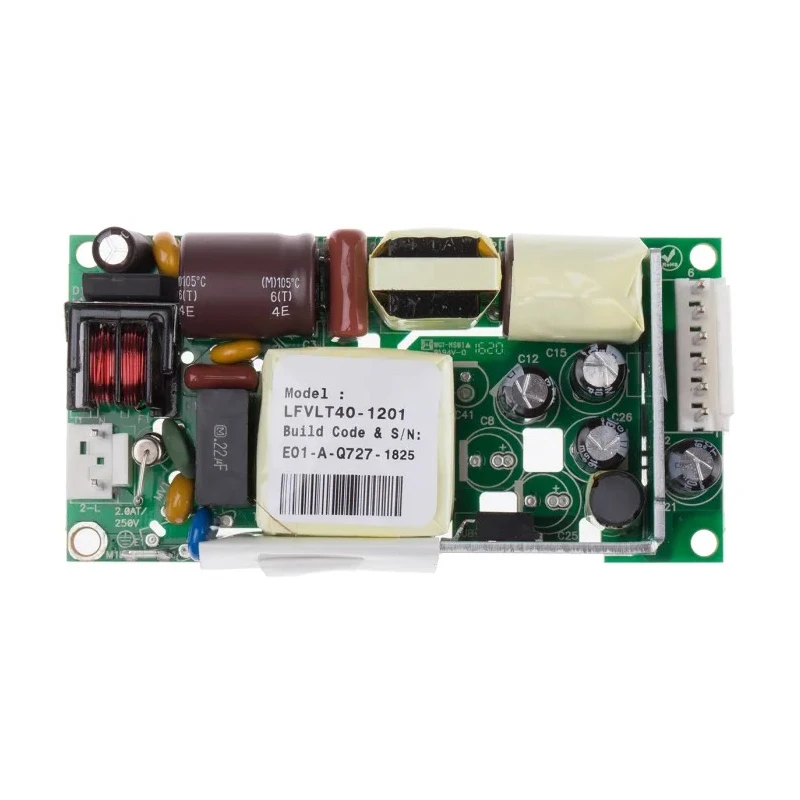

EOS VLT40 Series 40W 12V DC Switching Power Supply 3.5A Single Output Chassis Mount LFVLT40-1201

Free Delivery in India | Lowest Global Shipping Charges

EOS VLT40 Series 40W 12V DC Switching Power Supply 3.5A Single Output Chassis Mount LFVLT40-1201



Category Switching Power Supplies Brand EOS Condition New

Specifications

Country of Origin	India
Brand	EOS
Power	40W
Efficiency	82%
Length	101.6mm
Model	LFVLT40-1201
Depth	27.18mm
Gross Weight	150g
Width	50.8mm
Mount Type	Chassis
Series	VLT40
Maximum Operating Temperature	50°C
Minimum Operating Temperature	0°C
Number of outputs	1
Maximum Input Voltage	264V ac
Standards/Approvals	UL, RoHS, NEMKO, cUL, CE
Maximum Output Voltage	12V dc
SMPS Output Current	3.5A
Minimum Input Voltage	90V ac
PSU, auto select I/P, 110Vac, 230Vac, O/P 12V, 2.1A, 25WBrand	NEUTRAL

Key Features

Offers a maximum output voltage of 12V DC with a current of 3.5A.
Operates within a broad input voltage range from 90V AC to 264V AC.
Supports operating temperatures from 0°C to 50°C for versatile environmental use.
Constructed for high efficiency with 82% power conversion efficiency.
Includes protective features such as overvoltage, short circuit protection, and power limit.
Dimensioned at 101.6mm length, 50.8mm width, and 27.18mm depth suitable for compact installations.
Meets multiple approvals including UL, RoHS, NEMKO, cUL, and CE certifications ensuring compliance and safety.
Designed with a mounting type of chassis for embedded power supply integration.

Product Description

EOS LFVLT40-1201 is a high-quality embedded switch mode power supply from the VLT series, designed for industrial and electronic equipment requiring steady 12V DC power output. This 40W unit offers a single output channel with 3.5A current capability, effectively converting AC input ranging from 90V to 264V to a regulated DC voltage.

Structured for chassis mounting, this switching power supply is engineered with reliability in mind, ensuring consistent performance under operating temperatures from 0°C to 50°C. Its compact dimensions (101.6mm L x 50.8mm W x 27.18mm D) make it suitable for space-constrained applications.

The LFVLT40-1201 model provides important safety protections including overvoltage protection, short circuit protection, and power limiting features to safeguard both the device and connected equipment. It is built with a high efficiency of 82%, helping to reduce power loss and heat generation.

This switching power supply complies with several international standards and approvals such as UL, RoHS, NEMKO, cUL, and CE, reinforcing its safety and environmental friendliness. Manufactured in India, the product is ideal for industrial automation, control systems, instrumentation, and other electronic device power requirements.

Maximum output voltage of 12V DC with an output current of 3.5A. Wide input voltage range from 90V to 264V AC supports global power input variability. Chassis mount design for robust embedded mounting in industrial equipment.

Operating temperature range from 0°C to 50°C for reliable performance. Protective features including overvoltage, power limit, and short circuit protection ensure longevity and safety. Compact footprint facilitates installation in space-limited control panels.

Certified to international safety and quality standards including UL, CE, and RoHS. High power conversion efficiency reduces energy consumption and heat output.

EOS Switching Power Supplies are widely used in industrial, laboratory, manufacturing, HVAC, and electronic applications that demand efficient and safe DC power sources. Explore our catalog for more reliable power supply solutions from EOS.
