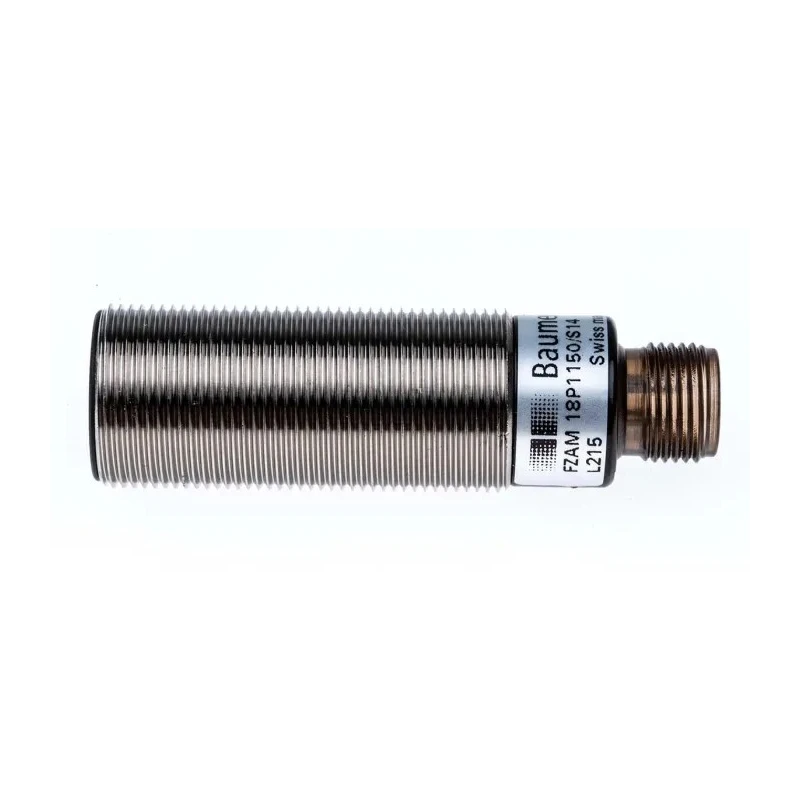

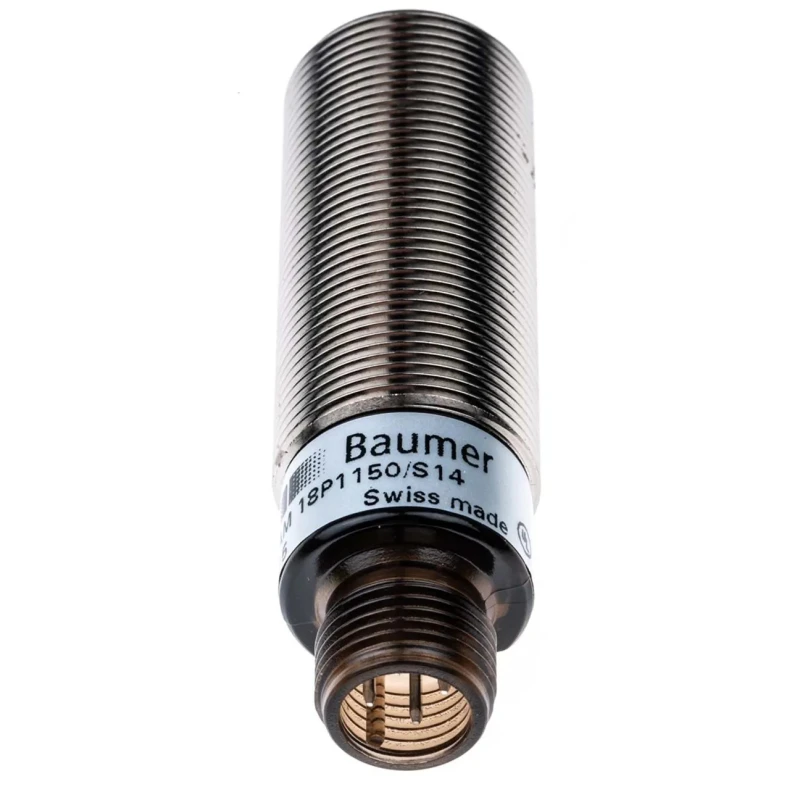

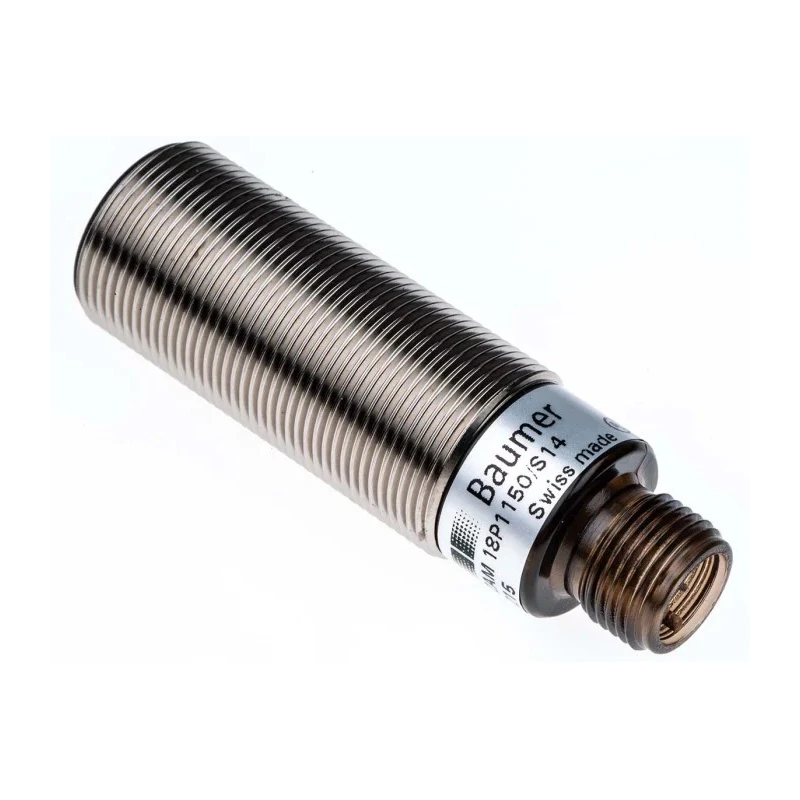

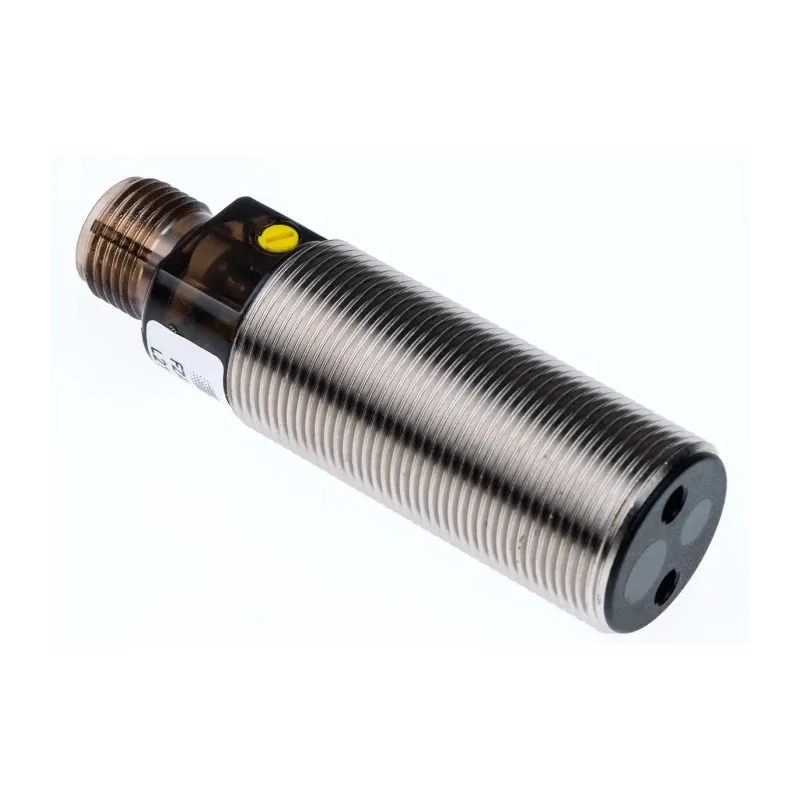

Baumer Diffuse Photoelectric Sensor, Barrel Style, Detection Range 60 mm to 430 mm, PNP Output, IP65 Rated FZAM 18P1150/S14

The Baumer FZAM 18P1150/S14 is a high-quality diffuse photoelectric sensor featuring a barrel-style sensor housing built from nickel-plated metal, polycarbonate, and brass for durability and extended service life. This sensor's detection range spans from 60 mm to 430 mm, providing flexible sensing capabilities suitable for various industrial automation setups.

It operates with an infrared light source and utilizes diffuse detection principles, enabling efficient sensing of object presence without requiring reflective targets.

The sensor features a PNP output type with light and dark switching modes, controlled via a 4-pin terminal interface along with IO-Link communication compatibility. It supports a maximum DC voltage of 30 V and carries a maximum current of 200 mA, ensuring reliable operation within industrial electrical standards.

Designed to operate within a temperature range of -25°C to +55°C, the sensor is also rated IP65 for protection against dust ingress and water jets, making it ideal for demanding environmental conditions in manufacturing, packaging, and process control industries.

Its quick 1 ms response time allows fast activation and deactivation, essential for high-speed automation tasks. The sensor includes a lateral 20-turn potentiometer for sensitivity adjustments and is protected against reverse polarity and short circuits to safeguard both sensor and connected circuitry.

With compliance to IEC standards and manufacturing origin from Liechtenstein, this product is suited for panel mounting applications and is compatible with reflex fiber optics or single barriers to extend sensing capabilities.

Employs infrared light source for reliable diffuse detection. PNP output configuration with light and dark switching. Robust nickel plated, polycarbonate, and brass housing. Operational temperature range from -25°C to 55°C.

Fast 1 ms response time ensuring quick detection. Equipped with a 4-pin terminal and IO-Link interface. Maximum DC voltage rating of 30 V and current up to 200 mA. Panel mounting style with lateral potentiometer for sensitivity adjustment.

IEC standards compliant and protected against reverse polarity and short circuits. Designed for industrial automation and control applications.

This Baumer diffuse Photoelectric Sensor is optimally engineered for use in industrial automation, laboratory equipment, manufacturing lines, and process control systems requiring precise object detection and reliable operation under varied environmental conditions. Explore our extensive range of industrial automation sensors and components on EnvMart for solutions to your application needs.
