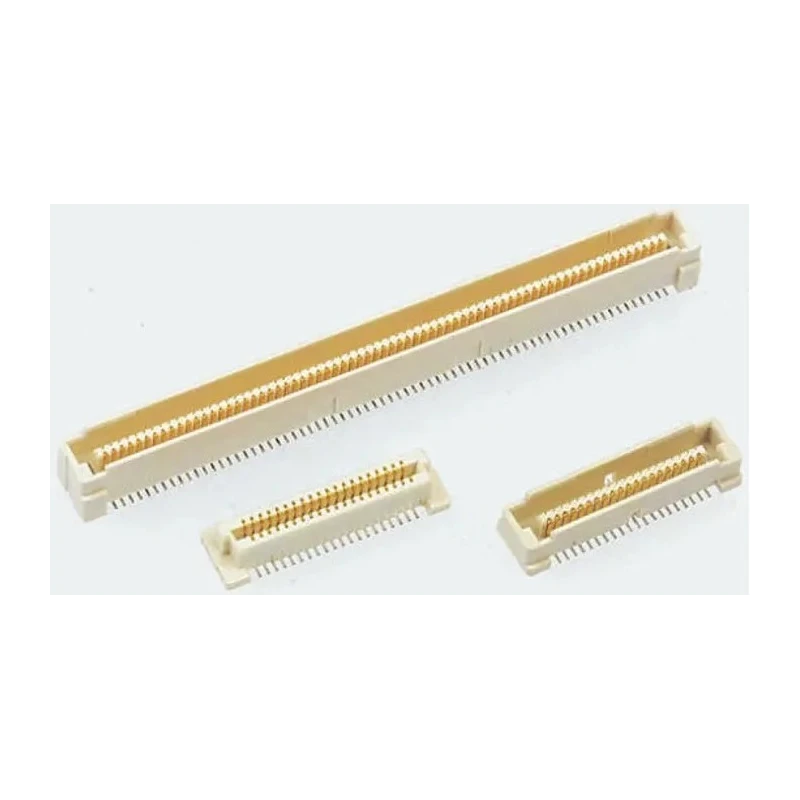

TE Connectivity Free Height Series Straight Surface PCB Socket 140-Contact 2 Row 0.8 mm Pitch Solder 5177983-6
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 100V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 500mA |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Beryllium Copper Alloy |
| Series | Free Height |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 0.8mm |
| Contact Plating | Gold |
| Number of Contacts | 140 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- The socket features a straight orientation suitable for parallel board stacking applications.
- It uses a liquid crystal polymer housing providing durability and thermal stability.
- Gold-plated beryllium copper alloy contacts ensure reliable electrical connections with female contact gender.
- Rated for 100 V voltage and 500 mA current with operating temperatures ranging from -40°C to 125°C.
- The connector offers a bellows type spring contact design that resists scooping and stubbing during mating cycles.
- PCB positioning bosses ensure accurate placement on printed circuit boards.
- Supports a range of stacking heights from 5 mm to 16 mm when mated with compatible plugs.
- Ideal for compact electronic devices such as notebook PCs, mobile phones, and pen pads requiring miniature connector packaging.
Product Description
TE Connectivity 5177983-6 Free Height Series Straight Surface PCB Socket is a high-density board-to-board connector designed for efficient electronic packaging solutions. Featuring 140 contacts arranged in 2 rows with a fine 0.8 mm pitch, this connector facilitates compact and reliable interconnections on printed circuit boards.
The housing is constructed from liquid crystal polymer, providing excellent mechanical strength and temperature resistance, enabling operation between -40°C and 125°C.
Its beryllium copper alloy contacts are gold-plated to ensure excellent conductivity and corrosion resistance with female contacts suitable for various board-to-board mating scenarios.
The unique bellows type spring contact design offers durability by resisting scooping and stubbing during repeated matings, ensuring long-lasting performance. Polarization features and PCB positioning bosses promote accurate connector alignment and placement.
This Free Height (FH) series supports board stacking heights from 5 mm to 16 mm when combined with compatible board mount plugs, making it flexible for various design requirements in compact electronic equipment.
The socket supports a 100 V rating and 500 mA current capability. It is intended for use in notebook PCs, mobile phones, pen pads, and other miniature electronic devices. Its surface mount termination type and straight orientation make it suitable for automated PCB assembly processes.
The connector system complies with no specific standards but is designed for robust industrial electronic use. This component is an essential part of TE Connectivity's Free Height Series for high-performance, space-saving board interconnections.
EnvMart offers this product as a reliable choice for industrial, commercial, and consumer electronics manufacturing applications.
