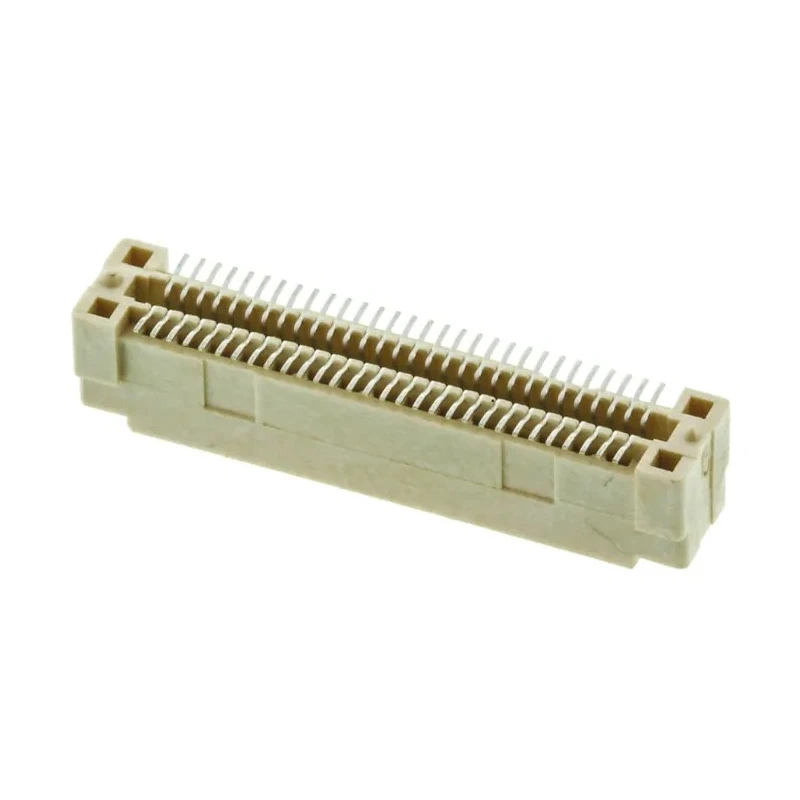

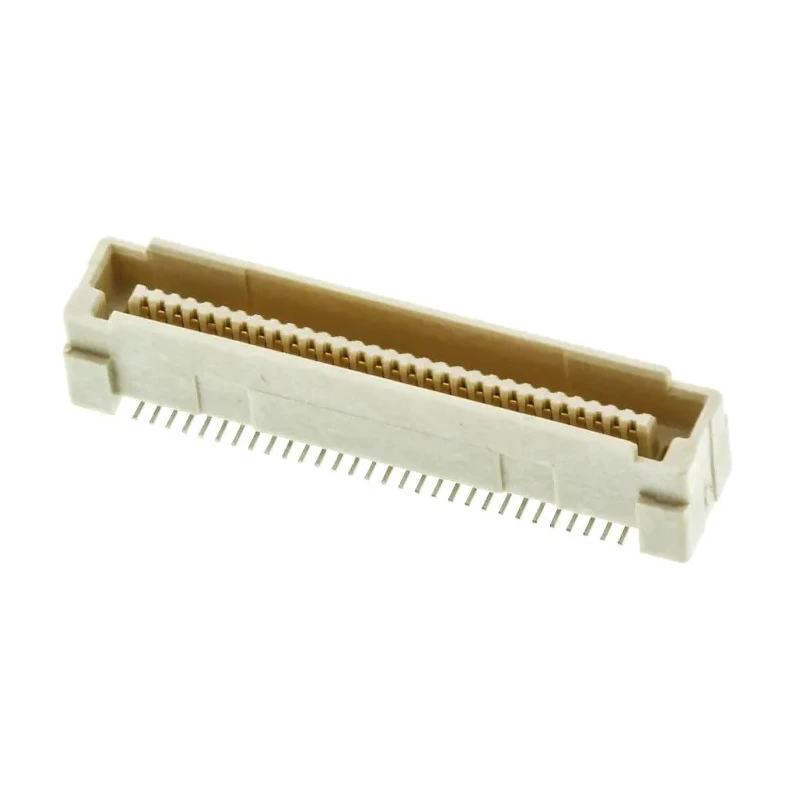

TE Connectivity Free Height Series Straight Surface PCB Header, 60 Contacts, 0.8 mm Pitch, 2 Row, Shrouded 5179030-2

TE Connectivity 5179030-2 Free Height Series Straight Surface PCB Header features 60 male contacts arranged in two rows with a 0.8 mm pitch. The shrouded surface mount design ensures a secure board-to-board connection for parallel PCB stacking.

This connector utilizes a copper alloy contact material with gold plating to provide strong signal integrity and reliable electrical connections. Its bellows-type spring contact design resists damage during mating and unmating cycles, making it suitable for high durability requirements.

The housing is polarized to prevent incorrect mating and includes locating bosses to ensure accurate placement on the PCB. Rated for 100 V and 500 mA, this header accommodates operating temperatures from -55°C up to 105°C, suitable for demanding environments.

Applications include use in high-end computer systems, telecommunications equipment, industrial machinery, military devices, and aerospace electronics, where miniature connector packing and high density are critical.

The package contains one TE Connectivity Free Height Series Straight Surface PCB Header model 5179030-2 with the specifications as listed. Compact 0.8 mm pitch supports high-density board layouts. Shrouded housing design prevents mis-mating of connectors.

Two-row contact arrangement with 60 male copper alloy contacts. Surface mount type suitable for PCB assembly. Gold-plated copper alloy contacts ensure excellent conductivity and corrosion resistance. Operates reliably between -55°C to 105°C temperature range.

Support voltage rating of 100 V and current rating of 500 mA. Polarized housing and locating bosses aid precise PCB placement. Ideal for applications in high-end computer, telecommunications, industrial, military, and aerospace systems.
