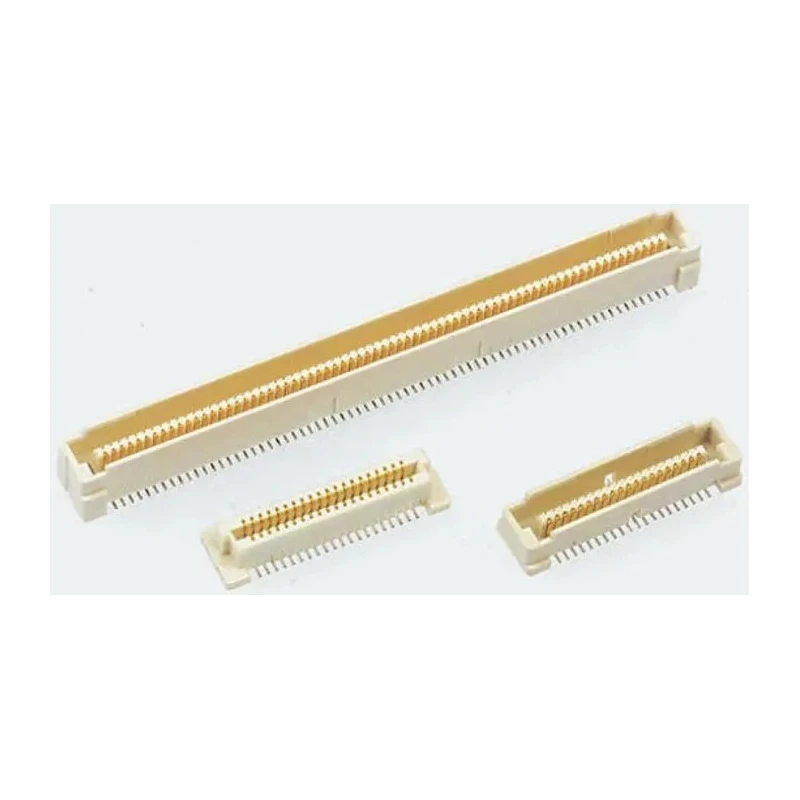

TE Connectivity Free Height Series Straight Surface PCB Socket 120-Contact 2 Row 0.8mm Pitch Solder 5177983-5
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 100V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 500mA |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Beryllium Copper Alloy |
| Series | Free Height |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 0.8mm |
| Contact Plating | Gold |
| Number of Contacts | 120 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- High-density subminiature packaging saves over 50% PCB space compared to 1.27mm connectors.
- Bellows-type spring contacts resist damage and maintain reliable electrical connection.
- Polarized design prevents incorrect mating and includes PCB positioning bosses for accurate placement.
- Operates between -40°C and 125°C suitable for harsh environments.
- Gold-plated beryllium copper alloy contacts provide excellent conductivity and corrosion resistance.
- Supports up to 100 V voltage and 500 mA current capacity.
- Ideal for compact electronic devices such as notebooks, pen tablets, and mobile phones.
- Surface mount type with straight orientation for ease of assembly.
Product Description
TE Connectivity 5177983-5 Free Height Series Straight Surface PCB Socket features 120 contacts arranged in 2 rows with a 0.8 mm pitch, designed for board-to-board connectivity in compact electronics.
This 0.8 mm pitch connector enables mezzanine SMT board stacking applications with a high-density subminiature package that conserves more than 50% PCB space compared to traditional 1.27 mm pitch connectors.
The bellows-type spring contact design resists scooping and stubbing during mating cycles, ensuring a reliable and durable electrical connection over repeated use.
The connector housing is made from Liquid Crystal Polymer, which offers robustness while maintaining lightweight structure. It is designed for surface mounting with straight orientation, facilitating efficient and precise placement on circuit boards.
Polarization features and PCB positioning bosses allow for error-free mating and accurate positioning, crucial for high-reliability applications.
Operating temperature range from -40°C to 125°C suits this connector for diverse industrial, consumer electronics, and telecommunications applications including notebooks, pen tablets, and mobile phones.
High-density subminiature packaging saves over 50% PCB space compared to 1.27mm pitch connectors. Bellows-type spring contacts ensure reliable electrical connection and resist damage. Polarized design prevents mis-mating and positioning bosses aid accurate PCB placement.
Gold-plated beryllium copper alloy contacts provide optimum conductivity and corrosion resistance. Supports 100 V voltage and 500 mA current, suitable for low-power applications. Surface mount with straight orientation for ease of assembly.
Durable Liquid Crystal Polymer housing material. Compliance with UL E28476 standard ensures quality and safety.
This TE Connectivity PCB socket delivers reliable board-to-board interconnection solutions for electronic manufacturing, industrial automation, telecommunications, and portable device assembly. For additional technical documents and design support, please refer to TE Connectivity official resources.
Explore more PCB Sockets and other precision electronic connectors within EnvMart’s extensive catalog for robust industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contacts in this PCB socket are arranged with a pitch of 0.8 mm.
This model can operate at a maximum temperature of 125°C.
It features 120 contacts arranged in 2 rows.
The current capacity of this PCB socket is 500 mA.
The housing material is made from Liquid Crystal Polymer.
This connector uses solder termination type.
Yes, this socket is designed for surface mounting with a straight orientation.
The voltage rating for this PCB socket is 100 V.
It is suitable for applications in industrial, consumer electronics, and telecommunications, including notebooks and mobile phones.
It uses gold-plated beryllium copper alloy contacts for excellent conductivity and corrosion resistance.
The polarized design and PCB positioning bosses help prevent mis-mating and ensure accurate placement.
This product is manufactured in India.
