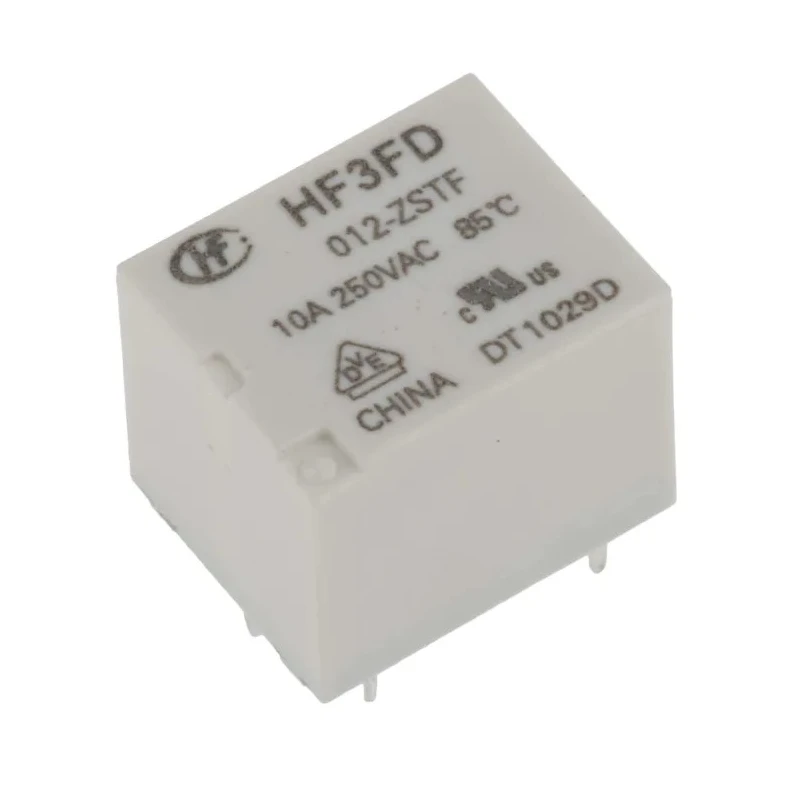

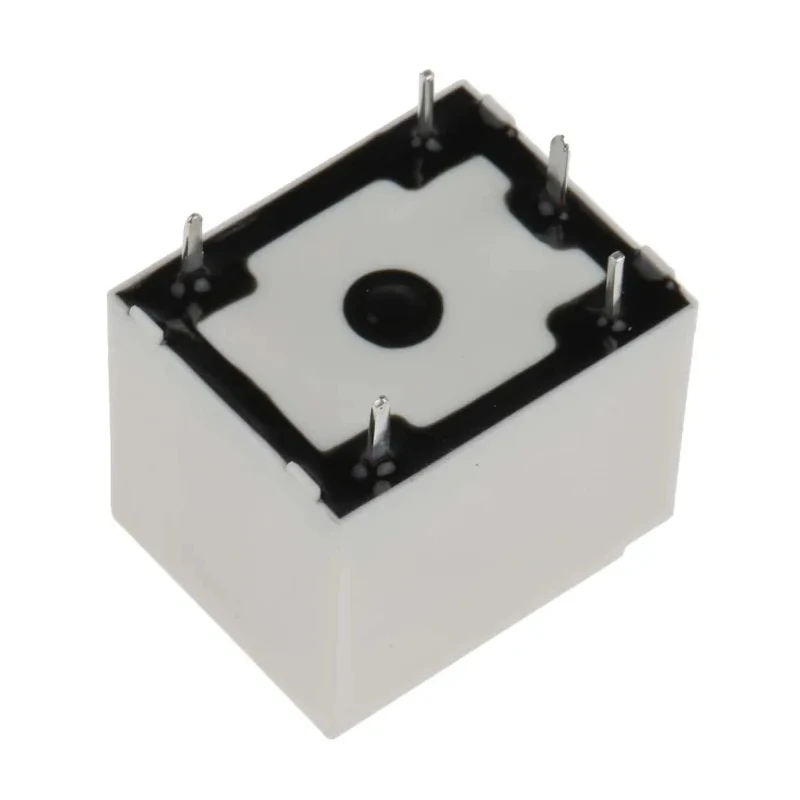

RS PRO PCB Power Relay 12V DC Coil 10A Switching Current SPDT 0476583P

RS PRO 0476583P is a PCB Power Relay equipped with a 12V DC coil, offering reliable switching capability with a current rating of 10A and SPDT contact configuration.

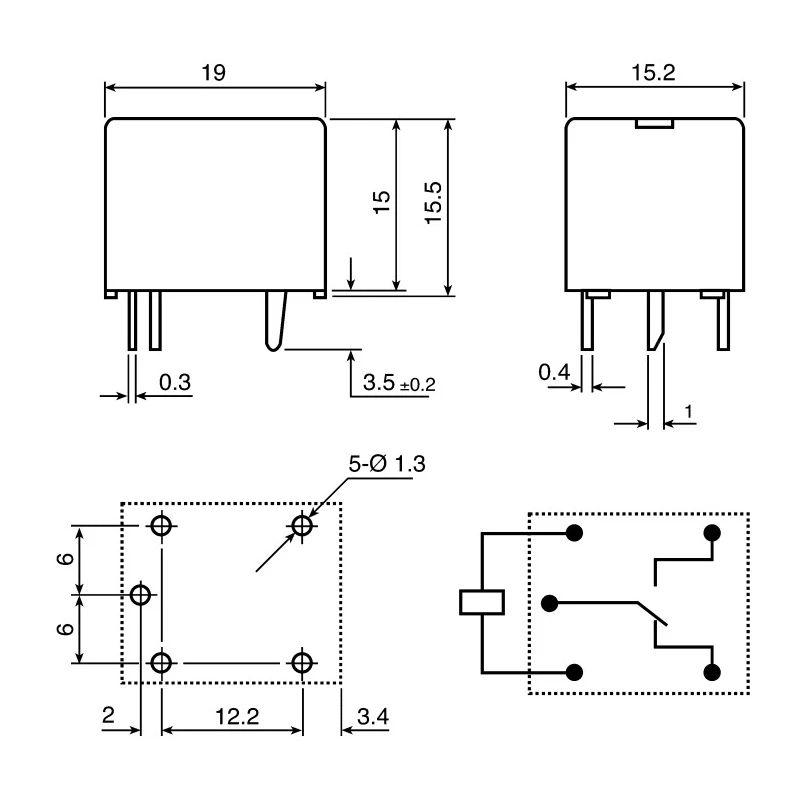

This relay features a compact design ideal for PCB mounting with solder terminal types, measuring 19mm in length, 15.2mm in width, and 15.5mm in height. It operates efficiently with a coil power of 360 mW and coil resistance of 400 Ω.

The relay is rated for switching AC voltages up to 277V AC and DC voltages up to 30V DC, making it versatile for diverse applications. It uses silver alloy contacts to ensure durable and consistent electrical connections.

Designed to operate under a temperature range of -40°C to 105°C, this device features a flammability rating of UL94 V-0, enhancing safety in electrical systems. It is RoHS compliant, underscoring its environmental friendliness.

This non-latching relay is suitable for use in a wide range of industrial, automotive, household, medical equipment, and telecommunications applications. Its compact size and robust features make it a dependable choice for electronic switching needs.

Operates at a coil voltage of 12V DC and has a coil power of 360 mW. Features SPDT contact configuration for versatile switching operations. Compact layout fits standard PCB designs with solder terminal connections. Supports switching current up to 10A and switching voltages up to 277V AC and 30V DC.

Silver alloy contacts provide reliability and longevity. Wide operating temperature range from -40°C to 105°C suits various environments. Environmental compliance with RoHS standards ensures eco-friendly usage. Flammability class UL94 V-0 rated for electric safety.

Ideal for applications in automotive engines, industrial machinery, household devices, medical equipment, and telecom systems. Explore the full range of RS PRO Power Relays and related products at EnvMart for reliable industrial and commercial electrical solutions.
