Block PCB Transformer 2 x 24 V AC 2 Output Pin Mount 1.5VA Power VB 1.5/2/24

Free Delivery in India | Lowest Global Shipping Charges

Block PCB Transformer 2 x 24 V AC 2 Output Pin Mount 1.5VA Power VB 1.5/2/24

Name: Block PCB Transformer 2 x 24 V AC 2 Output Pin Mount 1.5VA Power VB 1.5/2/24
Brand: Block
SKU: 327865
Price: 9.21 USD
Availability: InStock



Category PCB Transformer Brand Block Condition New

Specifications

Country of Origin	Germany
Brand	Block
Efficiency	57%
Length	32.3mm
Model	VB 1.5/2/24
Depth	27.3mm
Gross Weight	84g
Width	21.8mm
Mount Type	Pin
Maximum Operating Temperature	158°C
Number of outputs	2
Primary Voltage	230 V ac
Secondary Voltage	2 x 24 V ac
Minimum Operating Frequency	50Hz
Maximum Operating Frequency	60Hz

Key Features

Operates at primary voltage of 230 V AC and frequency between 50Hz and 60Hz.
Features high efficiency of 57% with maximum operating temperature of 158°C.
Meets standards including VDE 0570 Teil 2-1, UL 5085-1/-2, CSA 22.2 No.66, IEC 61558-2-1, and DIN EN 61558-2-1.
Short circuit proof design with vacuum epoxy resin UL94-V0 moulded casing and glass fibre reinforced polyamide bobbins.
Low inter-winding capacitance and radiated noise provide reliable and quiet operation.
Suitable for industrial, electronic components, power supply, and PCB transformer applications.

Product Description

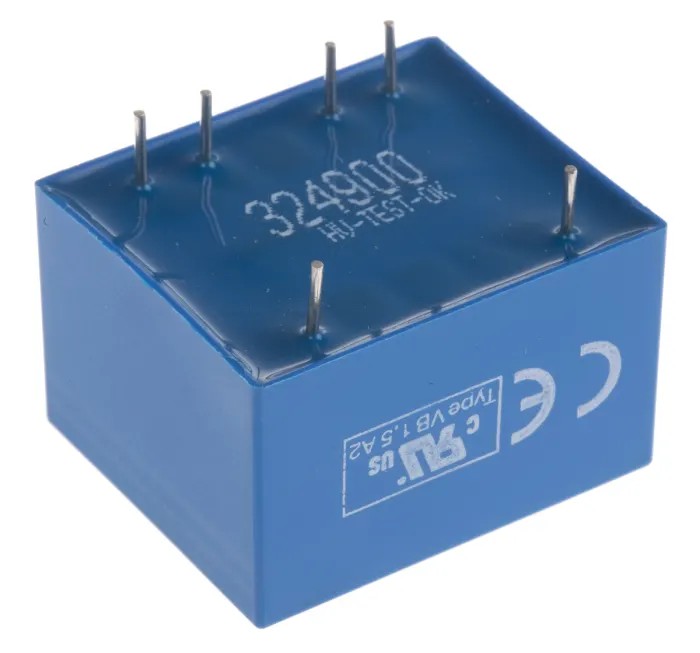

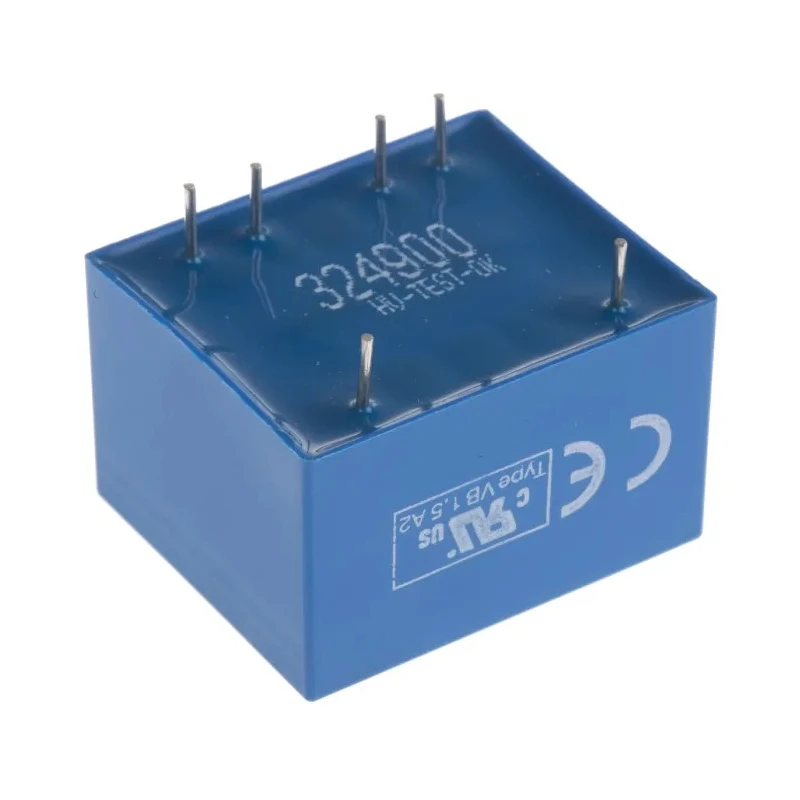

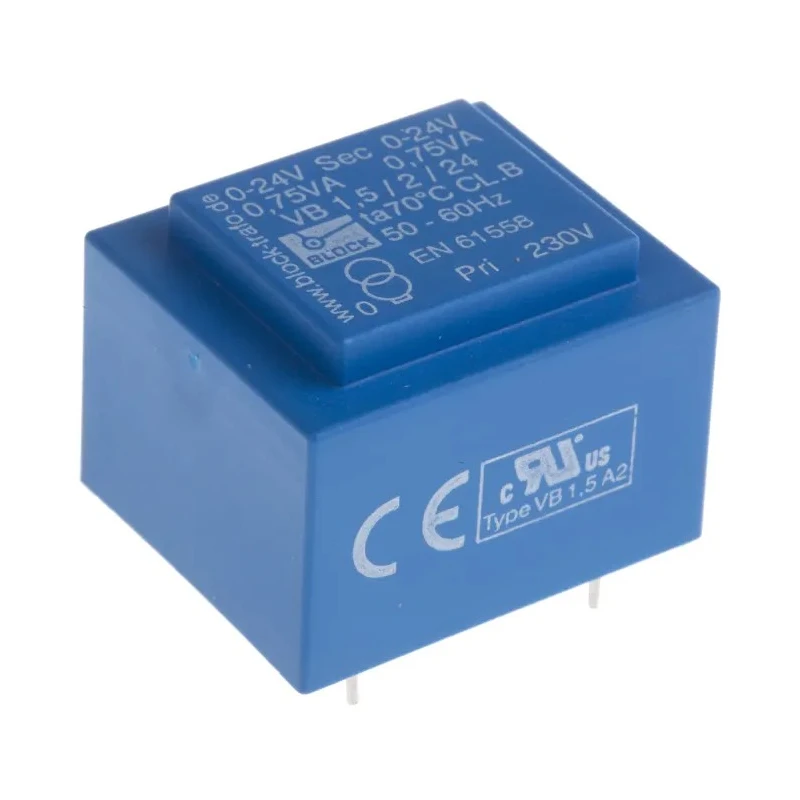

Block VB 1.5/2/24 is a PCB mounted transformer designed to provide 2 output voltages of 24 V AC each at 1.5VA power rating. Operating from a 230 V AC primary voltage and frequency range of 50Hz to 60Hz, it is ideal for electronics and power supply systems integration.

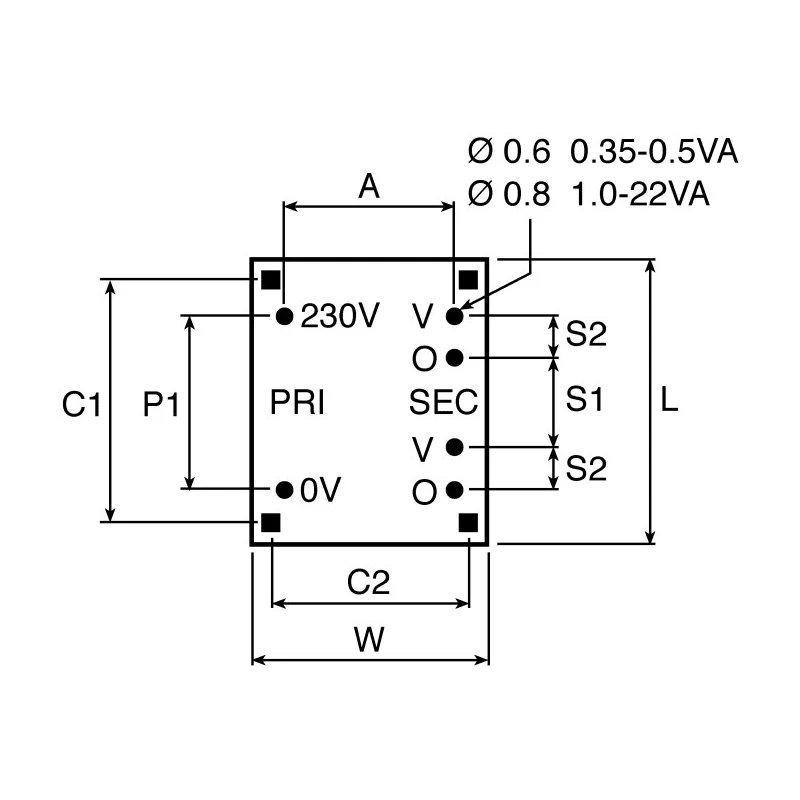

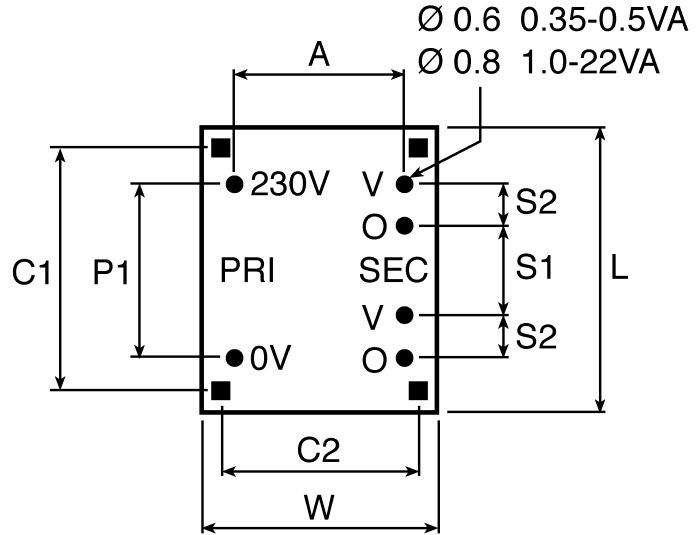

The compact construction with dimensions 32.3mm x 21.8mm x 27.3mm ensures efficient use of PCB real estate. Its pin mount type eases assembly onto printed circuit boards while maintaining electrical safety and mechanical stability.

This transformer features vacuum epoxy resin moulding conforming to UL94-V0 fire safety standards, and uses double section glass fibre reinforced polyamide bobbins. It is short circuit proof within the VB series range and provides low inter-winding capacitance for reduced electromagnetic interference, along with minimized radiated noise for quiet operation.

With a certified efficiency of 57% and maximum operating temperature of 158°C, it is suitable for demanding industrial and electronic applications. The product complies with international safety standards including VDE 0570 Teil 2-1, UL 5085-1/-2, CSA 22.2 No.66, IEC 61558-2-1, and DIN EN 61558-2-1, ensuring reliability and safety.

This transformer is manufactured in Germany and serves well in power supplies, industrial electronics, instrumentation, and control systems requiring dual secondary outputs and reliable performance.

Operates at primary voltage of 230 V AC with 2 x 24 V AC secondary outputs. Compact size with pin mount form factor suitable for PCB mounting. Short circuit proof VB series design with vacuum epoxy resin moulding. Compliant with multiple international electrical safety standards.

High efficiency and low operating temperature rise ensure durability. Low noise and electromagnetic interference for sensitive electronic circuits. Manufactured in Germany under strict quality controls. Explore more PCB Transformers and power supply components in the Electronics & Electricals category at EnvMart for your industrial and laboratory applications.
