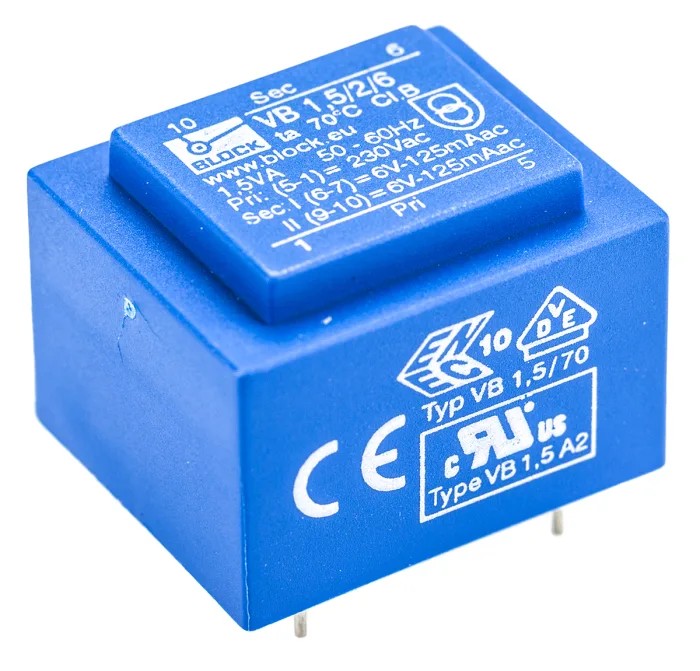

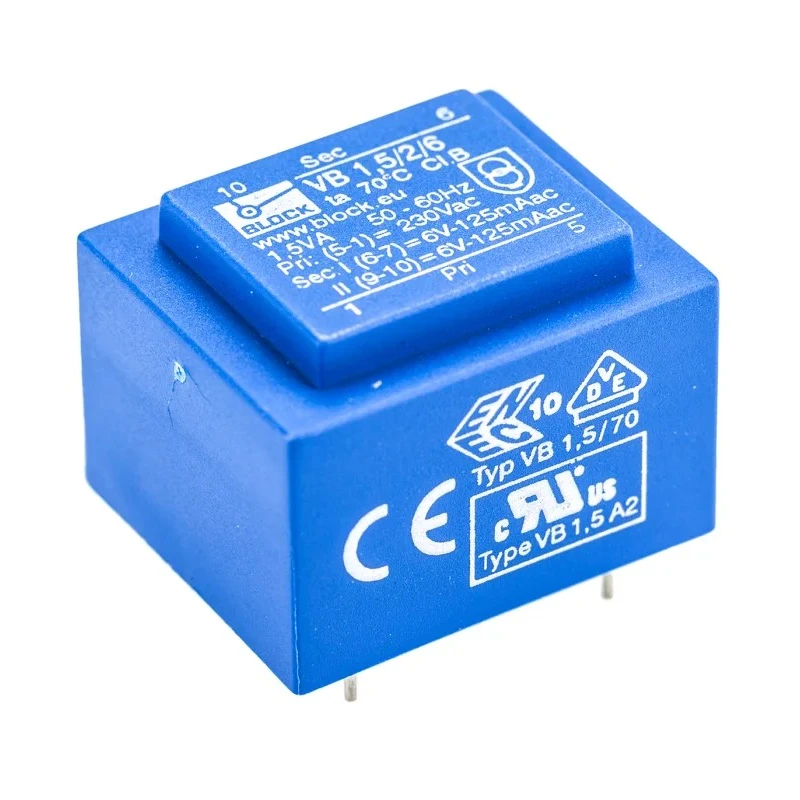

Block 6 V AC 2 Output Through Hole PCB Transformer, UL, VDE Certified, 1.5 VA VB 1.5/2/6

Block VB 1.5/2/6 is a high-quality PCB transformer designed for industrial, electronic component, and power supply applications. It provides dual secondary outputs at 6 V AC with a total power rating of 1.5 VA, making it suitable for low power transformer needs in circuitry. Its primary voltage of 230 V AC supports operation at the standard mains frequency of 50 to 60 Hz.

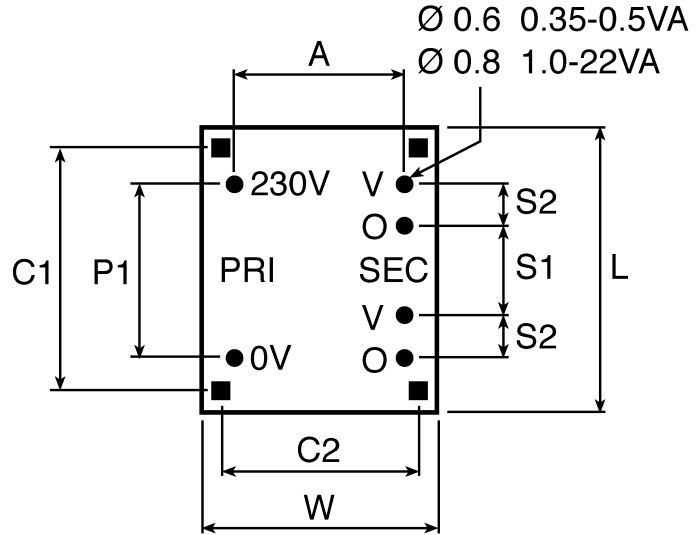

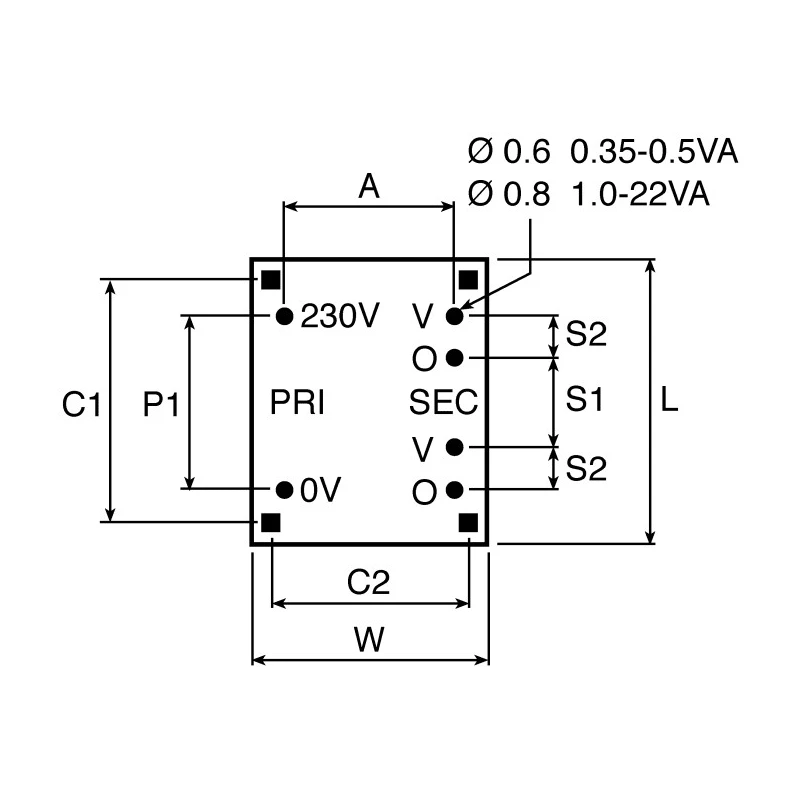

The transformer features a through-hole mount type ensuring secure and reliable board mounting. Measuring 32.3mm in length, 21.8mm in width, and 27.3mm in depth, it is compact enough for space-efficient PCB designs. The transformer is vacuum epoxy resin molded providing UL94-V0 flame retardant rating for safe electrical insulation and durability. It also uses double section glass fibre reinforced polyamide bobbins for structural integrity.

Designed to be short circuit proof, the VB series transformers operate with an efficiency of 57%, low inter-winding capacitance, and minimal radiated noise, optimizing performance in sensitive electronic environments. The maximum operating temperature rating of 70°C allows for reliable operation under typical industrial conditions. It complies with EN 61558 safety standards and is UL recognized with VDE approval, ensuring it meets stringent safety and quality requirements.

Constructed in Germany, the transformer embodies robust manufacturing standards. Its dual secondary windings allow for flexible use via series or parallel connections, tailored to design needs. This product suits applications in industrial electronics, power supply assemblies, and engineering projects requiring dependable, certified PCB transformers.

Secondary voltage of 6 V AC with two output windings for series or parallel connections. Primary voltage rated at 230 V AC, suitable for 50 to 60 Hz frequency. Through hole mount type with compact dimensions of 32.3mm length, 21.8mm width, and 27.3mm depth.

Constructed with vacuum epoxy resin molding for UL94-V0 flame retardant rating and double section glass fibre reinforced polyamide bobbins. Efficiency stands at 57% with low temperature rise and low radiated noise during operation.

Maximum operating temperature is 70°C ensuring reliable performance in typical industrial environments. Short circuit proof design with compliance to EN 61558 standards and recognized by ENEC 10 and UL. Manufactured in Germany, assuring high-quality engineering and reliability.
