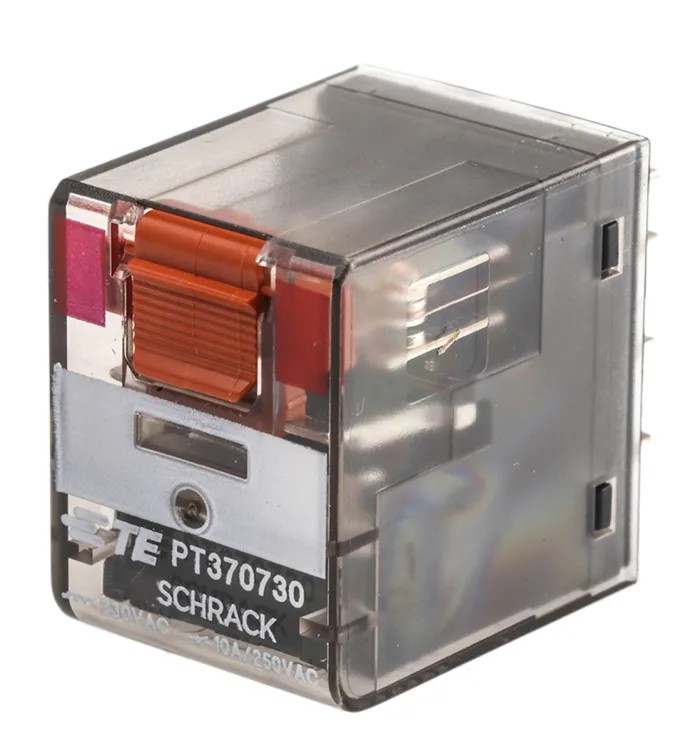

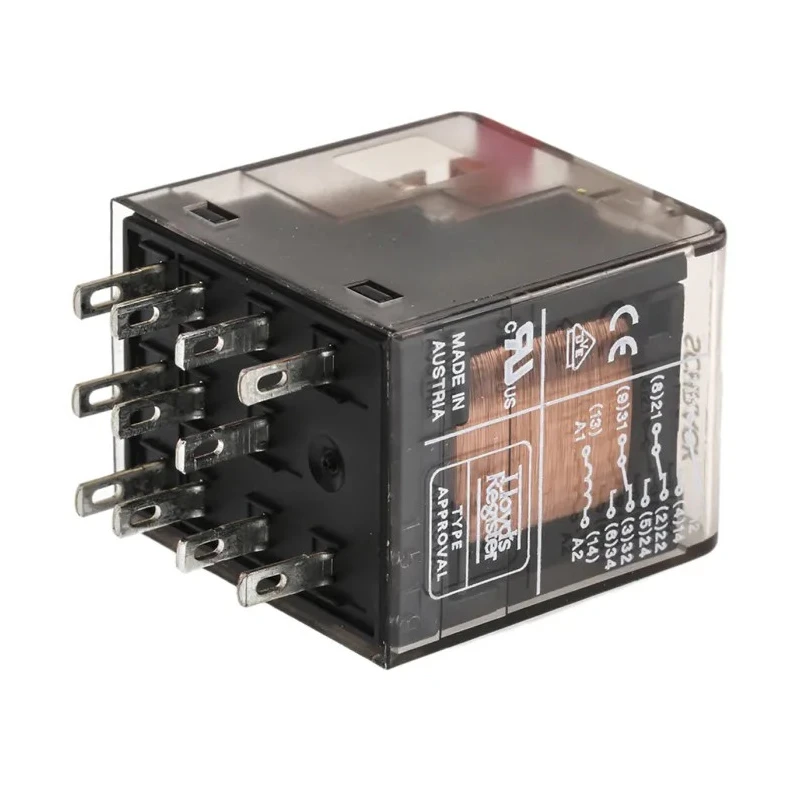

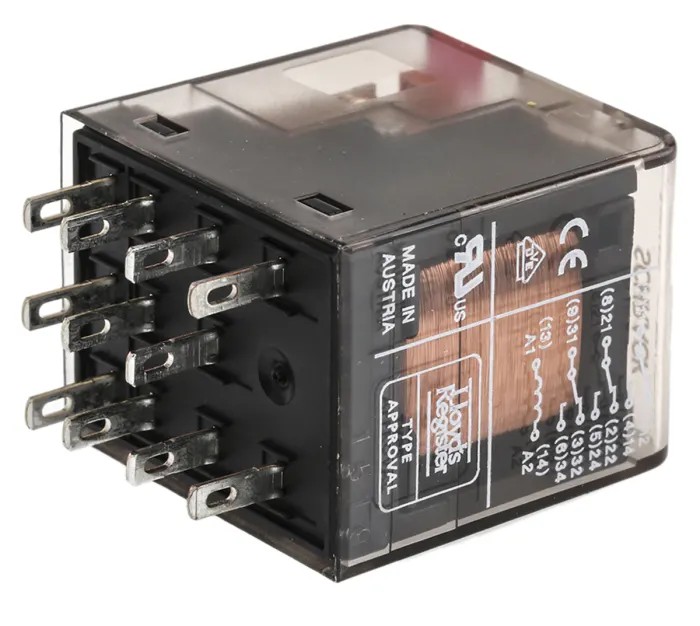

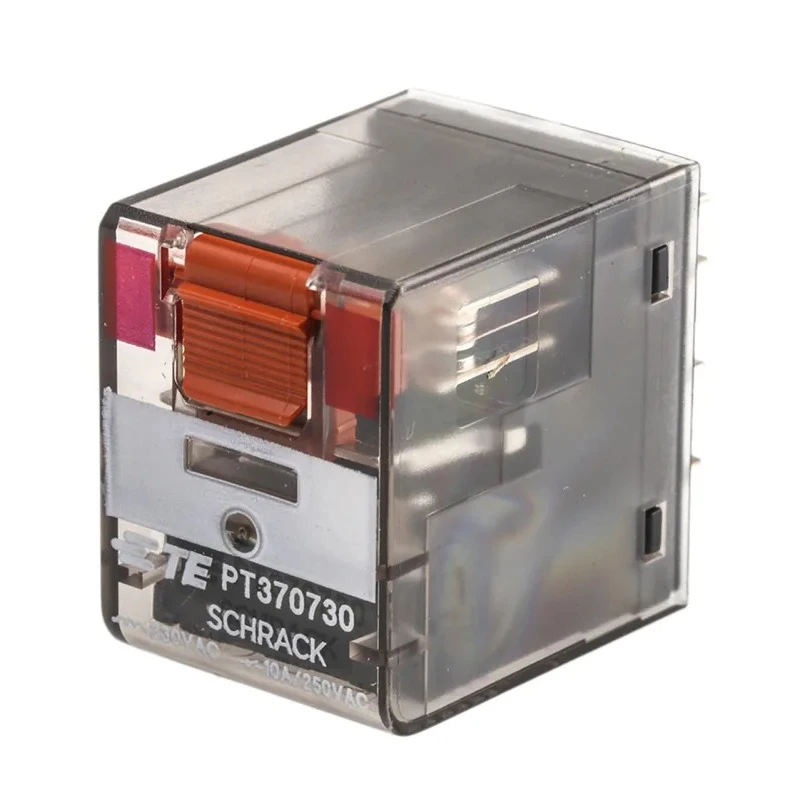

TE Connectivity Power Relay PCB Mount 230V AC Coil, 10A Switching Current, 3PDT PT370730 6-1419111-9

TE Connectivity PT370730 6-1419111-9 Power Relay is a high-performance PCB-mounted power relay with a 230V AC coil and a 10A switching current capability, featuring a 3PDT contact configuration for versatile switching applications. It is designed for use in electrical, automation, industrial control systems, and signal conditioning requiring reliable switching solutions.

This relay is part of the PT series, equipped with a mechanical indicator allowing users to visually confirm the relay status. It offers a lockable manual test facility for simplified maintenance and testing. The contacts are cadmium-free and made of silver nickel alloy, ensuring long-term durability and environmental safety.

The relay supports switching AC voltages up to 400V and power up to 2.5kVA, suitable for medium-power applications. It operates reliably within a wide temperature range of -40°C to 70°C, making it adaptable to various industrial environments.

Its compact dimensions of 35mm height, 28mm length, and 22.5mm width allow space-efficient PCB design. The coil resistance of 19.5kΩ maintains consistent coil performance, while the isolation voltage of 2.5kV (AC) between coil and contacts ensures electrical safety and robust insulation.

The PT370730 6-1419111-9 relay complies with certifications including UL, VDE, IEC, and RoHS, assuring safety, quality, and environmental compliance. It is manufactured in Austria, embodying precision engineering and stringent quality control.

Designed for PCB mounting with quick connect terminals. Mechanical indicator and lockable manual test facility included. Durable silver nickel alloy contact material with cadmium-free finish. Wide operating temperature range from -40°C to 70°C.

Supports switching AC voltage up to 400V and power rating of 2.5kVA. High coil resistance of 19.5kΩ for stable operation. Isolation coil to contact voltage of 2.5kV AC enhances operational safety. Compact size optimizes PCB space utilization.

Certified to UL, VDE, IEC, and RoHS standards.

This relay is ideal for industrial automation systems, electrical control panels, signal conditioning, and other heavy-duty switching needs in manufacturing and commercial installations. Explore more from TE Connectivity and find compatible Power Relays and automation components at EnvMart.
