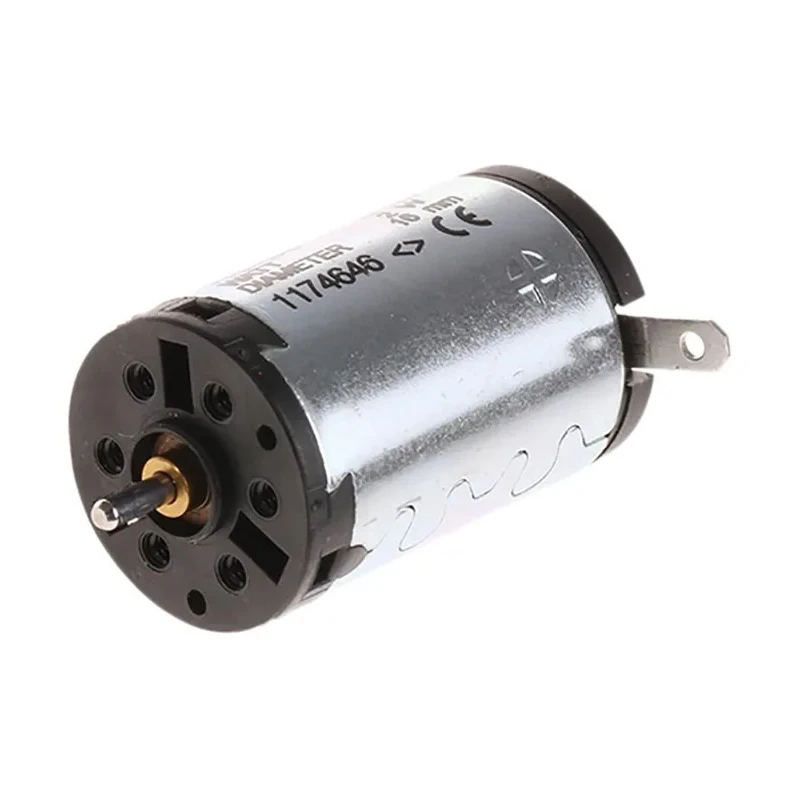

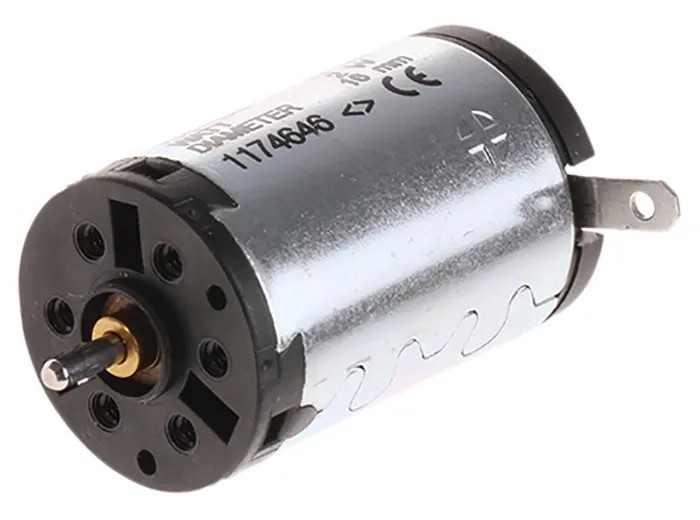

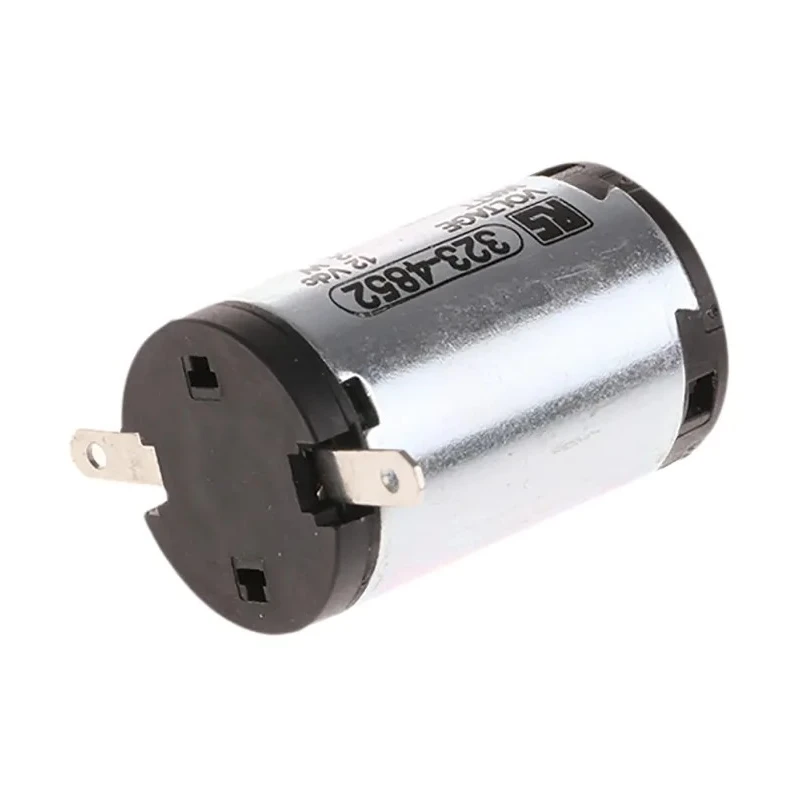

Maxon DC Motor with Precious Metal Brushes, 2 W Power, 21 V Supply Voltage, 2.14 mNm Torque, 13700 rpm Speed, 1.5 mm 110048

Maxon 110048 is a high-quality DC motor with precious metal brushes designed for precision applications requiring 2 W power output and 21 V supply voltage. This miniature 16 mm motor is engineered to be easily fitted to 16 mm and planetary gearheads, allowing quick assembly without specialized tools.

The motor features a precious metal brush commutation system that guarantees consistent and low contact resistance, improving performance reliability. The incorporated CLL disc plays a crucial role in reducing arcing between the brushes and commutator, which is a primary factor in brush wear. This results in longer motor life, reduced electrical noise, and overall improved efficiency.

Constructed with a steel shaft and ironless core, the motor offers low inertia and low mechanical time constant, enabling rapid acceleration and maintaining high speed stability. Its power rating is 2 W with an output speed of 13700 rpm and a maximum torque of 2.14 mNm. The shaft diameter measures 1.5 mm with a shaft length of 4.3 mm, and the motor length is 25.4 mm with a width and depth of 16 mm each. The motor is mounted via screws and complies with required standards, ensuring robust mechanical integration.

This Maxon DC motor is ideal for battery-powered devices and precise servo applications where linear speed-torque characteristics and high efficiency are needed. Its low current consumption, rated at 153 mA, makes it suitable for energy-sensitive equipment. Originating from Switzerland, the motor is part of the Maxon Modular System series, representing quality and advanced engineering.

Compact and miniature size enhances installation versatility. Precious metal brush system ensures reliable commutation performance. CLL disc reduces brush wear and electrical noise significantly. Low inertia and ironless core for rapid acceleration and stable operation.

Steel shaft provides strength and durability. Compatible with planetary gearheads for easy gear assembly. High efficiency suitable for battery and servo applications.
