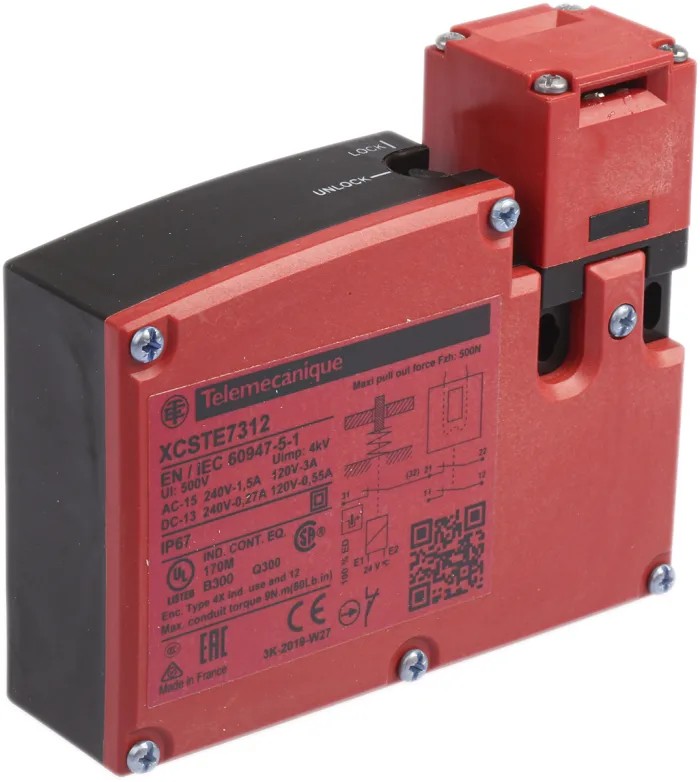

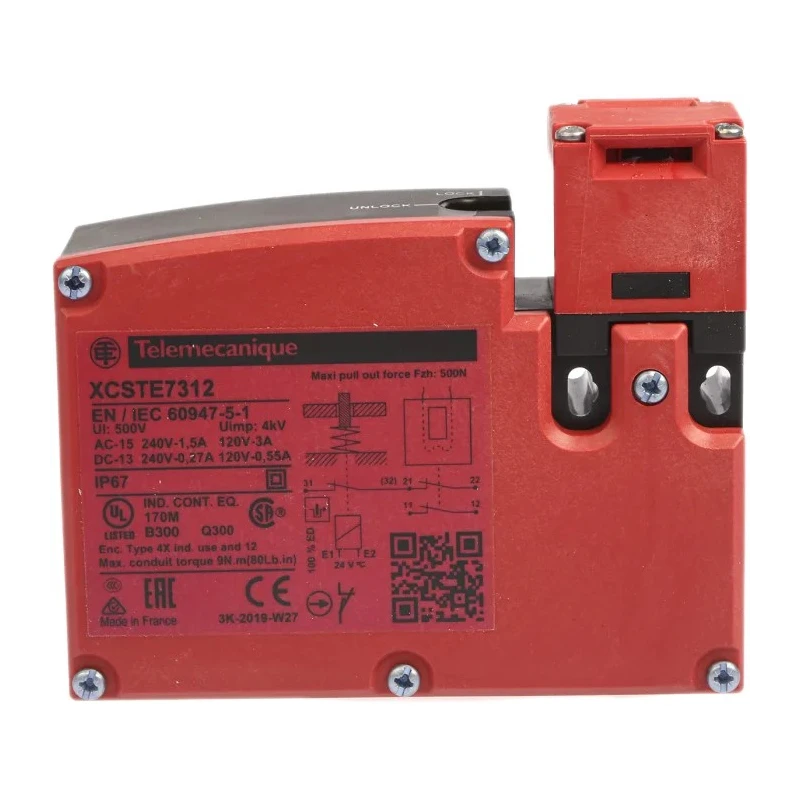

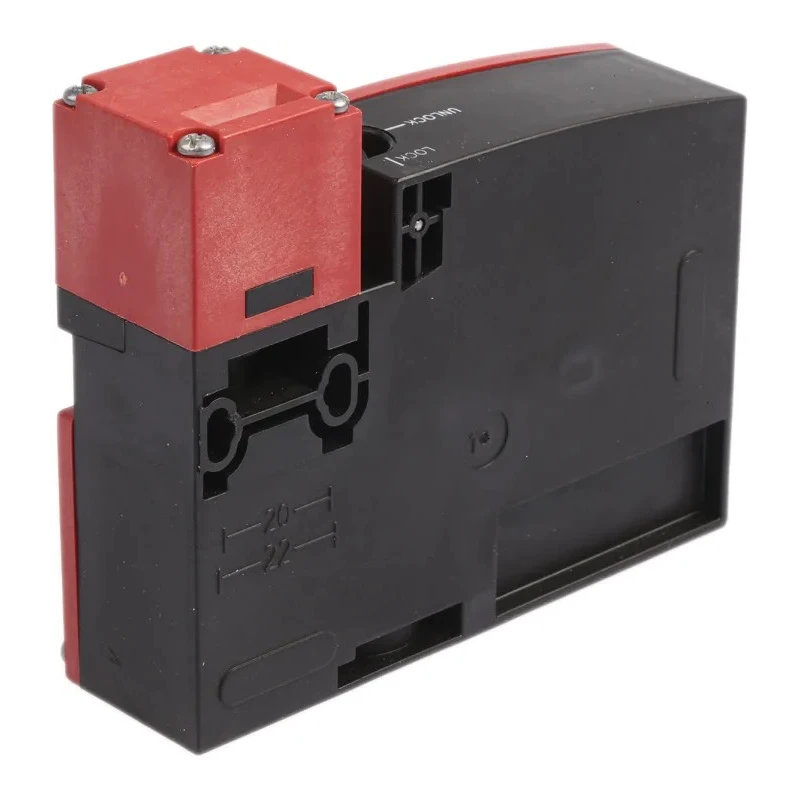

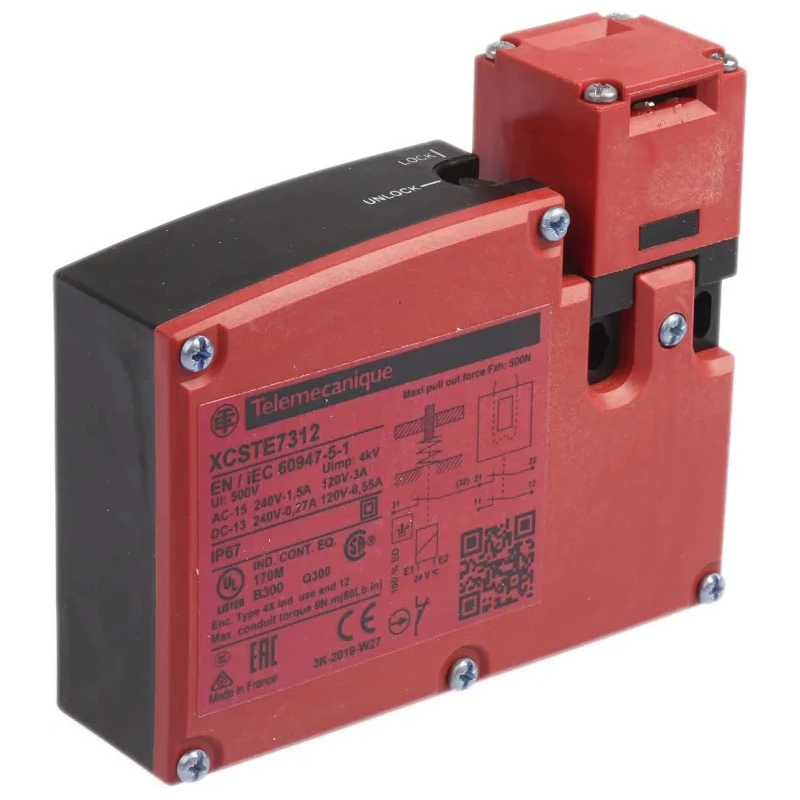

Telemecanique Sensors XCS-TE Series Solenoid Interlock Switch Power to Unlock 24V AC/DC 10VA XCSTE7312

Telemecanique Sensors XCSTE7312 Solenoid Interlock Switch Power to Unlock is engineered for machinery safety applications requiring guard interlocking and controlled access. The device operates at 24V AC/DC voltage with a continuous solenoid power consumption of 10VA, providing secure and reliable unlocking when energized.

This solenoid interlock switch features two normally closed (NC) safety contacts that enable positive opening on guard access, complemented by eight auxiliary contacts for enhanced control flexibility. The key operated turret head allows authorised override operations, enhancing operational safety and convenience.

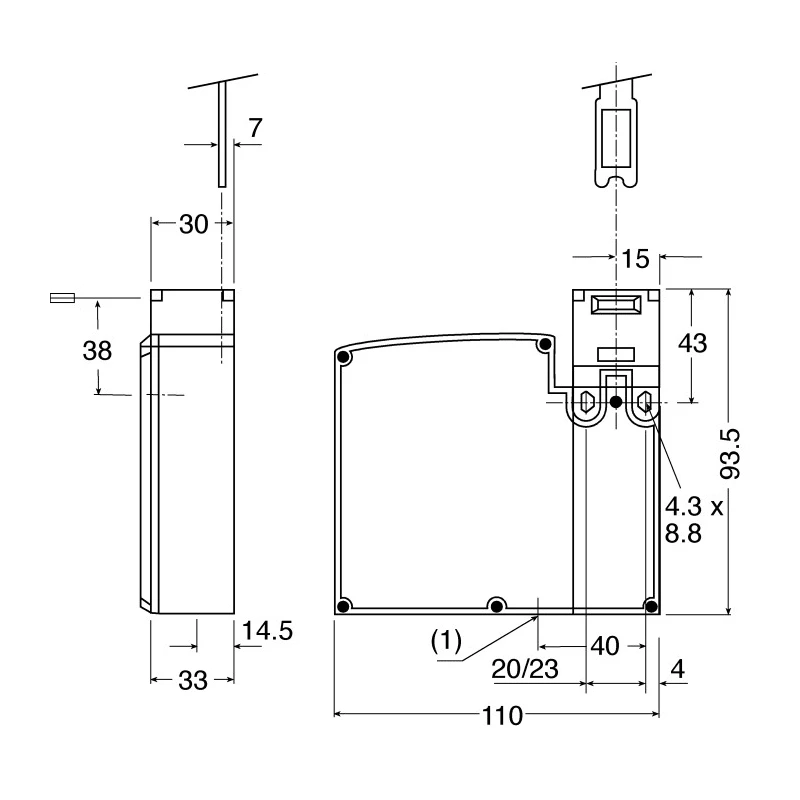

Manufactured with robust plastic (PA Polyamide) housing, the XCSTE7312 ensures IP67 protection against dust and water ingress, suitable for harsh industrial environments. Its compact rectangular design, measuring 110 mm in depth, 93.5 mm in length, and 33 mm in width, facilitates easy installation in constrained spaces. The device includes an M16 conduit entry and terminal clamping for secure wiring connections.

Certified to meet stringent safety and quality standards including EN/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, and UL 508, the XCSTE7312 offers guaranteed compliance for industrial safety requirements. It is ideal for light duty industrial machines and equipment requiring interlock guard protections to prevent hazardous access during operation.

The solenoid continuously rated at 10VA maintains a stable power supply with voltage limits of -20% to +10%, including ripple on DC. The switch head's turret can be rotated through 360° in 90° increments, enabling versatile mounting and actuator orientation options. Mechanical life is rated up to one million cycles, assuring long-term reliability.

Typical use cases involve integration within factory automation, construction machinery, and safety control panels where operator protection and equipment safeguarding are critical. The XCSTE7312 Solenoid Interlock Switch supports safety detection, interlocking, locking, and authorised release functions to comply with industrial safety protocols.

The switch features a power to unlock solenoid mechanism for enhanced safety. Equipped with 2 normally closed safety contacts and 8 auxiliary contacts for control integration. Constructed with durable plastic housing and rated IP67 for dust and water protection.

Compact dimensions: 110 mm depth, 93.5 mm length, and 33 mm width. Compliance with EN/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, and UL 508 safety standards. Designed for key operated turret heads and M16 conduit entry with terminal clamping.

Mechanical life expectancy up to 1,000,000 cycles ensuring reliability. Operating temperature range from -25°C to 60°C suitable for industrial environments. Explore more safety and interlock switch options from Telemecanique Sensors in the Electronics & Electricals category on EnvMart for your industrial automation needs.
