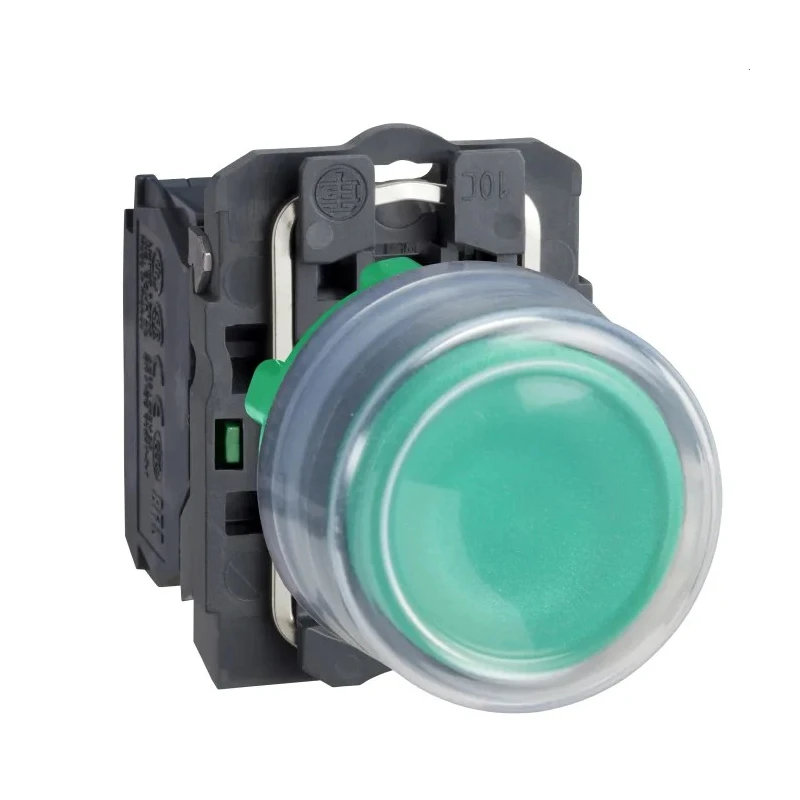

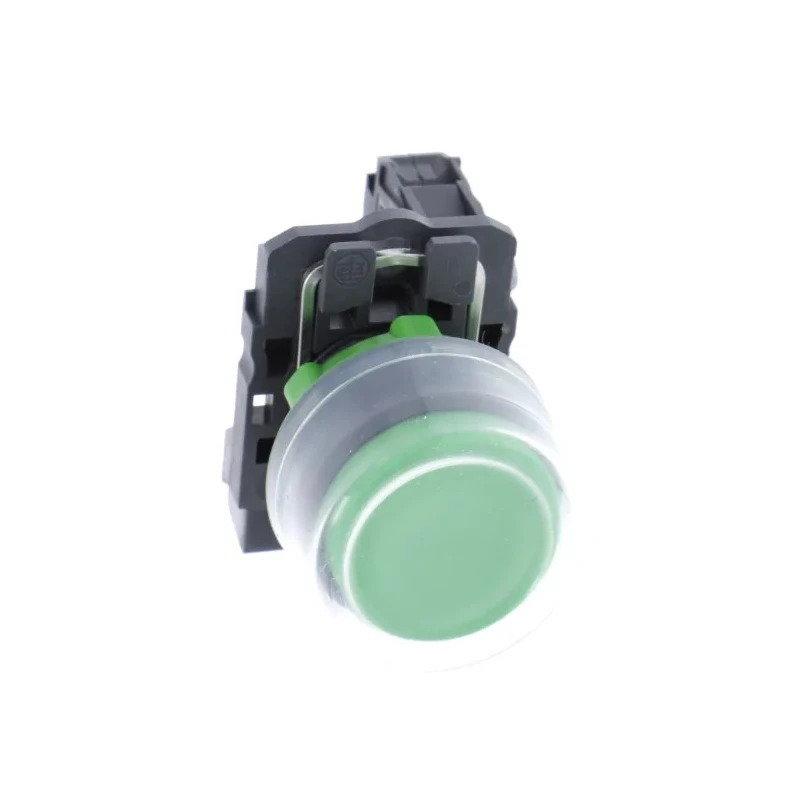

Schneider Electric Harmony XB5 Series 22 mm Panel Mount Push Button Switch SPST Spring Return Green LED IP66 XB5AP31
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Height | 42mm |
| Length | 61mm |
| Model | XB5AP31 |
| IP Rating | IP66, IP67, IP69, IP69K |
| Width | 30mm |
| Mount Type | Panel |
| Series | Harmony XB5 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -25°C |
| Panel Cutout Size | 22 mm |
| Terminal type | Screw |
| LED Colour | Green |
| Switch Operation | Spring Return |
| Actuator Colour | Green |
| Contact DC Voltage | 600V |
| Actuator Style | Round |
| Switch Contact Current | 3A |
| Better World Claim | Repairable by the End User |
| Legend | Blank |
Key Features
- Compact 22 mm panel cutout size fits standard installation requirements.
- Spring return mechanism offers immediate reset after activation.
- Rated for 600V contact voltage with 3A contact current capacity.
- IP66, IP67, IP69, and IP69K rated for excellent dust and water resistance.
- Durable plastic construction with round green actuator for long-lasting performance.
- Suitable for harsh environments with operating temperature range from -25°C to 70°C.
- Screw clamp terminals support up to 2 x 1.5 mm² wires for secure connections.
- Repairable by the end user supporting sustainable usage.
Product Description
Schneider Electric XB5AP31 Harmony XB5 Series Push Button Switch features a 22 mm diameter panel cutout for mounting and a spring return actuator style. This green, round push button switch provides a single pole single throw (SPST) contact configuration rated at 600V and 3A suitable for various control panel applications.
Constructed from durable plastic materials, it ensures longevity and reliability even in demanding industrial environments. The device offers IP66, IP67, IP69, and IP69K certifications making it highly resistant to dust ingress, water jets, and high-pressure washdowns. Operating in temperatures ranging from -25°C to 70°C, the switch is suitable for a broad range of industrial and manufacturing conditions.
The green LED actuator color makes it ideal for status indication and easy recognition in panel controls. Screw clamp terminals enable secure wire connections compatible with standard cable sizes up to 2 x 1.5 mm².
This push button is commonly used in automation systems, machinery control panels, electrical installations exposed to moisture and dust, manufacturing processes, and other commercial or industrial equipment requiring reliable switching functions.
Compact 22 mm mounting diameter fits standard installation requirements. Spring return mechanism provides immediate reset after activation. Rated at 600V for versatility in electrical applications. IP66, IP67, IP69, IP69K rated for dust and water resistance.
Constructed from durable plastic for improved longevity in industrial use. Screw clamp terminals allow easy connections with different wire sizes. Operating temperature range from -25°C to 70°C ensures broad usability. Single Normally Open (1 NO) contact type design for smooth circuit interruption.
Repairable by the end user to support sustainability.
It is ideal for use in industrial automation, manufacturing, electrical control panels, and environments exposed to dust and moisture where durable reliable push button switches are required. Its compliance with international IP standards and robust construction make it suitable for harsh conditions and demanding industrial applications.
Explore our range of industrial Push Button Switches and components to find compatible and complementary products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a single pole single throw (SPST) contact configuration.
The maximum operating temperature for this switch is 70°C.
It is rated IP66, IP67, IP69, and IP69K, providing excellent resistance to dust and water.
The required panel cutout size for this switch is 22 mm.
It uses screw clamp terminals, which support up to 2 x 1.5 mm² wires for secure connections.
The contact current capacity is rated at 3A.
The dimensions of this switch are 42 mm in height, 30 mm in width, and 61 mm in length.
It features a round actuator style with a green LED color for easy recognition.
This switch is suitable for harsh environments, including industrial automation and manufacturing processes, due to its durability and IP ratings.
The minimum operating temperature is -25°C.
Yes, it is designed to be repairable by the end user, supporting sustainable usage.
The contact voltage rating is 600V, making it versatile for various electrical applications.
