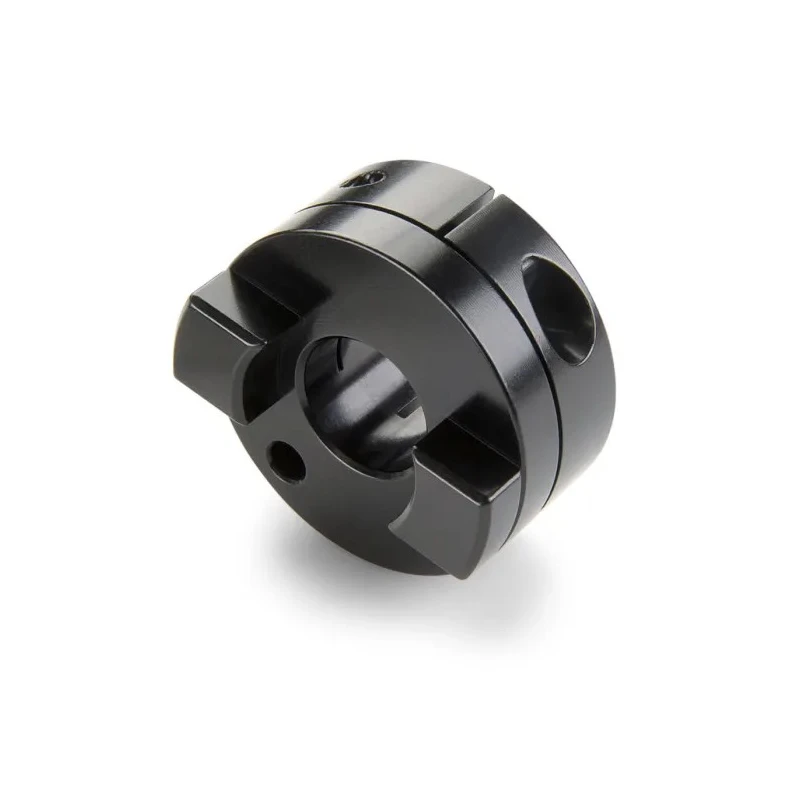

Ruland Aluminium Clamp Style Oldham Coupler 25.4mm OD, 6.35mm Bore, 11.86mm Hub Length OCT16-4-A
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Ruland |
| Material | Aluminium |
| Model | OCT16-4-A |
| Maximum Speed | 4500rpm |
| Outside diameter | 25.4mm |
| Bore Diameter | 6.35mm |
| Bore Type | Finished with No Keyway |
| Standards/Approvals | RoHS, REACH |
| Misalignment - Angular | 0.5° |
| Misalignment - Parallel | 0.2mm |
| Misalignment - Axial | 0.1mm |
| Hub Length | 11.86mm |
| Securing | 13mm and 19mm anodised aluminium hubs are secured to the shafts with one set screw on each end. 33mm, 35mm and 41mm hubs have 2 set screws set 90° apart |
Key Features
- Constructed from anodised aluminium for lightweight durability.
- Clamp style hub design allows secure attachment with set screws.
- Accommodates small axial, angular, and parallel misalignments efficiently.
- Maximum operating speed up to 4500 rpm suitable for motion control applications.
- Bore finished with no keyway for specific shaft fitting requirements.
- Complies with RoHS and REACH standards ensuring environmental compliance.
- Designed for light industrial and motion control applications including servo and stepper motors.
- Two hubs and one torque disc required per complete assembly.
Product Description
Ruland OCT16-4-A Clamp Style Oldham Coupler is an aluminium mechanical coupling designed to connect shafts with slight misalignments. Featuring a 25.4 mm outside diameter, 6.35 mm bore diameter finished with no keyway bore, and a hub length of 11.86 mm, this coupling offers robust performance with a maximum speed rating of 4500 rpm.
The clamp style hubs are anodised black aluminium, providing a lightweight yet sturdy structure. The unique three-piece Oldham design consists of two hubs connected via a replaceable centre torque disc made of acetal or nylon, enabling axial, angular, and parallel misalignments to be accommodated, making it suitable for precise motion control systems such as servo and stepper motor applications.
This coupling style improves machinery protection by acting as a torque limiter; the centre discs are engineered to break cleanly under torque overload, preventing damage to connected equipment. The securing mechanism uses set screws on anodised aluminium hubs, with one set screw for 13 mm and 19 mm hubs and two set screws spaced 90° apart on larger hubs.
The product complies with RoHS and REACH directives, ensuring environmental safety. It is manufactured in the United States under stringent quality control for industrial and light manufacturing environments.

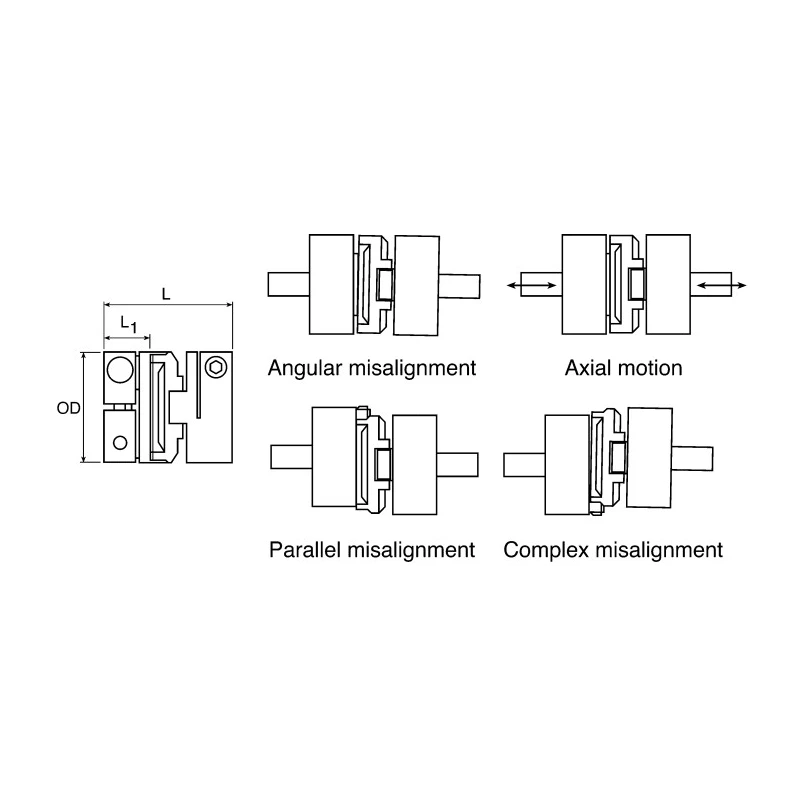

Constructed from anodised aluminium hubs for strength and corrosion resistance. Clamp style attachment with set screws for secure shaft coupling. Designed for small angular (0.5°), parallel (0.2 mm), and axial (0.1 mm) misalignments.
Maximum speed capability of 4500 rpm supports high-speed operations. Replaceable centre discs provide torque overload protection by clean breakage. Compliance with RoHS and REACH standards is guaranteed. Suitable for light industrial use, motion control, and servo motor coupling.
Requires two hubs and one torque disc for each full coupling assembly. Manufactured in the United States for reliable industrial quality.
This coupling is ideal for industrial, laboratory, manufacturing, and motion control applications requiring precision and reliable mechanical power transmission. Explore more flexible couplings and related mechanical power transmission components available in the EnvMart catalog to meet your mechanical assembly needs.
Explore more products in our Flexible Coupler category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum speed rating of this coupler is 4500 rpm, making it suitable for high-speed operations in motion control applications.
The bore diameter of this model is 6.35 mm, and the outside diameter is 25.4 mm.
This coupler can accommodate small angular misalignments of up to 0.5°, parallel misalignments of 0.2 mm, and axial misalignments of 0.1 mm, making it effective for connecting shafts with slight misalignments.
It is constructed from anodised aluminium, providing a lightweight yet durable design, and the centre torque disc can be made from acetal or nylon.
The securing mechanism uses set screws; 13 mm and 19 mm hubs have one set screw each, while larger hubs (33 mm, 35 mm, and 41 mm) have two set screws spaced 90° apart for secure attachment.
This coupler complies with RoHS and REACH standards, ensuring environmental safety and compliance.
The hub length of this coupler is 11.86 mm, allowing for effective connection between shafts.
The replaceable centre torque disc provides torque overload protection by breaking cleanly under excessive torque, thus preventing damage to connected equipment.
It is designed for light industrial use, motion control applications, and is suitable for connecting servo and stepper motors.
A complete assembly requires two hubs and one torque disc.
This coupler is manufactured in the United States under stringent quality control standards.
The bore is finished with no keyway, allowing for specific shaft fitting requirements.
