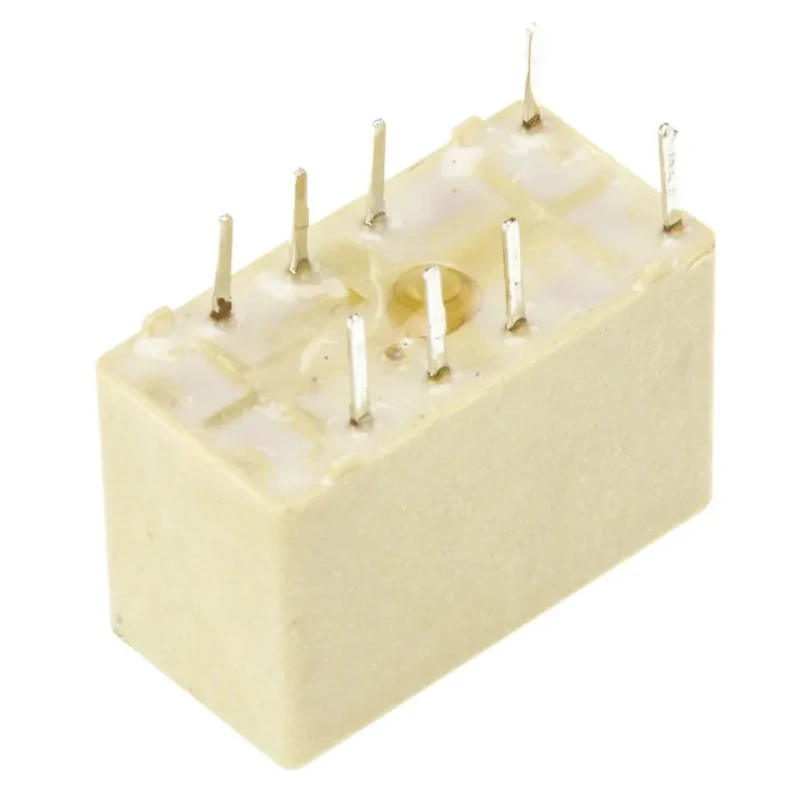

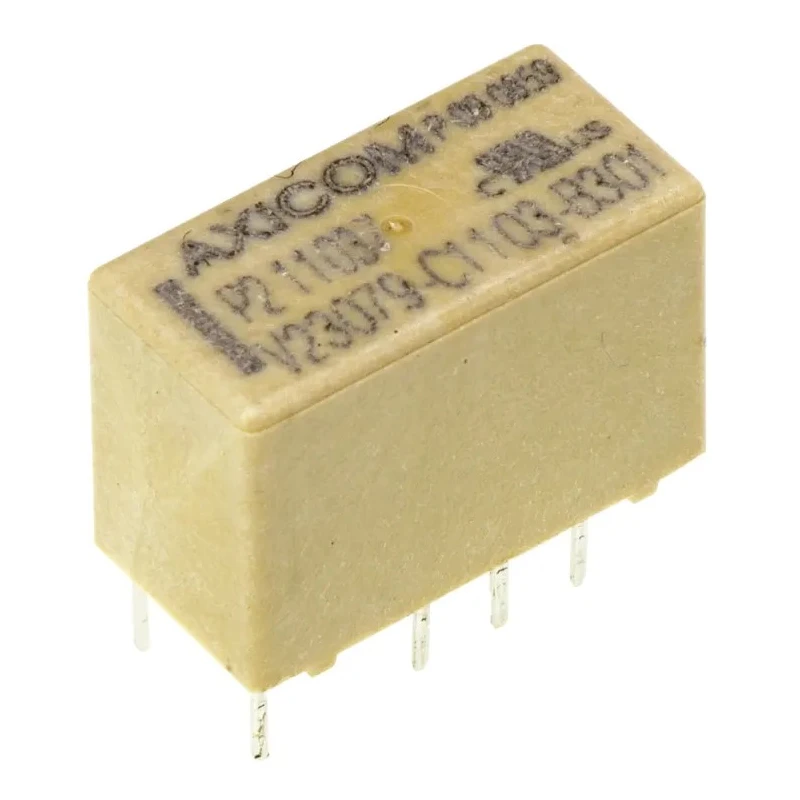

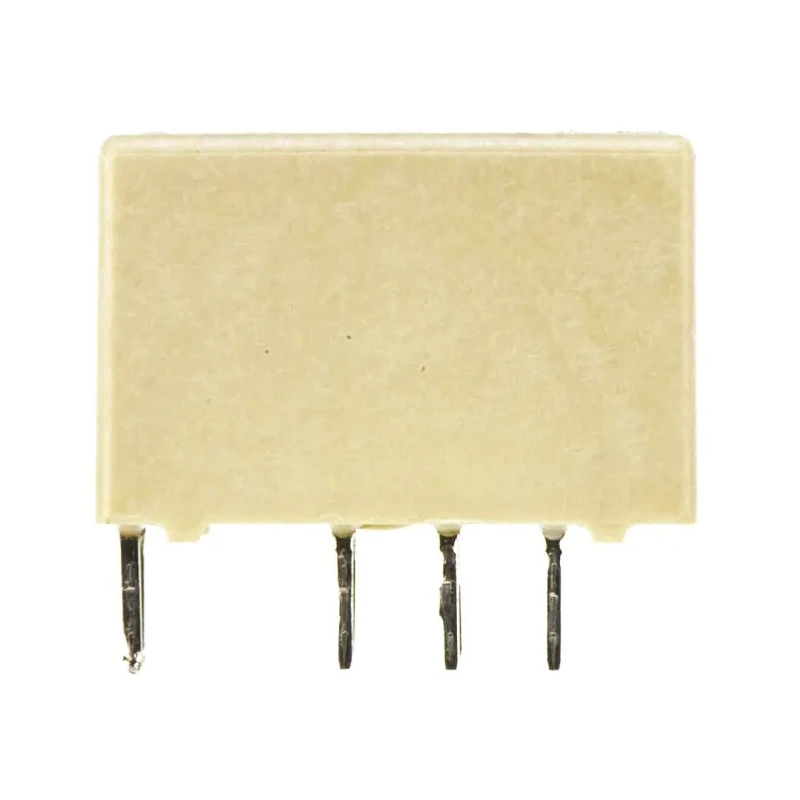

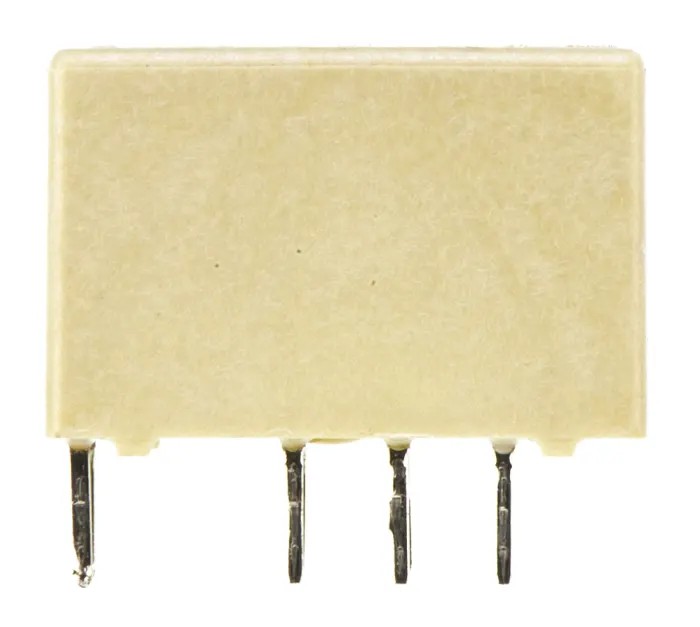

TE Connectivity PCB Signal Relay 12V DC Coil 2A DPDT Axicom V23079C1103B301
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 9.8mm |
| Length | 14.5mm |
| Model | V23079C1103B301 |
| Width | 7.2mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | Axicom |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 1029Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 140mW |
Key Features
- Miniature Axicom series with low power consumption.
- Gold-plated bifurcated contacts ensure excellent conductivity.
- Immersion cleanable with IP67 rating and V-0 flammability classification.
- Operates in wide temperature range from -40°C to 85°C.
- Coil power consumption is only 140mW for energy efficient performance.
- Surge capability compliant with Telcordia and IEC standards.
- Designed for PCB mounting with solder type terminals.
- Ideal for telecom, communications, and control equipment applications.
Product Description
TE Connectivity V23079C1103B301 PCB Signal Relay is a high sensitivity miniature relay from the Axicom P2 series, designed to operate at 12V DC coil voltage with a switching current capacity of 2A. This DPDT relay features gold-plated bifurcated contacts and is suitable for PCB mounting with solder terminals.
The relay’s slim and low-profile design saves space on printed circuit boards and offers a coil resistance of 1029Ω with a coil power consumption of 140mW, ensuring energy efficiency. It can reliably switch AC voltages up to 250V and DC voltages up to 220V, making it versatile for various electronic systems.
The Axicom V23079 series relays provide immersion cleaning capability with RTIII and achieve an IP67 protection rating, along with a V-0 flammability classification for enhanced safety. The relay operates effectively over a wide temperature range from -40°C to 85°C and withstands insulation resistance greater than 10⁹ Ω at 500V DC.
Surge withstand capability is compliant with Telcordia TR-NWT-001089 and IEC 60950 standards, supporting durability under transient voltages. Its compact dimensions of 14.5mm length, 9.8mm height, and 7.2mm width make it fitting for space-constrained industrial and telecommunications applications.
This relay is ideal for use in communications equipment such as PABX and VOIP systems, consumer electronics including Set Top Boxes and HiFi devices, office and control equipment, as well as medical and automotive technology.
Miniature Axicom series with low power consumption. Gold-plated bifurcated contacts for excellent conductivity and durability. Immersion cleanable, RTIII rated with IP67 ingress protection. Wide operating temperature range from -40°C to 85°C.
Energy efficient 140mW coil power consumption. Meets Telcordia and IEC surge withstand standards. Suitable for PCB solder mounting. Robust insulation resistance exceeding 10⁹ Ω at 500V DC. Small and compact dimensions for tight circuit layouts.
Applications in Communications, Consumer Electronics, Office, Medical, and Automotive industries. Explore the extensive range of Signal Relays and related electronic components at EnvMart for reliable industrial and commercial electrical design solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 12V DC.
This relay has a maximum switching current capacity of 2A.
The dimensions of this relay are 14.5mm in length, 9.8mm in height, and 7.2mm in width.
The contact configuration of this model is DPDT (Double Pole Double Throw).
The coil resistance of this relay is 1029Ω.
This relay operates effectively over a temperature range from -40°C to 85°C.
This relay is designed with solder type terminals for PCB mounting.
The coil power consumption for this relay is 140mW.
It can switch AC voltages up to 250V and DC voltages up to 220V.
Yes, it meets RoHS standards and has surge withstand capability compliant with Telcordia and IEC standards.
The contacts of this relay are made of gold-plated material for excellent conductivity.
This relay is suitable for applications in telecommunications, consumer electronics, office equipment, medical technology, and automotive systems.
