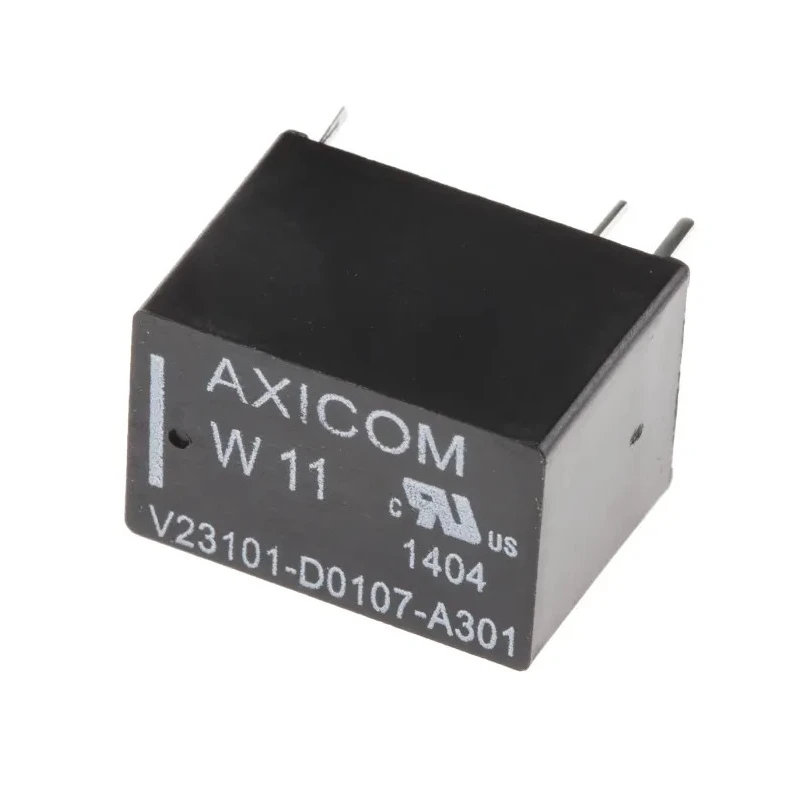

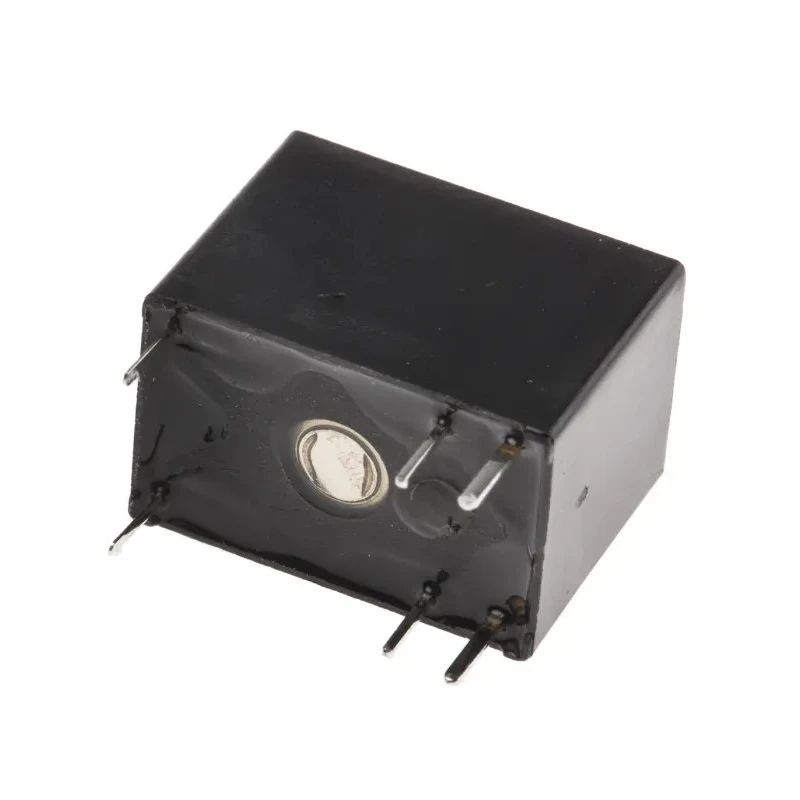

TE Connectivity PCB Signal Relay 24V dc Coil 3A SPST V23101D 107A301
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Dimensions | 11.5mm x 10.5mm x 15.5mm |
| Height | 11.5mm |
| Length | 15.4mm |
| Model | V23101D 107A301 |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | IM |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 3A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 2880Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 120V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 200mW |
| Pin Length | 3.5mm |
| TE Connectivity PCB Signal Relay, 24V dc Coil, 3A, SPSTBrand | TE Connectivity |
Key Features
- Compact PCB mount relay suitable for signal switching applications.
- Operating temperature range from -40°C to 85°C for reliability in harsh environments.
- Gold plated contacts ensure excellent conductivity and durability.
- Coil resistance of 2880Ω with a coil power of 200mW for efficient operation.
- High switching voltages of up to 125V AC and 120V DC supported.
- Fully sealed construction offers high shock and vibration resistance.
- Terminal type is solder for secure electrical connection to PCB.
Product Description
TE Connectivity V23101D 107A301 PCB Signal Relay is a high-quality, fully sealed single-pole, single-throw (SPST) relay designed for efficient signal switching in industrial and electronic applications. This relay operates with a 24V DC coil voltage and supports a switching current of 3A, making it suitable for control circuits requiring reliable performance under varying environmental conditions.
With gold plated contacts, the relay ensures low contact resistance and high conductivity, promoting longevity and consistent switching. The coil resistance is precisely 2880Ω with a low coil power consumption of 200mW, providing energy-efficient operation. Its compact dimensions of 11.5mm height, 10mm width, and 15.4mm length make it ideal for dense PCB layouts, while a 3.5mm pin length facilitates easy solder mounting.
The relay supports maximum switching voltages of 125V AC and 120V DC, accommodating a wide variety of signal control demands. Its operating temperature range of -40°C to +85°C ensures stable operation under extreme thermal conditions. The relay is constructed to resist shock and vibration, adhering to RoHS compliance standards, which assures environmental safety and high quality.
This product is extensively used in industrial automation, electronics manufacturing, and control systems for signal conditioning tasks. It is suitable for PCB mounting in compact electronic assemblies with stringent space and reliability requirements. The SPST contact configuration allows simple on/off control of circuits.
Compact PCB mount design optimized for signal switching. Gold plated contacts enhance conductivity and durability. Operating temperature range from -40°C to 85°C guarantees robustness. Low coil power of 200mW ensures efficient use of energy.
Fully sealed structure provides shock and vibration resistance. Supports switching voltages up to 125V AC and 120V DC. RoHS compliant for environmentally safe use. Explore the range of Te Connectivity relays and signal conditioning components available at EnvMart for industrial and electronic applications requiring precision and reliability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage for this relay is 24V DC.
It supports a maximum switching voltage of 125V AC and 120V DC.
This relay has a switching current rating of 3A.
The dimensions of this relay are 11.5mm in height, 10mm in width, and 15.4mm in length.
It features a single-pole, single-throw (SPST) contact configuration.
The coil resistance is 2880Ω.
The operating temperature range is from -40°C to +85°C.
It uses solder type terminals for secure electrical connection to the PCB.
Yes, this relay is RoHS compliant, ensuring it meets environmental safety standards.
The coil power consumption is 200mW.
The gold plated contacts enhance conductivity and durability, promoting longevity and consistent switching performance.
This relay is typically used in industrial automation, electronics manufacturing, and control systems for signal conditioning tasks.
