Phoenix Contact UTI 16 Series DIN Rail Terminal Block Grey, 25mm², 6mm², 1-Level, Screw Termination 3073827

Free Delivery in India | Lowest Global Shipping Charges

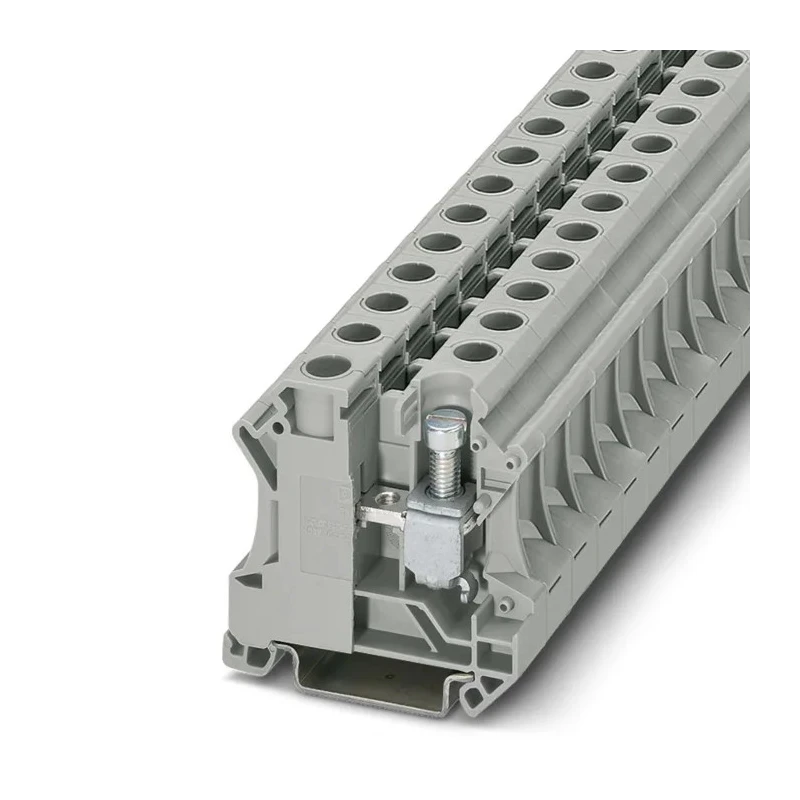

Phoenix Contact UTI 16 Series DIN Rail Terminal Block Grey, 25mm², 6mm², 1-Level, Screw Termination 3073827

Name: Phoenix Contact UTI 16 Series DIN Rail Terminal Block Grey, 25mm², 6mm², 1-Level, Screw Termination 3073827
Brand: PHOENIX CONTACT
SKU: 324173
Price: 20.22 USD
Availability: InStock



Category DIN Rail Terminal Block Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	India
Voltage	400V
Brand	Phoenix Contact
Colour	Grey
Model	3073827
Series	UTI 16
Termination Type	Screw
Number of Levels	1
Number of Positions	10
Sub Type	Feed Through
Pitch	12.2mm
Standards/Approvals	EAC, IEC 60947-7-1
Minimum Wire Size AWG	10AWG
Maximum Wire Size AWG	4AWG
Cable CSA	25, 6mm²
Terminal Block Current	76A

Key Features

The terminal block supports a maximum current of 76A.
It operates at 400V voltage rating suitable for industrial applications.
The pitch between terminals is 12.2mm, ensuring compact mounting.
The design features a low profile height of 58mm on a standard TS35 DIN rail.
The body is made from durable UL94-V2 rated polyamide material.
Supports standard phase wiring colors for ease of identification.
Includes quick install bus bar options to reduce installation time.
The product complies with EAC and IEC 60947-7-1 standards.

Product Description

Phoenix Contact 3073827 UTI 16 Series DIN Rail Terminal Block is a high-quality, grey feed-through terminal block designed for industrial and electrical applications. It features a single level with screw termination to provide secure electrical connections.

With a voltage rating of 400V and a terminal block current capacity of 76A, this terminal block is suitable for heavy-duty power installations and control systems. The block supports a cable cross-section area of 25mm² and 6mm², accommodating a wide range of wire sizes from 10 AWG to 4 AWG.

The product features a pitch of 12.2mm between each terminal, and its low profile design of 58mm height fits neatly on standard TS35 DIN rails, optimizing space in electrical cabinets and control panels. The durable polyamide construction is UL94-V2 rated for flame retardance, ensuring safety and longevity in demanding environments.

Compliance with EAC and IEC 60947-7-1 standards makes this terminal block reliable for use in industrial automation, manufacturing, electrical enclosures, and power distribution systems. The product also supports quick bus bar installation options, reducing assembly time on site.

Ideal for electrical engineers and technicians, this terminal block facilitates organized wiring with standard phase wiring color coding and a robust screw termination that ensures solid mechanical retention and electrical contact.

The terminal block supports a maximum current of 76A. Operates at 400V voltage rating, ensuring compatibility with industrial power systems. Features a 12.2mm pitch for compact terminal arrangement. Low profile height of 58mm optimizes panel space.

Made from UL94-V2 flame retardant polyamide for safety and durability. Supports conductor cross-sections up to 25mm² and 6mm² with screw termination. Meets EAC and IEC 60947-7-1 standards for quality assurance. Designed for fast installation with quick bus bar options.

Suitable for industrial, manufacturing, electrical enclosure, and automation use cases. Wire size compatibility ranges from 10 AWG to 4 AWG. For comprehensive electrical connection solutions, refer to EnvMart's broad range of DIN Rail Terminal Blocks and related products.
