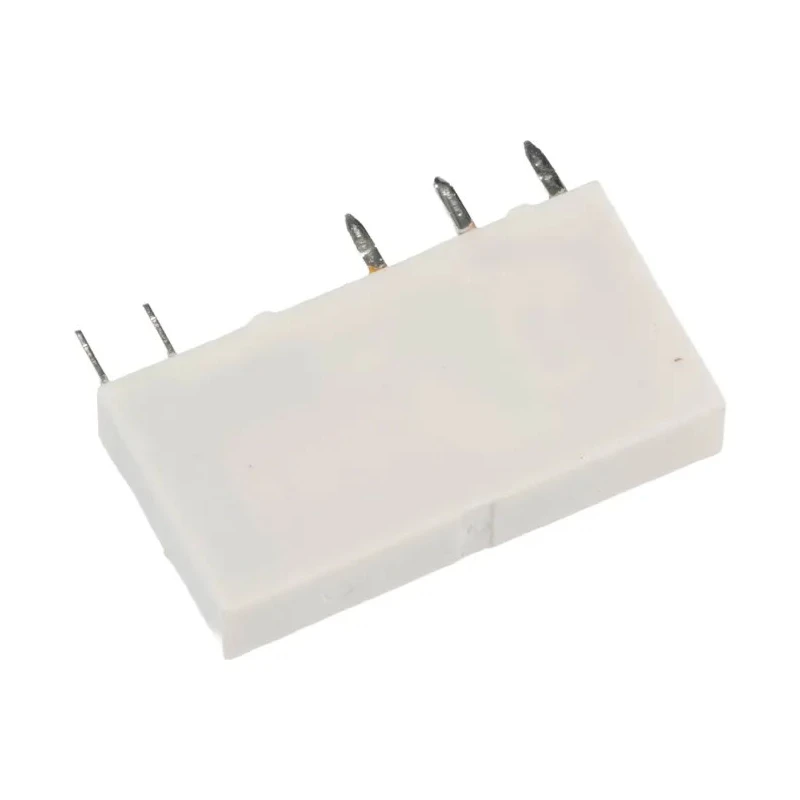

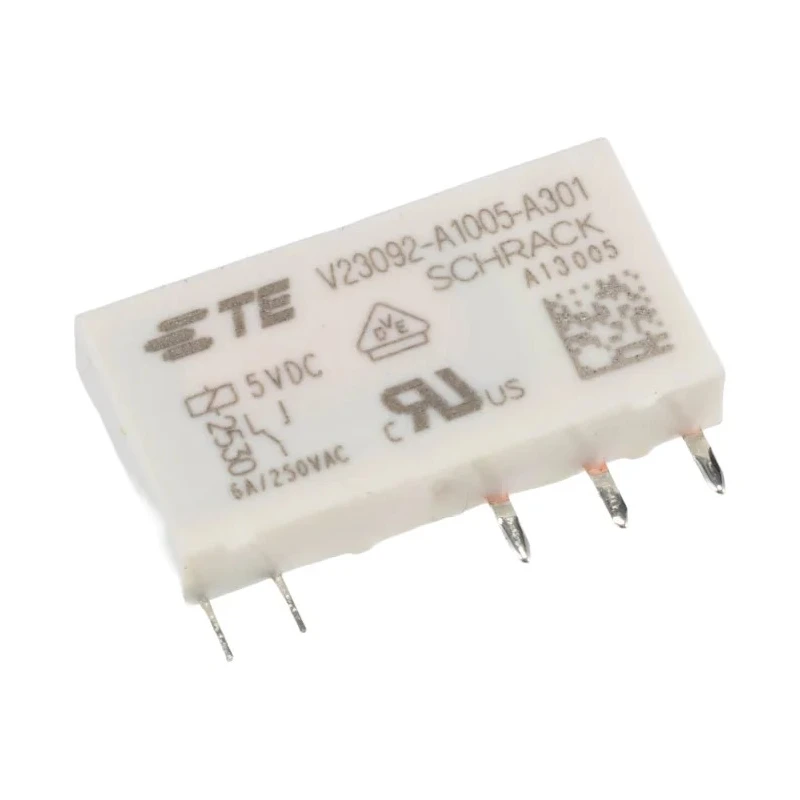

TE Connectivity PCB Power Relay 5V dc Coil 6A Switching Current SPDT V23092-A1005-A301

TE Connectivity V23092-A1005-A301 is a high-quality PCB Power Relay designed for electrical and automation applications. It operates with a coil voltage of 5V DC and supports a switching current of 6A, featuring an SPDT (Single Pole Double Throw) contact configuration. The compact design with a slim 5mm thickness allows for high-density PCB installations in industrial control and signal conditioning circuits.

With a coil power consumption of just 170mW, this relay is efficient and well-suited for energy-conscious designs. It performs reliably within temperatures ranging from -40°C to +85°C, making it ideal for various harsh industrial environments including HVAC, manufacturing automation, and instrumentation.

The relay supports switching AC voltage up to 400V AC and switching power of 1.5kVA, ensuring functionality in demanding power control applications. Silver alloy contact material enhances conductivity and extends relay life. The solder-type terminals and PCB mount facilitate straightforward and secure integration into circuit boards.

Its coil resistance of 147Ω stabilizes coil current and switching characteristics, and it provides robust electrical isolation of 4000Vac between coil and contacts to prevent interference and ensure user safety.

TE Connectivity's V23092-A1005-A301 complies with international standards including UL, CSA, VDE, China RoHS, EU RoHS/ELV, IEC 61810-1, and REACH, ensuring reliability and environmental compliance for professional industrial and laboratory applications.

This PCB power relay has a 5V DC coil voltage and supports 6A switching current. Compact and slim design with 5mm thickness allows for dense PCB layouts. Low coil power of 170mW offers efficient energy usage. Operates in a wide temperature range from -40°C to +85°C.

Switching power rated at 1.5kVA with a maximum 400V AC switching voltage. Silver alloy contacts provide reliable and durable electrical connections. PCB mount with solder terminal type ensures secure installation. Coil resistance is 147Ω, supporting stable coil performance.

Electrical isolation of 4000Vac between coil and contacts enhances safety. Conforms to multiple global safety and environmental standards.

This relay is ideal for industrial automation, electrical control systems, signal conditioning, manufacturing equipment, and other commercial applications requiring reliable power switching performance. Explore EnvMart's comprehensive range of Power Relays and related components for trusted high-quality solutions.
